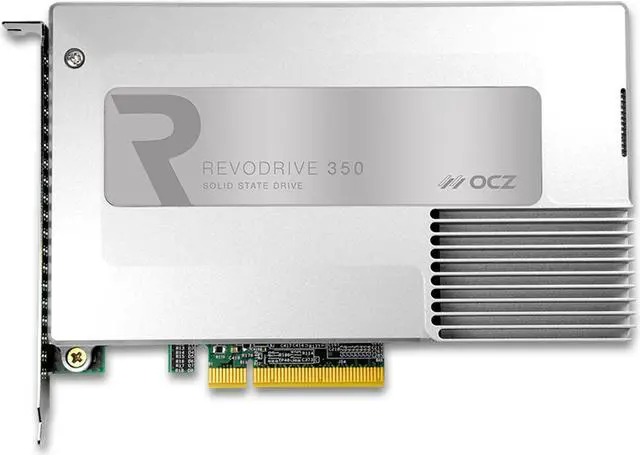

OCZ RevoDrive 350 Series 960GB PCI-Express 2.0 x8 MLC Internal Solid State Drive (SSD) RVD350-FHPX28-960G
- 960GB
- PCI-Express 2.0 x8
Overview
Specs
Reviews (3)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
RevoDrive 350
Ground-up, redesigned drives for ultimate performance efficiency
New, sleek integrated heatsink provides a more stable and cooler thermal SSD environment
More available bandwidth (PCI Express Gen. 2 x8)
Design based on enterprise-grade OCZ Z-Drive 4500
Leverages premium Toshiba NAND; more affordable for gamers and enthusiasts
Meet Revo 350: Specifications
PERFORMANCE
PPHYSICAL SPECIFICATIONS
RELIABILITY SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
| 240GB | 480GB | 960GB | |
| Model | RVD350-FHPX28-240G | RVD350-FHPX28-480G | RVD350-FHPX28-960G |
|---|---|---|---|
| Max Read | 1000MBps | 1800MBps | 1800MBps |
| Max Write | 950MBps | 1700MBps | 1700MBps |
| Max Random Read IOPS (4K QD32) | 45,000 | 90,000 | 135,000 |
| Max Random Write IOPS (4K QD32) | 80,000 | 140,000 | 140,000 |
PPHYSICAL SPECIFICATIONS

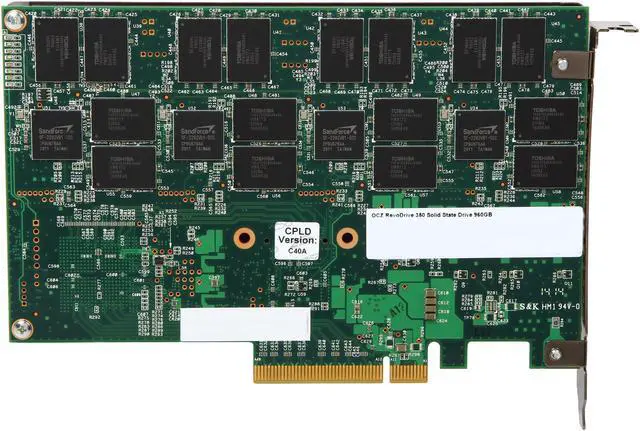

| Controller | LSI SandForce 2282 (x2 on 240GB; x4 on 480GB/960GB) with VCA 2.0 Technology |
|---|---|
| NAND Components | 19nm Toshiba Multi-Level Cell (MLC) Flash |
| Interface | PCI Express Gen. 2 x8 |
| Form Factor | Full Height, Half Length |
RELIABILITY SPECIFICATIONS
| Encryption | 128-bit AES-compliant |
|---|---|
| Product Health Monitoring | Self-Monitoring, Analysis and Reporting Technology (SMART) |
| Endurance | Rated for 50GB/day of host writes for 3 years under typical client workloads |
ENVIRONMENTAL SPECIFICATIONS
| Power Consumption | Idle: 9.5W | Active: 14.0W (480GB capacity) |
|---|---|
| Operating Temperature | 32 - 131°F (0 - 55°C) |
| Airflow | 300LFM @ 131°F (55°C) |
| Shock Resistance | 500G / 0.5ms |
| Vibration (Operational) | 2.17 Grms (7 - 800Hz) |
| Vibration (Non-operational) | 3.13 Grms (8 - 800Hz) |
Revo 350 = Proven Architecture
The new Revo 350 is built using proven technology with added benefit of utilizing in-house Toshiba flash memory for optimal product availability and pricing
Implements OCZ's Virtualized Controller Architecture™ (VCA) which effectively makes the multicontroller design appear and act as a single drive to the host system
Virtualized Controller Architecture
- Provides a multifaceted virtualization layer that interfaces with the host system
- Features internal storage controller delivering highly efficient performance aggregation while reducing the burden on host resources
- Extends NAND flash life at a block level
- Manages redundancy
- Enables TRIM command support and SMART health monitoring
