Question 1

Does this case support HDMI?

Accepted Answer

I don't fully understand your question.. This is just a computer case, there are no internal components pre-installed into it other than a fan, USBs. The support for HDMI depends on what motherboard and / or graphics card you decide to install into this case..Otherwise it is just an empty case.

Question 2

What's the behavior of the power LED strip when the computer is suspended or asleep? Does it blink or change color?

Accepted Answer

I'm not certain if that functionality is controlled by the motherboard or by the case.  For my computer, the LED is off when the computer is asleep.  Pressing a key will cause the computer to wake up and the LED to glow red.

Question 3

Does this case allow a Cooler Master Hyper 212 Plus , AMD FX-6300 , GA-lmt78-USB3 rev. 5 to fit?

Accepted Answer

I wanna say it's too big, I measured 5.5 inches to the case panel cover, the hyper 212 on new egg says 158.5mm high, about 6.2 inches. I don;t know what I have installed, but i'm about half inch from the panel cover.

Question 4

It looks like there are mounting holes for a larger fan at the back where the stock 80mm fan is.  Would a 120mm radiator fit there?

Accepted Answer

No, I don't remember the size it will support but the only spot for a 120 is upfront behind the grill. This is a nice case tho.. Just compact.

Question 5

This case says (for Motherboard compatability): 9.6”x9.6”(Micro ATX),Mini-ITX. Does this mean it will use any Micro ATX or Mini-ITX or does it need to be 9.6 x9.6?
Sorry if this is a dumb question. Building my first computer. Any help would be appreciated. (Perhaps a computer building basics website?

Accepted Answer

If it says microATX it will fit any of those.  I put two different uATX motherboards in this case,  they fit fine.

Question 6

What Watt PSU does it come with?

Accepted Answer

None. This is only the case. However this case is Glorious even without the PSU.

Question 7

Would the MSI B750TI-DGD5 video card fit in this case? The dimensions of the video card are 8.3 x 4.7 x 1.3 inches (212 x 120 x 34mm). Thanks!

Accepted Answer

Yeah, the one I built for my client contains an XFX Radeon HD7750 card with similar dimensions. Fit just fine, with perhaps an inch or so to spare. Go for it... should work out just fine.

Question 8

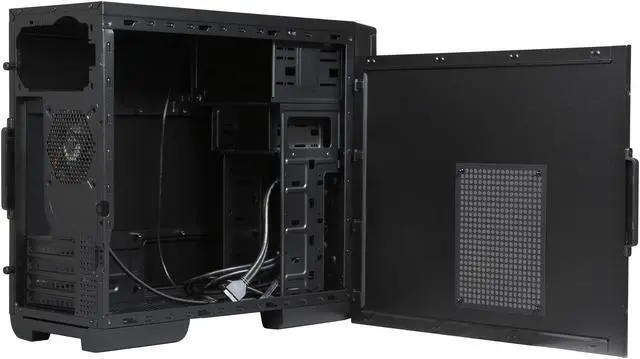

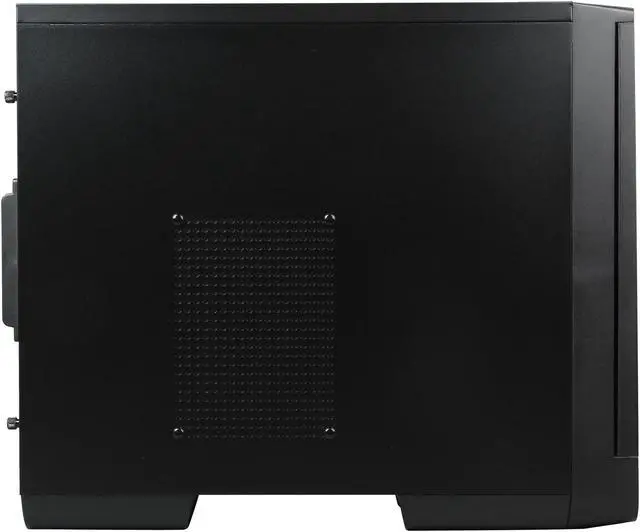

Is there a filter for the side intake vent?

Is the bottom filter easily removed?

Accepted Answer

Yes, there is a filter on the side vent.  The bottom filter is fairly easy to remove, but you do have to bend it a little to get it free.  Do not hesitate to buy this case!

Question 9

Can you change the color of the led on the front panel?

Accepted Answer

Absolutely... not.

Question 10

Says 5 internal 3.5 and 1 external 3.5 is that external being double counted or can I stick 6 3.5" hdds in it?

Accepted Answer

It appears that you could however I would not due to heat concerns. It is a nice case but a bit on the fragile side. I would go SSD if possible.
YMMV.

Brand	Thermaltake
Model	CA-1A8-00M1NN-00

Type	Micro ATX Mini Tower
Color	Black
Case Material	SECC
With Power Supply	Standard PS2 PSU (optional)
Motherboard Compatibility	9.6”x9.6”(Micro ATX),Mini-ITX
Side Panel Window	No
Dust Filters	Yes

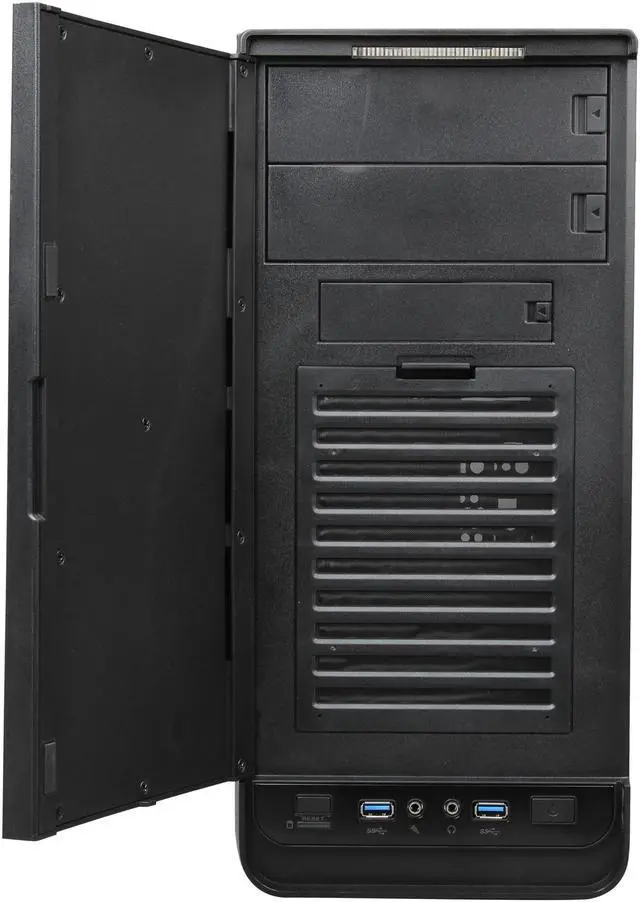

External 5.25" Drive Bays	2
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	5
Internal 2.5" Drive Bays	1
Expansion Slots	4

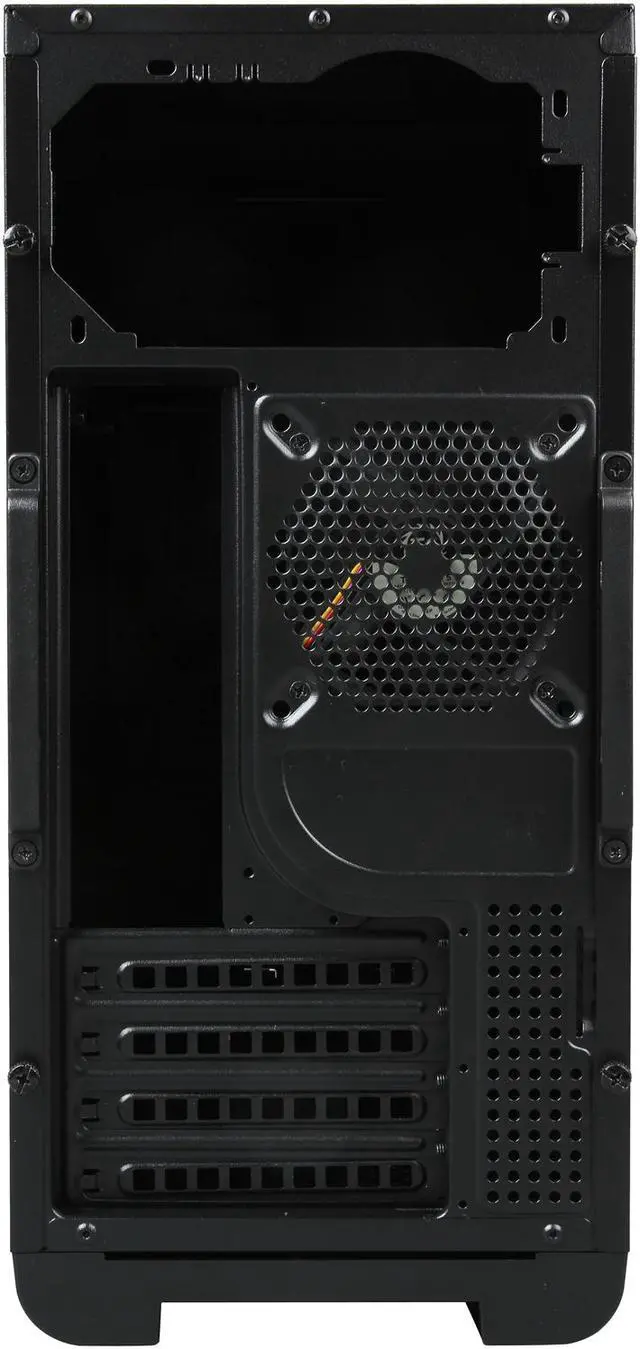

80mm Fans	Rear (exhaust) : 80 x 80 x 25 mm fan (1500rpm,20dBA)
120mm Fans	Front (intake) :(optional) 120 x 120 x 25 mm fan

Dimensions	15.40" x 7.10" x 18.40"
Weight	9.00 lbs.

Meet Your Seller

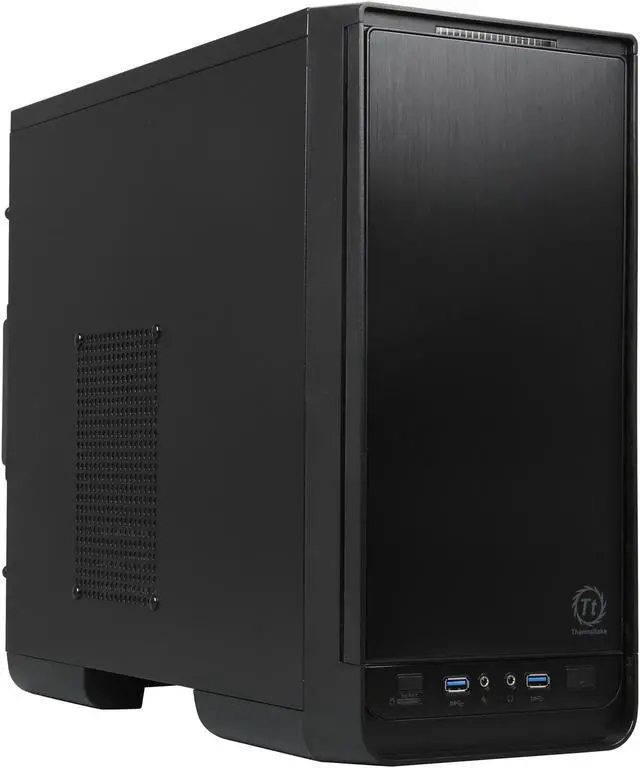

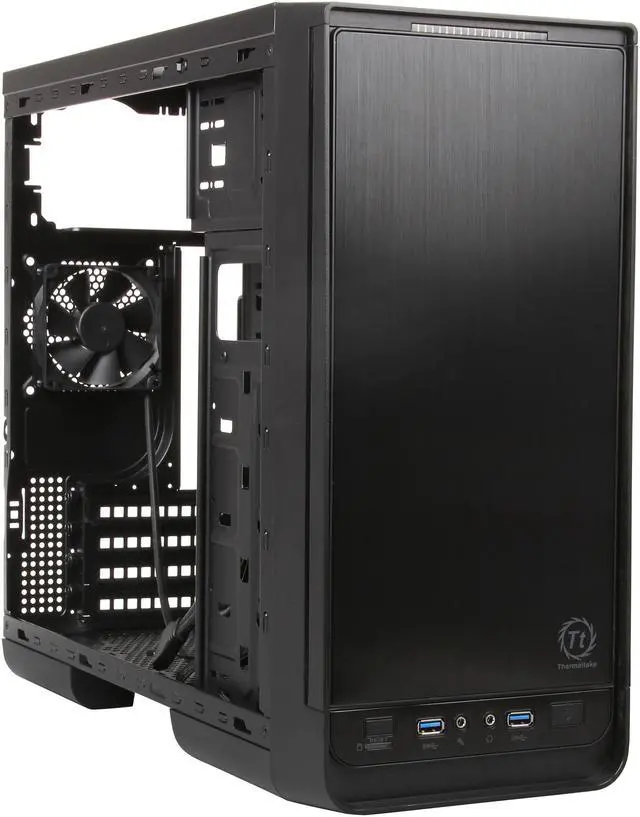

Thermaltake Urban S1 Black SECC MicroATX Mini Tower Computer Case (CA-1A8-00M1NN-00)
