How many SATA 6.0 Gb/s drives can I hook up to this board?

You can put 6 drives to the board. I have 10 drives with a card. I have a m.2 and that is great. do backups because of windows up date. They do not works.

What about Pci-e risers , is it work for this MOBO? And how many GPU can support biostar racing Z170GT7 ?

Have used pci risers with no problem. Can support 7 cards using Pci Express slots and PCI risers. Personally, have had 4 PCI express cards running at same time at 100% usage.

How is this board for overclocking ?

I have a lot of them but I use them for mining coins. They can run 24/7/365 with high power draw. As for oc for gaming I have not tested them at all.

Do i need to update bios version to use kabylake? If so, how can i check my bios version? Should I enter BIOS settings to check my bios version? or is there a way to check it out?

Yes you will need to update the bios to use kaby lake on this z170 board. You can check the bios upon boot or from biostar software. That being said good luck this brand is pretty crap

Should I have to update BIOS to use Kabylake CPU?

I think so. be careful. Check to see if there is one.

Is white included in the RGB color scheme?

I'm fairly sure it is if you set the brightness up to max with the LED software. Their website has a simulation of colors for the board as well and white is included.

Do you have any issue with the software?

No, works as expected on my system.

This looks like a board for sim racers; are there any features that might be relevant to such a demographic?

It's just branding. It's no different than any other similarly equipped Z170 motherboard without dual Nvidia graphics support. It's one really unique feature is the 256 color LED selection and good price point.

$109^.99

Free 30-day Returns

Limit 99999 per customer.

Ships from China.

Price alert

Add to wish list

Sold by DoDo DIY

Top Rated

4 (744 seller ratings)

Shipped by DoDo DIY

Best Sellers

Smith's Computer Market

Top Rated

3.9 (131 total ratings)

$114^.99
+ FREE SHIPPING

Meet Your Seller

DoDo DIY

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

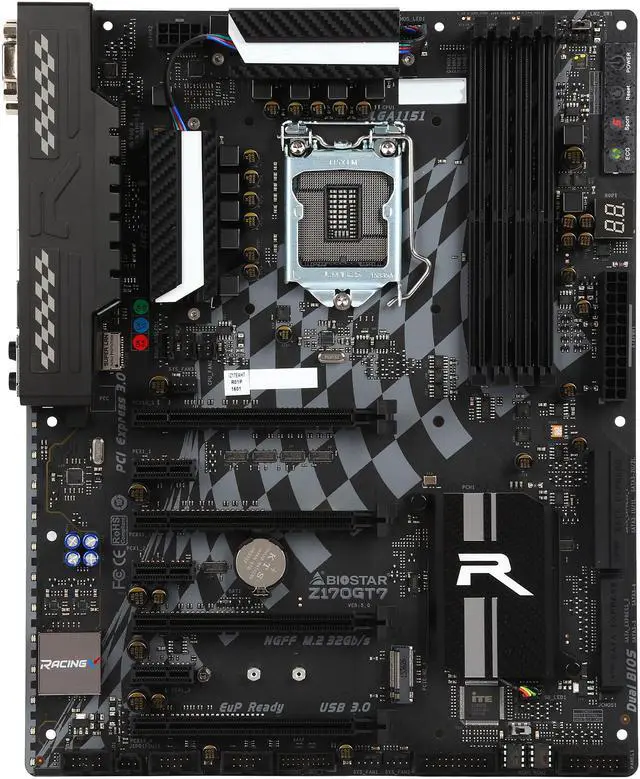

Main image of BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

100%

Alt view image 3 of 5 - BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 4 of 5 - BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 5 of 5 - BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Alt view image 6 of 5 - BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

360^°

Shop All Biostar Products | Visit DoDo DIY Store

BIOSTAR RACING Z170GT7 LGA 1151 Intel Z170 HDMI USB 3.1 USB 3.0 ATX Intel Motherboard

Used - Very Good

The item is in very good condition. The BIOS has been upgraded to the latest version.Tested,only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

Intel Z170
Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
DDR4 3200(OC)/ 2133/ 1866

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Beyond Better, Racing to the Future! - RACING Z170GT7

Support for 6th Gen Intel Core Processors, enables overclocking on Unlocked Intel Core Processors
Intel Z170 single chip architecture
Support 4-DIMM DDR4-3200(OC)/ 2133/ 1866 up to 64G maximum capacity
BIOSTAR Hi-Fi Technology inside
Support USB 3.1 Type-C
Support PCIe M.2(32Gb/s)
Support SATA Express(16Gb/s)
Support HDMI true 4K resolution

BIOSTAR is proud to introduce the flagship of the new RACING series: RACING Z170GT7 motherboard. Flaunting the new Super 5 Design Concept, the RACING Z170GT7 flaunts the best of the BIOSTAR RACING series together with its latest motherboard design features including Vivid LED DJ, the all new RACING IO armor, carbon-fiber design treatment on the heatsink, checkered flag PCB print on a matte black surface treatment and Titanium-color RACING audio shielding.

The BIOSTAR RACING Z170GT7 features support the latest Intel 6th-generation Core processors featuring the Intel Z170 chipset. The board supports up to four DDR4 memory modules of speeds up to DDR4-3200 (OC) with capacities of up to 64GB.

VIDEO

SUPER FUN

Interesting DIY Design

BIOSTAR Racing motherboard comes with the exclusive 5050 LED FUN feature for DIY lovers. You can connect LED strip with on-board 5050 header directly and control it via Vivid LED DJ.

You can control and modify the colour of LED on MOS heatsink and on the edge of board. When you play music, it can perform LED light show, following melody. Moreover, Vivid LED DJ features options for designing LED visual effect, including Normal, Eco, and Sports mode on your own. Racing Series with Vivid LED DJ make your PC a coolest gaming base ever.

SUPER FACE

RACING Style
Z170GT7

RACING IO Armor
Checkered Flag Silk-screen Print
Matte Black PCB
Titanium Audio Shielding
Carbon Fiber like Heatsink

SUPER POWER

Powerful HW Design

Super Durable Ferrite Choke
Low latency / Low-Power Intel LAN
SATA Express 16b/s
Super Durable Solid Caps
PCI-e M.2 32Gb/s
Dual BIOS

SUPER SOUND

Hi-Fi Zone Design

Smart Ear, Hi-Fi Ground Design, Hi-Fi Cap, ESD 15,000V proof

SUPER EASY

Touch Control &
Friendly UI Design

NEW FEATURES

Dual BIOS, Dual Protection

Dual BIOS technology offers a backup BIOS chip to take over the failed main BIOS and recover the system automatically without factory repair.

RACING I/O Armor

The Racing I/O Armor protects the I/O panel and electronic components from static electricity, and the streamlined shape serves as a dust guardian, like the F1 racing car.

Vivid LED DJ

Racing Series exclusively features on-board LED design. Inside the creative Vivid LED DJ application, you can control and modify the colours of LED on MOS heatsink and on the edge of board. When you play music, it can perform LED light show based on the melody. Moreover, Vivid LED DJ features options for designing LED visual effect, including Normal, Eco, and Sports mode. Racing Series with Vivid LED DJ can make your PC the coolest gaming base ever.

LED color can be set to different modesor it can also be directly set with closed loop and automatic color LED.

5050 LED FUN

BIOSTAR Racing motherboard comes with the exclusive 5050 LED FUN feature for DIY lovers. You can connect LED strip with on-board 5050 header directly and control it via Vivid LED DJ.

GT TOUCH

GT Touch features exclusive Sport and ECO Mode. Under Sport mode, the system boosts the performance automatically. Under ECO mode, the system optimizes energy consumption. Besides, users could define onboard LED configuration for ECO and Sport Mode respectively via Vivid LED DJ.

Vivid LED DJ

Racing Series exclusively features an on-board LED design. Inside the creative Vivid LED DJ application, you can control and modify the colour of the LED on the MOS heatsink and on the edge of board. When you play a music, it can also perform LED light show, following the melody.

Moreover, Vivid LED DJ features options for designing LED visual effects. Including Normal, Eco, and Sport mode. Racing Series with Vivid LED DJ makes your PC the coolest gaming base ever.

LED Feature Comparison

	BIOSTAR RACING	Brand M Gaming Pro	Brand G Gaming	Brand A Deluxe	Brand A Hero	Brand A Hero Alpha
RBG	Full-Color (256 Colors)	9 Colors Only	7 Colors Only	16 Colors Only	16 Colors Only	16 Colors Only
Area of Lighting	Side of PCB / MOS Sink	Side of PCB / AUDIO Circuits (Single-Color)	IO Cover / Audio Circuit / Southbridge/ IO Panel	Southbridge	Southbridge	Southbridge
Color-Cycle	Yes	Yes	Yes	Yes	Yes	Yes
Tempo	Constant / Breath / Sparking	Wave / Breath / Constant / Double Sparkling / Sparking / Rhythm	Constant / Breath / Sparking	Constant / Breath / Sparkling	Constant / Breath / Sparkling	Constant / Breath / Sparkling
Tempo by Melody	Yes	Yes	Yes	Yes	Yes	Yes
Special Function	ECO Touch LED / Sport Touch LED	Control LED side by side	Change colors by time period / Control LED side by side	Change colors as CPU temperature changes	Change colors as CPU temperature changes	Change colors as CPU temperature changes
DIY Fun	5050 LED Head+ 5050 LED Cable= Customized Extension	N/A	N/A	N/A	N/A	5050 LED Head
Product Image
UI Design

Speed + : DDR4, USB3.1 TYPE C, SATA 3, PCIE 3.0, PCI-E M.2, SATA Express
Audio + : Biostar Hi-Fi Technology, Blu-Ray Audio
Video + : Dual HDMI 4K/2K, DX12, HDMI 3D, DVI
Durable +: Moistureproof PCB, Low RdsOn P-Pak MOS, Super Durable Ferrite Choke, Super Durable Box Header, Super Conductive Heatsink, Super Durable 100% Solid Caps
Protection + : ESD Protection, USB Polyswitch, OC, OV, OT Protection, Super LAN Surge Protection, Super Anti-Surge Protection
DIY + : Header Zone, GUI BIOS, Bio-Remote2

Model
Brand	BIOSTAR
Series	RACING
Model	Z170GT7

Supported CPU
CPU Socket Type	LGA 1151
CPU Type	Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium

Chipsets
Chipset	Intel Z170

Onboard Video
Onboard Video Chipset	INTEGRATED VIDEO: By CPU model Supports DX12 Supports HDCP

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200(OC)/ 2133/ 1866
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	4 x PCI-E x16 3.0 Slot (x16, x8, x4- from SB, x4- from SB)
PCI Express x1	3 x PCI-E x1 3.0 Slot (2 slot share PCIE port w/ PCI-Ex16@x4)

Storage Devices
SATA Express	3 x SATA Express 16Gb/s Connector
M.2	1 x M.2 Key M 32Gb/s Connector
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC898
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

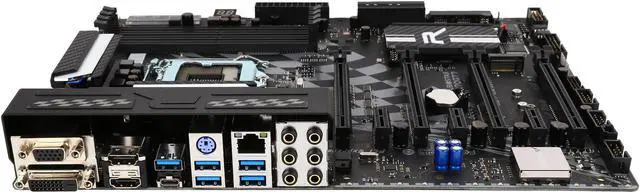

Rear Panel Ports
PS/2	1
Video Ports	1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x VGA Port, resolution up to 1920 x 1200 @60Hz
HDMI	2 x HDMI Connector, resolution up to 4096 x 2160 @24Hz, compliant with HDMI 1.4
RJ45	1 x RJ45
USB 3.1	1 x USB 3.1 Type-C Port
USB 3.0	5 x USB 3.0
Audio Ports	6 Ports

Internal I/O Connectors
Onboard USB	1 x USB 3.0 Header 2 x USB 2.0 Header
Other Connectors	1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 2 x CPU Fan Header 3 x System Fan Header 1 x TPM Header 1 x LN2 Switch 1 x 5050 LED Header

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"

Features
Features	MULTI GRAPHICS: AMD 3way CrossFireX H/W MONITORING: CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring OVERVOLTAGE: CPU Vcore/ VSA/ VCC_IO/ VGT/ VCC_PLL_OC/ DDR/ DDR VPP/ PCH 1.0V OS SUPPORT: Support Windows 7 / 8.1(x64) / 10(x64) BUNDLE SOFTWARE: Racing GT Utility BullGuard BIO-Remote2 Intel Rapid Storage Technology(include Intel Smart Response Technology) FEATURES: Supports Double Hi-Fi GT TOUCH Supports 100% Solid capacitor Supports Rapid Debug3 Supports Charger Booster Supports BIOS Online Update

Packaging

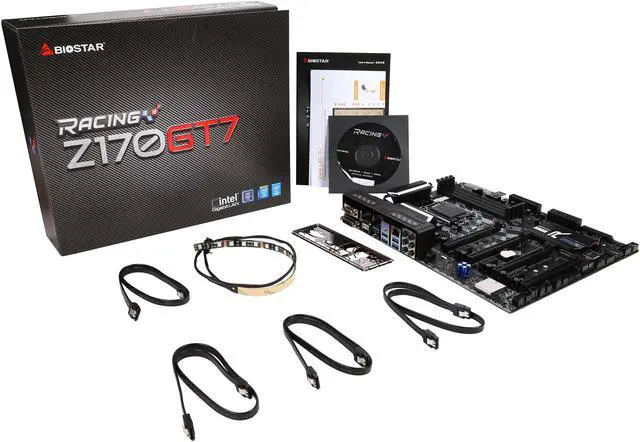

Package Contents	ACCESSORIES: 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual
