Tripp Lite SRW6U 6U SmartRack Wall Mount Rack Enclosure Cabinet

PRODUCT DESCRIPTION

Tripp Lite's SRW6U Wall-Mount Rack Enclosure Cabinet is the ideal storage solution for rackmount equipment in applications with limited floor space such as classrooms, wiring closets, POS stations and offices. Constructed with a sturdy wall mounting bracket and steel frame, it can accommodate up to 140 lb. of equipment in 6U of rack space. Adjustable vertical mounting rails with square holes accommodate all standard 19-inch rack equipment. The SRW6U features a perforated lockable front door and side panels, assuring generous airflow to keep equipment operating safely. The side panels are removable for easy access to equipment, and the front door is reversible. The top and bottom panels of the enclosure include convenient cable routing ports. The SRW6U ships fully assembled and comes with a 5-year manufacturer's product warranty. The SRW6U also meets all physical requirements toward PCI Compliance.

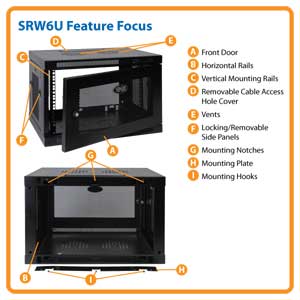

Simple Equipment Installation

Front and rear pairs of rails adjust in one-inch increments. Adjustment is quick and convenient—simply unscrew the rails, slide them to the desired depth and restore the screws. Square mounting holes and included hardware support up to 140 lb. of standard 19-inch rack equipment. Rack spaces are numbered for easy reference.

Lockable, Reversible Front Door

The swing direction of the lockable front door can be reversed by rotating the enclosure 180 degrees before installation. The front door locks to provide secure access and is perforated to promote efficient airflow.

Modular Side Panels

The SRW6U includes two lockable, removable side panels for ease of installation and service access. The side panels are perforated to allow generous airflow.

Vented Top and Bottom Panels with Cable Cutouts

The top and bottom panels of the SRW6U are furnished with vents designed to help remove warm air from the enclosure and draw in cool air by convection. They also support installation of standard user-supplied case fans. The top and bottom panels are also provided with ports for cable routing through the enclosure. Removable covers block unused cable ports.

SmartRack Accessories Adapt, Enhance and Expand Enclosures

The optional SRCASTER rolling caster kit adapts the enclosure to floor-standing and roll-away applications under desks, tables or counters. Additional SmartRack Cooling Solutions and Rack Accessories are available for a variety of applications: air conditioning, heat removal, airflow management, cable management, rack shelves, security & monitoring, mounting and power.

Peace of Mind

The SRW6U comes with a 5-year manufacturer's product warranty.

Technical Specifications

• Rack spaces: 6
• Load capacity: 140 lb.
• Mounting depth: 3 to 17 in.
• Mounting holes: Square (mounting hardware included)
• Door: Lockable/reversible/perforated
• Side panels: Lockable/removable/perforated
• Top & bottom panels: Vented
• Cable ports: Top and bottom panels (removable covers)
• Height: 14.5 in.
• Width: 23.63 in.
• Depth: 17.75 in.
• Weight: 29 lbs.
• Material of construction: Steel
