Item#: N82E16817171038

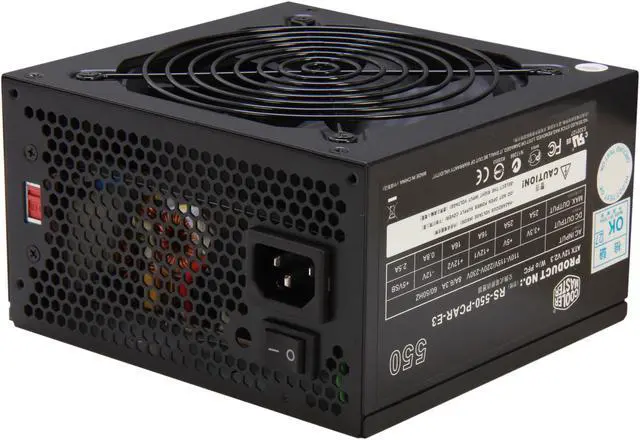

Cooler Master Extreme Power Plus - 550W Power Supply

  • ATX12V V2.3
  • 110 ~ 115V / 220 ~ 230V
  • 1 x 120mm fan
ICON Loading...

The Extreme Power Plus RS-550-PCAR-E3 pushes out 550W of power to handle your system's thirst for juice and supports dual +12V1 and +12V2 outputs for higher power usage. It provides over 70% efficiency at typical load operation. With a life-time of 100,000 hours and protections for OVP/UVP/OTP/OPP/SCP, this power unit is made to last.

  • newegg ATX12V v2.3 Compatible Compatible with the Intel ATX12V v2.3 standard, the Cooler Master eXtreme Power Plus RS-550-PCAR-E3 provides maximum power stability to drive the latest Intel and AMD processors as well as other system components.

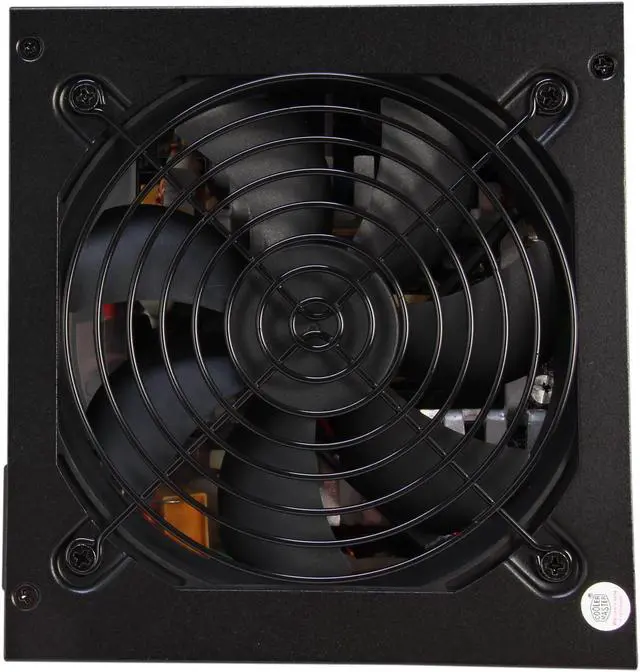

  • newegg Silent, Efficient Cooling An ultra-silent 120mm fan with intelligent speed control provides superior cooling performance to dissipate heat in the power supply enclosure while running quietly. In addition, the ventilation channels on the back panel of the power supply enhance cooling efficiency.
  • newegg Green power design Green power design meets energy star and blue angel requirements and also provides you with valuable equipment at low cost.

Learn more about the Cooler Master RS-550-PCAR-E3


eXtreme Power Plus


ATX12V V2.3
Maximum Power
1 x 120mm fan
Main Connector
+12V Rails
PCI-Express Connector
2 x 6+2-Pin
SATA Power Connector
SLI Ready
Haswell Support
CrossFire Ready
Power Good Signal
Hold-up Time
17ms min.
70% Typically
Over Voltage Protection
Input Voltage
110 ~ 115V / 220 ~ 230V
Input Frequency Range
47 - 63 Hz
Input Current
8A@115Vac / 6.3A@230Vac

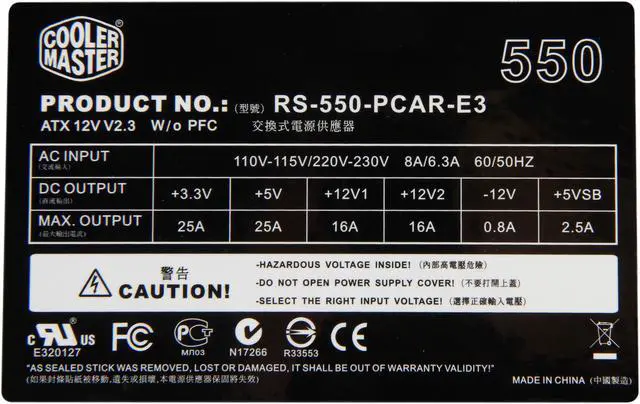

+3.3V@25A, +5V@25A, +12V1@16A, +12V2@16A, -5V@0.8A, -12V@0.8A, +5VSB@2.5A
>100,000 Hours
Nemko, TUV, UL, CE, BSMI, FCC, GOST, C-tick
5.91" x 5.52" x 3.39"

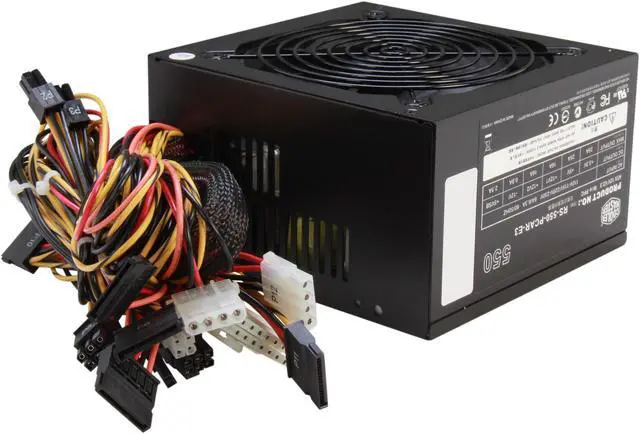

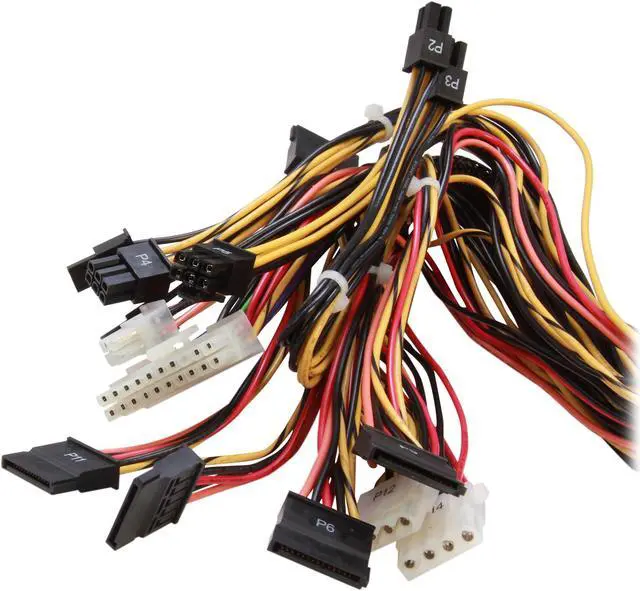

1 x Main connector (20+4Pin)
1 x 4+4 Pin CPU
3 x Peripheral
6 x SATA
1 x Floppy
2 x PCI-E
Compliance with the newest Intel standard ATX 12V V 2.3

Support dual +12V and +12V outputs for higher power usage

Green power design to meet energy star and blue angel requirements

ore than 70% efficiency at typical load operation

Higher reliability (MTBF > 100,000 hours)

Protection: OVP / OPP / SCP

Operation Temperature: 5 - 40°C (Nominal Input Voltage)

Manufacturer Warranty

2 years limited
2 years limited

Quick Info


  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years

Customer Reviews of the Cooler Master RS-550-PCAR-E3

Do you own this product? Write a Review

ICON Loading...

Filter Results


5 out of 5 eggsOne of the best PSU's I have ever owned!

Pros: I bought this PSU 7 years ago for a basic WoW-computer and this PSU endured heavy use as a gaming computer for 6 1/2 years and finally being retired to a home movie server before it ran another 6 months before finally dying.

This product has definitely changed my mind about the overall quality of Cooler Master and their products, I will definitely be buying the new model of this exact PSU!

Cons: None that I can think of.

Did you find this review helpful? Yes No

  • Dora S.
  • 11/29/2013 6:49:20 AM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

2 out of 5 eggsChose Carefully

Pros: Worked well while it lasted

Cons: Both lasted about a week and while it worked it made a buzzing noise

Other Thoughts: There is nothing else I can say. What can i say it was on sale when I got

Did you find this review helpful? Yes No

  • Michael G.
  • 11/12/2013 5:40:16 AM
  • Tech Level: High
  • Ownership: more than 1 year
  • Verified Owner

5 out of 5 eggs

Pros: Used in a media server that runs 24/7 with no issues for about a year now. 100w CPU, 16GB DDR3(2 x 8GB), SATA DVD drive, 1 x 500GB SATA III HDD, 5 x 2TB SATA III HDD.

Cons: Not enough SATA power connectors so I had to use 4-pin adapters. Still works good though.

Did you find this review helpful? Yes No

  • Michael S.
  • 10/20/2013 9:20:52 PM
  • Tech Level: Average
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood PSU

Pros: Very quiet and powerful. Small to fit inside a smaller case like mine.

Cons: None that i can think of.

Did you find this review helpful? Yes No

  • Shawn F.
  • 10/12/2013 11:48:03 AM
  • Tech Level: High
  • Ownership: more than 1 year

4 out of 5 eggsDied

Pros: Quiet. Worked well while it worked.

Cons: Had it for 2 years and 7 months. no where near the 100,000 mtbf. It died quietly, and cooler master just said I was out of luck, which is understandable. Would be 5 eggs if it had kept working. I'd personally reccomend one of cooler masters more expensive models.. Better caps and such make an unfortunate death less likely.

Also, extremely tight sata and molex connectors, and most of the cables are shorter than you'd want them to be, I would think.

Other Thoughts: I buy cooler master for everything I can, and this isn't the first time the product has failed to meet my expectations. They usually break convienently right after the warranty, though.

Did you find this review helpful? Yes No

  • Greg Q.
  • 10/11/2013 12:09:30 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsGood quiet PSU

Pros: This is a decent power supply for the money. I got one for my main PC and so far I am quite happy with the way it has performed. The fan is very quiet, which is a big plus for a machine that in on most of the time. For the price, this is hard to beat.

Cons: The only thing I don't like is the fact that not all the wires are sleeved. This is not the biggest deal, but neatness is cool. Physically this power supply seems to be a bit small. Even though it does not fit as snug as my last one, once secured in place it is fine.

Other Thoughts: For the price this is an excellent value and it has been running my PC nicely. NewEgg delivered it fast too!

Did you find this review helpful? Yes No

  • Guillermo H.
  • 10/9/2013 8:25:14 PM
  • Tech Level: High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggspower supply

Pros: Quick deivery, awesome price for a great power supply!

Cons: none

Other Thoughts: Great seller.

Did you find this review helpful? Yes No

  • Michael R.
  • 10/4/2013 7:56:41 AM
  • Tech Level: Somewhat High
  • Ownership: 1 day to 1 week
  • Verified Owner

5 out of 5 eggsCooler Master Power Supply

Pros: Super Quite. I bought this in hopes that my HTC would be all most silent and darn near is now! Lots of Sata power connector!

Cons: None so far.

Other Thoughts: Great Value for my money.

Did you find this review helpful? Yes No

  • Robert H.
  • 9/27/2013 6:52:34 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

5 out of 5 eggsTight Budget? Low to mid-rnage build? Got you covered.

Pros: I picked up one of these to replace a dead PSU in an older mid-range build used buy a family member (see specs in "Other thoughts"). I have used other Cooler Master PSU's in other builds and I have yet to have one fail, they are all still going strong.

This PSU may not be 80Plus certified, but for low to mid-range single GPU builds it should have no problems delivering the power needed to run the system.

Cable length is fine for most all ATX mid-tower cases, though it may be a concern for some larger ATX full tower bottom mount cases, especially for clean cable routing behind the motherboard tray.

Cons: Not 80Plus certified, however for the price and the target consumer, this is not really a con.

Something to keep in mind if building a mid to high range gaming machine with higher end hardware that may require a guaranteed power delivery efficiency to maintain a long term stable system. Cooler Master makes other PSU's to fit such higher end needs.

Other Thoughts: AMD Phenom II X2 550 Dual Core
Biostar T-Series AM3 Motherboard
8GB DDR3 A-Data 1600
HIS Radeon HD 4870 Turbo

For most modern single GPU builds requiring a single or dual 6-pin connection, running a dual or moderate quad core, this PSU should be just fine. It may have the connections to handle dual 8-pin on a single card or single on two cards, but this is not the level of PSU you would be looking at for a high-end power hungry modern gaming GPU, or a multi-GPU setup.

In the other budget oriented builds I have used these, or similar, CM PSU's in, I have not had any problems. Running anything from Phenom II dual to quad core, a few Core i3 builds, and an A8 Richland dual core. Pretty much nothing over 100W TDP on APU's, or 85W TDP on CPU's, and you should be fine for the long term.

Did you find this review helpful? Yes No

  • Joseph T.
  • 8/30/2013 10:37:51 AM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month

2 out of 5 eggsLiar-label

Pros: Not this company's worst. Quiet when working (but see con).

Cons: All you really need to know about this overrated unit can be found in a 4/8/2010 review at HardwareSecrets. Unfortunately I had made the mistake of buying one some years ago before reading that. Although nowhere near stressed, its original fan croaked within a couple of weeks. A replacement fan I installed in it (be VERY careful about working in a PSU!) also died shortly thereafter, so I junked it.

Other Thoughts: Although advised about the overrating (and other issues) of most of their older units, CM has indicated it is unwilling to remove them from the market. That's consumer fraud, but there's no longer accountability for that, so do your research before buying a PSU.

Manufacturer Response:

Dear valued customer,
I'm very sorry for the troubles you've encountered. If you are having any issues with any of our products, please contact us directly using our Live Chat or ticket services so that we can assist you.

CMUSA Support

0 out of 1 people found this review helpful. Did you? Yes No
