Item#: N82E16817256099

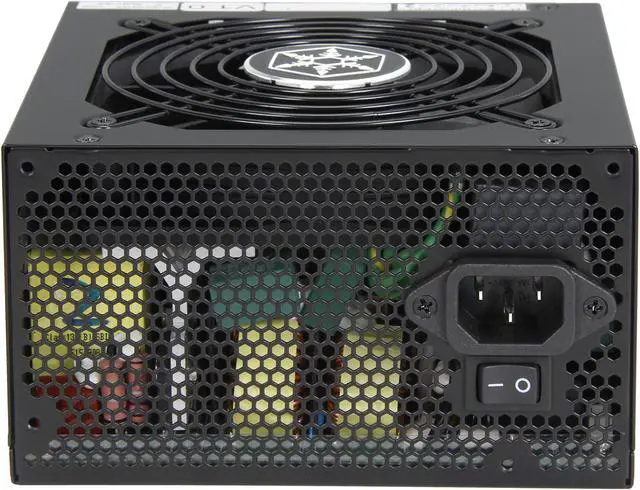

SILVERSTONE Strider Gold S Series ST75F-GS 750W ATX 80 PLUS GOLD Certified Full Modular Active PFC Power Supply

  • ATX
  • Full Modular
  • 80 PLUS GOLD Certified
  • 90 - 264 V 47 - 63 Hz
  • +3.3V@22A, +5V@25A, +12V1@62A, +5VSB@3.5A, -12V@0.3A
  • Email this page
ICON Loading...

INTRODUCTION

ST60F-PS

To meet the requirements of current and future desktop computers, SilverStone created the Strider Gold S series power supplies. The Strider Gold S models are all new designs engineered to be the smallest, full-modular ATX power supplies at any Wattage levels.

The Strider Gold S series includes wattage range from 550W to 1500W for a great variety of applications. With short depth designs, all models in the series are among the world's smallest full-modular ATX PSUs. In addition to 80 PLUS Gold level efficiency, the Strider Gold S PSUs are built to meet very high standards in electrical performance with ±3% voltage regulation, ±3% ripple & noise, and high amperage single +12V rail. Other notable features included are 24/7 104°F (40°C) continuous output capability, low-noise fan, and multiple sets of PCI-E cables. For users looking for a power supply with faultless combination of compact size, performance, efficiency, and quality, the Strider Gold S Series is the only choice.


SPECIAL FEATURES

ST60F-PS
  • Compact design with a depth of 150mm for easy integration
  • 80 PLUS Gold certification
  • 100% Modular cables
  • 24/7 Continuous power output with 40? operating temperature
  • Class-leading single +12V rail
  • Strict ±3% voltage regulation and low ripple & noise
  • Silent running 120mm fan with 18dBA minimum

FEATURES

ST60F-PS

1. Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity.

ST60F-PS

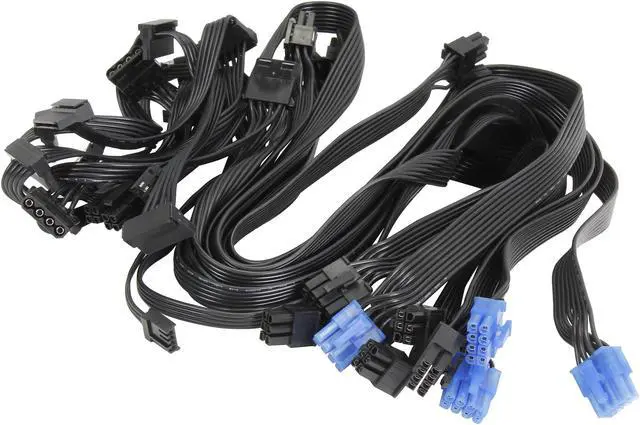

2. 100% Modular cable design for use with short cable kit such as SilverStone's PP05-E for easy removal in a case with cable routed and tied down.

ST60F-PS

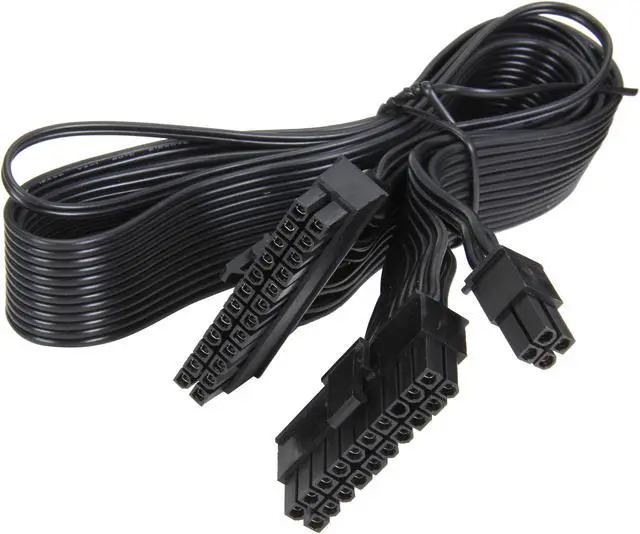

3. Strider Gold S PSUs are the first power supply models in the world to include flat 24-pin cables. This cable offer much greater flexibility for tighter folding and superior cable management.

ST60F-PS

4. 150mm Depth sets new standard for high Wattage PSUs with modular cables.

ST60F-PS

5. Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking.

ST60F-PS

6. ±3% Regulation and low ripple & noise performance for high stability

ST60F-PS

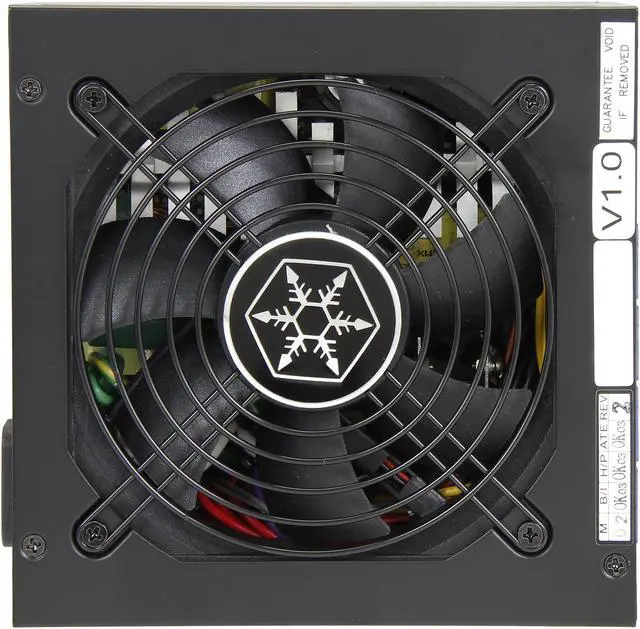

7. Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use.

SPECIFICATIONS

Model No. SST-ST85F-GS
Max. DC Output 850W (Peak 900W)
Load Range
  +3.3V +5V +12V1 +5VSB -12V
Max. (Amps) 22A 25A 70A 3.5A 0.3A
Min. (Amps) 0.5A 0.3A 1A 0.1A 0A
Range (%) ±3% ±3% ±3% ±5% ±10%
Line Reg. (%) ±1% ±1% ±1% ±1% ±1%
Ripple (mVp-p) 50mV 50mV 120mV 50mV 120mV
Combined +3.3, +5V 150W
Combined +12V 840W
Input Voltage 90 ~ 264V
Input Frequency Range 47Hz - 63Hz
PFC Active PFC (PF>0.95 at full load)
Efficiency 88% - 91% at 20% - 100% loading
MTBF 100,000 hours
Operating Temperature 32 - 104°F (0 - 40°C)
Protection
  • Over current protection
  • Over power protection
  • Over voltage protection
  • Over temperature protection
  • Under voltage protection
  • Short circuit protection
Connectors
  • 1 x 24 / 20-Pin motherboard connector(550mm)
  • 1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
  • 1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
  • 4 x 8 / 6-Pin PCIE connector(550mm
  • )
  • 8 x SATA connector (600mm / 150mm / 150mm / 150mm x 2)
  • 6 x 4-Pin Peripheral connector (600mm / 150mm / 150mm x 2)
  • 2 x 4-Pin Floppy connector (600mm / 150mm / 150mm / 150mm x 2)
Color Black (Lead-Free Paint)
Cooling System Silent 120mm fan
Noise Level 18dBA minimum
Dimensions (W x H x D) 6 x 3.3 x 5.5 inches (150 x 86 x 140mm)
Weight 5.5lbs (2.5kg)
Form Factor ATX
Certification 80 PLUS Gold
Other GPU Support List
Haswell CPU Support

Learn more about the Silverstone ST75F-GS

Model

Brand
SILVERSTONE
Model
ST75F-GS
Series
Strider Gold S Series

Spec

Type
ATX
Maximum Power
750W
Fans
Single 120mm silent fan
PFC
Active
Main Connector
24 / 20-Pin
+12V Rails
Single
PCI-Express Connector
4 x 8 / 6-Pin
SATA Power Connector
8
Modular
Full Modular
Efficiency
87%~90% at 20%~100% loading
Energy-Efficient
80 PLUS GOLD Certified
Over Voltage Protection
Yes
Input Voltage
90 - 264 V
Input Frequency Range
47 - 63 Hz
Output
+3.3V@22A, +5V@25A, +12V1@62A, +5VSB@3.5A, -12V@0.3A
MTBF
>100,000 Hours
Dimensions
150 mm (W) x 86 mm (H) x 150 mm (D)
Weight
2.5 kg

Features

Connectors
1 x 24 / 20-Pin motherboard connector(550mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(750mm)
1 x 8 / 4-Pin EPS / ATX 12V connector(550mm)
4 x 8 / 6-Pin PCIE connector(550mm)
8 x SATA connector("600mm / 150mm / 150mm / 150mm" x 2)
6 x 4-Pin Peripheral connector ("600mm / 150mm / 150mm" x 2)
2 x 4-Pin Floppy connector("600mm / 150mm / 150mm / 150mm" x 2)
Features
Protection:
Over current protection
Over power protection
Over voltage protection
Over Temperature Protection
Under voltage protection
Short circuit protection

Compact design with a depth of 150mm for easy integration

80 PLUS Gold certification

100% modular cables

24/7 continuous power output with 40 degreeC operating temperature

Class-leading single +12V rail

Strict +/-3% voltage regulation and low ripple & noise

Silent running 120mm fan with 18dBA minimum.

Quick Info


Customer Reviews of the Silverstone ST75F-GS

Do you own this product? Write a Review

ICON Loading...

Filter Results

Go
  • George M.
  • 8/12/2014 12:44:31 PM
  • Tech Level: Average
  • Ownership: 1 day to 1 week
  • Verified Owner

1 out of 5 eggsDOA

Pros: None

Cons: I thought I was choosing a non budjet , good quality PSU. The lights on the case & motherboard would come on momentarily then turn off. Tried emailing Silverstone to help me test to see whether the problem was with the PSU or the mother board for my latest build. Wouldn't post, nothing. Their response was to check Youtube for a test method. REALLY! I had already done some research on it and the consensus was to jump out the green wire with any black wire on the main lead .This PSU's main lead wire is not color coded. ALL the wires are black so they were really a big help. I decided to try a 20 pin PSU from an old computer. I didn't know if it would work with the 24 pin motherboard but it fired right up. Don't know what made me pick this over the Raidmax which I've used before and loved all the extra's that came with it or the Thermotake I wound up buying. Have no problem with either one so far.

Other Thoughts: I think it really sucks having to pay for return shipping on defective items. I can understand if you changed your mind or ordered something that's not compatible with your project but to have to pay two way shipping on defects is just not right. I would bet that most Newegg customers are buying a lot of parts and spending a lot of money. Meanwhile you want to get your build done ASAP to be sure other defective items are discovered while still under warranty.

3 out of 3 people found this review helpful. Did you? Yes No

  • Mitchel O.
  • 8/11/2014 9:22:37 PM
  • Tech Level: Average
  • Ownership: 1 month to 1 year
  • Verified Owner

1 out of 5 eggsSILVERSTONE Strider Gold Series..

Pros: Looks very well built compared to other brands. Does not look cheaply made at all.

Cons: Started making a weird humming sound after only having it for a short time. Searched online about the problem only to find others having the same issue with theirs dying a month later.. Will call Tech support tmrw morning when they're open. I hope the problem could be fixed because i really liked the power supply.

2 out of 2 people found this review helpful. Did you? Yes No

  • Edward K.
  • 6/26/2014 10:48:43 AM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

3 out of 5 eggsBroke after 3 months

Pros: was a good PS and thought it would be a real work horse

Cons: died a early death. Wasn't even under heavy load. three SSD's and one 780T video card. Should not have died

2 out of 2 people found this review helpful. Did you? Yes No

  • Gary M.
  • 6/5/2014 10:09:44 PM
  • Tech Level: Somewhat High
  • Ownership: 1 week to 1 month
  • Verified Owner

5 out of 5 eggsJust what I wanted.

Pros: Very well made. Compact for an 850 watt Power Supply. Heavy. Enough power for my needs.

Cons: NONE! Except not in red to match my case color.....lol

Other Thoughts: Ordered this around 3:30 am my time on Friday before Memorial Day. Got it the next Thursday.

0 out of 1 people found this review helpful. Did you? Yes No

  • archie c.
  • 4/9/2014 12:44:16 PM
  • Tech Level: High
  • Ownership: less than 1 day
  • Verified Owner

1 out of 5 eggs

Pros: none

Cons: The power supply was dead right out the box.Only one power rail was sending power and it was wrong.This was a shame cause I have always had good luck with silverstone.

Other Thoughts: I understand that any company can have a lemon or two I will buy silverstone products

Manufacturer Response:

Hello and thank you for your interests in SilverStone.

I do want to apologize for any negative experiences that you had with the ST85F-GS. We know that it can be frustrating to get a product and not have it work to its specifications.

If you have any questions about either returns or RMA for the unit please feel free to reach out to our US based sales staff and we would be more than glad to see if there is anything that we can do to help you.

You can find our contact information below:

From,

SST Support Staff

3 out of 3 people found this review helpful. Did you? Yes No

  • Anonymous
  • 2/28/2014 8:48:56 PM
  • Tech Level: High
  • Ownership: 1 month to 1 year
  • Verified Owner

4 out of 5 eggsGreat psu!

Pros: Really stable system. I am doing lots of extreme overclocking an this thing has performed beautifully so far. It's reliable, it's great for cable management, and the designers can shove it.

Cons: I tried removing the pins from the connectors for 2 hours so I could sleeve them with not a single ounce of luck. So naturally I went on line to buy some aem sleeved cables and guess who the only seller seems to be? You got it. Silverstone had made it impossible to remove the cables so you will be more likely to buy theirs. That is why I deducted a star. You shouldn't have to pay for sleeved cables when you should be able to do it yourself.

2 out of 5 people found this review helpful. Did you? Yes No
