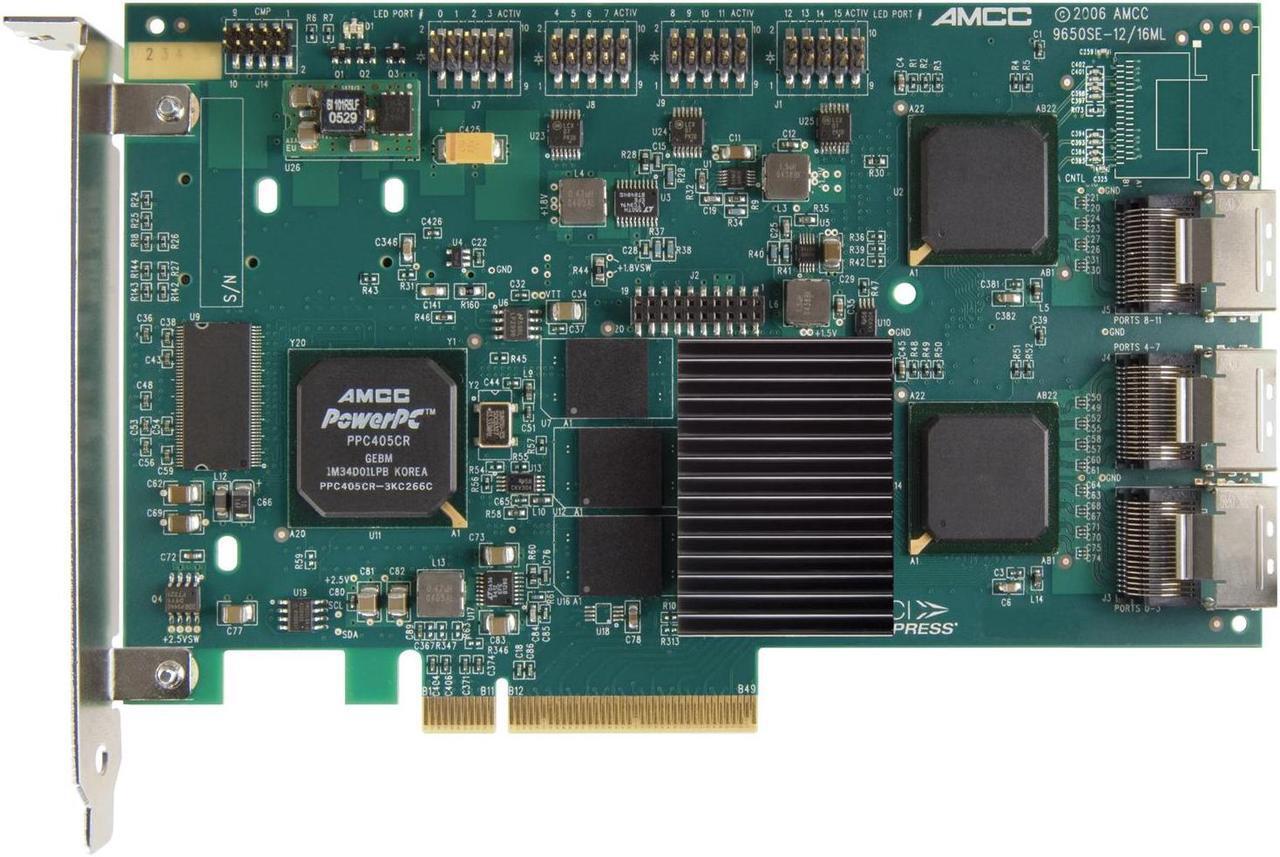

3ware 9650SE-12ML SGL PCI Express x8 SATA II (3.0Gb/s) Controller Card
- RAID Levels 0, 1, 5, 6, 10, 50, Single Disk, JBOD
- 3 x Multi-lane Internal Connectors
+
+
Specs
Reviews (10)
Learn more about the 3ware 9650SE-12ML SGL
| Brand | 3ware |
|---|---|
| Model | 9650SE-12ML SGL |
| Type | SATA II (3.0Gb/s) |
|---|---|
| Internal Connectors | 3 x Multi-lane |
| Interface | PCI Express x8 |
| Cache Memory | 256 MB DDR2 533 |
| RAID | RAID Levels 0, 1, 5, 6, 10, 50, Single Disk, JBOD |
| Operating Systems Supported | Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD |
| Features | Form Factor : Full Height Port Count: 12 Connector Type: Multi-lane BBU Support: Yes 8th-generation StorSwitch non-blocking switched architecture. On-board I/O RISC processor and RAID offload provides true hardware RAID. Bootable array support for greater fault tolerance. Variable stripe size for performance tuning by application. 64-bit LBA support. ATA pass-through mode support. 32 pooled DMA channels. Complete configuration management suite. SNMP support. SMTP support for email/pager notification. ATA/6 and Out of band (OOB) staggered drive spin-up support. Auto carving allows LUNs > 2TB to be divided into multiple units for legacy operating systems limited to 2TB max. per LUN. Battery Backup Unit (BBU) support. Multiple logical unit sizes and RAID levels on one card. Multiple card support within a system for large storage requirements. Hot-swap and hot-spare support for data availability. Dynamic sector repair for robust data protection. S.M.A.R.T. disk drive monitoring for reliability. Emergency Flash Recovery protects against failed firmware upgrade. Drive activity LED support. Online Capacity Expansion and RAID Level Migration. Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal. Drive insertion and removal notification. Array/Drive Status and drive identification LED support. (requires 3ware Chassis Control Unit-enabled backplane) Chassis Control Unit for enclosure management via I2C. |
|---|
| Date First Available | June 13, 2017 |
|---|
