Resolution Support: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
Video: Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Resolution Support: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a); 1080p@60m (Cat 5e/6) / 70m (Cat 6a)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Power Supply: VE802R
Connectors: 1 x DC Jack (Black) with locking
Consumption: DC 5V, 4W
VE802T
Connectors: 1 x DC Jack (Black) with locking
Consumption: DC 5V, 3.6W

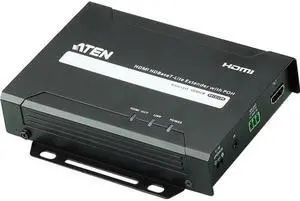

Feature: The VE802 HDMI HDBaseT-Lite Extender extends an HDBaseT signal up to 70m from the HDBaseT source using one Cat 5e/6/6a cable. VE802 supports RS-232 and IR signaling passthrough, allowing you to control the HDMI source device from the remote unit (VE802R) while also granting access to the HDMI display device from the local unit (VE802T). IR signals can also be extended in both directions. The VE802 features Power over HDBaseT (POH) which can send power over Cat 5e/6/6a cable without an add...
Resolution Support: Up to 4K@70m (Cat 5e/6) / 100m (Cat 6a);
1080p@100m
*4K supported:
4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4)
Video: Video
Max. Data Rate: 10.2 Gbps (3.4 Gbps Per Lane)
Max. Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP Compatible
Consumer Electronics Control (CEC)
Specification: Ports In:
1 x HDMI Female
Ports Out:
Video Output: 1 x HDMI Female
Audio Output: 1 x TOSLINK (Optical) / 1 x RCA (Coaxial) / 2 x RCA (Stereo)
1 x DC Jack
Console Connectors (Flash ROM Upgrade): 1 x 4-conductor 3.5 mm Jack
1 x (Green) Power On LED
Switches
Mode Selection: Audio Channel - 1 x Slide Switch / HDMI Audio On/Off - 1 x Slide Switch
F/W Upgrade: 1 x semi-recessed pushbutton
Power: 5.3 VDc/150 mA
Power Consumption: 0.8 W - 3 BTU / hr
Dimension: 7.9" x 3.2" x 1"
Weight: 1 lbs.
Feature: Repeats HDMI input signal up to 15 meters
Extracts HDMI audio signal and outputs as additional audio source
Supports optical / coaxial digital audio and analog stereo audio
HDMI and HDCP compatible
Super Video Quality - up to 1920x1080 (1080p)
Firmware upgradable
CH2/CH5...
Resolution Support: Up to 1920 x 1200@35 m (Cat 5e/6) / 40 m (Cat 6a); 1080p@60 m (Cat 5e/6) / 70 m (Cat 6a)
Power Supply: VE601R
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 4.23 W
VE601T
Connectors: 1 x DC Jack with locking
Consumption: 5 VDC, 1.85 W
Feature: The VE601 DVI HDBaseT-Lite Extender is able to extend a DVI 1080p display up to 70 m using an Ethernet cable. This combination of ATEN and HDBaseT technology even supports sharing 1920 x 1200 media up to 40 m away, offering a simple, adaptable, and cost-effective solution for any professional A/V installation.
The VE601 DVI HDBaseT-Lite Extender is the perfect solution for professional A/V installations that require video signal interference protection, such as in medical and military installations. With its lightweight and easy-to-mount design, not to me...
Specification: Dimension: 5.58" x 4.06" x 1.23"
Weight: 0.93 lbs.
1 x HDMI Type A Female (Black)
1 x LC Simplex Connector (SFP)
1 x captive screw connector, 3 pole
1 x 3.5mm phone jack (Black)
1 x DC Jack (Black)
600 m with single mode (SM) fi ber
Wavelength: 1310/1550 nm for SM
Data rate: Single fi ber: 1080p/60Hz (24-bits,3.125G bps ), 720p/60Hz(24-bits,3.125G bps)
1 (Green) Power/Link LED
Power Consumption: DC5.3V, 2.4W
Metal Housing
Feature: Extends the transmission range of HDMI, IR and RS-232 signals using one fi ber optic cable
Very long distance transmission - up to 600m for VE882
HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 3.125 Gbits
Superior video quality - up to 1080p@60Hz
FPGA design extends digital signals to longer distances
Uses one fiber optic cable...
