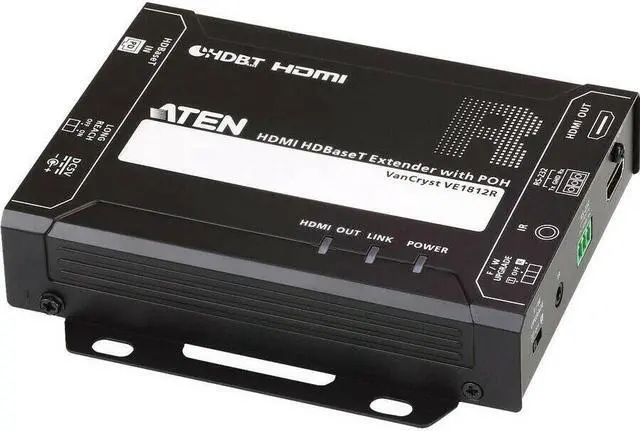

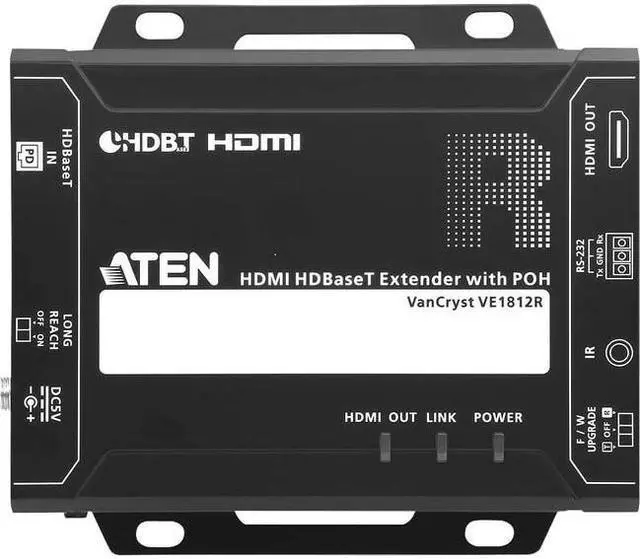

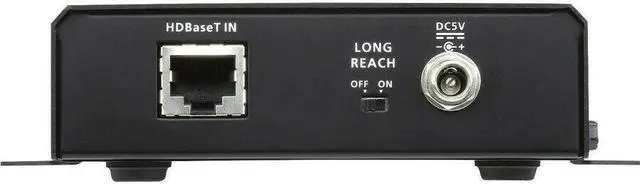

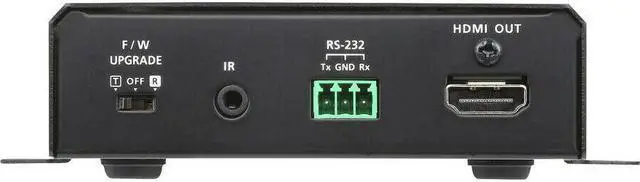

Aten HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)

The VE1812R features Power over HDBaseT (POH) which sends power from Tx to Rx over Cat 5e / 6 / 6a cable without any additional power supply. The VE1812R supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the receiver unit (VE1812R) while also accessing the HDMI display device from the transmitter unit (VE1812T). The IR signals can also be extended in both directions.

The VE1812R HDMI HDBaseT Receiver with POH is HDMI (3D, Deep Color, 4kx2k) and HDCP compatible. When transmitting HDMI / 4K with a Cat 6a or ATEN 2L-2910 Cat 6 cable, the maximum distance can reach up to 100 meters. With Long Reach Mode enabled, the VE1812R can extend HDMI signal up to 150m @1080p. The VE1812R is perfect for digital classrooms, video conference rooms, gaming or any installation that requires superior video quality.

Features

* Package Contents:

• HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
• 1 x Power Adapter
• 1 x RS-232 Terminal Block
• 1 x User Instructions

* Product Type: Video Extender Receiver
* Product Type: Video Extender Receiver
* Limited Warranty: 2 Year
* Weight (Approximate): 15.87 oz
* Connectivity Technology: Wired
* Form Factor: Rack-mountable
* Color: Black
* Connectivity Technology: Wired
* Form Factor: Rack-mountable
* Product Model: VE1812R
* Product Name: HDMI HDBaseT Receiver with POH (4K@100m) (HDBaseT Class A)
* Product Line: VanCryst
* Brand Name: Aten
* Brand Name: Aten
* Height: 1.2"
* Width: 4.8"
* Depth: 5.5"
* Maximum Operating Distance: 492.13 ft
* Number of Network (RJ-45) Ports: 1
* Product Family: VanCryst
* Media Type Supported: Twisted Pair
* Number of Output Devices Supported: 1
* Graphics Modes: 4K
* Environmentally Friendly: Yes
* Environmental Certification: RoHS
* Environmental Certification: WEEE
* Maximum Video Resolution: 4096 x 2160
* Twisted Pair Cable Standard: Category 6a
* Maximum Operating Distance: 492.13 ft
* Number of Network (RJ-45) Ports: 1
* Network (RJ-45): Yes
* Serial Port: Yes
* Number of HDMI Outputs: 1
* HDMI Out: Yes
* Media Type Supported: Twisted Pair
* Number of Output Devices Supported: 1
* Product Type: Video Extender Receiver
* Connectivity Technology: Wired
* Form Factor: Rack-mountable
* Brand Name: Aten
* Maximum Operating Distance: 492.13 ft
* Number of Network (RJ-45) Ports: 1
* Product Family: VanCryst
* Media Type Supported: Twisted Pair
* Number of Output Devices Supported: 1
