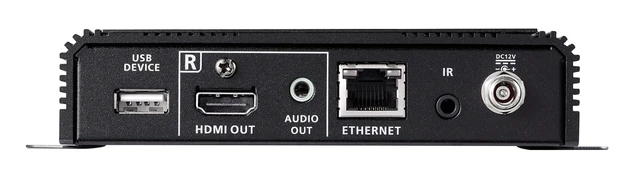

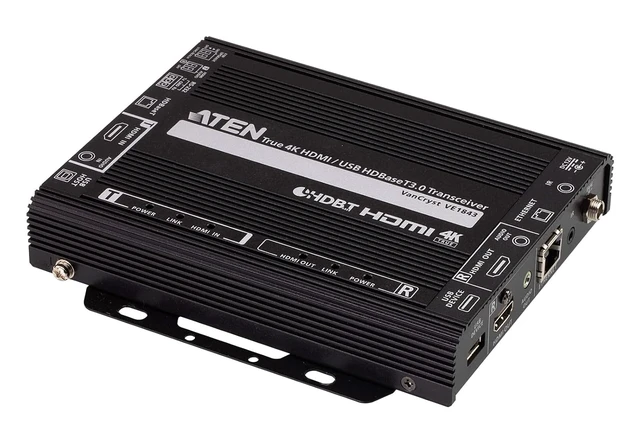

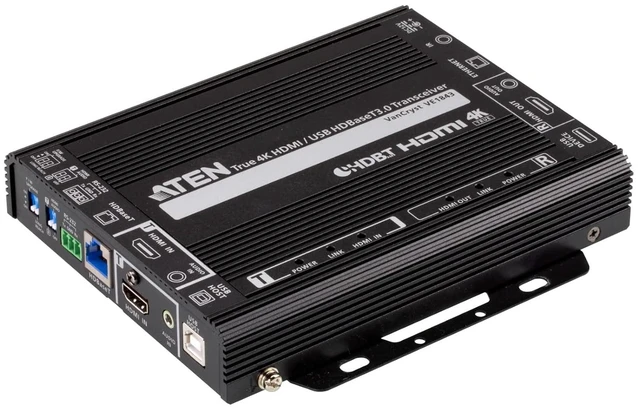

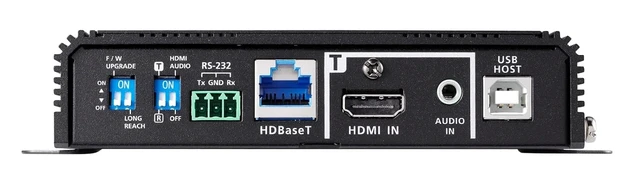

ATEN VE1843 True 4K HDMI USB HDBaseT 3.0 Transceiver

One unit, two configurations
The VE1843 is the first video transceiver from ATEN and integrates the functions of a transmitter and receiver into one device. This combination allows users to easily configure the device as a transmitter or receiver depending on the AV solution and enjoy more flexible deployment and effective use with video matrix switches, video splitters, etc.

Designed with HDBaseT 3.0 technology, the VE1843 not only transmits uncompressed True 4K signals up to 100m over a single Cat 6a cable (HDBaseT3 certified Cat 6a cable) with zero latency, but also IR, RS-232, Ethernet, independent audio and USB signals with the latest HDBaseT standards. For stable HDMI signal transmission, the VE1843 provides high-quality image reproduction and reliable expansion by supporting HDCP 2.2, 3D, Deep Color and HDR. In addition, the VE1843 is equipped with HDMI audio embedding/de-embedding features that allow the user to flexibly adapt suitable audio/video combinations to different environments.

Extends uncompressed True 4K HDMI signals latency-free up to 100m via a single Cat 6a cable (HDBaseT3 certified Cat 6a cable)

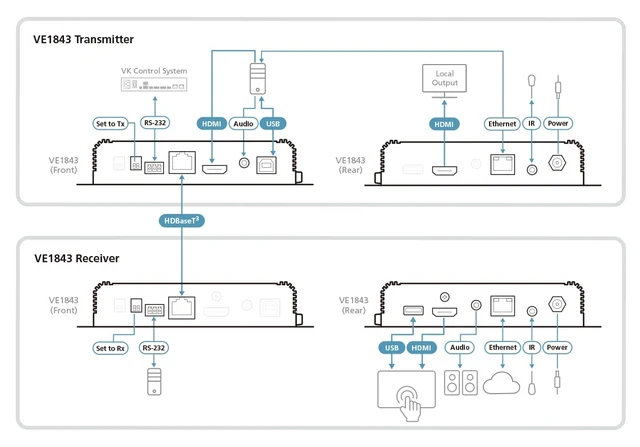

Flexible use can be configured as a transmitter or receiver depending on the AV solution
Compliant with HDBaseT 3.0 standards - transmits high-quality video, full-range IR, bi-directional RS-232, Gigabit Ethernet, independent stereo audio, and USB 2.0 signal channel bypass
HDMI (3D, deep colour, 4K/60Hz); HDCP 2.2 compliant.
Superior video quality - up to 4096 x 2160 @ 60Hz (4:4:4); HDR supported
Supports HDMI audio embedder/de-embedded functions
Supports local HDMI output
Compliant with USB 2.0 standard for a wide range of USB peripherals
LED display of HDBaseT and HDMI signal status for easier detection
