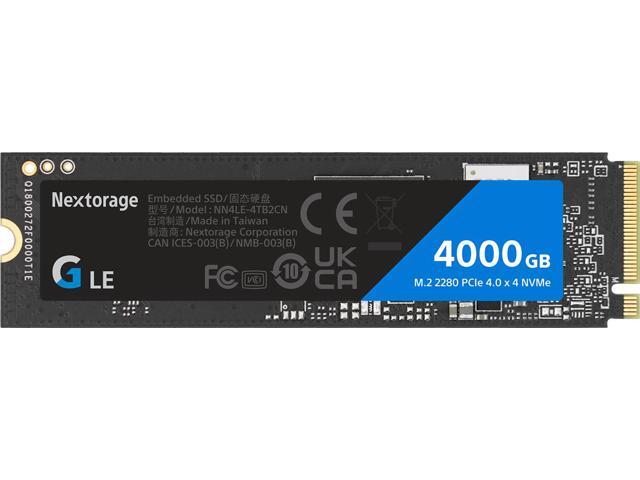

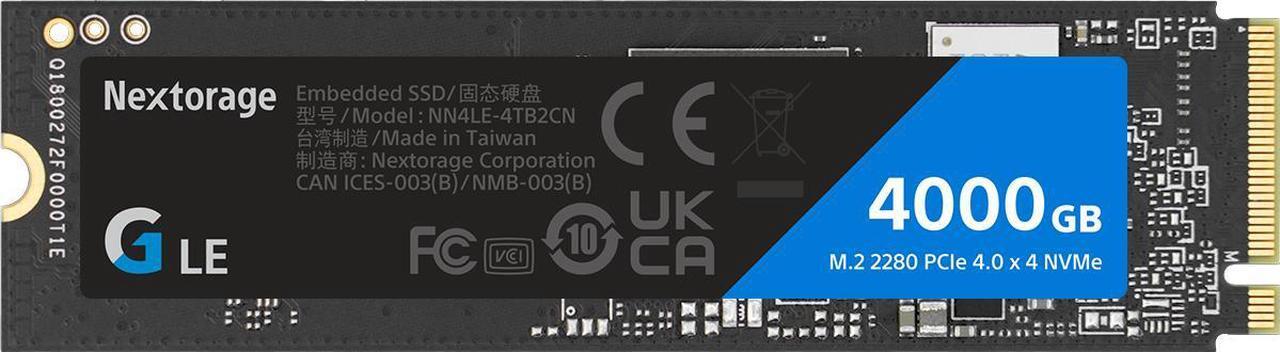

Nextorage M.2 SSD G series PCIe 4x4 NVME 1.4
- The "G Series" is an M.2 SSD with a controller supporting PCIe 4.0/NVMe 1.4 and 3D TLC NAND.
- Nextorage aims to be a brand that customers can expect and trust by providing secure and comfortable storage for the PC Gaming
To be used with confidence
Designed for gaming PCs
- High-speed NAND interface with 1200 MT/s 3D TLC NAND memory and an 8-channel controller maximizes the data bandwidth of PCIe 4.0 (approx. 8GB/s).High-capacity dynamic SLC cache. Dynamic SLC cache, which reserves up to one-third of the SSD's total storage space, is employed to accelerate the speed of frequently accessed data and extend the life of the TLC. In addition, up to 2GB* of DDR4 DRAM is installed to achieve both high speed and stability.
Powered by Phison
- Nextorage synergizes with Phison electronics who is leading company of SSD controller in the world to provide comfortable and reliable gaming SSDs
Line up up to 8TB
- Lineup up to 8TB to allow for larger capacity games with plenty of room to play
| Products | ||||
|---|---|---|---|---|
| Seq read speed | Up to 7000MB/s | Up to 7000MB/s | Up to 7200MB/s | Up to 7000MB/s |
| Seq. write speed | Up to 6000MB/s | Up to 6900MB/s | Up to 6200MB/s | Up to 6900MB/s |
| Random read Speed | 750,000 IOPS | 1,000,000 IOPS | 1,400,000 IOPS | 1,000,000 IOPS |
| Random write speed | 1,000,000 IOPS | 1,000,000 IOPS | 950,000 IOPS | 1,000,000 IOPS |
| TBW | 700TBW | 1,400TBW | 3,000TBW | 3,000TBW |
| Interface | PCIe Gne4x4 | PCIe Gne4x4 | PCIe Gne4x4 | PCIe Gne4x4 |
| Demension w x h x l (inches) | 0.89x0.08x3.15 | 0.89x0.13.x3.15 | 0.89x0.13.x3.15 | 0.89x0.13.x3.15 |
Remark
- *Performance may vary depending on measurement conditions. Measured values depend on factors other than those listed above and are not guaranteed. Measurements are based on the following conditions
- Sequential Speed
- CPU : AMD Ryzen 9 3950X 16-Core Processor Motherboard : MSI MEG X570 ACE OS : Windows10 Professional 64bit Measurement software : CrystalDiskMark 7.0.0, 1GB range, QD=16, Thread=1IOPS
- CPU : AMD Ryzen 7 3700X 8-Core Processor Motherboard : Gigabyte X570 AORUS MASTER OS : Windows10 Professional 64bit Measurement software : IOmeter, 1GB range, 4K data size, QD=128, 16 workers, 4k aligned
- TBW is calculated based on JEDEC218 / 219 workload.
About Nextorage
- Nextorage was established on October 1, 2019, as a company specializing in the memory storage solutions business led by engineers and staff who built 20 years of history in memory storage at Sony. 2022.Jan spun out from Sony group invested by Flash memory controller leading company Phison Electronics.
