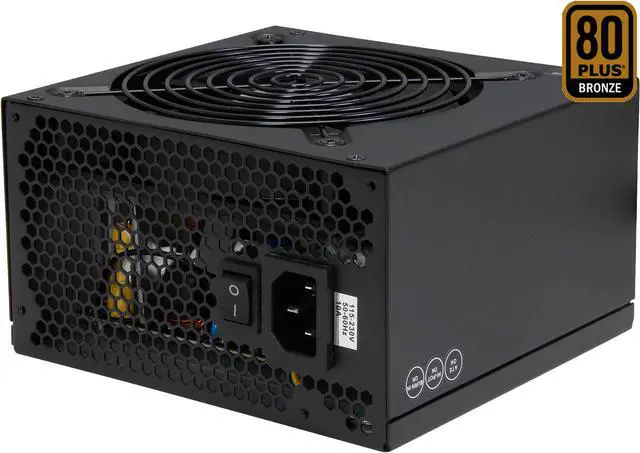

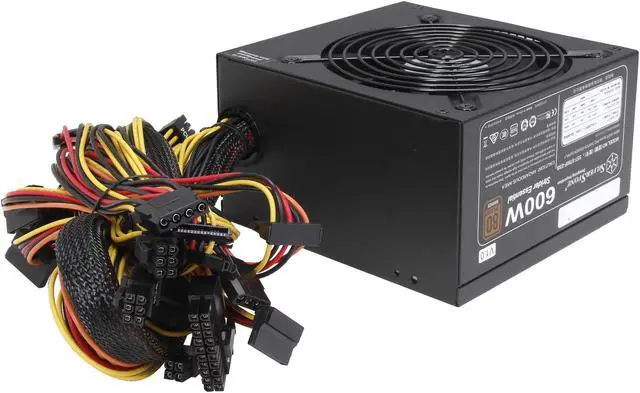

SilverStone Strider Essential ST60F-ESB 600 W ATX12V / EPS12V SLI Ready CrossFire Ready 80 PLUS BRONZE Certified Active PFC Power Supply

After successfully serving enthusiasts for years, the Strider Essential series has proven quality and dependable PSUs can indeed be had at affordable prices. So to further improve value for users looking to build great performing PCs, SilverStone has released the Strider Essential Bronze ST60F-ESB and ST60F-ESB PSUs to the series.

The two newly redesigned 700W and 600W PSUs retain all essential features, such as single +12V rail, multiple circuit protection, and useful 8-pin / 6-pin PCI-E connectors, to support various mainstream graphics card designs. With its upgraded 80 PLUS Bronze efficiency and the ability to provide 24/7 continuous output, the Strider Essential Bronze PSUs are solid choices for PC builders. Designed for 80 PLUS Bronze level of efficiency to reduce wasted heat and save electricity
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use

Model No.	SST-ST60F-ESB
Max. DC Output	600W
Load Range
+3.3V +5V +12V1 +12V2 +12V3 +12V4 +5VSB -12V -5V Max. (Amps) 22A 22A 45A / / / 2.5A 0.3A / Peak (Amps) / / / / / / 3.5A / / Min. (Amps) 0.1A 0.2A 0.6A / / / 0A 0A / Range (%) ±5% ±5% ±5% / / / ±5% ±10% / Line Reg. (%) ±1% ±1% ±1% / / / ±1% ±1% / Ripple (mVp-p) 50mV 50mV 120mV / / / 50mV 120mV /
Combined +3.3, +5V	120W
Combined +12V	540W
Input Voltage	103.5 ~ 253 Vrms
Input Frequency Range	47Hz ~ 63Hz
PFC	Active PFC (PF>0.95 at Full Load)
Efficiency	82 - 85% @ 20 - 100% loading
MTBF	100,000 hours
Operating Temperature	32 - 104°F (0 - 40°C)
Protection	Over current protection Over power protection Over voltage protection Under voltage protection Over temperature protection Short circuit protection

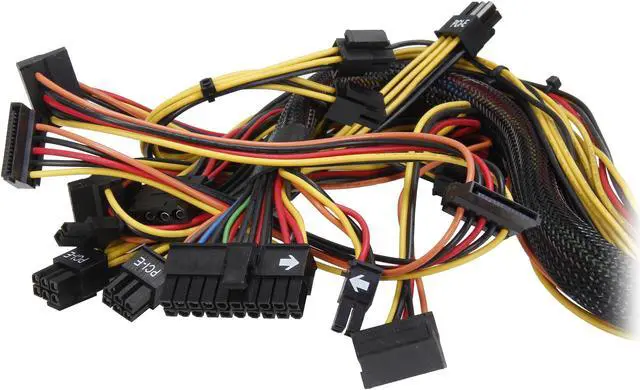

Connectors	x 24 / 20-Pin motherboard connector (500mm) 1 x 8 / 4-Pin EPS / ATX 12V connector (550mm) 1 x 8 / 6-Pin PCIE connector (500mm) 3 x 6-Pin PCIE connector (500mm / 150mm) 6 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2) 3 x 4-Pin Peripheral connector (600mm / 150mm / 150mm) 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Color	Black (Lead-Free Paint)
Cooling System	Single 120mm silent fan
Noise Level	18dBA minimum
Dimensions (W x H x D)	6 x 3.3 x 5.5 inches (150 x 86 x 140mm)
Weight	3.85lbs (1.75kg)
Form Factor	ATX
Certification	80 PLUS Gold
Other	GPU Support List Haswell CPU Support
