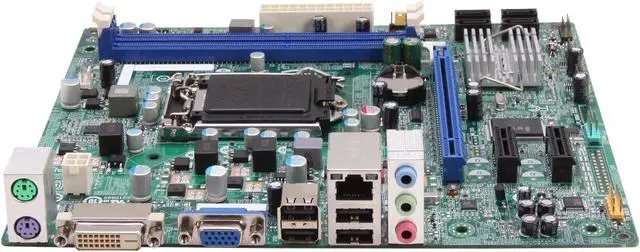

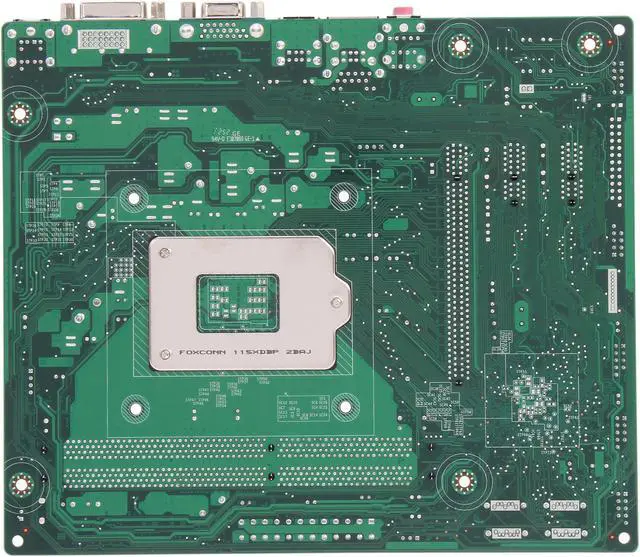

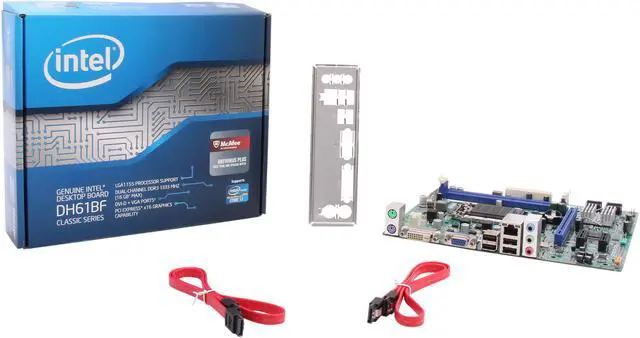

Intel DH61BF Desktop Motherboard - Intel H61 Express Chipset - Socket H2 LGA-1155
- Intel H61
- Core i7 / i5 / i3 / Pentium / Celeron (LGA1155)
- DDR3 1333/1066
Specs
Reviews (4)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel BOXDH61BF
| Brand | Intel |
|---|---|
| Model | BOXDH61BF |
| CPU Socket Type | LGA 1155 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 2nd gen (LGA 1155) / Intel Core 3rd Gen (LGA 1155) / Pentium / Xeon (LGA1155) |
| Chipset | Intel H61 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1333/1066/800 |
| Maximum Memory Supported | 16GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 |
| Audio Channels | 6 Channels |
|---|
| Max LAN Speed | 1Gbps |
|---|
| Back I/O Ports | 2 x PS/2 / 4 x USB 2.0/1.1 |
|---|---|
| PS/2 | 2 |
| Video Ports | D-Sub + DVI |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 3.0 + 10 x USB 2.0 |
|---|---|
| Other Connectors | 1 x Serial Port Header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 8.86" x 7.48" |
| Features | Intel DH61BF. Supported memory types: DDR3-SDRAM, Memory slots type: DIMM, Memory channels support: dual. Processor family: Intel, Compatible processor series: Celeron, Core i3, Core i5, Core i7, Processor socket: LGA 1155. Audio output channels: 5.1, Audio system: HD. PCI Express slots version: 3.0. Storage temperature range (T-T): 0 - 55 degree C, Operating temperature range (T-T): -20 - 70 degree C The latest Intel Desktop Board DH61BF brings outstanding multitasking perfomance with wupport for dual independent display with VGA and DVI-D display connectors. The DH61BF also supports Core i7 as well as all other processors in the LGA1155 package. |
|---|
| First Listed on Newegg | January 20, 2013 |
|---|
