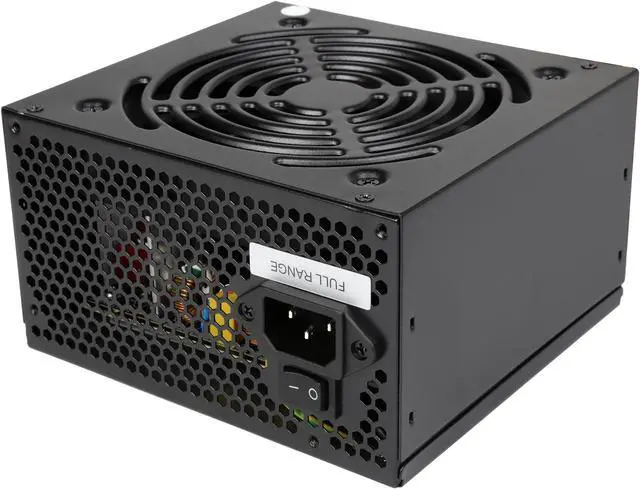

hec HEC400TA2WX 400 W ATX12V / EPS12V 80 PLUS Certified Power Supply

Be the first to review this product...
  • ATX12V / EPS12V
  • 80 PLUS Certified
  • 115 / 230 V 50/60 Hz
  • +3.3V, +5V, +12V1, +12V2, -12V, +5VSB
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Compucase HEC400TA2WX

General
Brand hec
Model HEC400TA2WX
Details
Type ATX12V / EPS12V
Maximum Power 400 W
Fans 120mm DC Fan
Main Connector 20+4Pin
+12V Rails 2
PCI-Express Connector 1 x 6-Pin
SATA Power Connector 4
Power Good Signal < 1s
Hold-up Time 16ms min.
Efficiency <= 82%
Energy-Efficient 80 PLUS Certified
Over Voltage Protection +5V MAX 7V,+12V MAX 15.6V,+3.3V MAX 4.5V
Overload Protection 100 - 150% Load
Input Voltage 115 / 230 V
Input Frequency Range 50/60 Hz
Output +3.3V, +5V, +12V1, +12V2, -12V, +5VSB

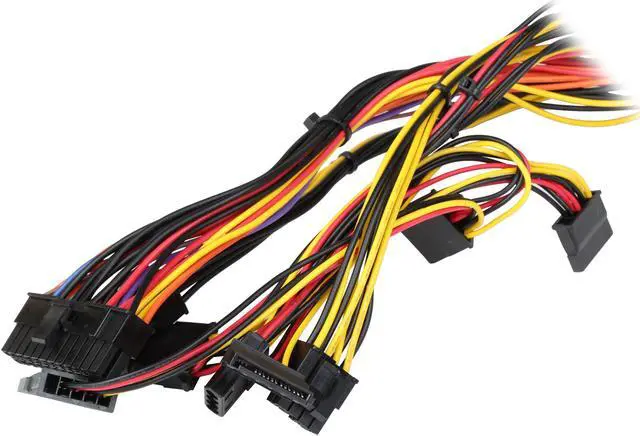

Connectors 1 x 20+4 Main Power Connector Supports Latest "Desktop Motherboards"
2 x Molex Connector
4 x SATA Connector
1 x PCI-E Connector (6pin)
Features
Features Compatible with Intel Pentium 4 and AMD

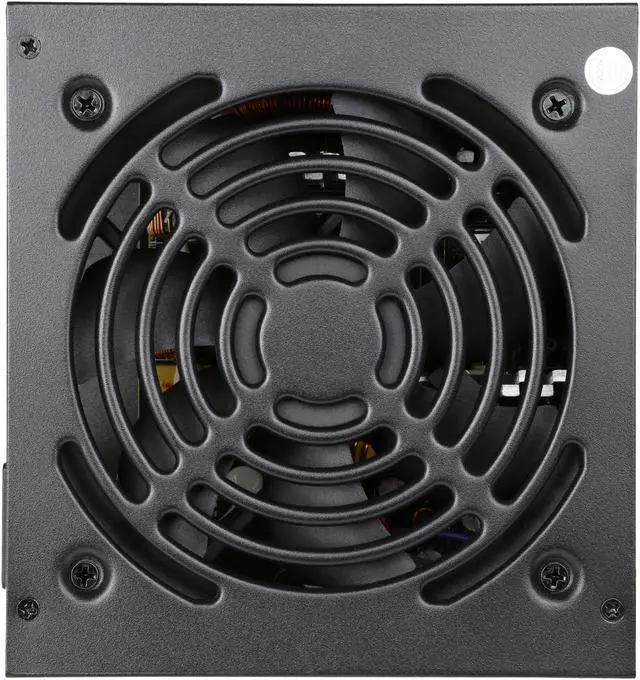

12 cm fan for better heat dissipation
+12V rails provide plenty of power sources to support high end systems
Super Quiet Technology: Smart Fan Control Function Keeps Noise Level Under 22dBA
Excellent Protection Functions Provide Maximum Reliability: OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OCP (Over-Current Protection), SCP (Short-Circuit Protection)
Over and under voltage protection
High Efficiency ( = 82%)
High Energy Power With Low Ripple Noise
100% Hi-Pot, Chroma & Burn-in Function Tested
Dimension & Weight

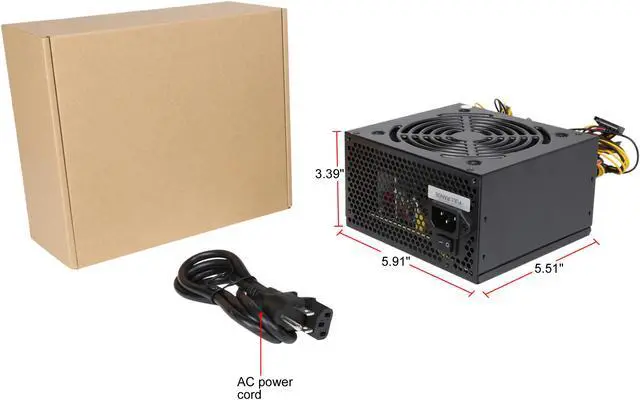

Dimensions 3.39" x 5.91" x 5.51"
Weight 5.00 lbs.
