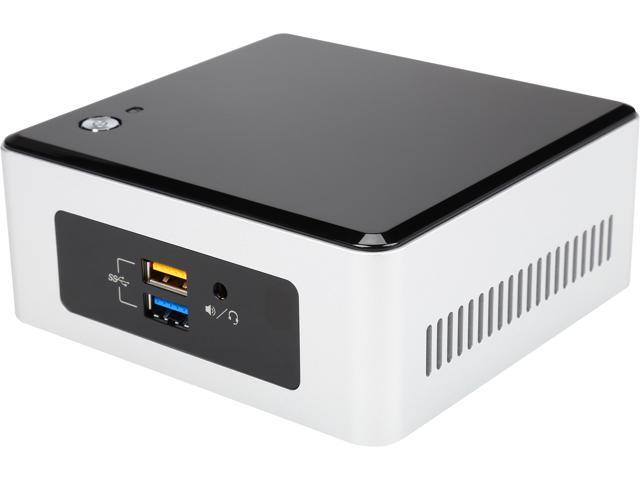

Intel NUC NUC5CPYH, HDMI, VGA, Intel HD Graphics, USB 3.0

Ships from United States.

Sold and Shipped by Newegg

Intel Celeron N3050 processor
Intel HD Graphics
DDR3L SODIMM, 1.35V, 1333/1600 MHz, 8GB maximum
802.11ac Wireless
Internal support for 2.5" HDD or SSD
SD Card Slot
Consumer Infrared sensor

Intel NUC NUC5CPYH, HDMI, VGA, Intel HD Graphics, USB 3.0

Ships from United States.

Overview
Specifications
Warranty & Returns
Reviews
Q&A

Small Size. Big Performance. The Intel NUC NUC5CPYH is a great PC replacement for small businesses. It’s armed with Intel Celeron N3050 processor, and premium Intel HD graphics, delivering massive power to breeze through any applications. It allows you to install a 2.5" HDD or SSD* for storing your files or other media content. A rich set of connectivity options – a VGA port, a HDMI port, TOSLINK audio output, four USB 3.0 ports, SDXC card slot and more, enable you to easily connect to your peripherals. Additionally, this compact unit is VESA mountable for easy out-of-sight installation. It features Kensington lock for maximum security.

Note:* The HDD/SSD is not included.

Fornt View

detailed view and application

Back View

detailed view and application

Impressive Computing Experience Get the Intel-level performance you’ve come to expect. The NUC5CPYH is powered by Intel Celeron N3050 dual core processor (2.6GHz), delivering awesome computing power to accelerate everything you do. Monstrous amount of data can be handled in no time. The integrated Intel HD graphics offers discrete-level graphics performance, so you can enjoy rich details whether you’re playing videos, or editing text/photos.
HDMI ready In addition to a VGA port, the NUC5CPYH features an HDMI port. You can easily hook it up to a big HDTV, and enjoy crystal-clear HD videos on the big screen.
Reliable Internet connection With built-in Intel Wireless AC 3165-M, you get “out of the box” wireless connectivity with Wi-Fi, Bluetooth, and Intel WiDi.1. For a fast wired Internet connection, you can use the 10/100/1000 Mbps Intel Gigabit LAN jack.
Super-fast USB 3.0 ports With four USB 3.0 ports—including a charging port, you have enough interfaces for all your peripherals, and can charge your tablet or phone even when your Intel NUC is idle. Plus, the included SD card slot lets you quickly transfer files.
Maximum security The Kensington lock with base security assures the NUC5CPYH is protected from inside and out.
A DIY All-in-One By using a VESA mount and a screwdriver, you can easily attach the NUC5CPYH to a display and create your own All-in-One.

Learn more about the Intel BOXNUC5CPYH

General

Brand: Intel

Series: NUC (Next Unit of Computing)

Model: BOXNUC5CPYH

Color: Black

CPU Supported

CPU Type: Intel Braswell Celeron N3050
(2.16 GHz Dual Core , 6W TDP)

Memory Supported

Memory installed: No Memory

Memory slot: 1 x 204Pin SO-DIMM

Memory Type Supported: DDR3L 1600/1333

Max Memory Supported: 8GB

Storage

Hard Drive Installed: No Hard Drive

Serial ATA: 1 x SATA 6.0Gb/s

Graphics

Onboard Video: Intel HD Graphics
1 x HDMI 1.4a
1 x HDB15 VGA

Audio

Onboard Audio: Up to 7.1 surround audio via HDMI
Headphone/Microphone jack on the front panel
Headphone/TOSLINK jack on the rear panel

Channel: 7.1 Channel

Communications

LAN: Realtek 8111HN

Max LAN Speed: 10/100/1000Mbps

Wireless LAN: Intel Wireless-AC 3165 M.2 2230, wireless antennas (IEEE 802.11ac, Intel Wireless Display)

Bluetooth: Bluetooth* 4.0

Extension Bays

2.5" Internal Bays: Internal SATA3 support for 2.5" HDD/SSD (up to 9.5mm thickness)

Front Panel Ports

Front USB: 2 x USB 3.0 ports on the front panel (1 x charging capable)
2 x Internal USB 2.0 via header

Card Reader: SDXC slot with UHS-I support on the side

Other Front Ports: Consumer Infrared sensor on the front panel

Back Panel Ports

Rear USB: 2 x USB 3.0

Power Supply

Power Supply: 19V, 65W wall-mount AC-DC power adapter
Multi-country plugs (IEC types A/C/G/I)

Physical SPEC

Dimensions: 2.03" x 4.37" x 4.53"

Features

Features: Intel Celeron processor N3050
One DDR3L SO-DIMM socket (up to 8 GB, 1333/1600 MHz)
1 x SATA3 port for connection to 2.5" HDD or SSD
Intel Wireless-AC and Bluetooth* 4.0
Back panel DC power connector (12V - 19V)
TOSLINK optical audio jack
VGA port
One HDMI* 1.4b display port supporting 8 channel digital audio (7.1 surround sound)
Intel Gigabit LAN
2 x USB 3.0 ports on the back panel
Support for user-replaceable third-party lids
Kensington lock with base security
SD card slot
2 x USB 3.0 ports on the front panel (including one charging port)
Intel HD Audio1 via Headphone/Microphone jack
16 Consumer infrared sensor

System Bios
- 64 Mb Flash EEPROM with Intel Platform Innovation Framework for EFI Plug and Play
- Advanced configuration and power interface V3.0b, SMBIOS2.5
- Intel Visual BIOS
- Intel Express BIOS update support

Hardware Management Features
- Processor fan speed control
- Voltage and temperature sensing
- Fan sensor inputs used to monitor fan activity
- ACPI-compliant power management control

Expansion Capabilities
- One NFC header
- 2x Internal USB 2.0 ports via 1x8 header (for replaceable lid support)
- One AUX_PWR header

Environment Operating Temperature
- 0° C to +50° C

Storage Temperature
- -20° C to +70° C

Product Safety Regulations and Standards
- IEC 60950-1
- UL 60950-1
- EN 60950-1
- CAN/CSA-C22.2 No. 60950-1

EMC Regulations and Standards (Class B)
- CISPR 22
- FCC CFR Title 47, Chapter I, Part 15, Subparts A, B
- ICES-003
- EN 55022
- EN 55024
- VCCI V-3, V-4
- KN-22
- KN-24
- CNS 13438

Environmental Regulations
- RoHS Directive 2011/65/EU
- WEEE Directive 2002/96/EC
- China RoHS MII Order #39
