Specifications: Audio: Yes
Chipset ID: STDP4320
Converter Type: MST Hub
Output Signal: HDMI
Ports: 2
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions:
Note: MST shares 21.6 Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.
Average resolution bandwidth allocation
1920 x 1080 (High-definition 1080p) @60 Hz - 22%
1920 x 1200 @60hz - 30%
2560 x 1440 @60hz - 35%
2560 x 1600 @60hz - 38%
3840 x 2160 (Ultra HD 4K) @30 Hz - 38%
Note: Exceeding 100% will reduce functionality.
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
Specifications: Audio: Yes
Chipset ID: T5-302/MCT
Output Signal: HDMI
USB Pass-Through: No
Audio Specifications: 2-Channel Stereo (48Khz)
General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset
Maximum Digital Resolutions: 1920 x 1200 / 1080p
Supported Resolutions:
Widescreen(16/32 bit):
1920 x 1200, 1920 x 1080, 1680 x 1050, 1600 x 900, 1440 x 900, 1360 x 768, 1280 x 800, 1280 x 768, 1280 x 720
Standard(16/32 bit):
1600 x 1200, 1400 x 1050, 1280 x 1024, 1280 x 960, 1152 x 864, 1024 x 768, 800 x 600
Connector A: 1 - USB Type-A (9 pin) USB 3.0 Male Input
Connector B: 1 - HDMI (19 pin) Female Output
Humidi...

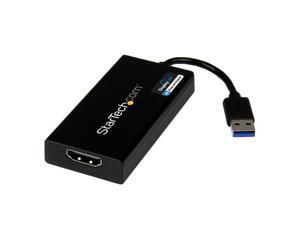

Specifications: Audio: Yes
Chipset ID: MCT Trigger
Memory: 64MB DDRII SDRAM
Output Signal: HDMI
Ports: 2
Audio Specifications: 2-channel stereo
Maximum Digital Resolutions: 4K x 2K @ 30 Hz
Supported Resolutions
Output 1: 3840 x 2160, 2048 x 1152, 1920 x 1200, 1920 x 1080, 1680 x 1050, 1366 x 768, 1280 x 800, 1280 x 768, 1280 x 720, 1600 x 1200, 1400 x 1050, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480
Output 2: 2048 x 1152, 1920 x 1080, 1680 x 1050, 1366 x 768, 1280 x 800, 1280 x 768, 1280 x 720, 1600 x 1200, 1400 x 1050, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480
**All resolutions support 16 and 32 bit color
Wide Screen Supported: Yes
Connector A: 1 x USB Type-A (9 pin) USB 3.0 Male Input
Microsoft WHQL Certified: Yes
OS Compatibility: Windows 10 (32/64), Windows 8 / 8.1 (32/64), Windows 7 (32/64)
Note: T...
Specifications: Audio: Yes
Chipset ID: NXP - PTN5100 / Pericom - PI3DPX1203
Converter Type: Format Converter
Audio Specifications: 7.1 surround sound
Maximum Digital Resolutions: 4K (3840 x 2160) @ 60 Hz
Supported Resolutions:
1024 x 768
1280 x 720
1920 x 1080 @ 144hz
1920 x 1200
2560 x 1440
2560 x 1600
3840 x 2160 @ 60Hz
Video Revision: DisplayPort 1.2
Wide Screen Supported: Yes
Connector:
1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x Mini-DisplayPort (20 pin) Female Output
System and Cable Requirements:
Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
This adapter outputs a single-mode Mini DisplayPort signal and will not work with additional video adapters such as Mini DisplayPort to HDMI, Mini DisplayPor...
Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID: Genesys Logic - GL3523 (USB Hub), Realtek - RTL8153 (LAN), Parade Technologies - PS176 (HDMI)
Displays Supported: 1
Fast-Charge Port(s): No
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector Type: 1 - USB Type-C (24 pin) USB 3.0 Male
OS Compatibility: Windows 7, 8, 8.1, 10 / Mac OS 10.10 to 10.12 / Chrome OS
Note:
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
A 4K-capable display is required to achieve 4K x 2...
Specifications: Note: Some legacy DVI monitors may be limited to a resolution of 1920x1200 when used with this adapter
Maximum Digital Resolutions: 2560 x 1600
Supported Resolutions: 1024 x 768, 1280 x 720 (High-definition 720p), 1920 x 1080 (High-definition 1080p), 1920 x 1200, 2560 x 1440, 2560 x 1600
Connector A: 1 x USB-C (24 pin) Male Input
Humidity: 5 - 90% RH (Non-condensing)
Operating Temperature: 0 to 70 degree C
Storage Temperature: -10 to 80 degree C

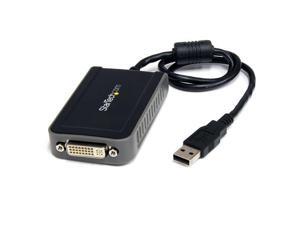

Specifications: Chipset ID: MCT - Trigger 1+
Memory: 16MB SDRAM
USB Pass-Through: No
General Specifications: This USB video adapter uses a Trigger family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a DisplayLink or Fresco family chipset.
Supported Resolutions: Standard (1600 x 1200, 1400 x 1050, 1280 x 1024, 1280 x 960, 1152 x 864, 1024 x 768, 800 x 600) / Widescreen (1680 x 1050, 1440 x 900, 1280 x 800, 1280 x 768, 1152 x 864, 800 x 600)
Connector A: 1 x USB Type-A (4 pin) USB 2.0 Male Input
OS Compatibility: Windows 10 (32/64) / Windows 8 / 8.1 (32/64) / Windows 7(32/64) / Windows Vista (32/64) / Windows XP (32/64)
System and Cable Requirements: One available USB 2.0 port

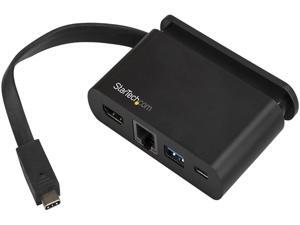

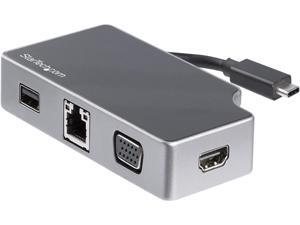

Specifications: 4K Support: Yes
Bus Type: USB-C
Chipset ID:
Genesys Logic - GL3523
Realtek - RTL8153
Eton Technology - EJ899T
Parade Technologies - PS176
ITE -IT6516
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards:
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Analog Resolutions: 1920 x 1200p @ 60Hz (VGA)
Maximum Data Transfer Rate:
5 Gbps (USB 3.0)
2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz (HDMI)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
OS Compatibility:
Windows 7, 8, 8.1, 10
macOS 10.11 to 10.14
Chrome OS
Specifications: Industry Standards: USB 3.0 - Backward compatible with USB 2.0 and 1.1
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz / 3840 x 2160p @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Power Source: USB-Powered
Output Connector: 1 x HDMI (19 pin) Female
1 x USB Type-A (9 pin) USB 3.0 Female
1 x USB Type-C (24 pin) USB 3.0 Female

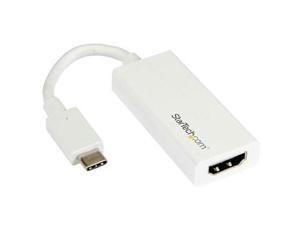

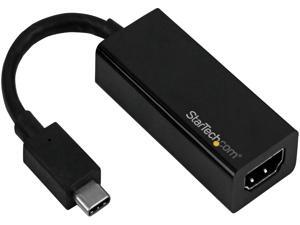

Specifications: Audio Specifications: 7.1 surround sound
Maximum Analog Resolutions: 1920 x 1200 or 1080p
Maximum Digital Resolutions: 3840x2160 @ 30 Hz
Supported Resolutions: 1024 x 768, 1280 x 720 (High-definition 720p), 1920 x 1080 (High-definition 1080p), 1920 x 1200, 2560 x 1440, 2560 x 1600, 3840 x 2160 (Ultra HD 4K)
Wide Screen Supported: Yes
Connector A: 1 x USB-C (24 pin) Male Input
Specifications: Maximum Digital Resolutions: 3840 x 2160 @ 60Hz
Supported Resolutions:
3840 x 2160 @ 60Hz
2560 x 1600
2048 x 1280
1920 x 1200
1920 x 1080
1280 x 720
1680 x 1050
1600 x 900
1440 x 900
1360 x 768
1280 x 800
1280 x 768
Wide Screen Supported:Yes
Humidity: 0~90% RH
Operating Temperature: 0 C to 40 degree C
Storage Temperature: -20C to 70 degree C

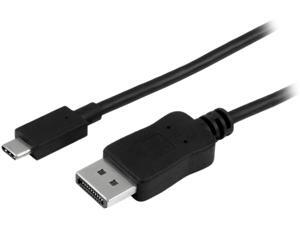

Output Connector: 1 x USB-C (24 pin) DisplayPort Alt Mode Male Input
1 x DisplayPort (20 pin) Female Output

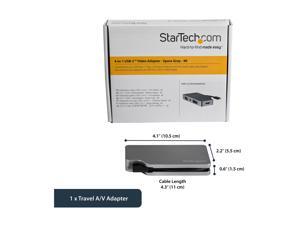

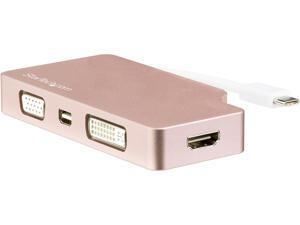

Specifications: Audio Specifications: HDMI and mDP output - 7.1 surround sound
General Specifications: Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function.
Maximum Analog Resolutions: 1920 x 1200
Maximum Digital Resolutions: 3840 x 2160
Supported Resolutions:
HDMI and mDP output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720
DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720
Video Revision: DisplayPort 1.2
Wide Screen Supported
Humidity: 40%-50%RH
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Temperature: -10°C to 80°C (14°F to 176°F)
Specifications: Maximum Analog Resolutions: 2048 x 1280p @ 60Hz
Maximum Data Transfer Rate: 5 Gbps (USB 3.0)
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
