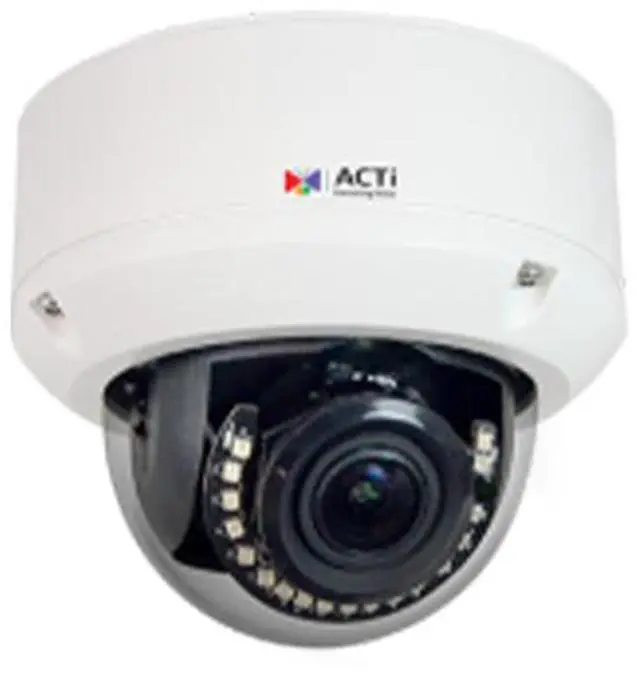

    ACTi A817, 8MP 4.3x Outdoor Zoom Dome with IR LED 40m, WDR 140dB

    Be the first to review this product...
    • 8 Megapixel, 4.3x, Zoom Dome
    • IR LED 40m, Extreme WDR (140 dB)
    • DORI (77.2-331 / 31.1-133.5 / 15.4-66.2 / 7.7-33.1m)
    • Weatherproof (IP67), Vandal proof (IK10)
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ACTi A817

    Model
    Brand ACTi
    Model A817
    Part Number A817
    Details
    Network Camera Yes
    Type Dome Camera
    Mounting Location Outdoor
    Network
    Networking Protocol IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
    Ports Ethernet Port:
    1 x Ethernet (10/100 Base-T), RJ-45 pigtail connector
    Camera
    Sensor & Detector CMOS
    HD Resolution 8MP
    MAX Resolution 3864 X 2192
    Video Capture Resolution VIDEO

    Compression:
    H.265 Adaptive Stream (equivalent to Zip or Smart Stream or H.265+), H.264, MJPEG

    Maximum Frame Rate vs. Resolution:
    - 30 fps at 3840 x 2160 (4K Ultra HD)
    - 30 fps at 2592 x 1944
    - 30 fps at 2048 x 1536
    - 30 fps at 1920 x 1080
    - 30 fps at 1280 x 960
    - 30 fps at 1280 x 720
    - 30 fps at 800 x 600
    - 30 fps at 720 x 480
    - 30 fps at 640 x 480
    - 30 fps at 480 x 360
    - 30 fps at 360 x 270

    Bit Rate Mode:
    Constant, Variable

    Multi-Streaming:
    Simultaneous triple streams

    Digital Noise Reduction:
    2D + 3D DNR

    Wide Dynamic Range:
    Extreme WDR (140 dB)

    Image Orientation:
    Flip, Mirror, Rotation (Corridor mode)

    Image Enhancement:
    White Balance, Brightness, Backlight compensation (BLC), Contrast, Saturation, Sharpness, Automatic gain control (AGC), Flickerless, Digital Image Stabilizer (DIS, EIS)

    Privacy Mask:
    4 configurable regions

    Text Overlay

    On-Screen Graphics (Picture Overlay)

    Built-in Analytics Deep Learning :
    Face Detection, People Detection, Vehicle Detection, Tampering Detection, People Line Crossing Detection, People Enter Area Detection, People Exit Area Detection, People Loitering Detection
    Lens Type Fixed Focal Lens
    Optical Zoom 4.3x Optical Zoom
    Security IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control
    Night Vision Yes
    Audio Audio Type:
    2-way, Mic-in, Line-in, Line-out

    Audio Compression:
    8 kHz, Mono, G.711 u-law
    Power
    Power over Ethernet Yes
    Power Power Source:
    DC 12V, PoE Class 3 (IEEE802.3af)

    Power Consumption:
    12.95 W (PoE)
    Dimension & Weight
    Dimension (Ø x H): 139.38mm x 129.75mm (5.48" x 5.10")
    Weight 1231g (2.71lb)
    Features
    Features EVENT

    Event Trigger:
    Video motion detection (3 regions), External device through digital input, Sound detection, Intelligent event detection, Video streams loss

    Event Response:
    Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

    SYSTEM

    System Monitor:
    CPU loading, memory usage and network statistics via API

    Watchdog:
    Support

    INTEGRATION

    Unified Solution:
    Fully compatible with ACTi software

    GPS Position:
    Manual setting

    Edge Recording:
    Support (integration with NVR by ONVIF Profile G or proprietary protocol)*

    ONVIF Compliant:
    Yes, Profile S, Profile G, Profile Q, Profile T, Profile M

    Web Browser:
    IE 11, Google Chrome, Microsoft Edge, Apple Safari

    Auto Firmware Upgrade

    INTERFACE

    Audio Interface:
    1/1, Terminal block

    Digital Input/Output:
    1/1 (Terminal block), DC Output Voltage: 5V

    Operating Button:
    Reset Button
