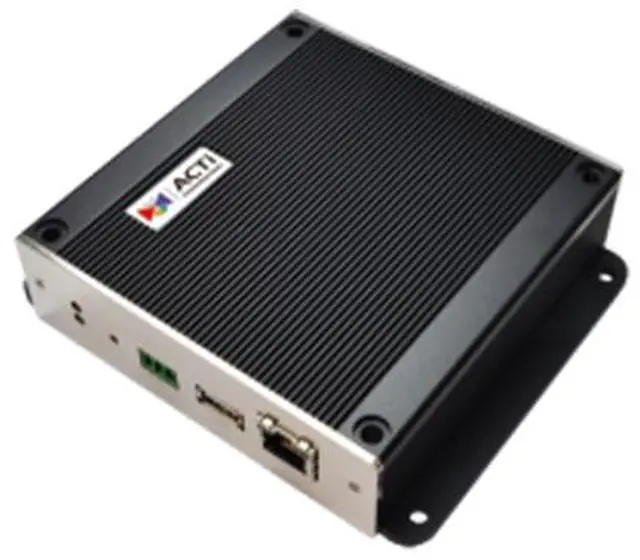

    ACTi ECD-1100, 16-Channel H.264 Video Decoder

    Be the first to review this product...
    • Maximum Resolution: up to 2MP (local) or up to12MP (remote)
    • Maximum Number of Cameras: 16
    • Maximum Number of Video Devices: 16
    +
    +
    Specs
    Reviews
    See all Q & A
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ACTi ECD-1100

    Model
    Brand ACTi
    Model ECD-1100
    Part Number ECD-1100
    Details
    Supported Protocols Network Protocol & Service:
    TCP, UDP, IP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP
    Ports Ethernet Port:
    1 x RJ-45 connector
    Audio Input Audio Type: 1-way
    Frame Rate Maximum Frame Rate vs. Resolution:
    - 30 fps at 1920 x 1080
    - 30 fps at 720 x 480
    - 25 fps at 720 x 576
    - 30 fps at 640 x 480
    Compression Format H.264
    Video Setting Video Source:
    Live video streams from IP Camera, Software NVR (NVR 3), Standalone NVR (GNR, INR series)
    Power Supply Power Source:
    DC 12V, PoE Class 3 (IEEE802.3af)

    Power Consumption:
    8.5 W (PoE), 7 W (DC)
    Features
    Features EVENT

    Event Trigger:
    Video loss, Network loss

    Event Response:
    Play alert sound

    SYSTEM
    Permission control:
    Multi-group/users, Liveview/setup/remote level permission

    Server Operating System:
    Embedded Linux

    Client PC Operating System:
    Windows 8.1, Windows 7 SP1

    USB:
    1-Port USB 2.0

    Language:
    Multi-Language

    System Status Monitor:
    Real time status reports on remote browser

    INTEGRATION

    Unified Solution:
    Fully compatible with ACTi cameras and encoders

    ONVIF Compliant:
    Yes, Profile S

    Web Browser:
    IE 11

    INTERFACE

    HDMI Output:
    1, HDMI Type A

    Analog Video Output:
    1 x BNC connector (optional)

    External Storage Interface:
    USB

    Local Access:
    HDMI monitor, USB keyboard & mouse

    Local Display Interface:
    HDMI x 1, BNC x 1 (alternative selection)
    Dimensions & Weight
    Dimensions (W x H x D): 135mm x 114mm x 33mm (5.3" x 4.5" x 1.3")
    Weight 566g (1.25lb)
    Additional Information
    First Listed on Newegg March 02, 2026

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 2 years
    • Limited Warranty period (labor): 2 years
