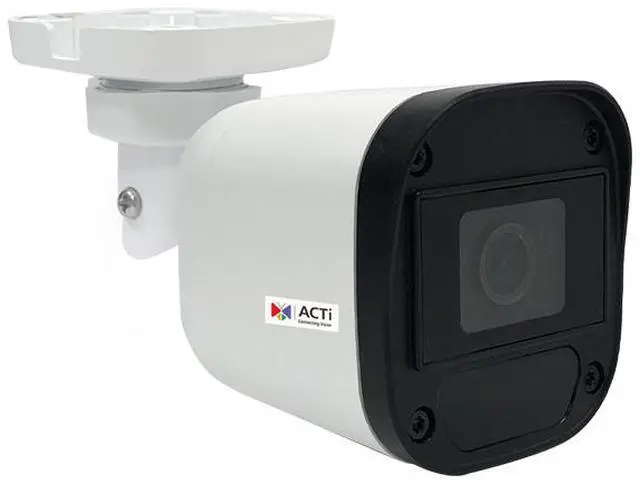

ACTi Y32, 5MP f2.8mm Analog Bullet with IR LED 30m, WDR 130dB
- 5 Megapixel, f2.8mm, Analog Bullet
- IR LED 30m, Extreme WDR (130 dB)
- DORI (56 / 22.6 / 11.2 / 5.6m)
- Weatherproof (IP67)
+
+
Learn more about the ACTi Y32
| Brand | ACTi |
|---|---|
| Model | Y32 |
| Part Number | Y32 |
| Type | Bullet Camera |
|---|---|
| Mounting Location | Outdoor |
| Sensor & Detector | CMOS |
|---|---|
| HD Resolution | 5MP |
| Video Capture Resolution | VIDEO Maximum Frame Rate vs. Resolution: - (TVI/AHD) 20 fps at 2592 x 1944 - (CVI) 25 fps at 2880 x 1620 - (CVBS) NTSC, PAL Digital Noise Reduction: DNR Wide Dynamic Range: Extreme WDR (130 dB) Image Orientation: Flip Image Enhancement: White Balance |
| Lens Type | Fixed Focal Lens |
| Power over Ethernet | Yes |
|---|---|
| Power | Power Source: DC 12V (adapter not included), plug size 2.1x5.5mm Power Consumption: 3.6 W (DC) |
| Dimension | (L x W x H): 142mm x 63mm x 65mm (5.59" x 2.48" x 2.56") |
|---|---|
| Weight | 135g (0.30lb) |
| Features | DETECTION RANGE Observation Range: - Detection: 56m - Observation: 22.6m - Recognition: 11.2m - Identification: 5.6m INTERFACE Analog Video Output: 1 x BNC connector, TVI/AHD/CVI/CVBS |
|---|
| First Listed on Newegg | March 03, 2026 |
|---|
