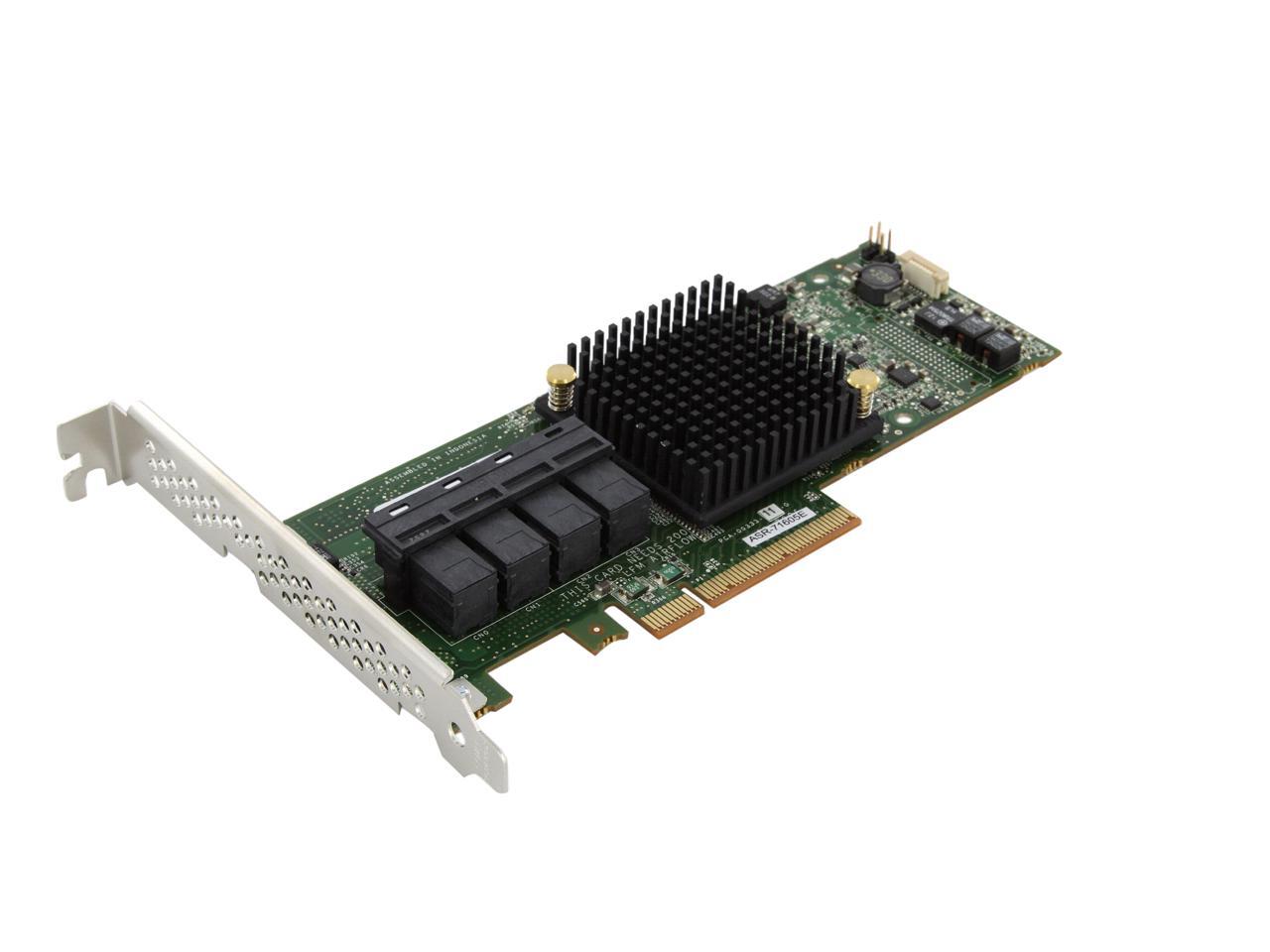

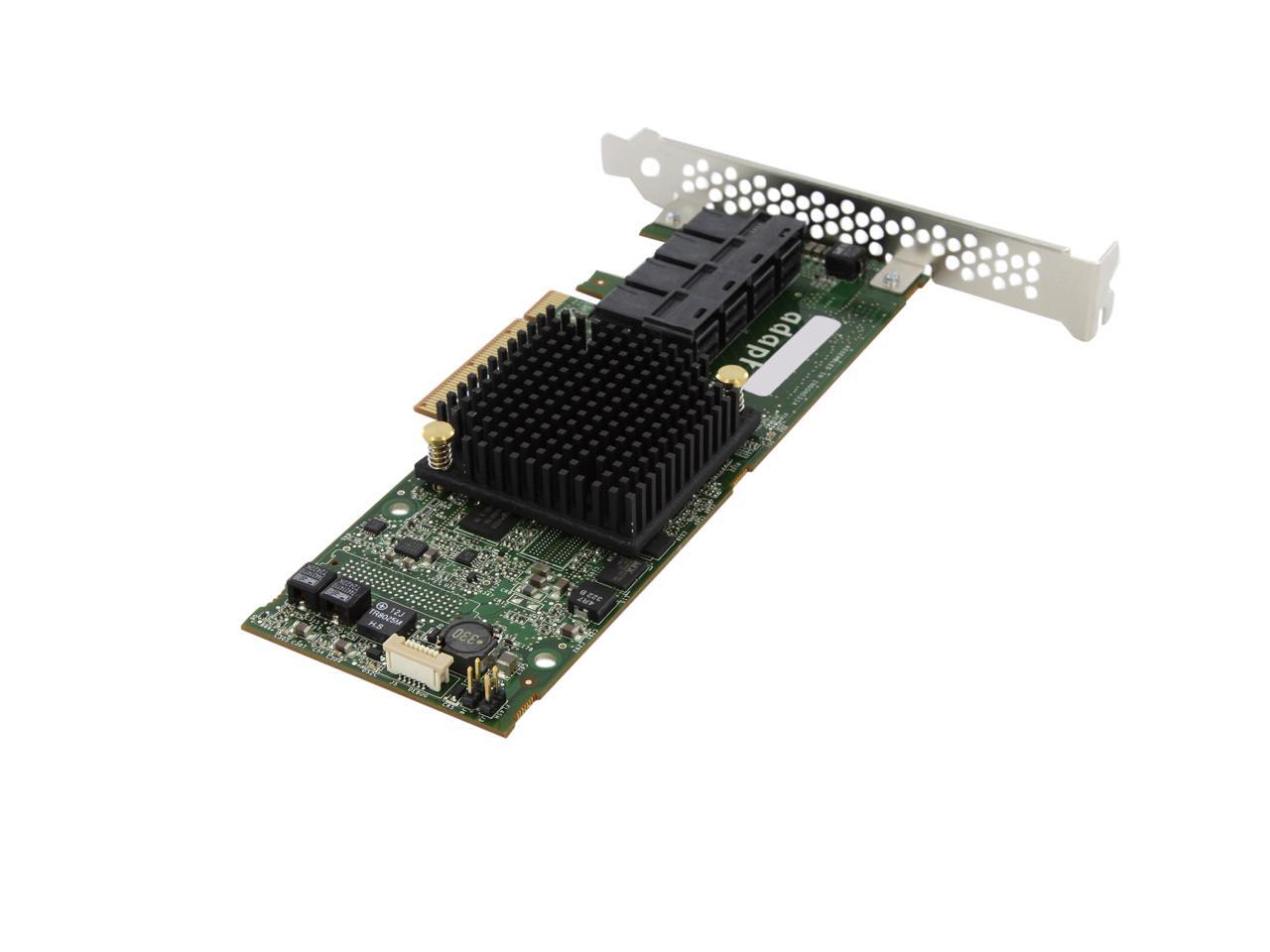

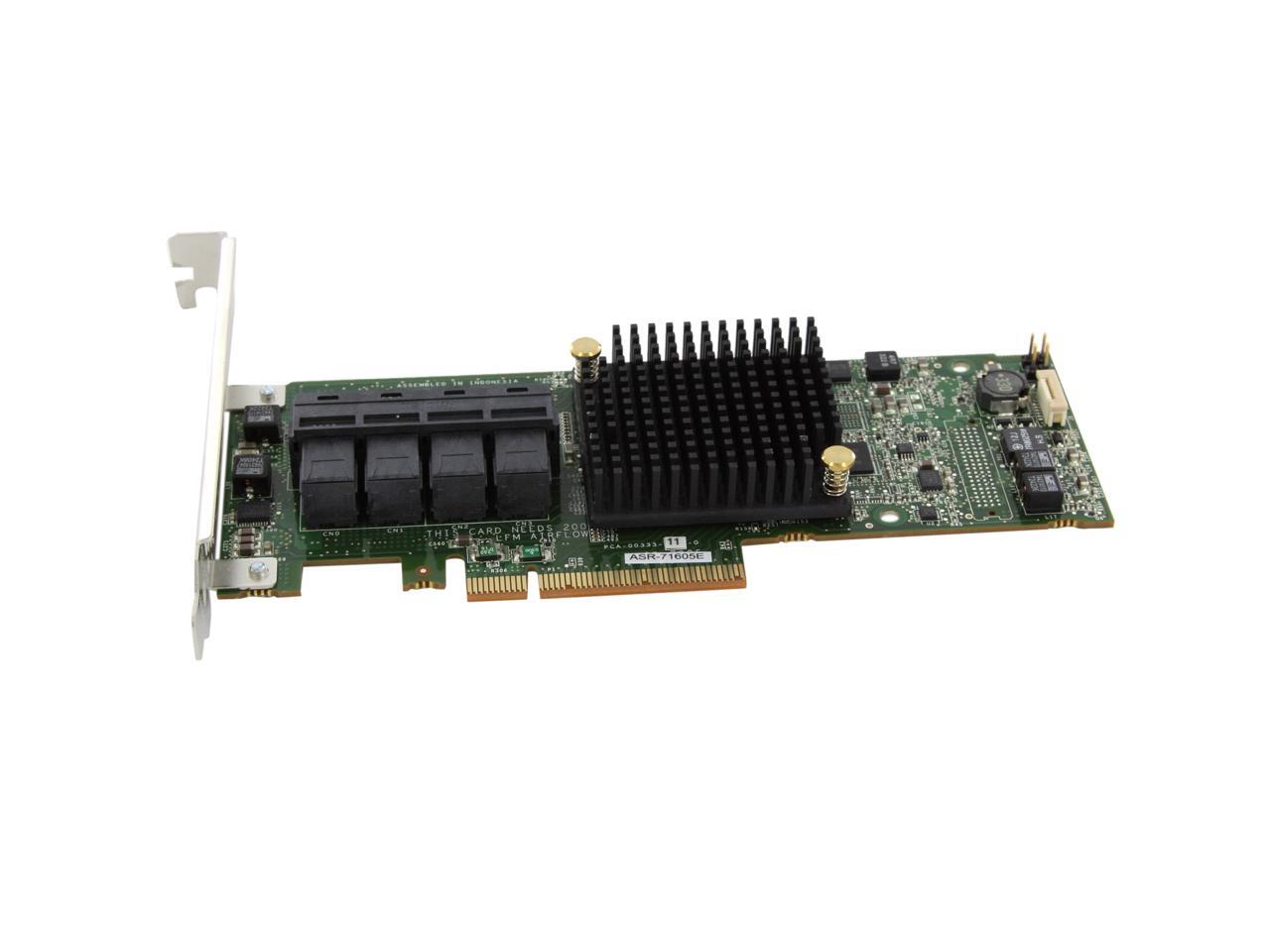

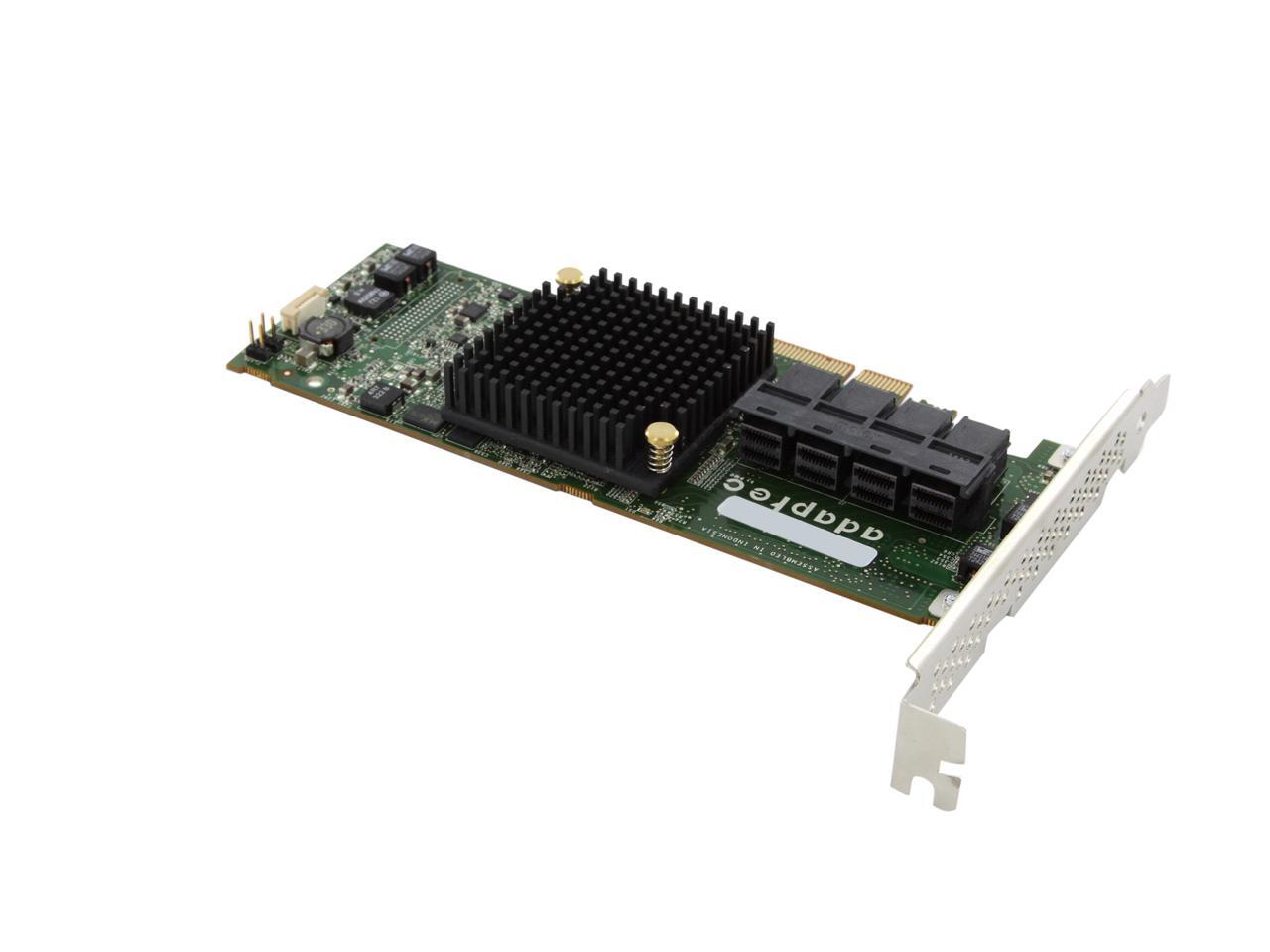

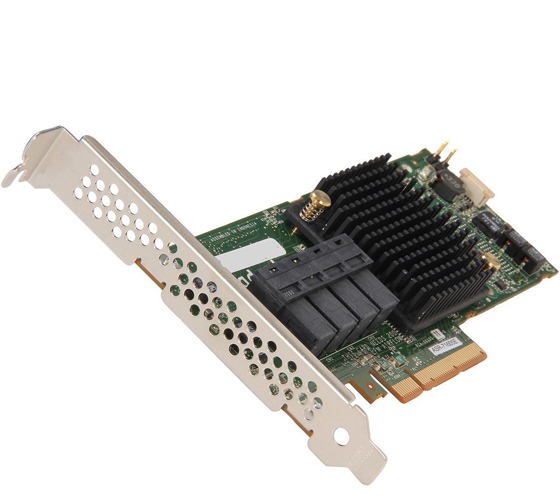

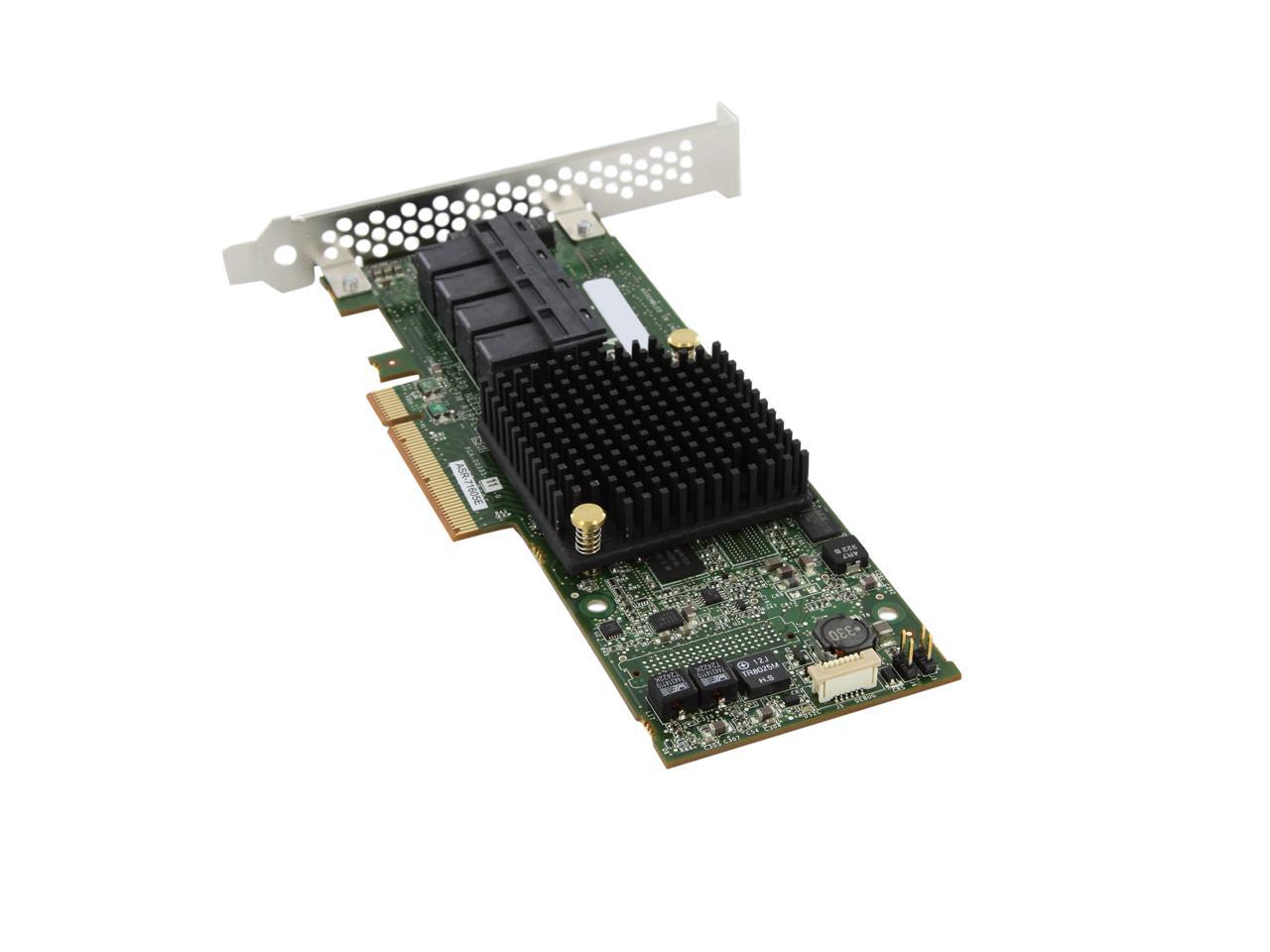

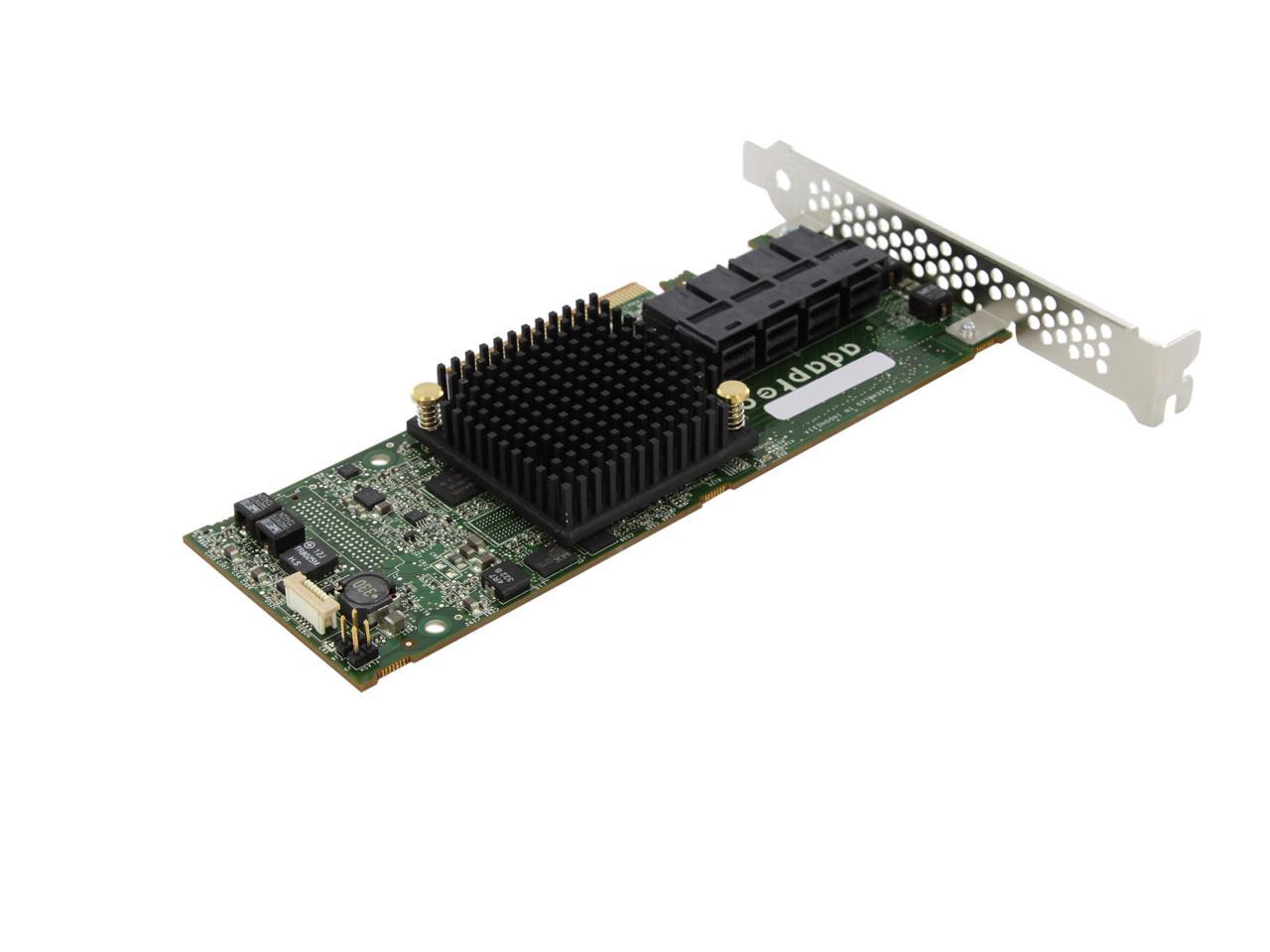

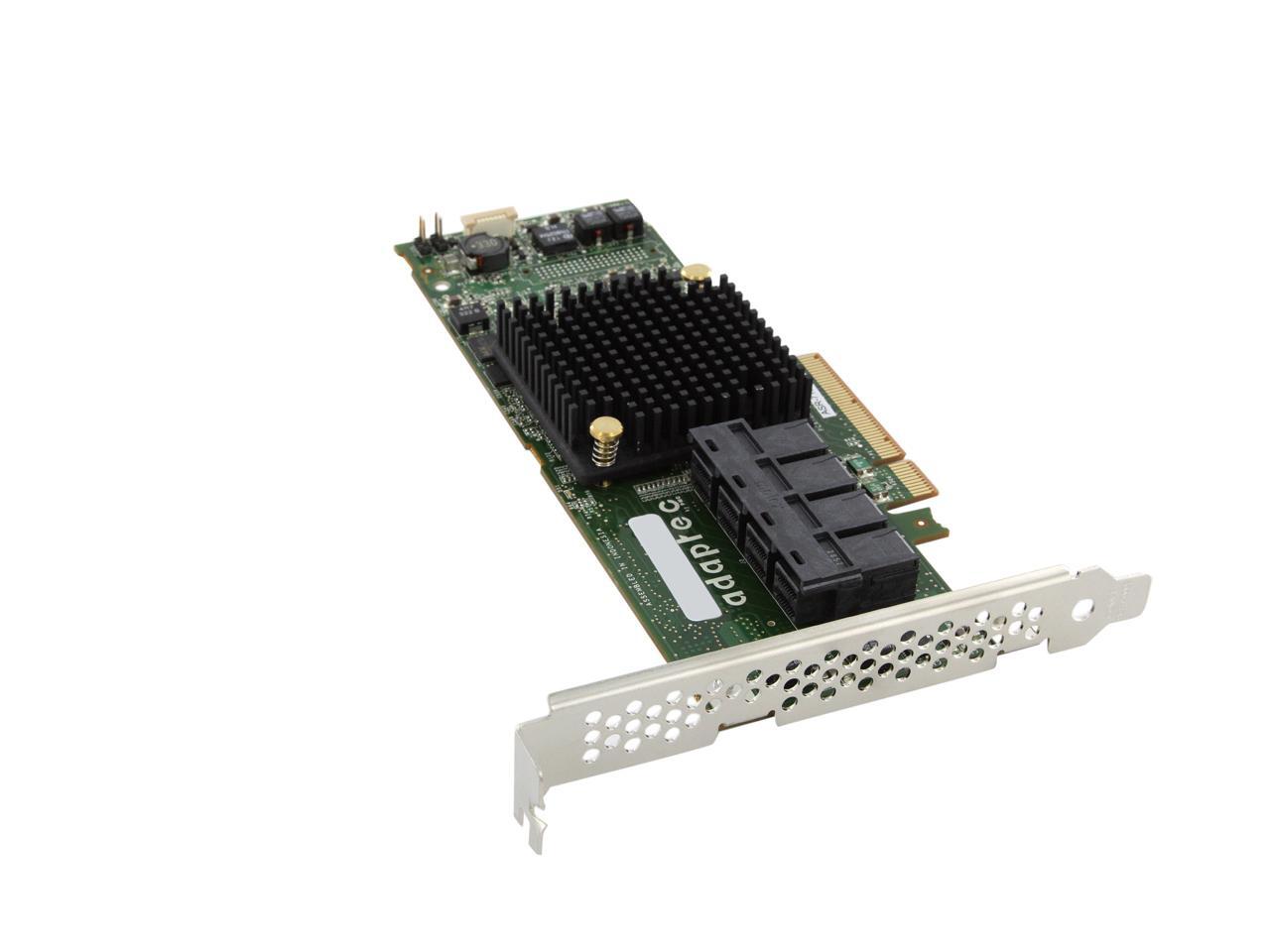

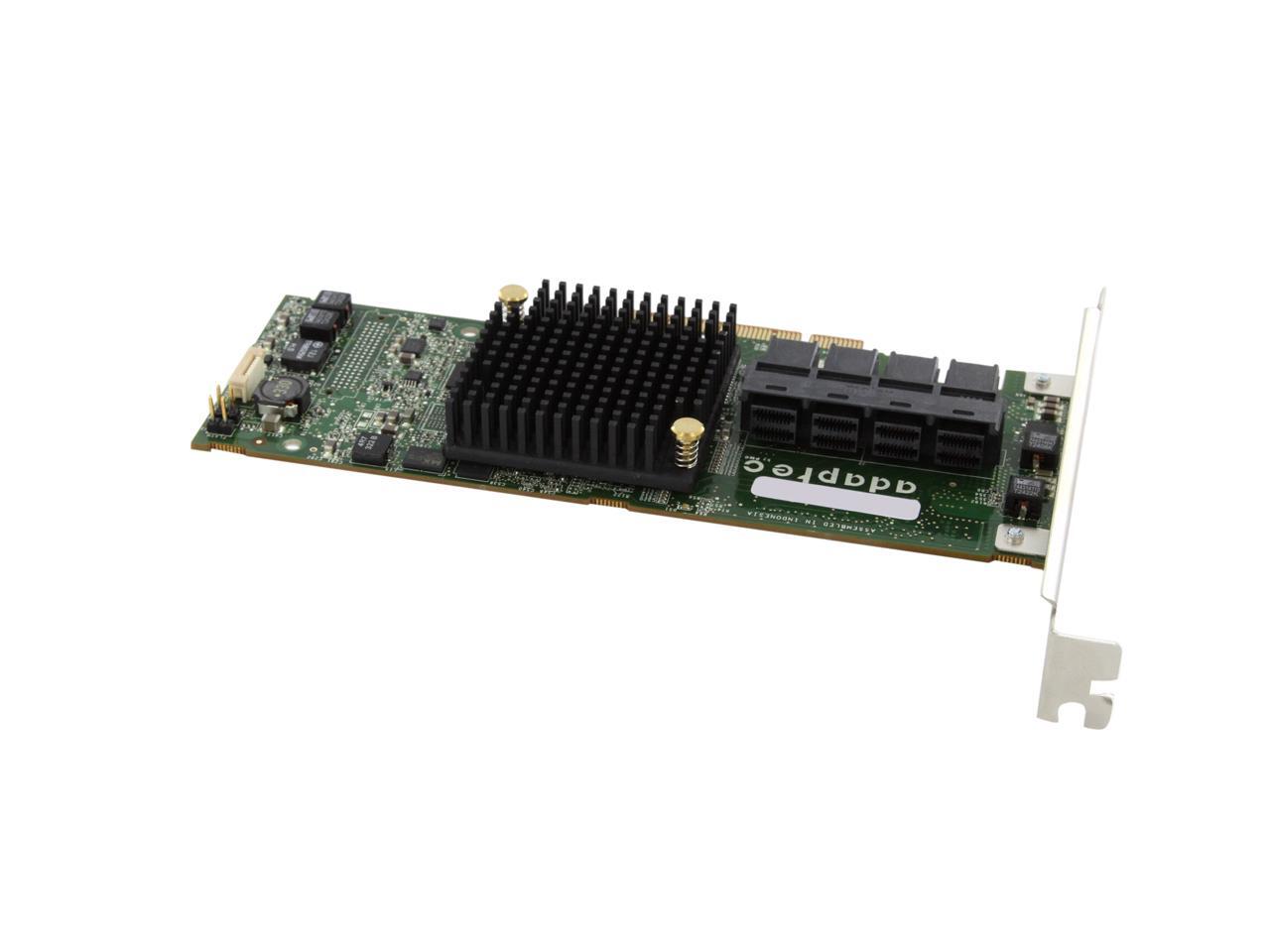

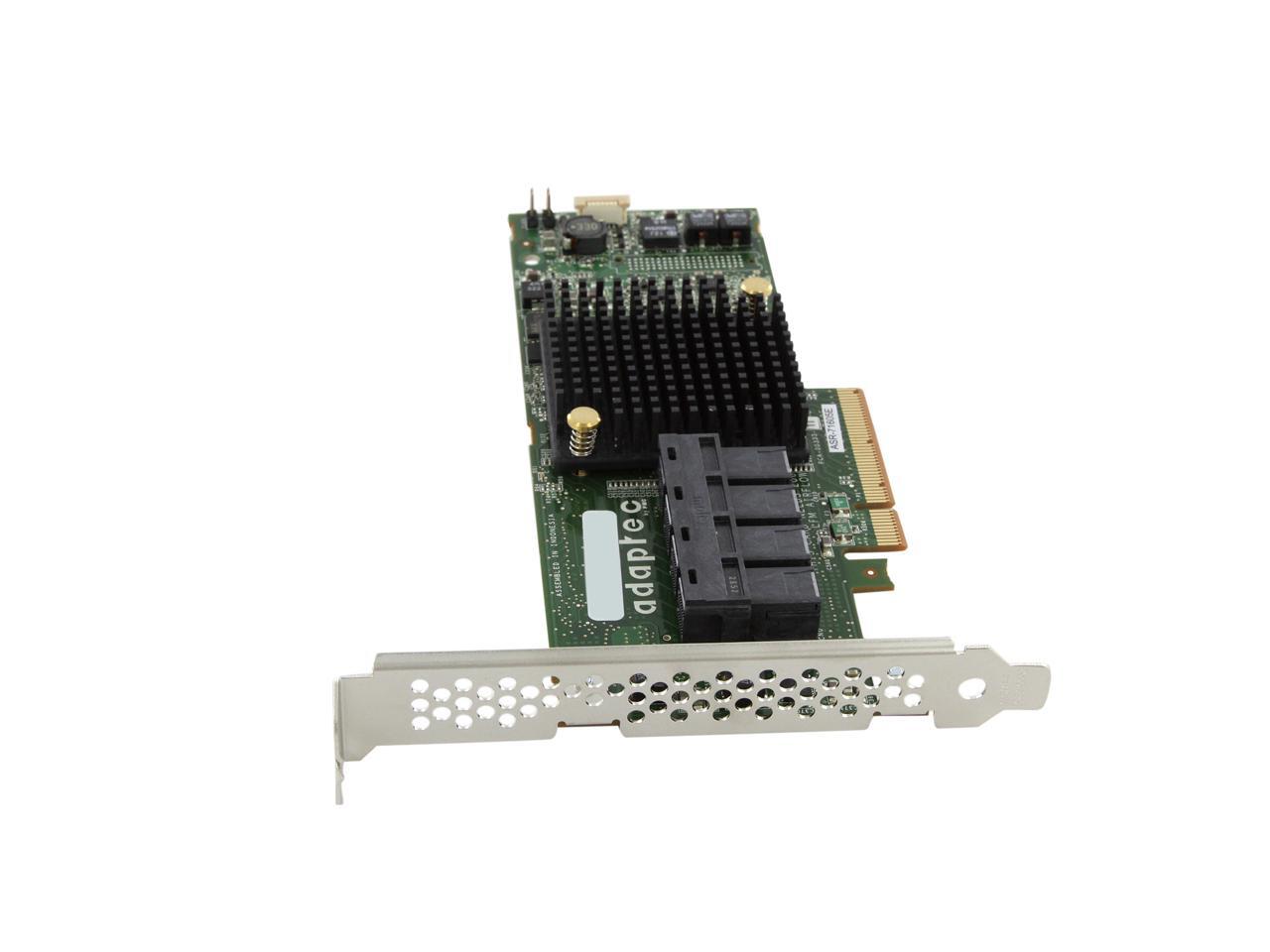

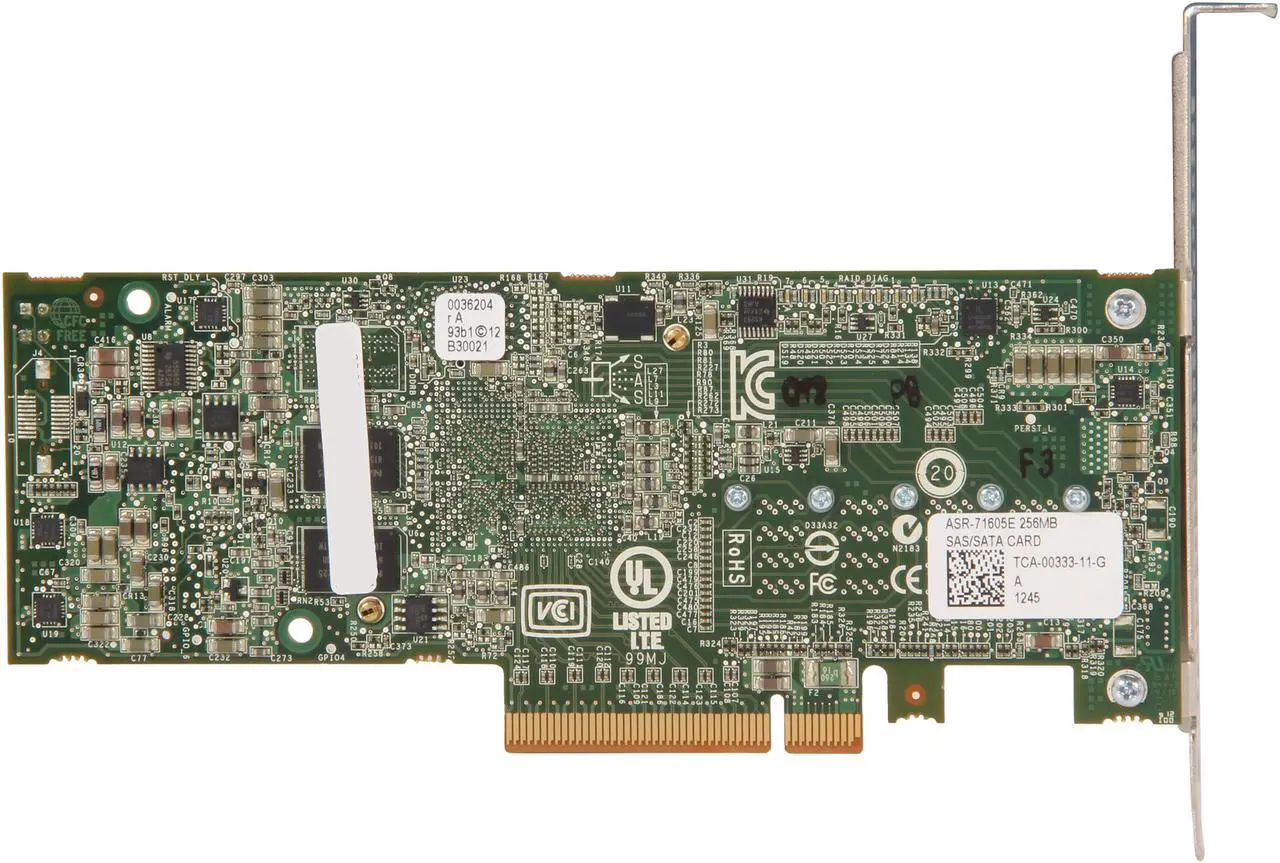

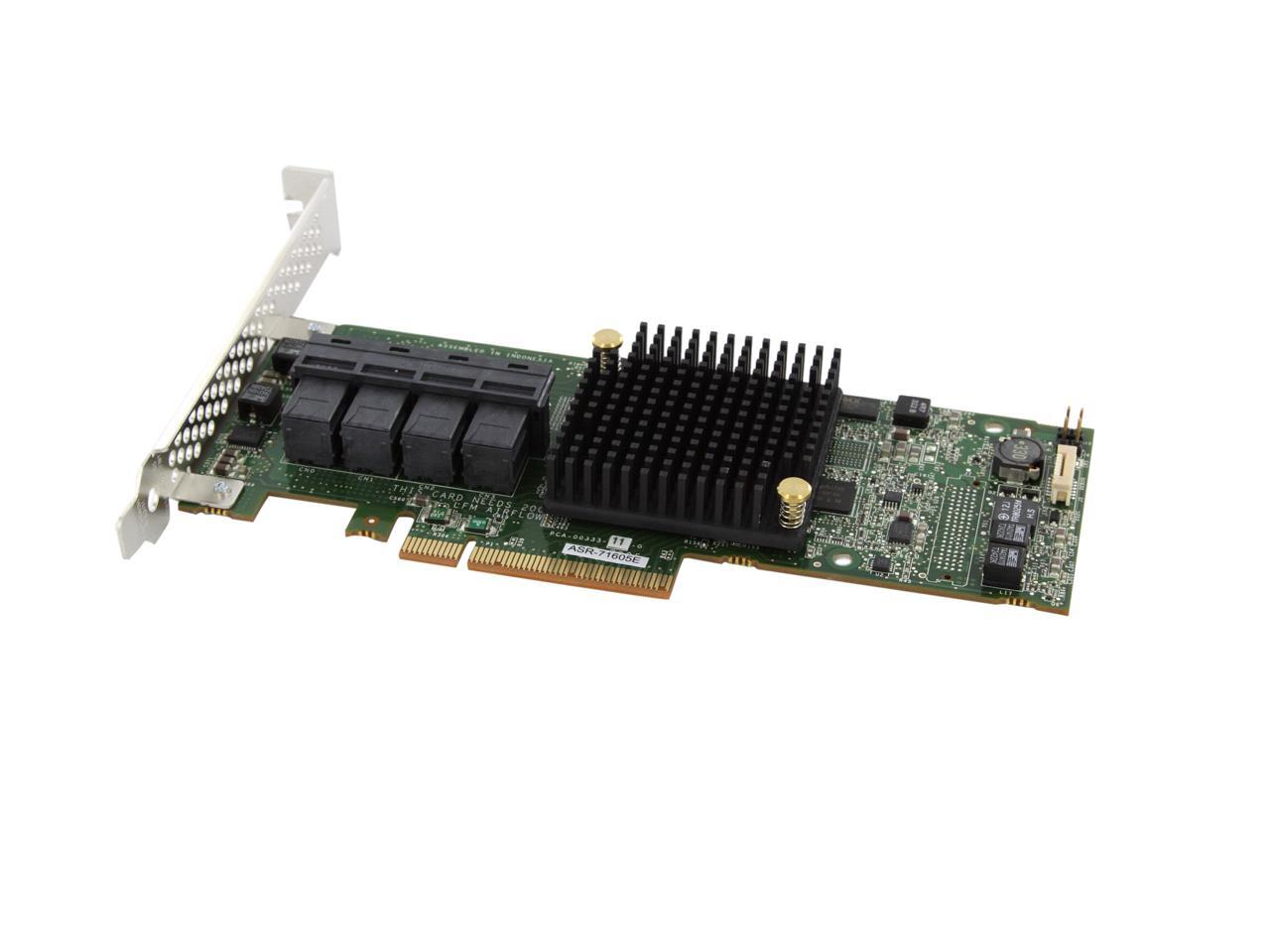

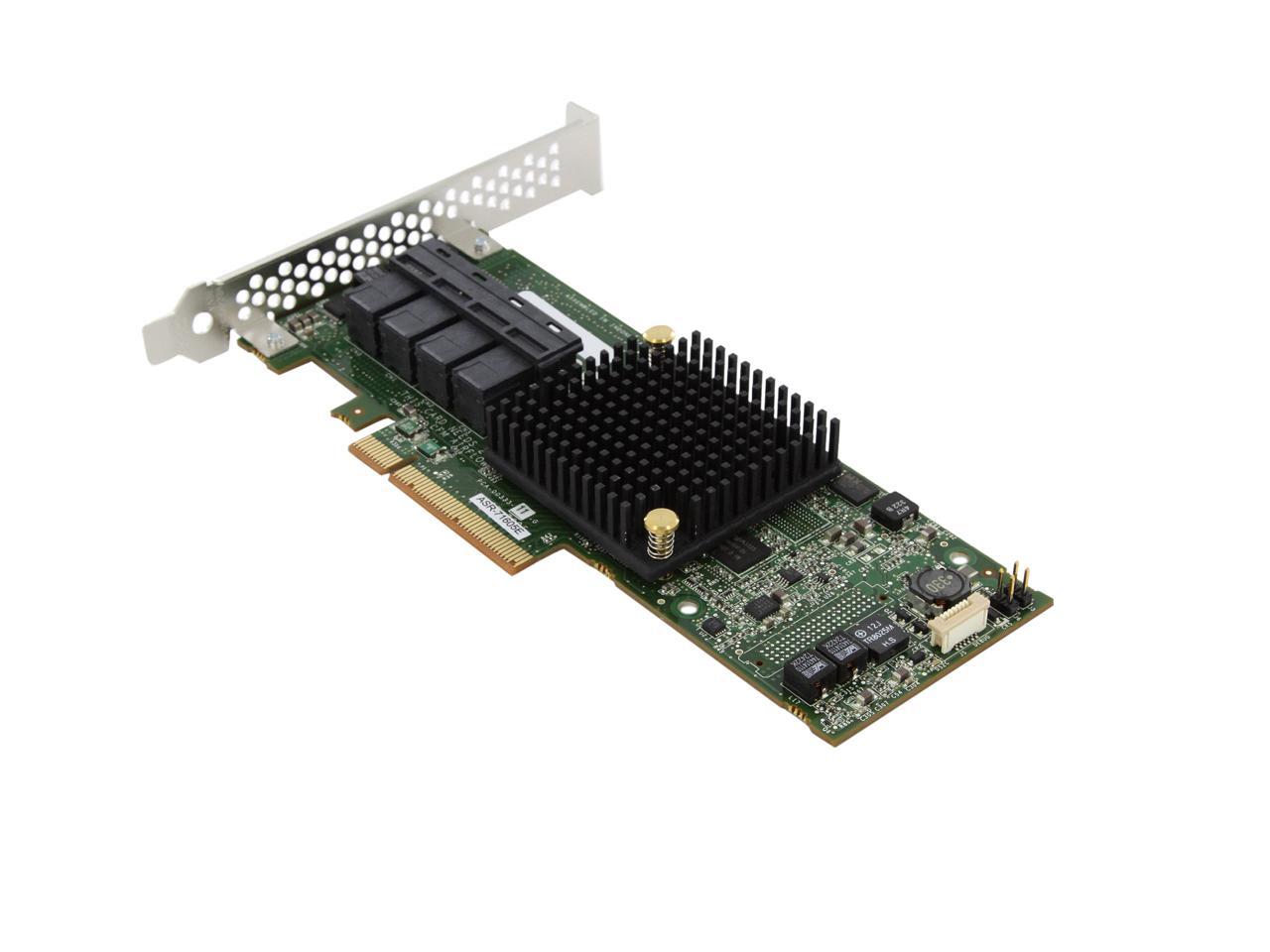

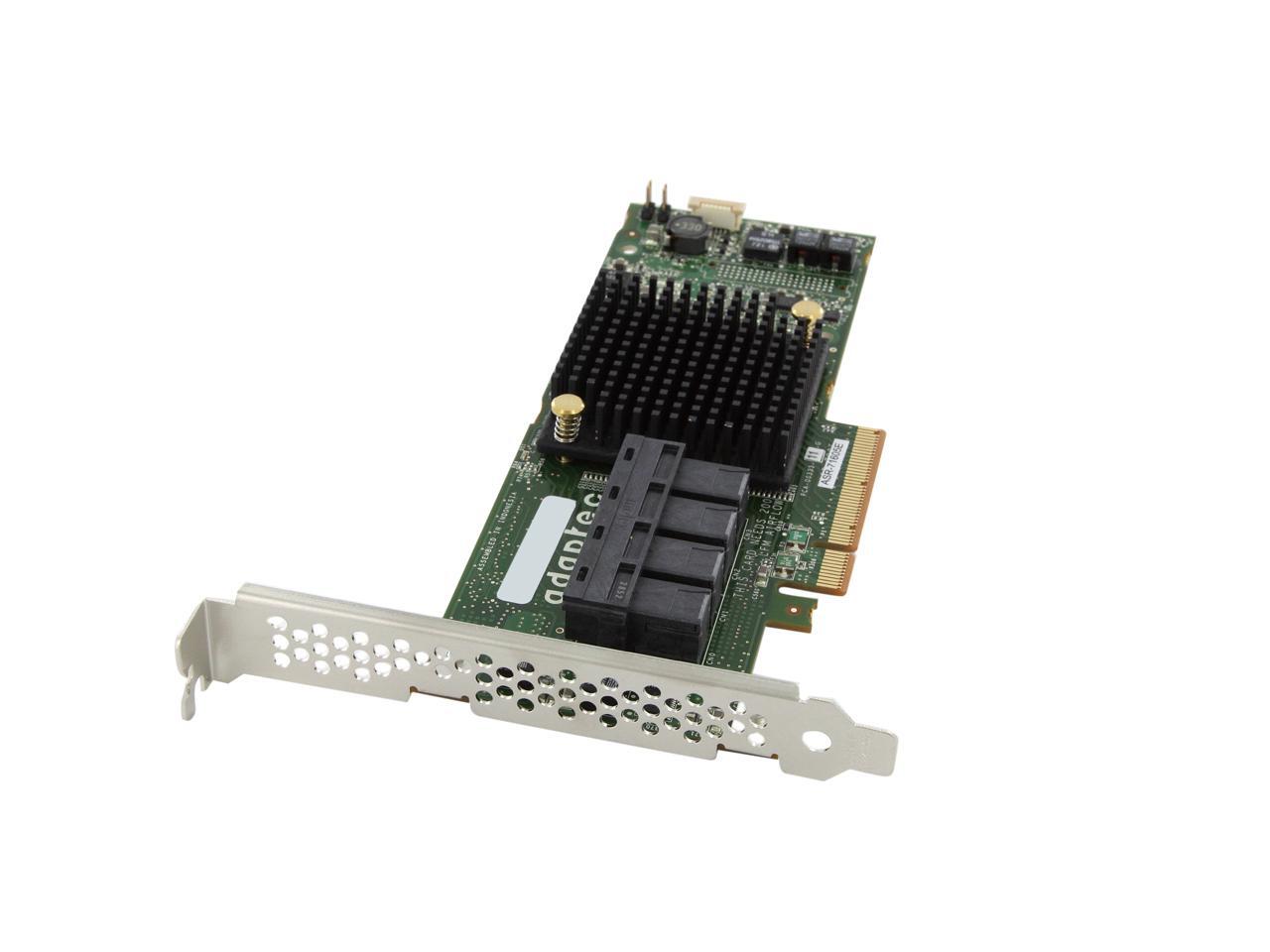

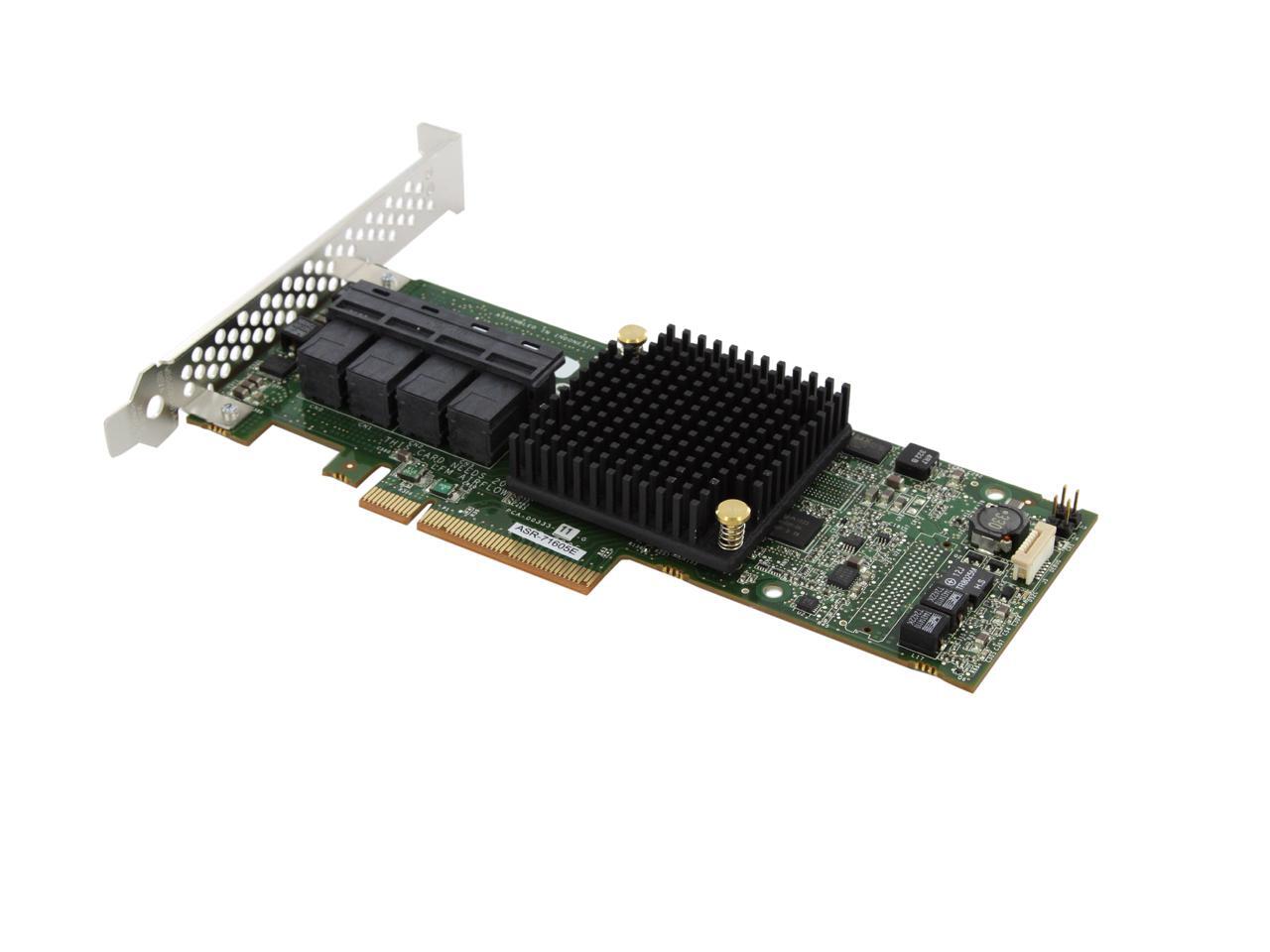

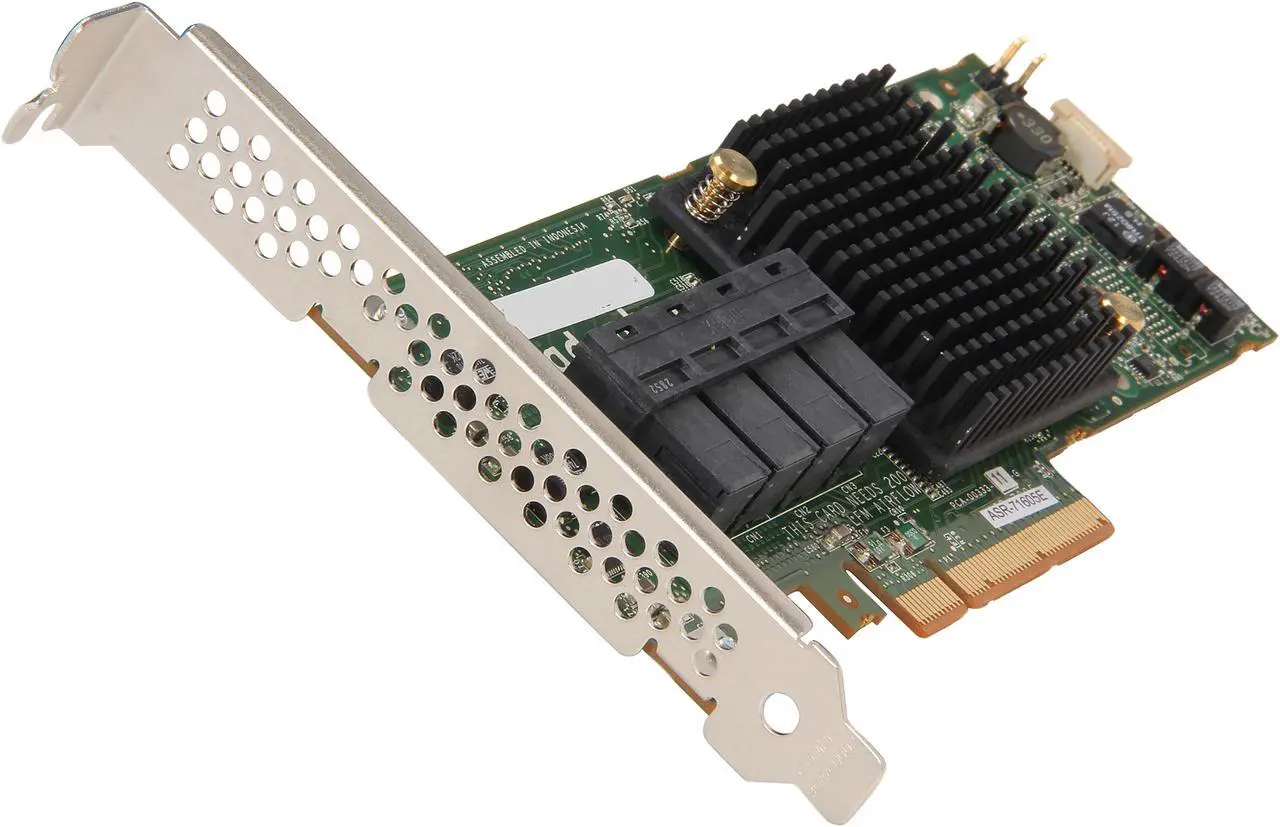

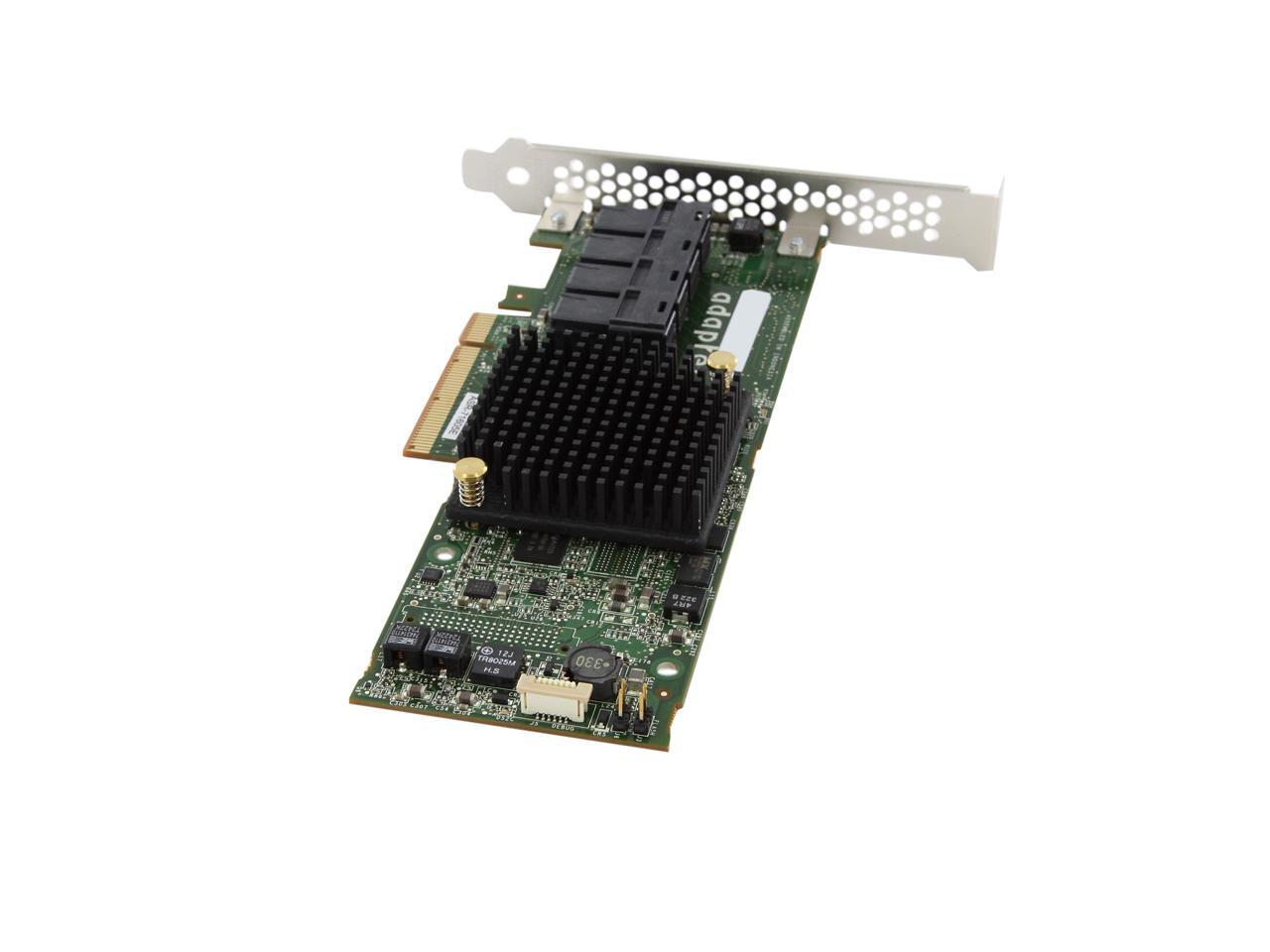

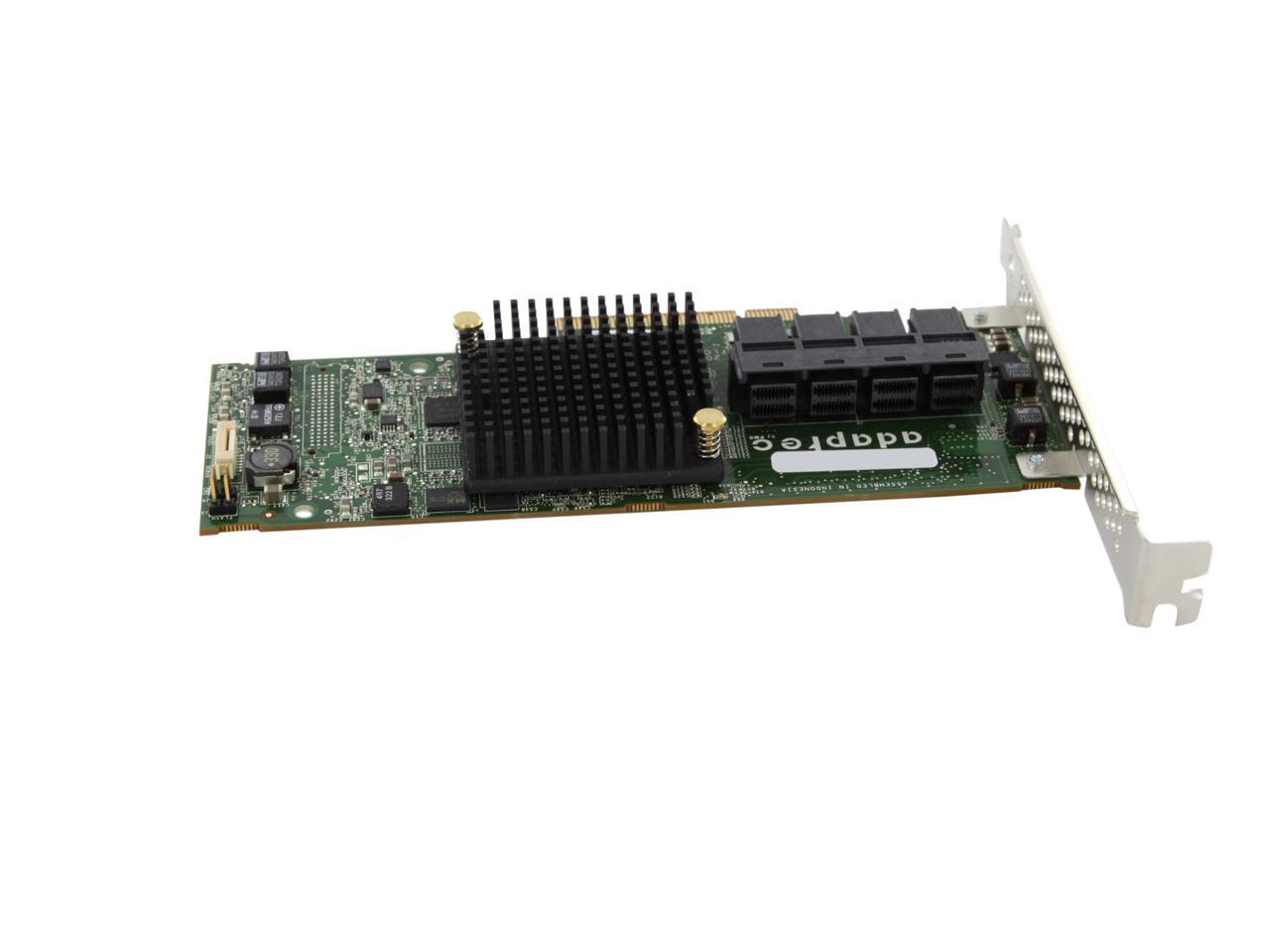

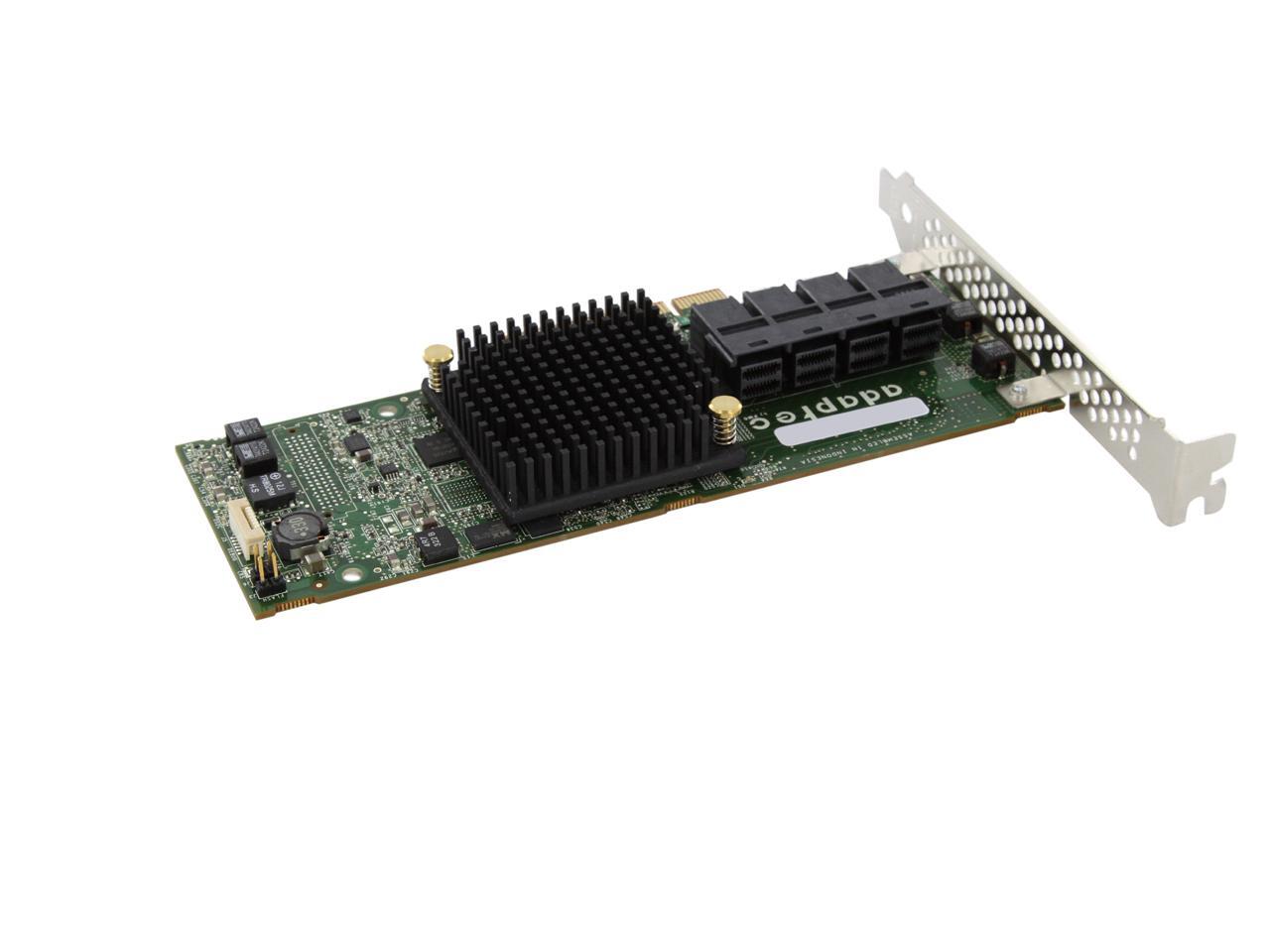

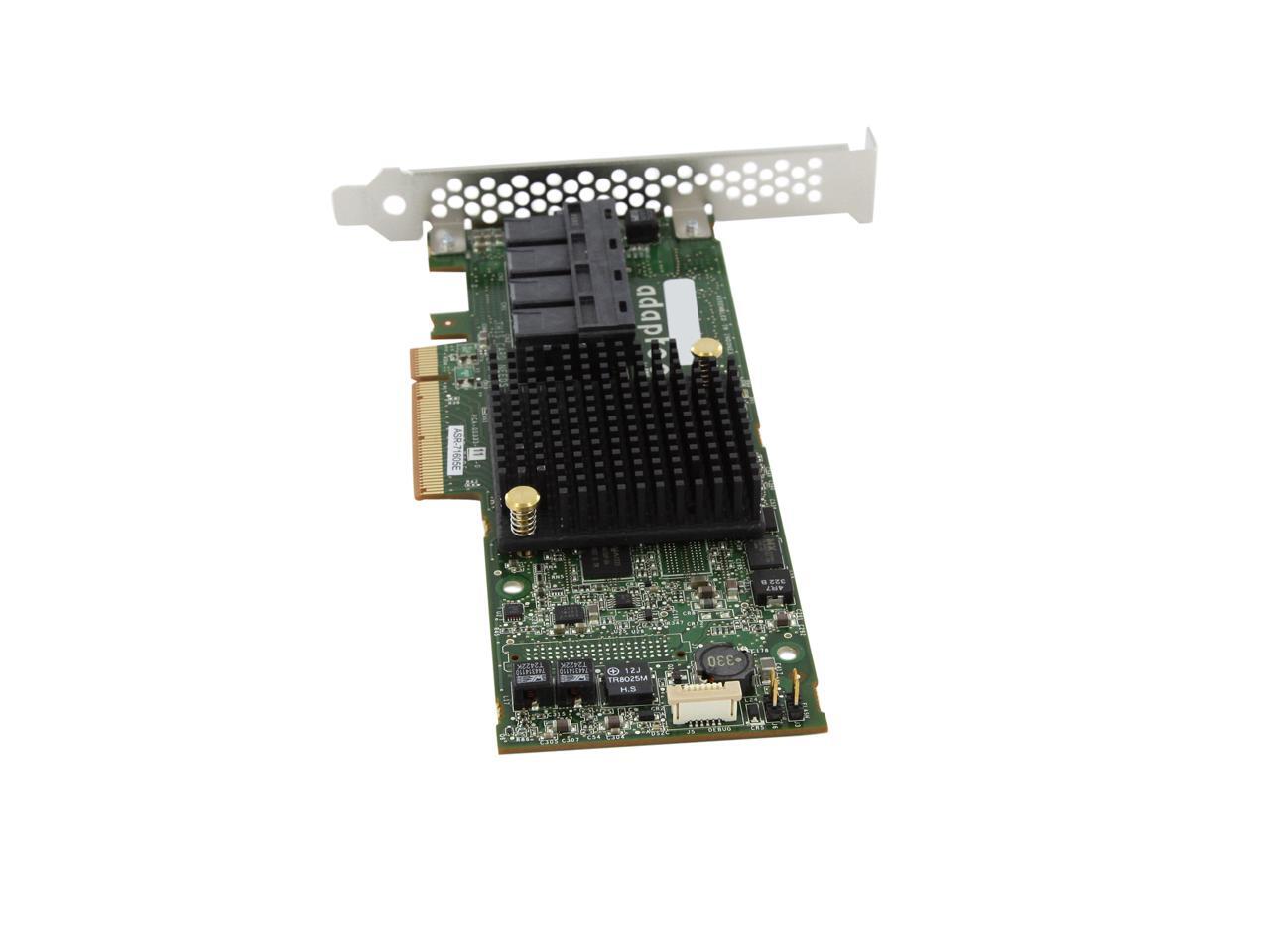

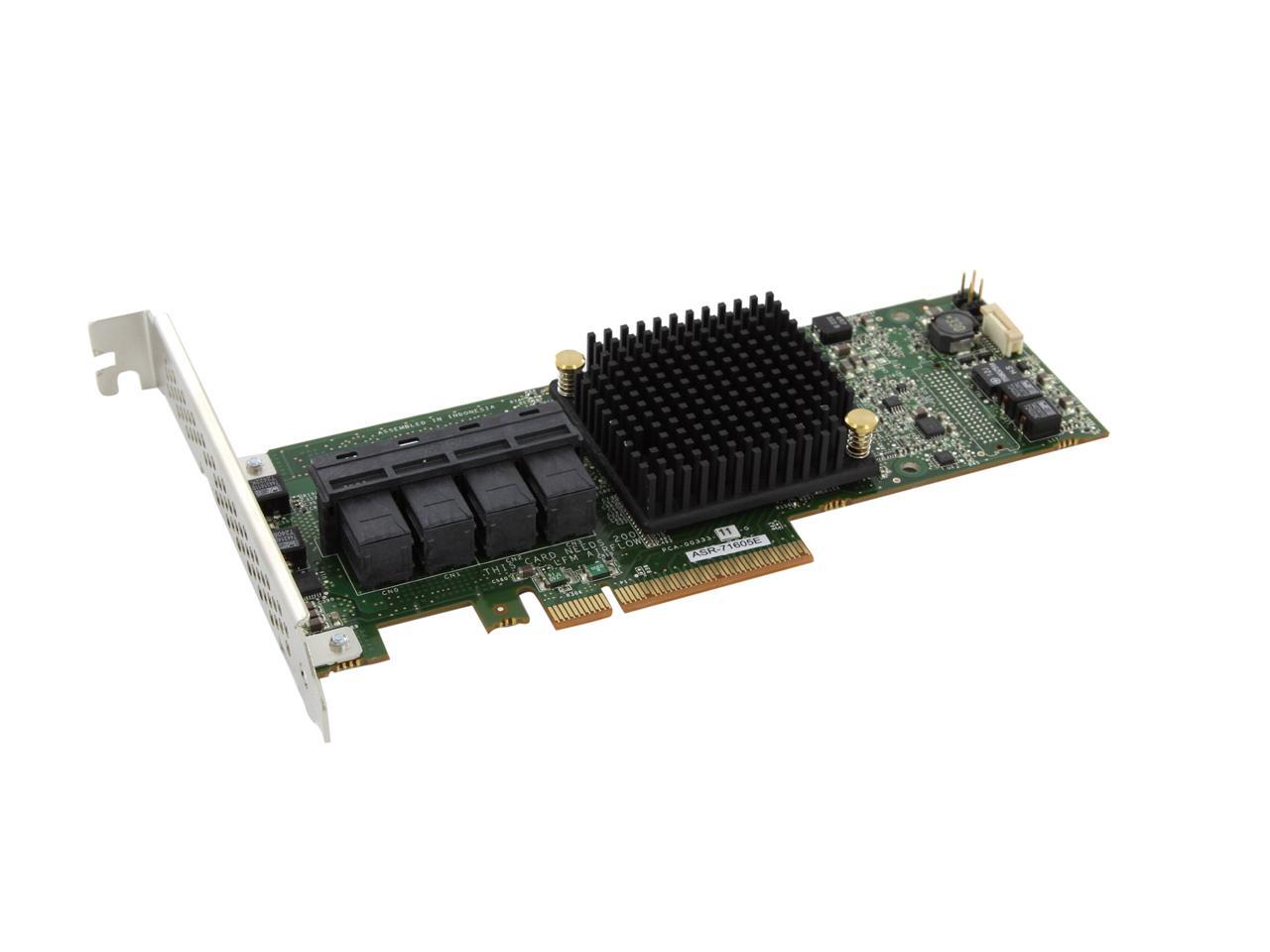

Adaptec Series 7 2274500-R 71605ESinglePCI-Express 3.0 x8 Low Profile SATA / SAS RAID Controller Card

  • RAID 0/1/1E/10
  • 4 x SFF-8643 mini-SAS HD Internal Connectors
  • Up to 6Gb/s
Overview
Specs
Reviews (6)
The Adaptec Series 7 RAID adapter family features PMC's 24 port PM8015 RAID-on-Chip (ROC), which combines a x8 PCIe Gen3 interface with 6Gb/s SAS ports to enable a new generation of high- performance RAID adapters that are unmatched by any other ROC in the industry. Adaptec Series 7 RAID adapters are available with 8, 16, or 24 native SAS/SATA ports.Host Interface: PCI Express 3.0 x8RAID Supported: YesRAID Levels: 0RAID Levels: 1RAID Levels: 1ERAID Levels: 10Total Number of SAS Ports: 4Number of SAS Ports (Internal): 4Height: 2.5Width: 6.6"Form Factor: Plug-in CardPackage Contents: 71605E 16-Ports SAS/SATA RAID ControllerAdditional low profile vented bracketPlatform Supported: PCGreen Compliant: YesGreen Compliance Certificate/Authority: RoHSLimited Warranty: 3 YearPackage Contents71605E 16-Ports SAS/SATA RAID ControllerAdditional low profile vented bracket"
image for this item
Adaptec Series 7

71605E Entry-level SAS/SATA 6Gbps PCIe Gen3 RAID Controller

It’s well known that the effectiveness of data access is crucial to data center and server environments. The Adaptec 71605E RAID controller outperforms software-based HBAs and SATA controllers and provides robust 6Gbps performance and proven Adaptec reliability, ideal for entry-level server to high-end server platforms and high-performance workstations.

The Series 7 adapter family features a PMC’s 24-port PM8015 RAID-on-Chip ROC which combines an x8 PCIe Gen3 interface with 6Gbps SAS ports to enable a new generation of high performance, high native port count RAID adapters that are unmatched by any other ROC in the industry. The Adaptec 71605E RAID controller perfectly balances protection and performance for critical applications, with RAID level of 0, 1, 1E, and 10.

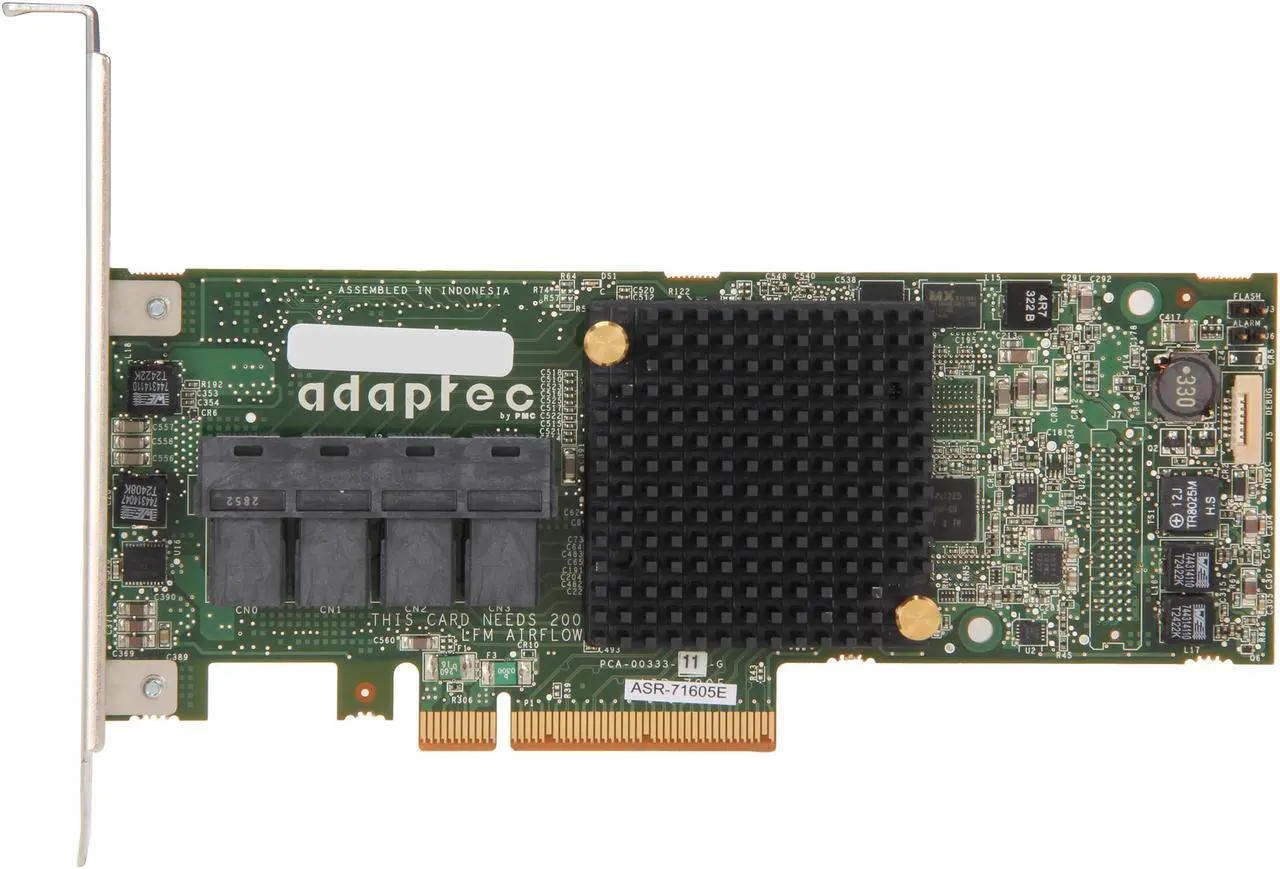

The adapter has four internal mini SAS HD (SFF-8643) connectors. It’s able to connect up to 256 SAS or SATA devices using SAS expanders. The intuitive management utilities let you efficiently manage your adapter.

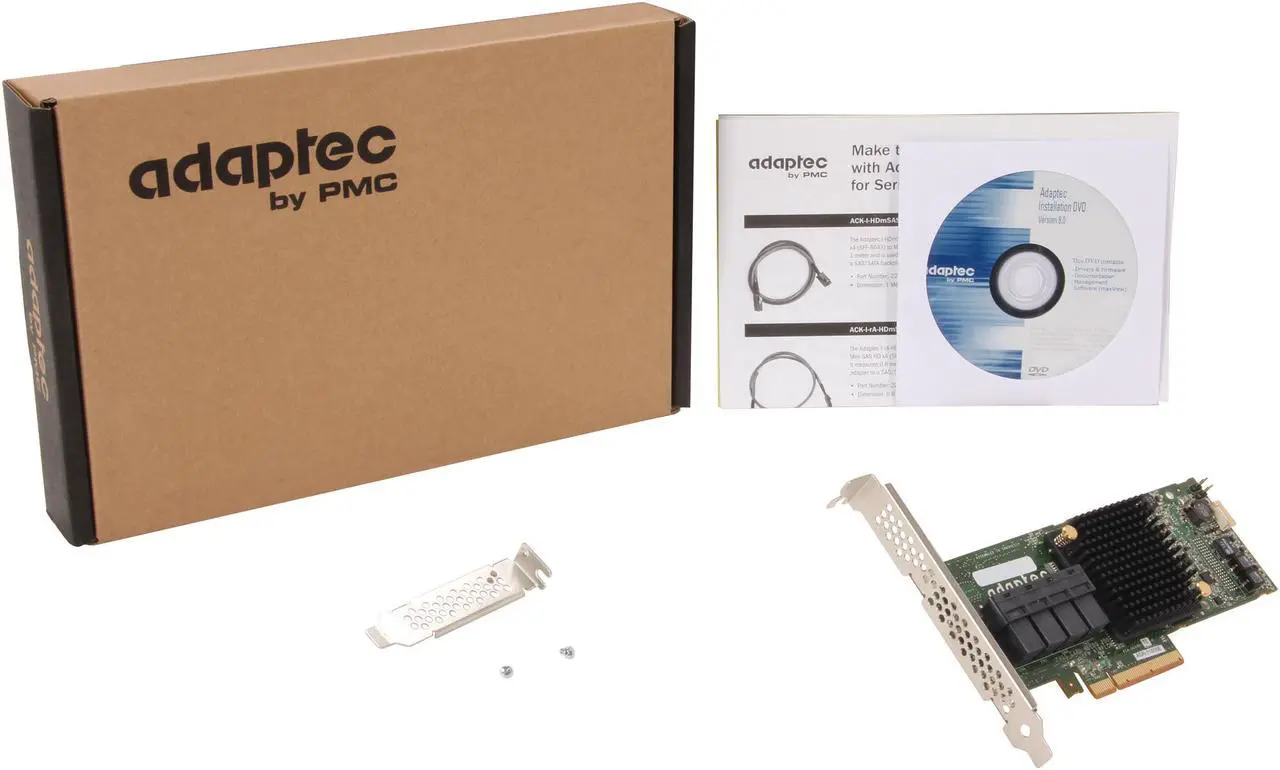

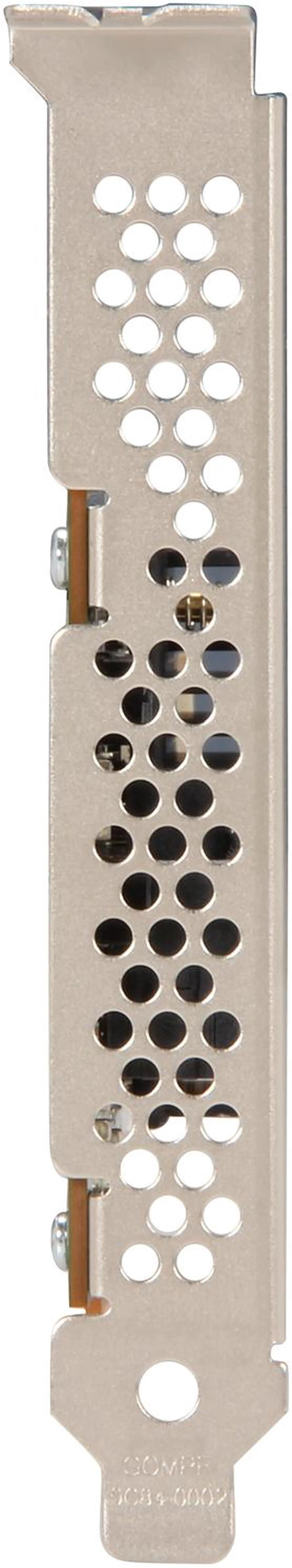

The low-profile MD2 form factor, along with the included low-profile vented bracket, allows for easy installation into any size of server system.

Key Software Features
  • Optimized Disk Utilization
  • Supported RAID levels: 0, 1, 1E, 10
  • HBA Mode and Simple Volume Mode for automatic deployment
  • Support for up to 256 SAS or SATA devices using SAS expanders
  • Hybrid RAID 1 & 10
  • Quick initialization
  • Online capacity expansion
  • Copyback hot spare
  • Dynamic caching algorithm
  • Native Command Queuing (NCQ)
  • Background initialization
  • Hot-plug drive support
  • RAID level migration
  • Hot spares - global, dedicated, and pooled
  • Automatic/manual rebuild of hot spares
  • SES and SAF-TE enclosure management
  • Configurable stripe size
  • S.M.A.R.T. support
  • Multiple arrays per disk drive
  • Dynamic sector repair
  • Staggered drive spin-up
  • Bootable array support
  • Support for Tape Devices, Autoloaders
Management Utilities
Software
  • Adaptec maxView Storage Manager
  • Web based GUI Management Utility
  • OS Support: Windows, Linux, Solaris VMware
  • Remote configuration, monitoring & notification
  • Remote firmware updates
  • SMI-S Support
  • SMTP
ARCCONF
  • Command Line Interface
  • SMI-S support for VMware
Adaptec BIOS Configuration Utility (ACU)
  • BIOS level configuration utility
  • Flashable BIOS support
Adaptec uEFI BIOS Configuration Utility
  • HII based configuration utility
  • Flashable BIOS support
Broad Operating System Support
  • Microsoft Windows
  • Red Hat Linux
  • SUSE Linux
  • Fedora
  • Debian Linux
  • Ubuntu Linux
  • Sun Solaris
  • FreeBSD
  • VMware ESX
