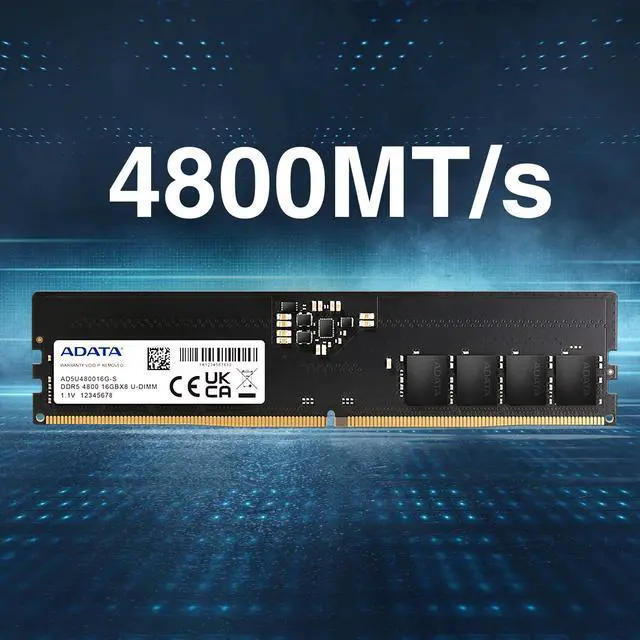

Higher Frequencies
- The DDR5-4800 U-DIMM delivers blazing frequencies of up to 4800 MT/s, a major leap from the max. frequency of DDR4 modules (3200 MT/s)
More Energy-Efficient
- This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4.
- What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

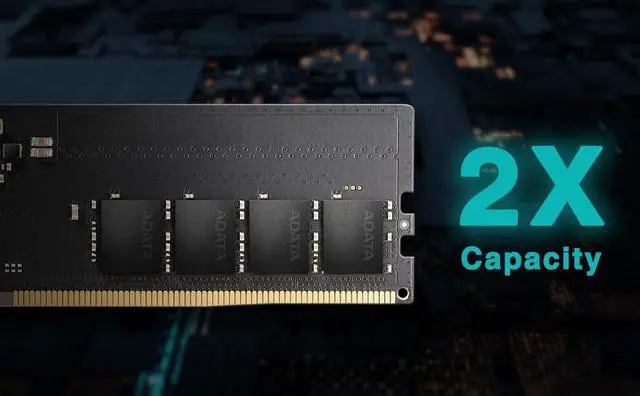

Capacity Doubled
- This memory module's architecture allows for more memory bank groups and banks.
- With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.
Improved Stability
- With on-die error correcting code (ECC) this module can correct errors automatically in real-time to provide increased stability and reliability.

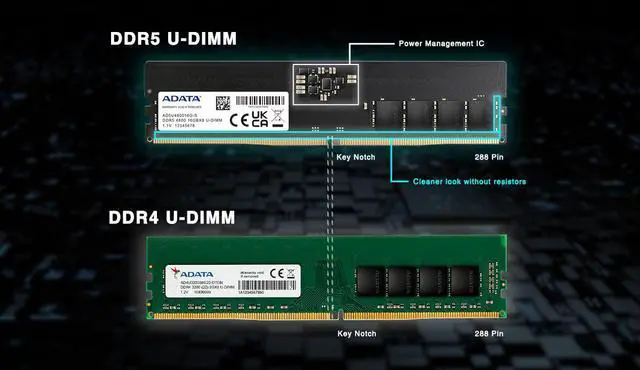

DDR5 vs DDR4
- DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules.
- The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors.
- Lastly, the appearance of DDR5 modules are cleaner than DDR4 and you can see a PMIC in the center.
- DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups.
- In addition, Burst Length and Prefetch are also doubled. And to ensure data integrity, they feature error correcting code (ECC) technology.
- The biggest change is that bandwidth and frequency are significantly higher.
- The ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200.
- The maximum frequency is increased 1.63 times compared to DDR4.
Specifications
| Module | DDR5 288-pin U-DIMM |
|---|---|
| Capacity | 8GB / 16GB / 32GB |
| Speed | 4800 MT/s |
| Latency | 40-40-40 |
| Operating Voltage | 1.1V |
| Operating Temperature | 0°C to 85°C |
