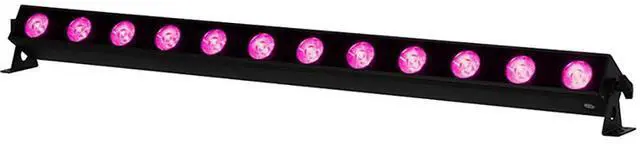

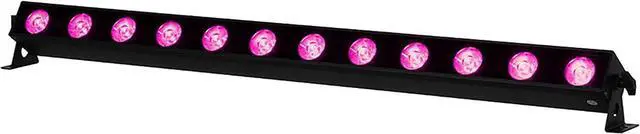

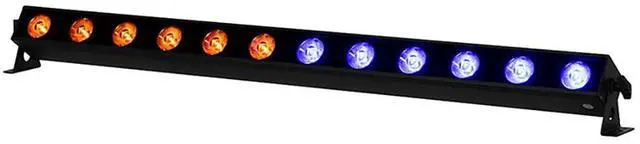

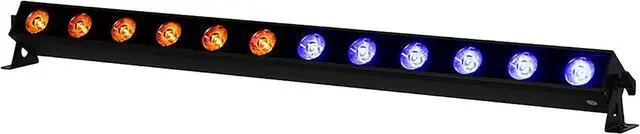

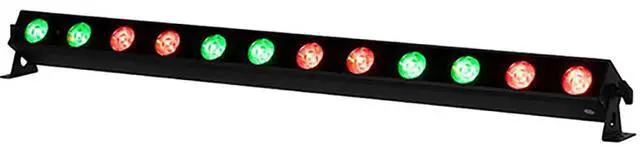

American DJ UBL12H

The ADJ Ultra Series has long provided lighting designers and event producers the creativity to create event linear wash lighting for walls, floors and ceilings. The UBL12H incorporates a lime-infused HEX LED with twelve (12) 20-Watt (Red, Green, Blue, Amber, Lime and UV) LEDs. The added lime chip offers a higher caliber of color indexing with a high CRI of over 90 along with tunable white light control from 2,300K to 9,900K.



FEATURES:



Linear Color Temperature Control (2,300K to 9,900K)

Smooth RGBAL+UV color mixing

Horizontal Magnetic Alignment feature (Built-In)

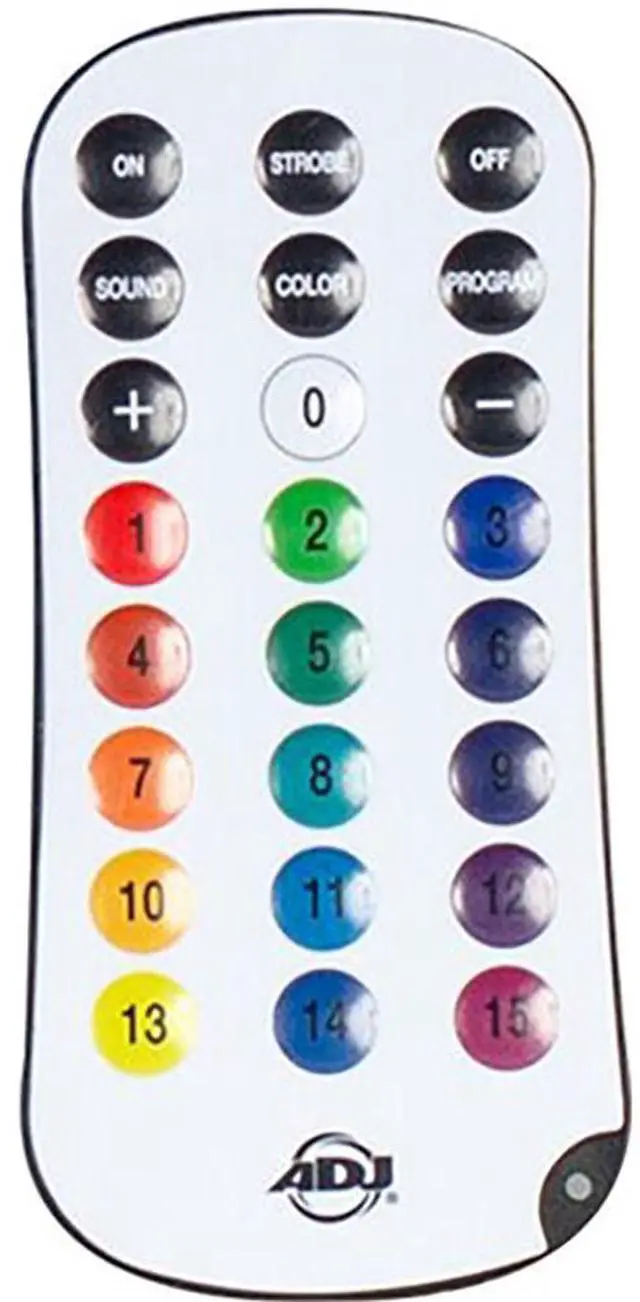

Compatible with the ADJ UC-IR24 remote. Operates at a distance of up to 32.8 feet (10 meters)

RDM Compatible



SPECIFICATIONS:



Fixture Type

Linear/Bar Light

Light Source

12x Color/UV LED - 20 W

Colors

Blue, Green, Lime, Red, Ultraviolet

Beam Angle

17°

20° (with Filter)

Control Protocols

DMX512, Internal

AC Input Power

100 to 240 VAC, 50/60 Hz

Power / Current Consumption

61 W

Mounting

Mounting Bracket

Light

Fixture Type

Linear/Bar Light

Light Source

12x Color/UV LED - 20 W

Expected Lamp Life

50,000 Hours

Colors

Blue, Green, Lime, Red, Ultraviolet

Beam Angle

17°

20° (with Filter)

Shutter / Strobe

Electronic

Dimming

Electronic, 0 to 100% with 6 Dimmer Modes

Performance

Operating Modes

Automatic, Program, Sound-Active, Static Color

Macros / Programs

64x Color Macro

Effects

Strobe

Gobos

No

Refresh Rate

1.9 kHz

Control

Control Protocols

DMX512, Internal

DMX Channel Modes

7 Mode(s):

6 / 11 / 13 / 16 / 36 / 43 / 46-Channel

Display / Controls

OLED / 4-Button

Remote Control

IR Remote (with Included Equipment)

Mobile App Compatible

No

Connectivity

Inputs/Outputs

1 x XLR 5-Pin DMX Input

1 x XLR 5-Pin DMX Output

Wireless

No

Wireless Range

32.8' / 10 m (with Optional Equipment)

Power

AC Input Power

100 to 240 VAC, 50/60 Hz

AC Power Connector

Input: 1x powerCON

Output: 1x powerCON

Plug Type: NEMA 5-15

Cord Length: 5.9' / 1.8 m

Power / Current Consumption

61 W

Power Linking

17 Units at 120 VAC

32 Units at 230 VAC

Environmental

Environmental Protection

No

Physical

Mounting

Mounting Bracket

Included Accessories

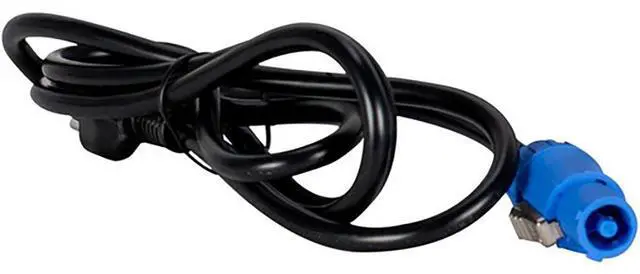

1x Power Cable

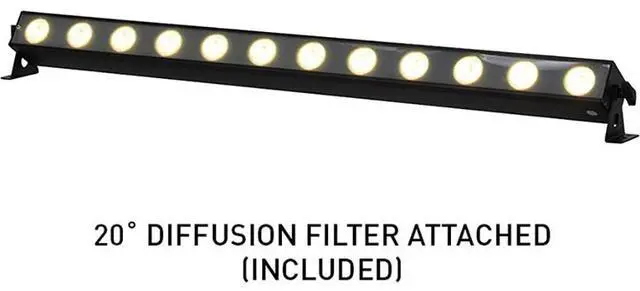

1x Filter

Duty Cycle

No

Exterior Color

Black

Certifications

CE, cETLus, FCC

Dimensions

42.6 x 4.2 x 2.96" / 1082.04 x 106.7 x 75.18 mm

Weight

7.5 lb / 3.4 kg

Packaging Info

Package Weight

9.68 lb

Box Dimensions (LxWxH)

43.8 x 6.8 x 4.8"
