Parameter

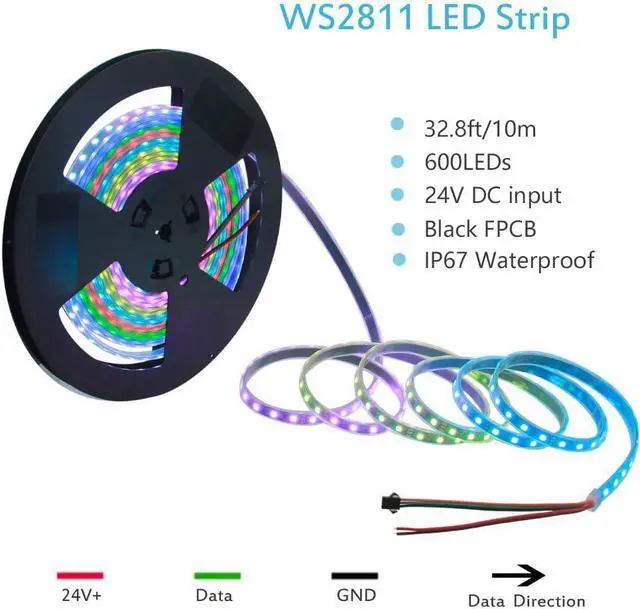

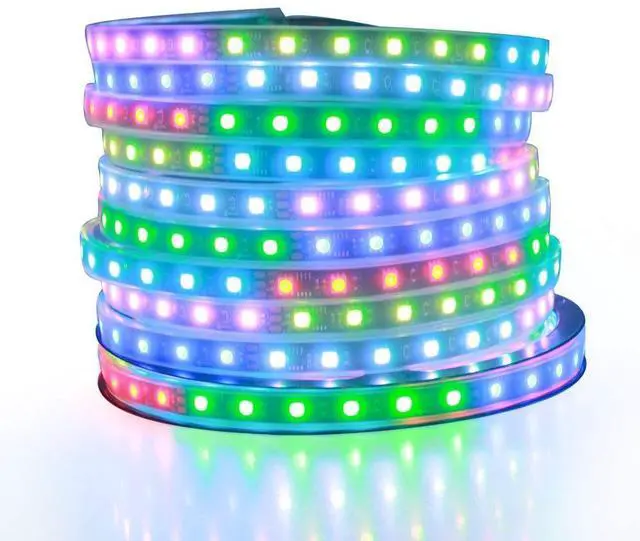

- Model: 10m/roll WS2811 600LEDs strip
- Light Source: 5050 RGB SMD
- LED Quantity: 60LEDs/m, 10m 600LEDs in total
- IC Model: WS2811 IC
- ICQuantity: 100 pcs
- One IC drives 6 LEDs
- RGB order:BRG
- Working Voltage: 24V DC
- Max Working Current: 6A
- Max Output power: 144W
- FPCB Color: Black

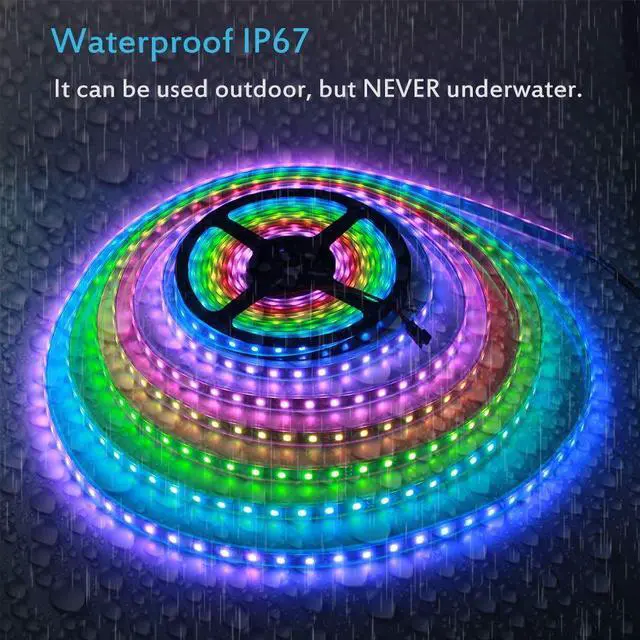

- Protection Rate: IP67 Waterproof Silicone Tube
- Beam Angle: 120 degree
- Size: L1000cm (10M) x W12cm x T0.3cm
- Net weight: 500g
Package List:
- 1 x 10M/32.8ft 24V 600 LEDs WS2811 LED strip light (Power supply and controller is not included)
- 1x 3pin JST connector
Kindly Note:
- To make the led strip work, 24V 6A power supply and WS2811 24V controller is required. They are not included in the package. Please purchase them in ALITOVE store.
What are the advantages of ALITOVE 24V 10M WS2811 LED Strip?
10M 24V WS2811 LED Strip is upgraded version of 12V 5M WS2811 LED strip. It is also dream color addressable LEDs like 12V version, but it has two extra advantages.

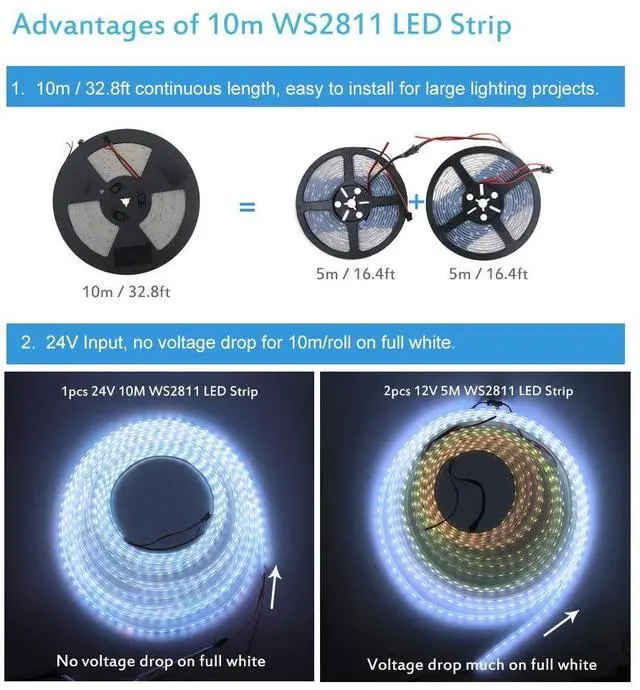

- 10m Continuous Length: 10m continuous length WS2811 LED strip is equivalent to 2pcs 5m led strip and 1pc amplifier. But if choose 10m LED strip, you will save money of signal amplifier and Installation work will be greatly reduced.

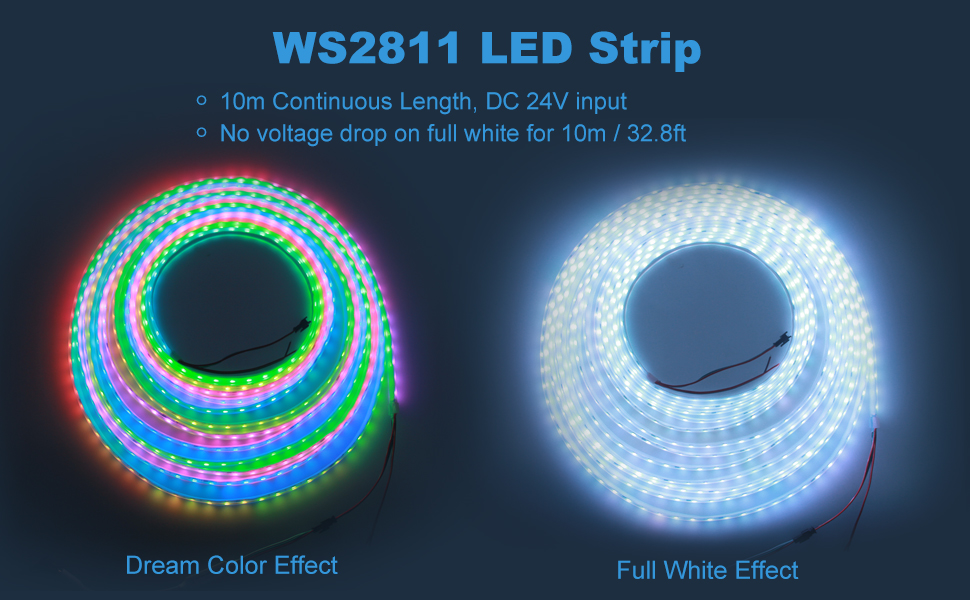

- 24V DC input, NO Voltage Drop: Because of DC 24V input, even if all the LEDs are turned on full white, this 10M LED strip has no voltage drop. You don't need to inject power as frequently as 12V version.
So it is very suitable for large lighting project such as city skyline lighting, building outline decoration, shopping malls decoration etc. It will greatly reduce the installation cost and maintenance cost of your projects.
Premium Features

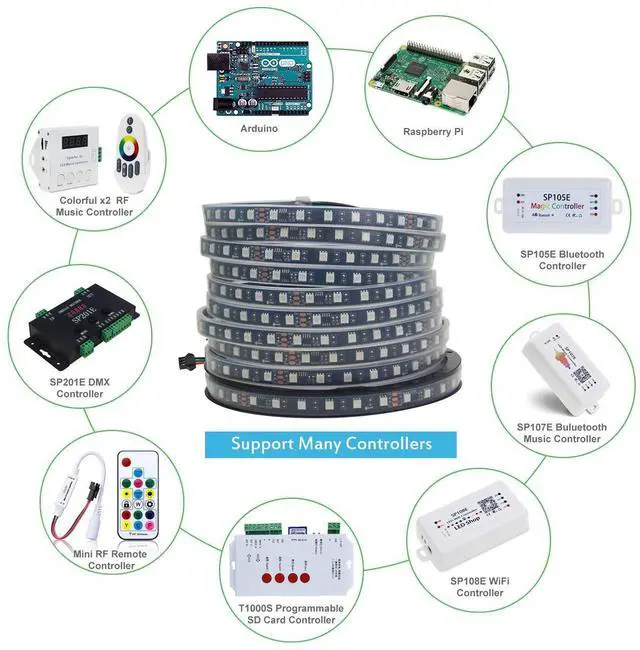

Programmable LED Strip Light

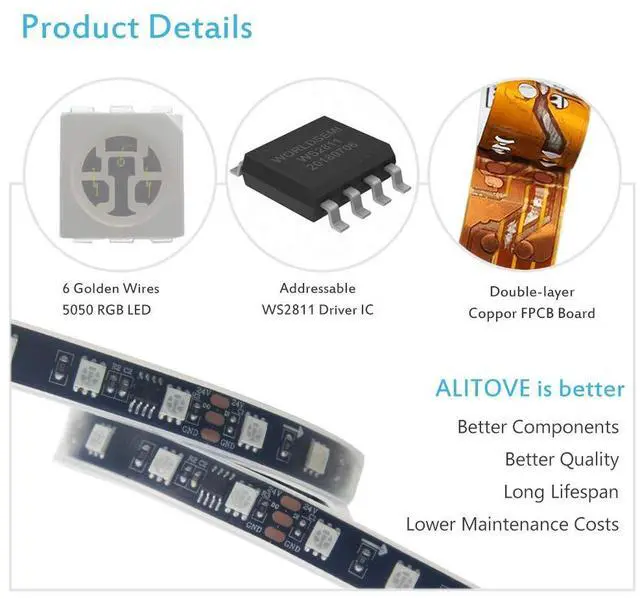

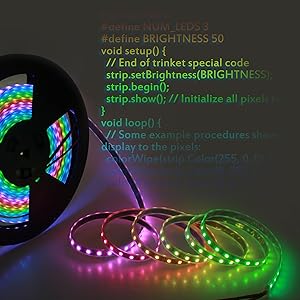

Built in WS2811 smart driver ICs which can be compatible with Arduino,Raspberry Pi, T1000S,K1000C, etc programmable controllers. You can set them to any color or animation you want. (Controller is not included)

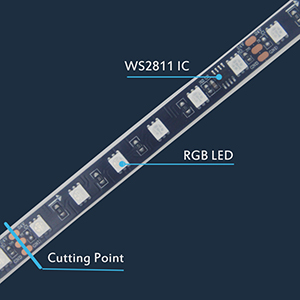

One IC Controls Six LEDs
LEDs and ICs are organized in groups of 6 LEDs with 1 IC. 1 IC controls 6 LEDs. Each group can be controlled individually, cut and welded at the cutting line to meet your requirements for length.

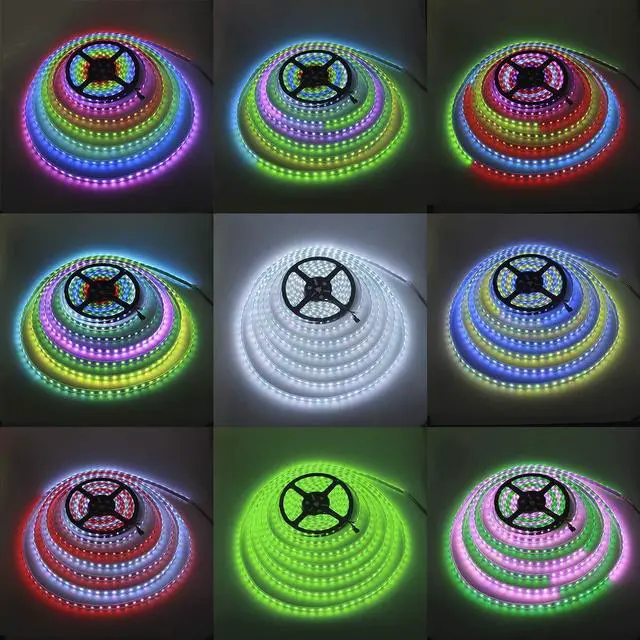

Static & Dynamic Dream Color Display

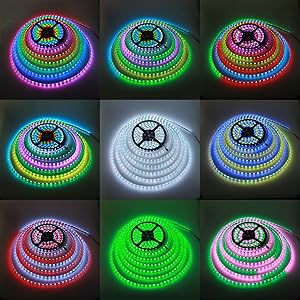

With compatible controllers, it will display much more amazing color effects than regular rgb strips, such as rainbow, flash, fading, chasing, breath, wave, raindrop, stacking, curtain-up,etc.
Application Cases
Building Outline
Home Decoration
Night Club Bar
Holiday Decoration
ALITOVE is a professional manufacturer of LED lighting & control system and power supply system.
We are willing to customize products according to customers' personalized requirements.
If you are a lighting designer, lighting retailer, advertising light box manufacturer or other lighting enthusiast, we will try our best to contribute to your unlimited lighting creativity.
