8 PTC OUT ACCESS PWR SPL

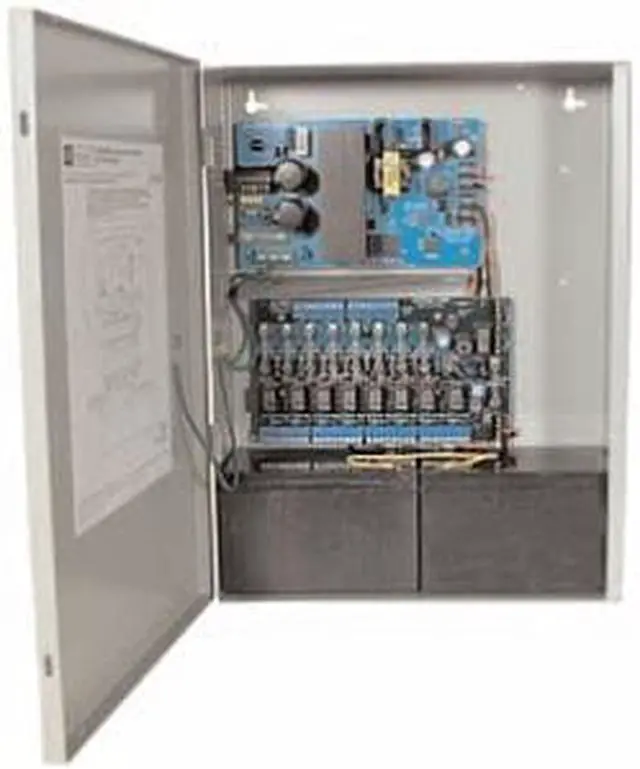

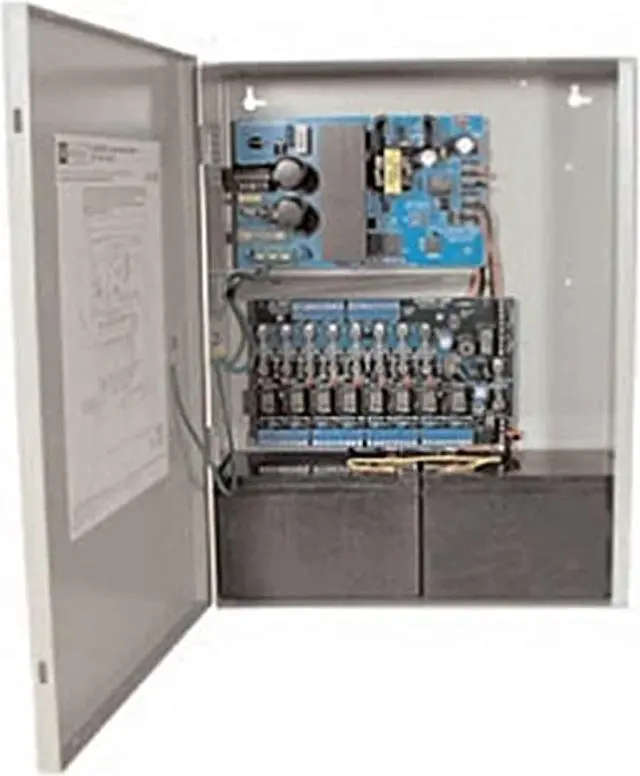

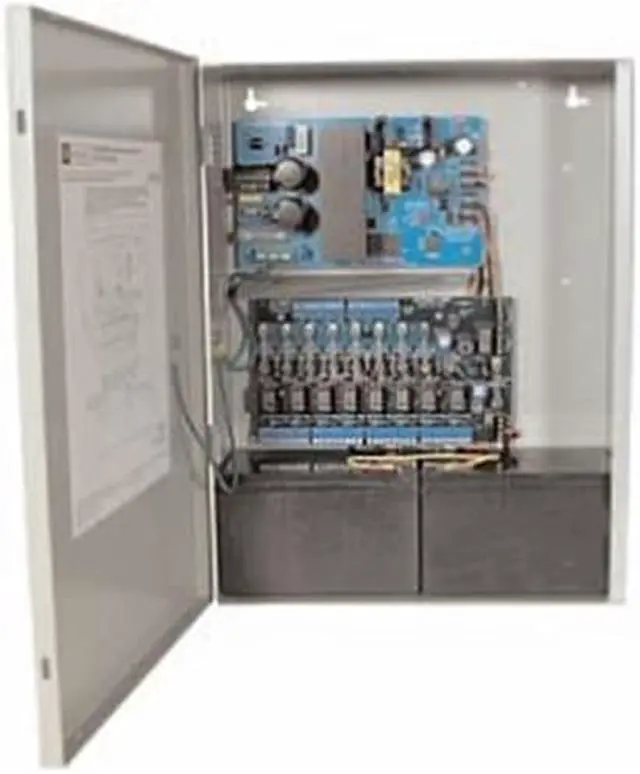

Model AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 12VDC @ 4 amp or 24VDC @ 3 amp of continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL400ULACM is a fuse protected version of this unit. Product Type: Proprietary Power Supply Input Voltage: 110 V AC Output Voltage: 24 V DC Output Voltage: 12 V DC Product Type: Proprietary Power Supply Compatibility: Mag Lock Electric Strike Magnetic Door Holder Input Voltage: 110 V AC Manufacturer Part Number: AL400ULACMCB Packaged Quantity: 1 Limited Warranty: Lifetime Output Voltage: 24 V DC @ 3 A Output Voltage: 12 V DC @ 4 A Weight (Approximate): 10.10 lb Form Factor: Wall Mount Form Factor: Wall Mount Manufacturer: Altronix Corporation Product Model: AL400ULACMCB Product Name: AL400ULACMCB Proprietary Power Supply Brand Name: Altronix Brand Name: Altronix Country of Origin: United States Height: 15.5 Width: 12.2 Depth: 4.5 Number of +12V Rails: 8 Environmentally Friendly: Yes Environmental Certification: RoHS Number of +12V Rails: 8
