8 PTC OUT ACCESS PWR SPL

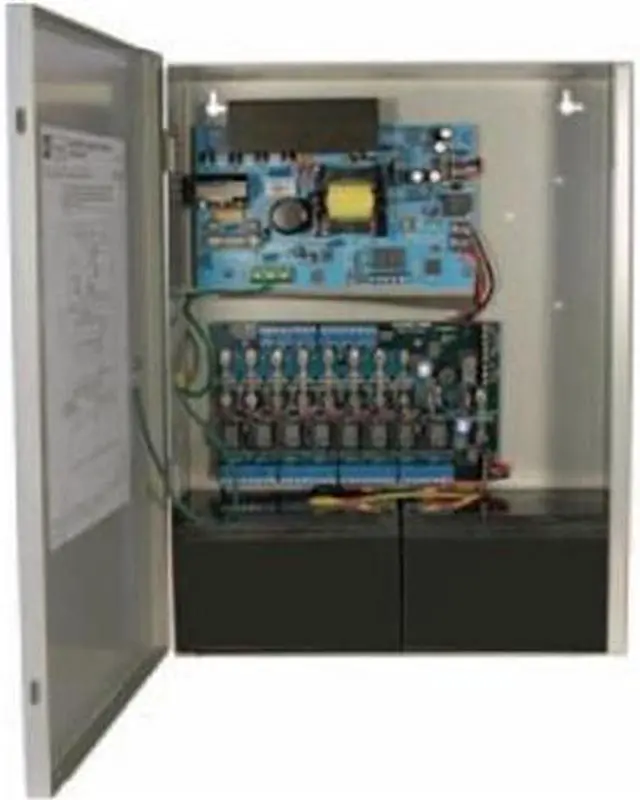

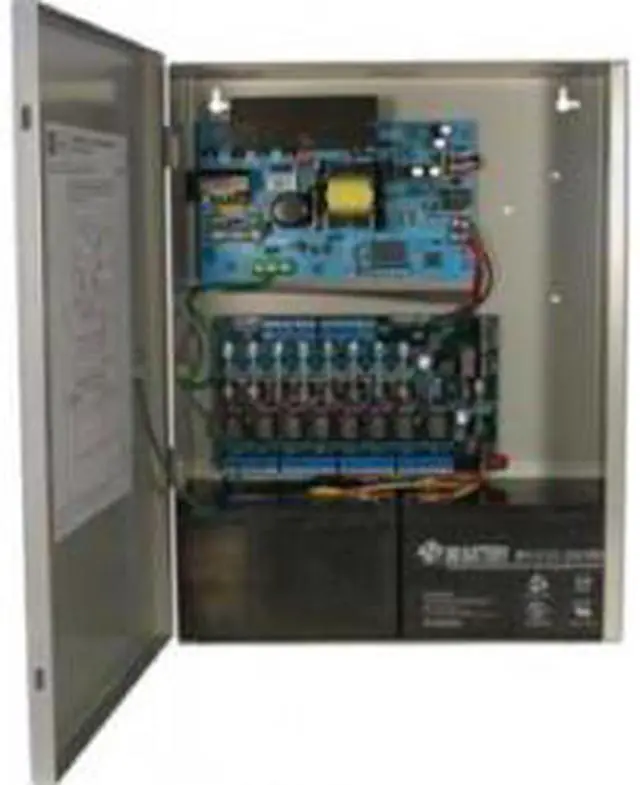

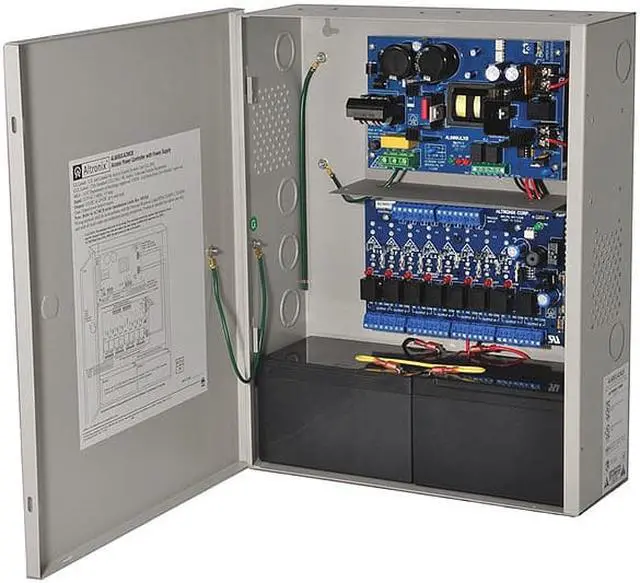

Model AL600ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Class 2 Rated power limited PTC protected Fail-Safe and/or Fail-Secure outputs with a total of 6 amp continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL600ULACM is a fuse protected version of this unit.
Product Type: Proprietary
Power Supply Input Voltage: 110 V AC
Output Voltage: 24 V DC
Output Voltage: 12 V DC
Product Type: Proprietary
Power Supply Compatibility: Signal Equipments Access
Control Devices: Mag Locks Electric Strikes Magnetic Door Holders
Input Voltage: 110 V AC
Manufacturer Part Number: AL600ULACMCB
Limited Warranty: Lifetime
Output Voltage: 24 V DC @ 6 A
Output Voltage: 12 V DC @ 6 A
Weight (Approximate): 10.20 lb
Form Factor: Wall Mount
Form Factor: Wall
Mount Manufacturer: Altronix Corporation
Product Model: AL600ULACMCB
Product Name: AL600ULACMCB Proprietary
Power Supply Brand Name: Altronix
Brand Name: Altronix
Height: 15.5
Width: 12.2
Depth: 4.5 Number of +12V
Rails: 8
Environmentally Friendly: Yes
Environmental Certification: RoHS Number of +12V
Rails: 8
