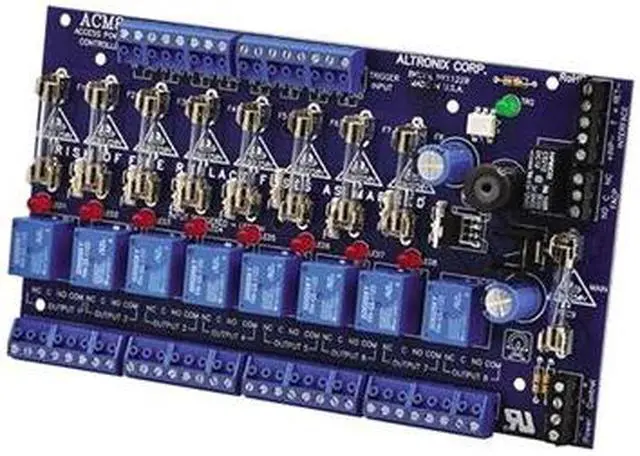

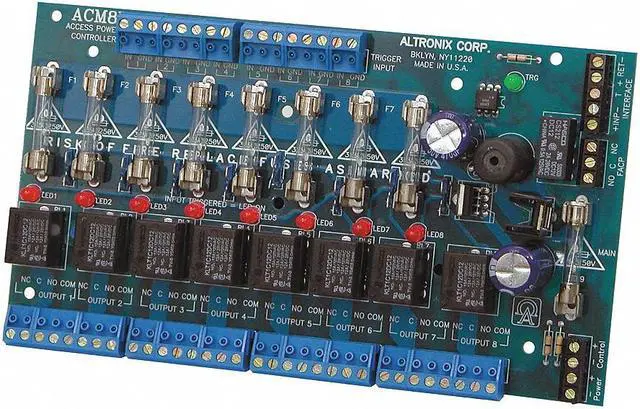

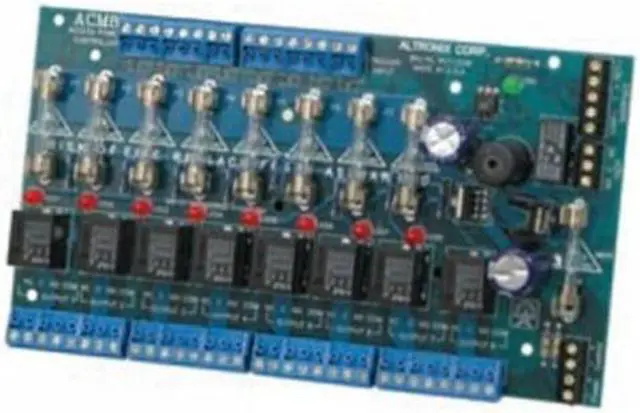

Altronix ACM8, 8-Fused Output Access Control Lock Power Controller
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
ACM8 unit converts one 12 to 24 volt AC or DC input into eight independently controlled fuse protected outputs. These power outputs can be converted to dry form "C" contacts. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. The unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/ or Fail-Secure modes.
The unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs. Also known as -Altronix ACM8 Power Controller
The unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two totally independent power sources, one providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight outputs. Also known as -Altronix ACM8 Power Controller
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Website
- Support Phone: 718-567-8181
- Support Email: info@altronix.com
- Support Website
- View other products from Altronix Corporation
LOADING...
LOADING...
The Altronix ACM8 is an 8-fused-output access control lock power controller for installers and facilities teams powering multiple access-control locks or devices from one controller.
Recommended For
- Access-control installers wiring several electric strikes, maglocks, or door holders who want up to eight individually triggered, fuse-protected outputs in one system.
- Commercial building integrators connecting an access-control system to door locks, keypads, card readers, or other access hardware through separate trigger inputs.
- Installers who need to configure different doors for fail-safe or fail-secure operation and selectively connect outputs to a fire-alarm interface.
- Access-control technicians integrating the board with a compatible 12–24V AC or DC supply, whether shared with the locks or kept separate for board and lock power.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Access power control for access-control lock-power applications |
| Power Input And Output | 12–24 V DC input, 6 A current rating, and 800 W listed wattage; external power-supply design |
| Cooling And Operating Conditions | Natural-convection cooling with no fans; upper temperature rating of 120°F |
| Physical Specifications | Blue enclosure; 11 × 7.8 × 4.2 in; item weight 0.7 lb; enclosure material listed as Other |
| Model Identifiers | Altronix ACM8 |
