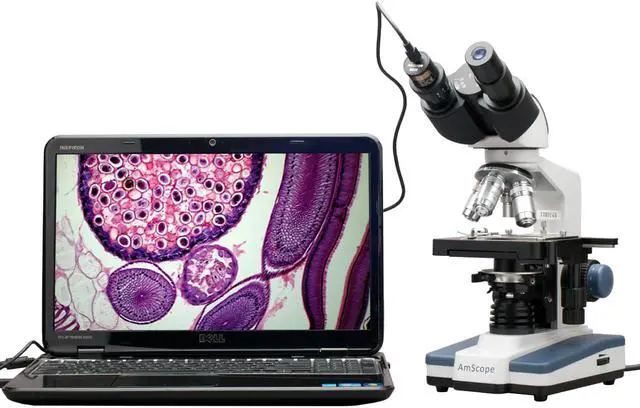

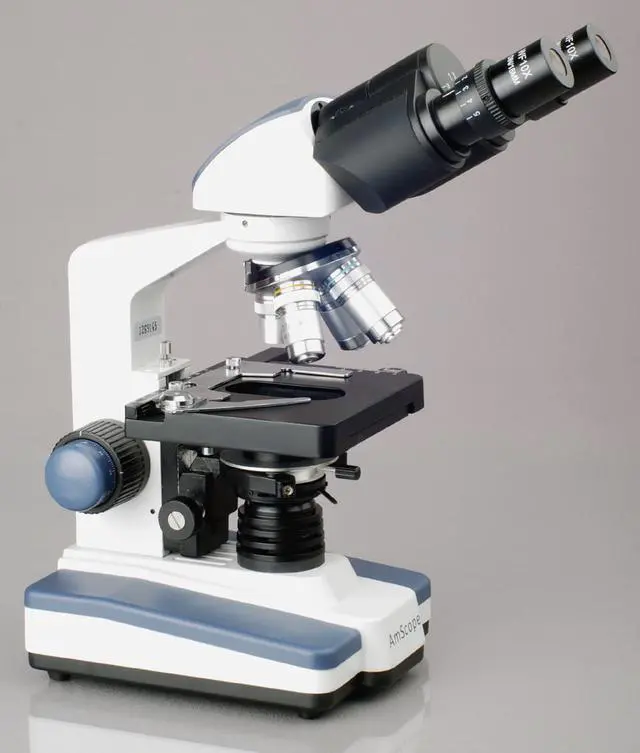

40X-2000X LED Digital Binocular Compound Microscope w 3D Stage +1.3MP USB Camera

Our new binocular compound microscope with a 1.3MP USB imager (camera) is designed for teaching demonstrations, clinical examinations and laboratory applications. It is a perfect microscope for a range of people, from students in high school to teachers including those with a major in biology, or enrolled in medical school. It comes with a professional Siedentopf binocular head, double layer mechanical stage, course & fine focusing, LED illumination, and a 1.3MP USB digital imager. There are eight magnification settings: 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X. The digital camera captures still images and video, and allows you to view a live stream on your PC. The included software for Windows offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. On Mac computers, the camera can be used as a driverless imaging device, compatible with various applications, such as ProScope and Photo Booth.. This microscope is an ideal instrument for bacterial, biological, and pharmaceutical researches.

Microscope Features :

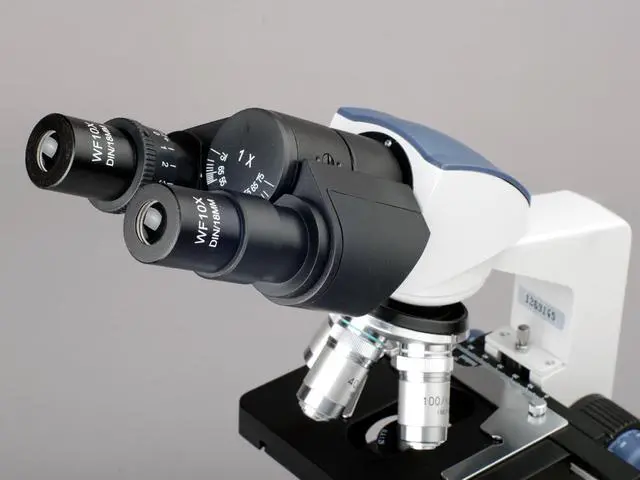

30 degree inclined 360 degree swiveling Siedentopf binocular head

High quality precise optical glass elements

Eight magnification settings, 40X, 80X, 100X, 200X, 400X, 800X, 1000X & 2000X

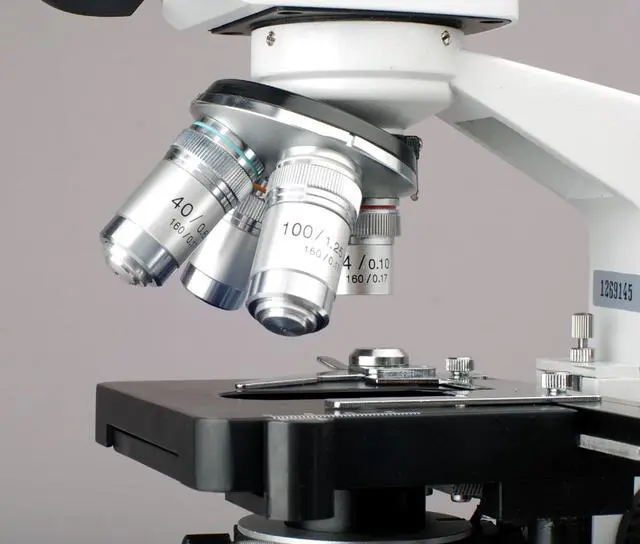

Four Achromatic objectives, DIN 4X, 10X, 40X(S), 100X(S,Oil)

Two pairs of widefield eyepieces: WF10X and WF20X

Adjustable interpupillary distance

Adjustable ocular diopter

Variable intensity illumination

Coaxial coarse and fine focus adjustment

Focusing knobs are on both sides of the microscope

Stage Upward Moving Lock protects objectives and slides

Stain-resistant double layer mechanical stage

NA1.25 Abbe condenser with iris diaphragm & filters

Rack and pinion adjustment condenser

Manufactured under ISO 9001 Quality Control Standard

Excellent five (5) year manufacturer warranty

Specifications :

Eyepieces: widefield, WF10X and WF20X

Objectives: Achromatic DIN 4X, 10X, 40X(S), 100X(S, Oil)

Head: 30 degree inclined 360 degree swiveling binocular

Interpupillary distance: 2-1/8" - 3-1/8" (53mm - 77mm)

Adjustable ocular diopter

Nosepiece: revolving quadruple

Mechanical Stage: 3-D double layer

-Size: 4-5/8" x 5" (118mm x 127mm)

- Travel Range (X-Y): 2-13/16" x 1-3/16" (70mm x 30mm)

Condenser: NA1.25 Abbe condenser with iris diaphragm

Illumination: LED light, transmitted, intensity adjustable, GS and CE approved

Focusing: coaxial coarse & fine knobs on both sides

Power Supply: 100-240VAC, 50/60Hz, AC/DC adapter (UL approved) Included

Dimension: 11" x 7" x 13-3/4" (280mm x 178mm x 350mm0

Camera Specifications:

Sensor: Aptina

Sensor Type: CMOS

Sensor Size: 4.6x3.7mm

Pixel Size: 3.6

Resolution: 1.3MP

Frame Rate: 7.5@1280x1024,12.5@1024x768,12.5@800x600

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX (Mac software not provided)
