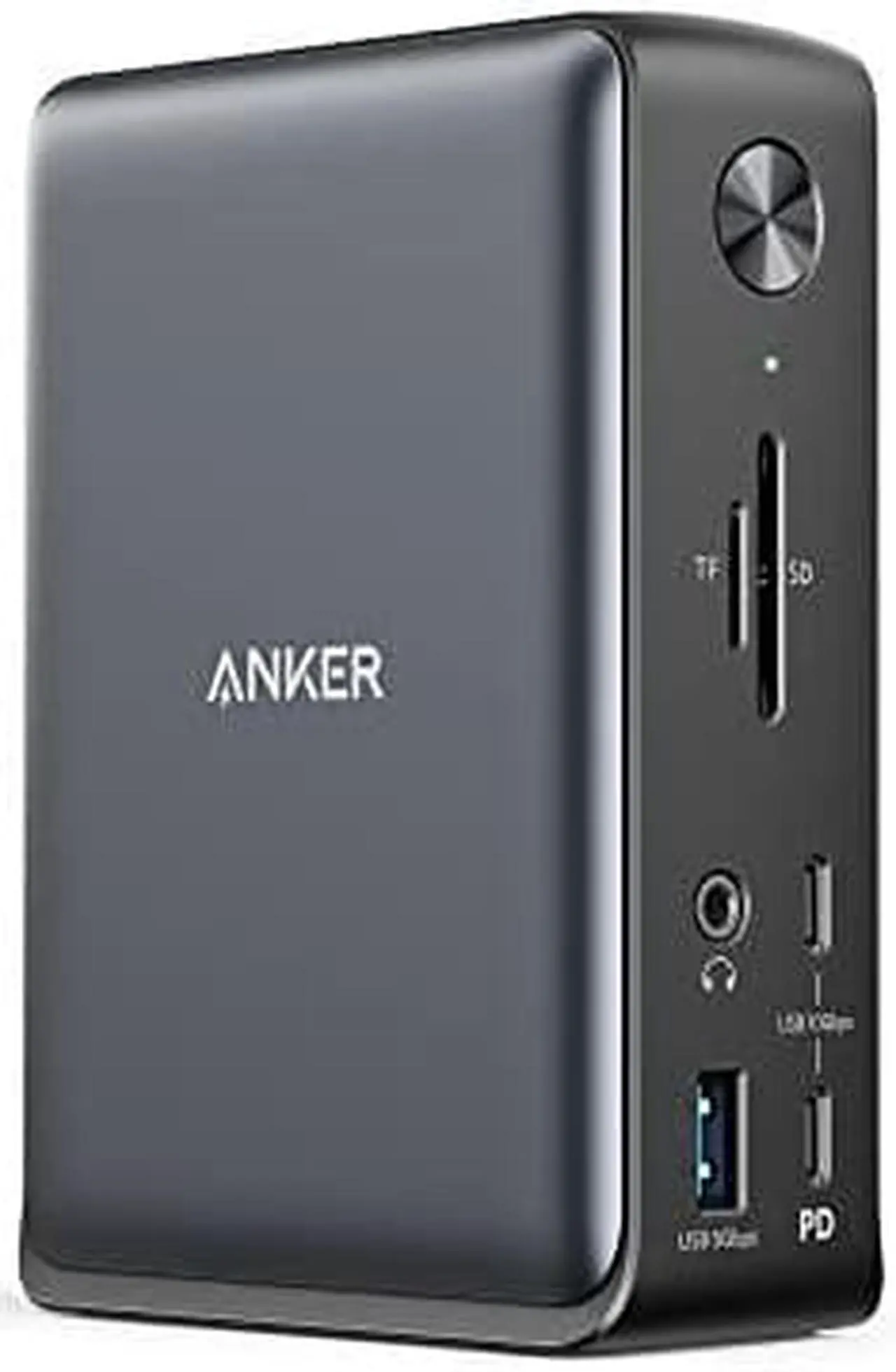

PowerExpand 13-in-1 USB-C Dock
Compatible Operating Systems
Windows 7 and above, macOS 10.13 and above, Chrome OS 44 and above, iPadOS, and Linux OS

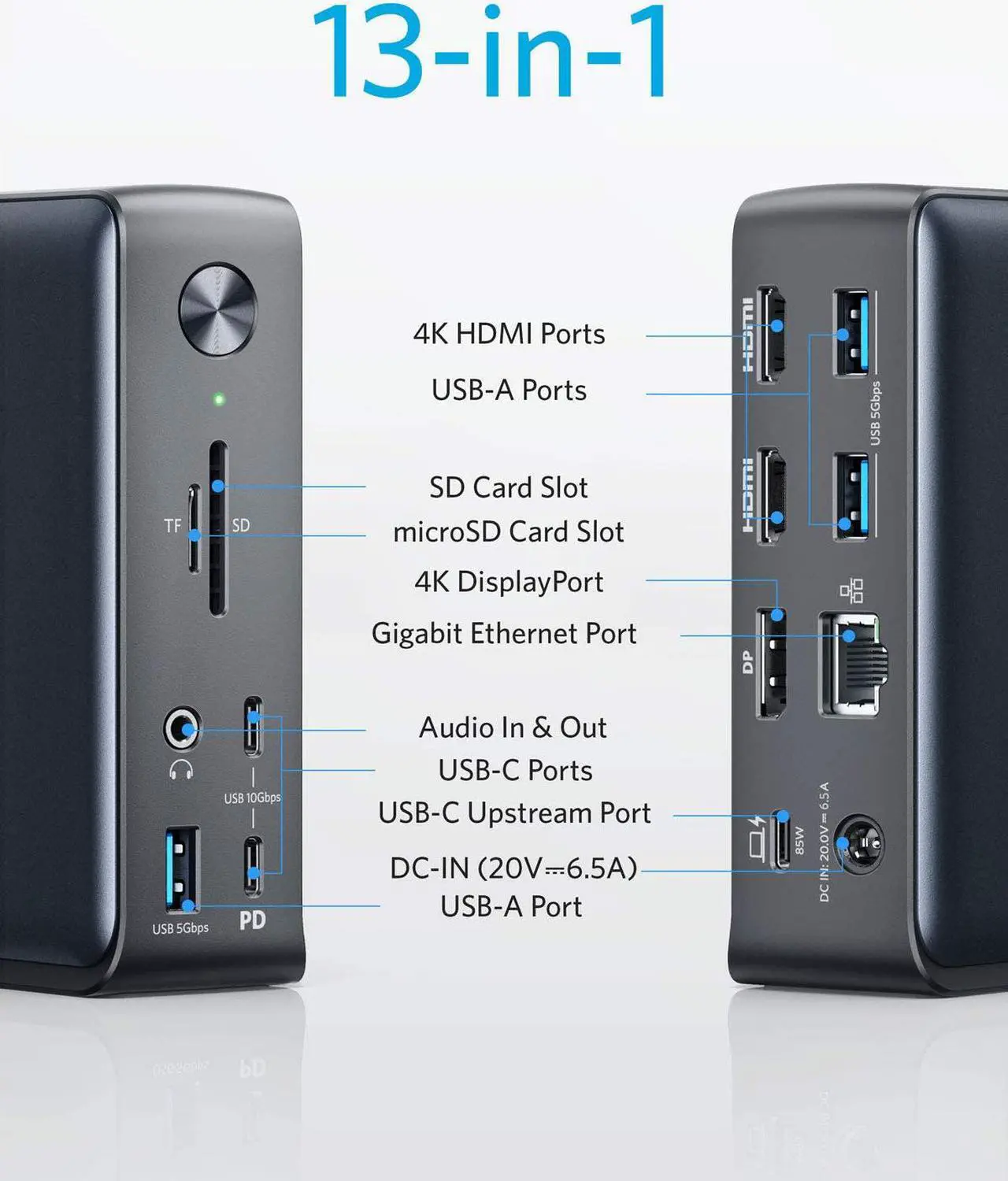

Massive Expansion
With a total of 13 ports, you now have the ability to accomplish anything with your computer or laptop.

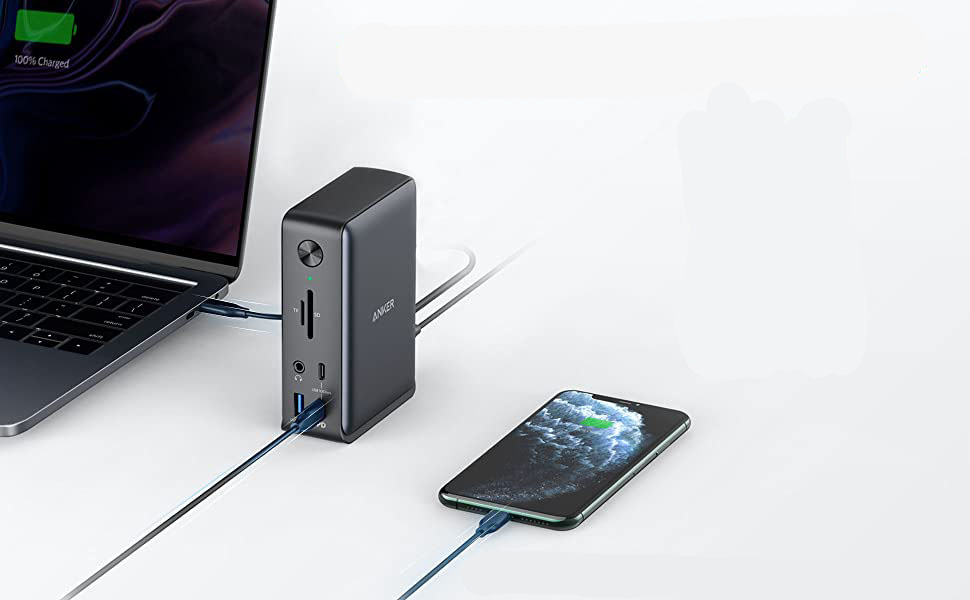

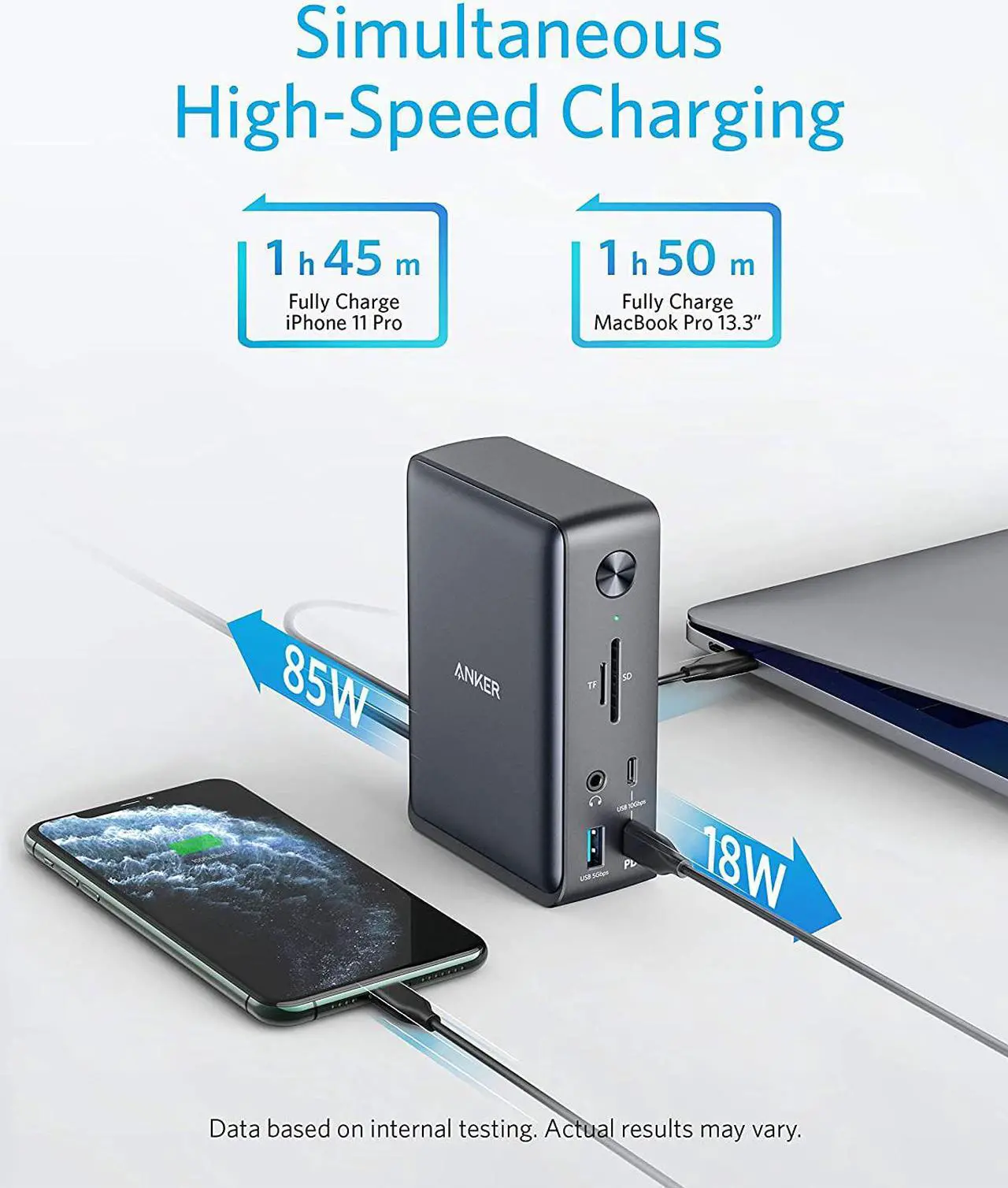

Powerful Charging
Connect the included power adapter to provide up to 85W pass-through charging for your laptop— all while retaining full functionality of the dock’ s other ports.

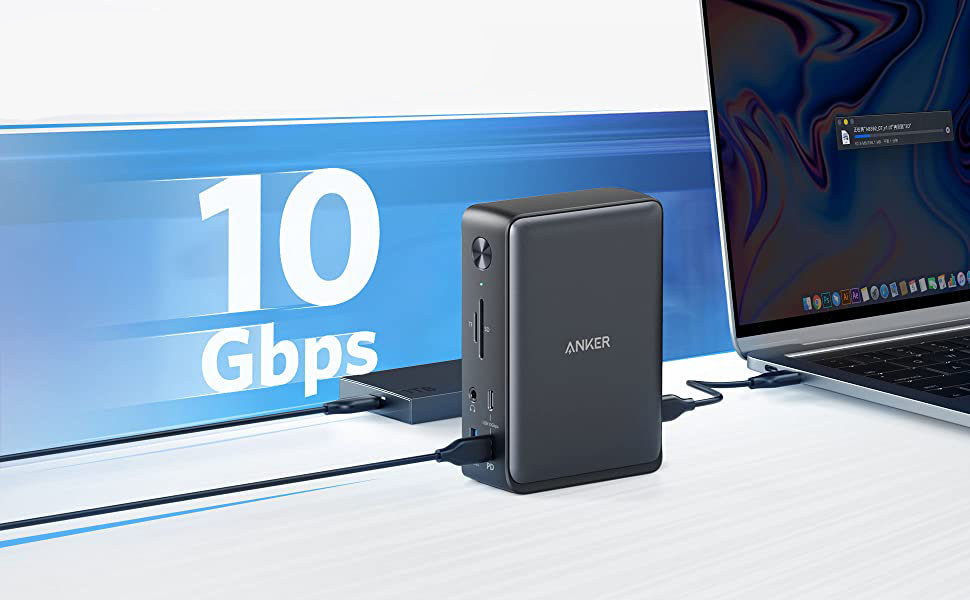

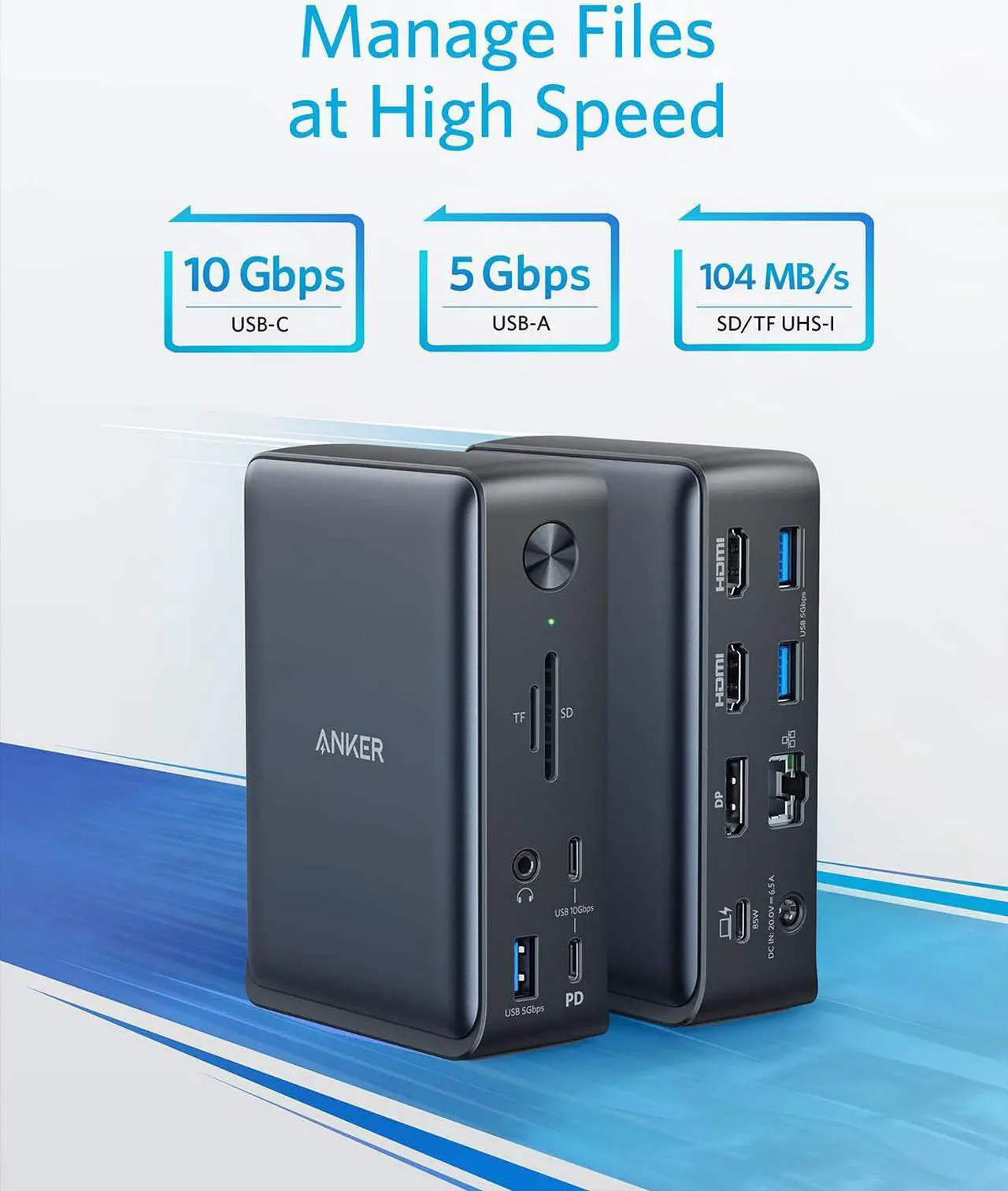

Transfer Files in Seconds
Transfer movies, photos, and music at speeds up to 10 Gbps via the USB-C ports, or up to 5 Gbps via 4 USB-A ports. SD and microSD card slots support virtually all SD card formats for seamless access to photos and other media files.

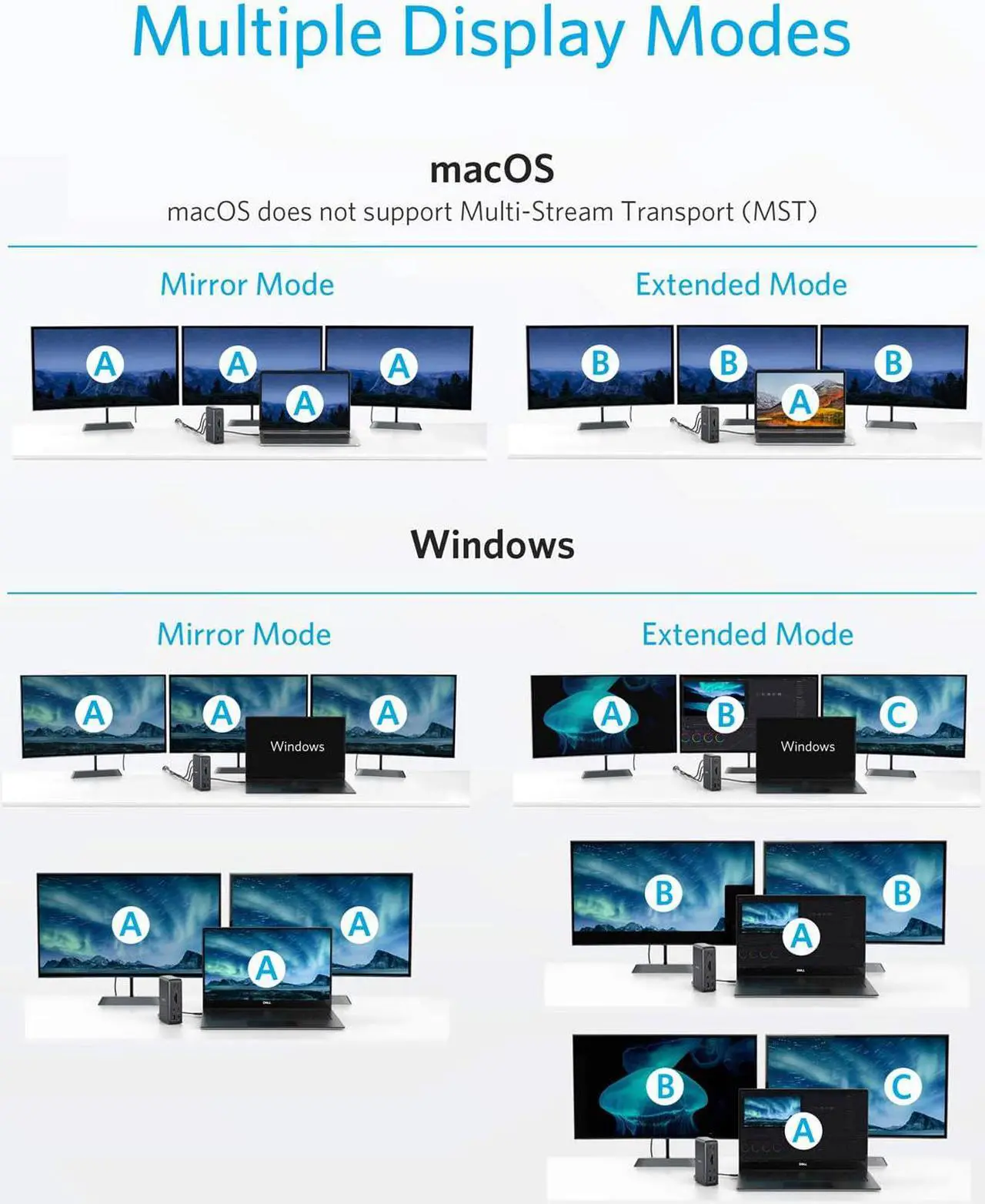

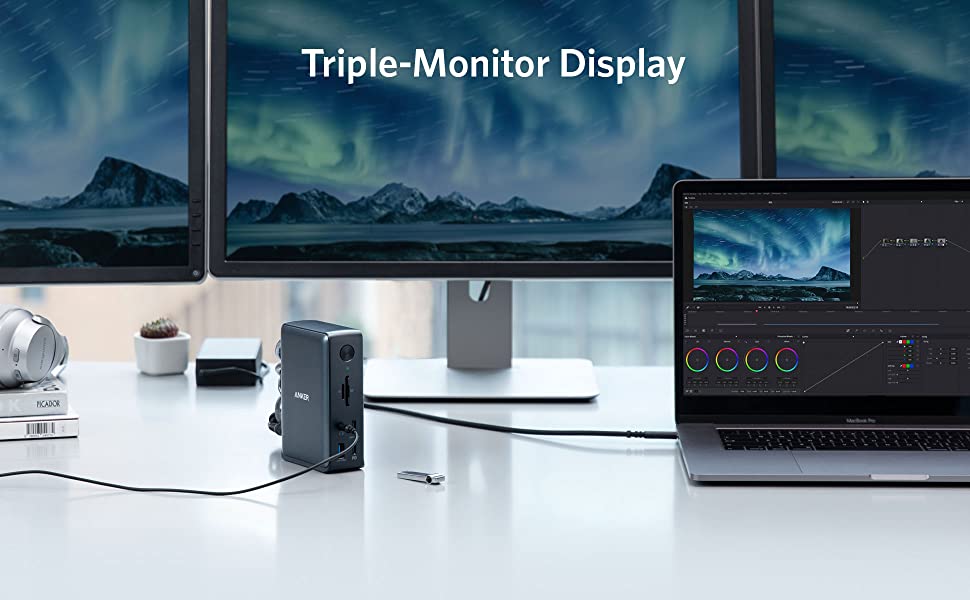

Triple-Monitor Display
A DisplayPort and dual HDMI ports give you unparalleled options for extending or mirroring your desktop. Connect up to 3 monitors simultaneously in resolutions up to 1080p@60Hz, or connect to a single monitor in stunning 4K@60Hz for laptops with support for DP 1.4.
macOS and iPadOS only support Single-Stream Transport (SST) mode, which means all connected monitors will show the same content.
Set Up Your Dock:
Plug one end of the included power adapter into the DC-IN in port and the other to the power outlet; Press the power button, the LED will turn green; Use the USB-C cable that came with our dock to connect the dock's 85W C port (with a computer icon) and the USB-C port of your computer
Questions:
Q1: Will this dock work with any laptop? How do I make sure my laptop works with this dock?
A: This dock works with laptops with a USB-C port that supports DisplayPort Alt Mode and Power Delivery. To confirm the USB-C port function of your laptop, consult your user manual or contact your laptop’ s manufacturer. If your USB-C port doesn’ t support DisplayPort Alt Mode, you won’ t receive video output. If your USB-C port doesn’ t support Power Delivery, the dock will work correctly with video and data (including audio and Ethernet), but would not be able to supply charging to your laptop.
Q2: Can I use my own USB-C cable to connect the dock to my laptop?
A: We recommend that you use the 3 ft USB-C cable that comes with the dock, however any other USB-C cable with support for USB 3.1 Gen 2 and 85W Power Delivery should work.
Q3: How many monitors does the dock support and what is the maximum resolution supported?
A: This dock supports connection to three external monitors: 2 via HDMI and 1 via DisplayPort.
1.
Single Monitor Resolution: 4K@60Hz (for DisplayPort 1.4 ) or 4K@30Hz (for DisplayPort 1.2 );
2.
Dual Monitor Resolution: 2 x 2K@60Hz (for DisplayPort 1.4 ) or 2 x 1080p@60Hz (for DisplayPort 1.2 );
3.
Triple Monitor Resolution: 3 x 1080p@60Hz (for DisplayPort 1.4 ) or 3 x 1600x900@60Hz (for DisplayPort 1.2 ).
macOS and iPadOS only support Single-Stream Transport (SST) mode, which means all connected monitors will show the same content.
Q4: Can the dock support fast-charging for phones?
A: Yes, the USB-C Power Delivery port (indicated by “ PD” ) supports up to 18W fast-charging for iPhone 8 and later, Nexus 5X/Nexus 6P, Google Pixel/Pixel 3XL, Samsung S9/S10/S20/Note 9/ Note 10, LG V30+/V40, and Sony XZ2 Premium/XZ3. The front USB-A port supports 7.5W fast charging for Apple Watch/AirPods.
Q5: Do I need to install any drivers to use the dock?
A: No
.
Q6: Is this dock compatible with computers that have a Thunderbolt 3 port?
A: Yes, however, it can only deliver a maximum bandwidth of 10Gbps, so it cannot not reach the maximum bandwidth of Thunderbolt 3 (40Gbps).
