Model Number: A8392

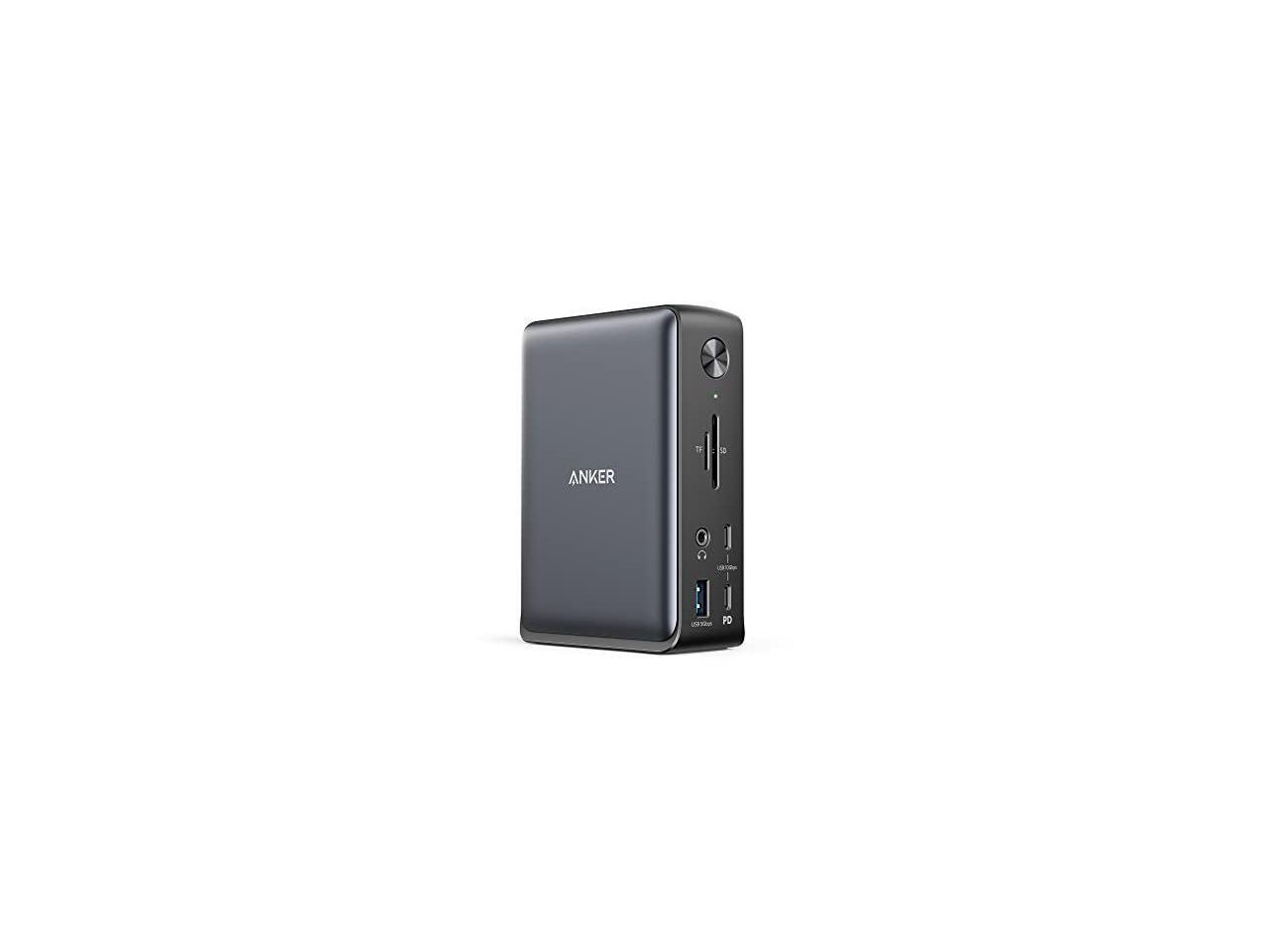

Anker 575 USB-C Docking Station (13-in-1)
Small Footprint, Superb Functionality
What's in The Box:
Anker 575 USB-C Docking Station (13-in-1), 135W Power Adapter, USB-C to USB-C cable (3 ft), welcome guide.
Dimensions and Weight
Dimensions: 125.8 × 88.6 × 41.6 mm / 4.9 × 3.5 × 1.6 in
Weight: 370 g/ 13.1 oz
*The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The host device must support Power Delivery and DisplayPort Alt Mode or USB-C 3.1 (generation 1 or 2).
Supported Operating Systems:
macOS 10.12 or later, Windows 8 / 10 / 11

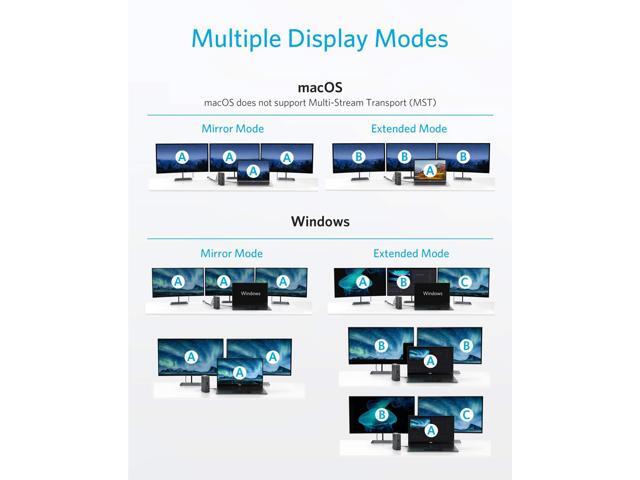

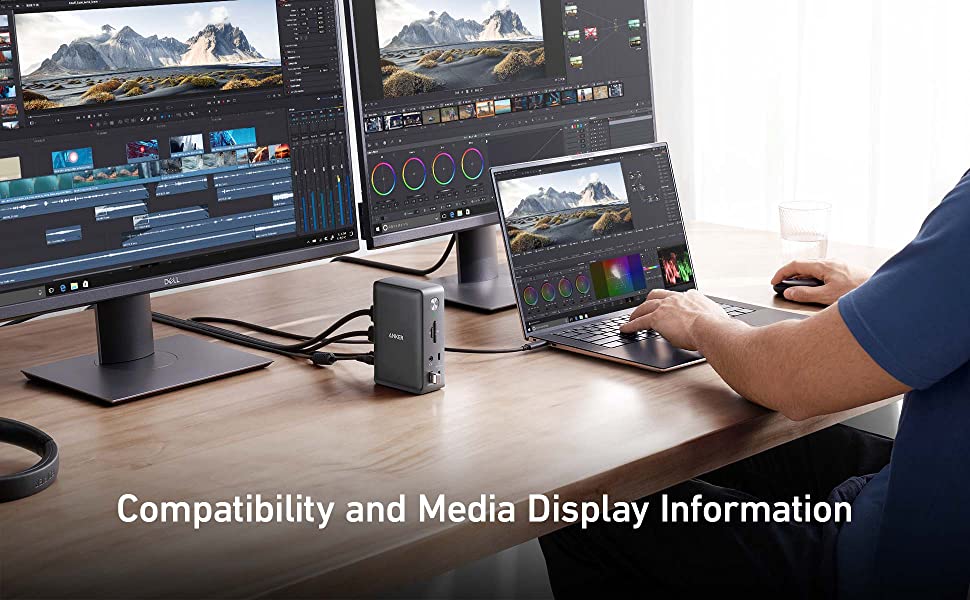

Media Display Information
- When using macOS, content displayed will be mirrored.
- The ability to display on 4 screens simultaneously depends on the capabilities of the laptop's graphics card.
Maximum resolution when using a DisplayPort 1.4 USB-C laptop:
- Single monitor display: 3840x2160@60Hz via the HDMI port or DisplayPort.
- Dual monitor display: 2560x1440@60Hz via 2 HDMI ports, or via the HDMI port and DisplayPort.
- Triple monitor display: 1920x1080@60Hz via the HDMI ports and DisplayPort.

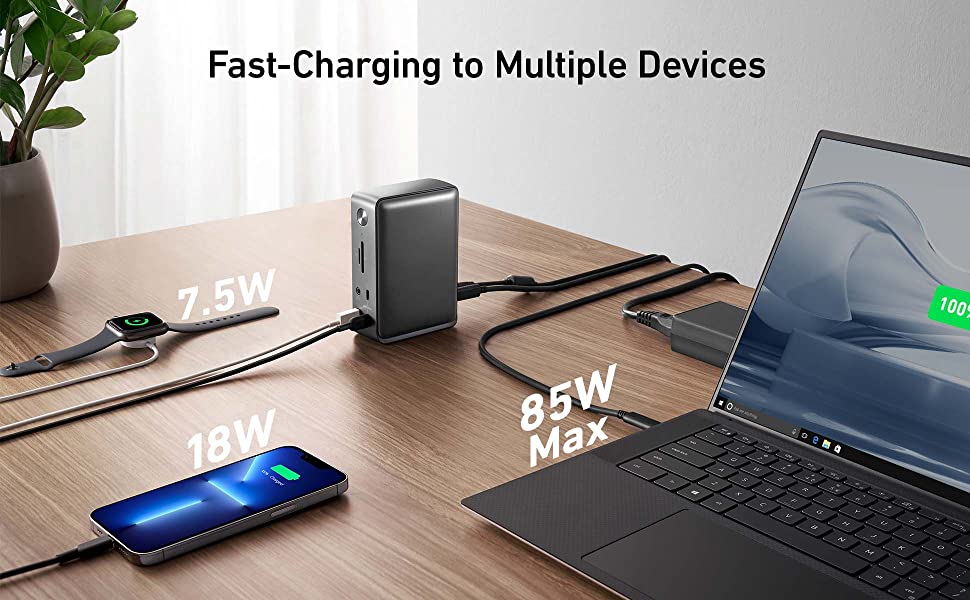

This dock supports up to 85W of charging via the USB-C upstream port on the back of the dock (indicated with a computer icon). The USB-C Power Delivery port (indicated by 'PD') supports 18W fast charging for your phone or tablet. The USB-A 3.0 port on the front supports 7.5W to charge smaller devices like smartwatches or headphones. The two USB-A data ports on the back of the dock do not support charging.
Frequently Asked Questions:
Q1: Will this dock work with any laptop? How do I make sure my laptop works with this dock?
A: This dock works with laptops with a USB-C port that supports DisplayPort Alt Mode and Power Delivery. To confirm the USB-C port function of your laptop, consult your user manual or contact your laptop's manufacturer. If your USB-C port doesn't support DisplayPort Alt Mode, you won't receive video output. If your USB-C port doesn't support Power Delivery, the dock will work correctly with video and data (including audio and Ethernet), but would not be able to supply charging to your laptop.
Q2: Can I use my own USB-C cable to connect the dock to my laptop?
A: It's recommended that you use the included 3 ft USB-C cable. If you need to use a different cable (due to loss etc.), then any other USB-C cable with support for USB 3.1 Gen 2 and 85W Power Delivery would also be compatible.
Q3: Do I need to install any drivers to use the dock?
Q4: Is this dock compatible with computers that have a Thunderbolt 3 port?
A: Yes, however, it can only deliver a maximum bandwidth of 10Gbps, so it cannot not reach the maximum bandwidth of Thunderbolt 3 (40Gbps).
Q5: Sometimes the dock doesn't automatically reconnect after I wake up or restart my laptop. What should I do?
A: This situation doesn't happen very often, but if you are having this problem, try disconnecting and reconnecting the USB-C cable or restarting the dock.
