Antec Basiq BP500U 500W Continuous Power ATX12V Version 2.01 Active PFC Power Supply - Intel Haswell Fully Compatible
- ATX2.03
- 80 PLUS Certified
- 100 - 240 V 47 - 63 Hz
- +3.3V@30A, +5V@30A, +12V1@18A, +12V2@18A, [email protected], [email protected]
Overview
Specs
Reviews (142)
Any questions? Our AI beta will help you find out quickly.
Try me now
An important tip from one of our users: don't just check total power output, find out what you need in the way of current on each power rail. If you need 20 A on your +12V rails and the supply only has 15A, it doesn't matter how many watts the supply puts out: don't buy it. Make certain that you have ENOUGH rails, too: sometimes, you need more than just two +12V rails for your setup.
Replacing an existing power supply is easier: just get a replacement that meets or exceeds the specifications of the old one. (You can usually find those printed on the side of the supply.)
That said, here's a power supply that is compatible with most ATX format motherboards, puts out 500 watts of power (see specifications for exact distribution). Could this be your next power supply?
Replacing an existing power supply is easier: just get a replacement that meets or exceeds the specifications of the old one. (You can usually find those printed on the side of the supply.)
That said, here's a power supply that is compatible with most ATX format motherboards, puts out 500 watts of power (see specifications for exact distribution). Could this be your next power supply?
Basiq, the Simple Choice in High Quality, Value Priced Power Supplies
Building on a budget doesn't mean you have to trust your components to an un-reliable, no-name brand. That's why Antec put its years of experience and knowledge into building world-class power supplies and the result is Basiq. The workhorse of the Antec family, Basiq is built with solid quality you have come to expect from Antec products at an unbeatable price. It does the job simply, efficiently and reliably, making Basiq a solid power supply built to satisfy the demands from the entry-level power user to the budget minded system builder.
Features
- 80 PLUS® Certified: Reduces operating costs and protects the environment
- Universal Input with Active PFC
- Low Noise 80mm Cooling Fan
- ATX12V Version 2.3 Compliant
- Dual +12V Outputs provides maximum stable power for the CPU independently of the other peripherals.
- Industrial Grade Protection: OVP (Over Voltage Protection), SCP (Short Circuit Protection), and OCP (Over Current Protection)
- Backed by a 3-year parts and labor warranty
- Safety: cUL, FCC, CB, BSMI, Gost-R
- Dimensions (H x W x D): 3.5 x 5.8 x 5.5"
- Weight: 3.7lbs

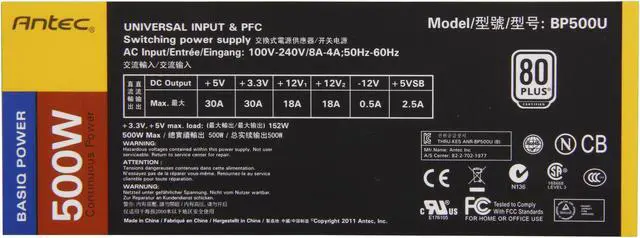

Output
| Output Voltage | Range Max. | Reg. | OCP Set Point | Ripple & Noise |
|---|---|---|---|---|
| +5V | 30.0A | ±5% | 48A | 50 |
| +12V1 | 18.0A | ±5% | 25A | 120 |
| +12V2 | 18.0A | ±5% | 25A | 120 |
| -12V | 0.3A | ±10% | 120 | |
| +5V5B | 2.5A | ±5% | 50 | |
| +3.3V | 30.0A | ±5% | 50A | 50 |

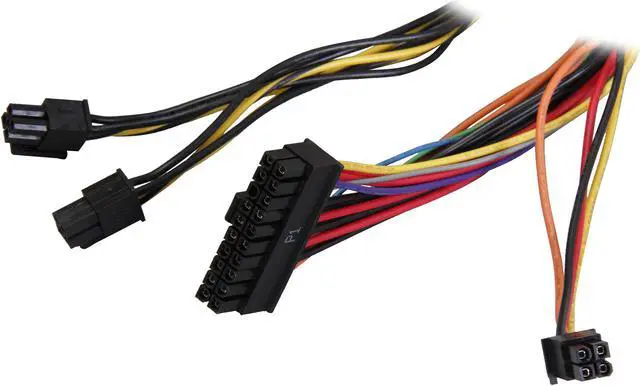

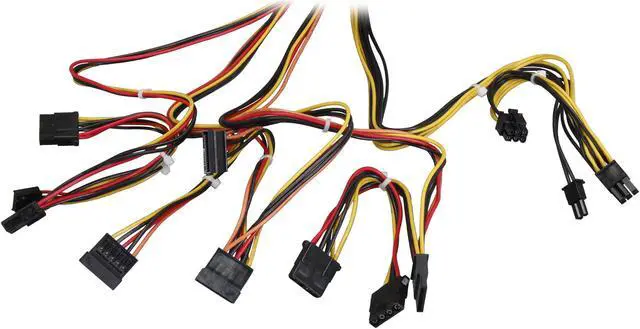

Connectors
1 x 20 + 4-Pin
1 x 6 + 2-PCI-E
1 x 6 Pin PCI-E
4 x SATA
4 x Molex
1 x Aux.
1 x 4 + 4-Pin ATX / EPS

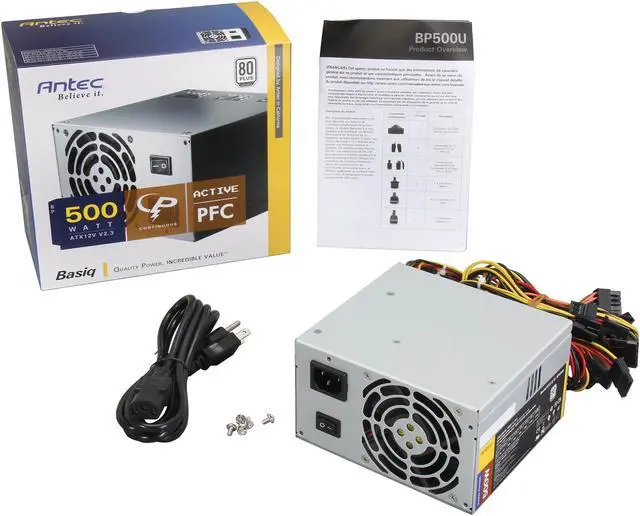

What's in the Box
