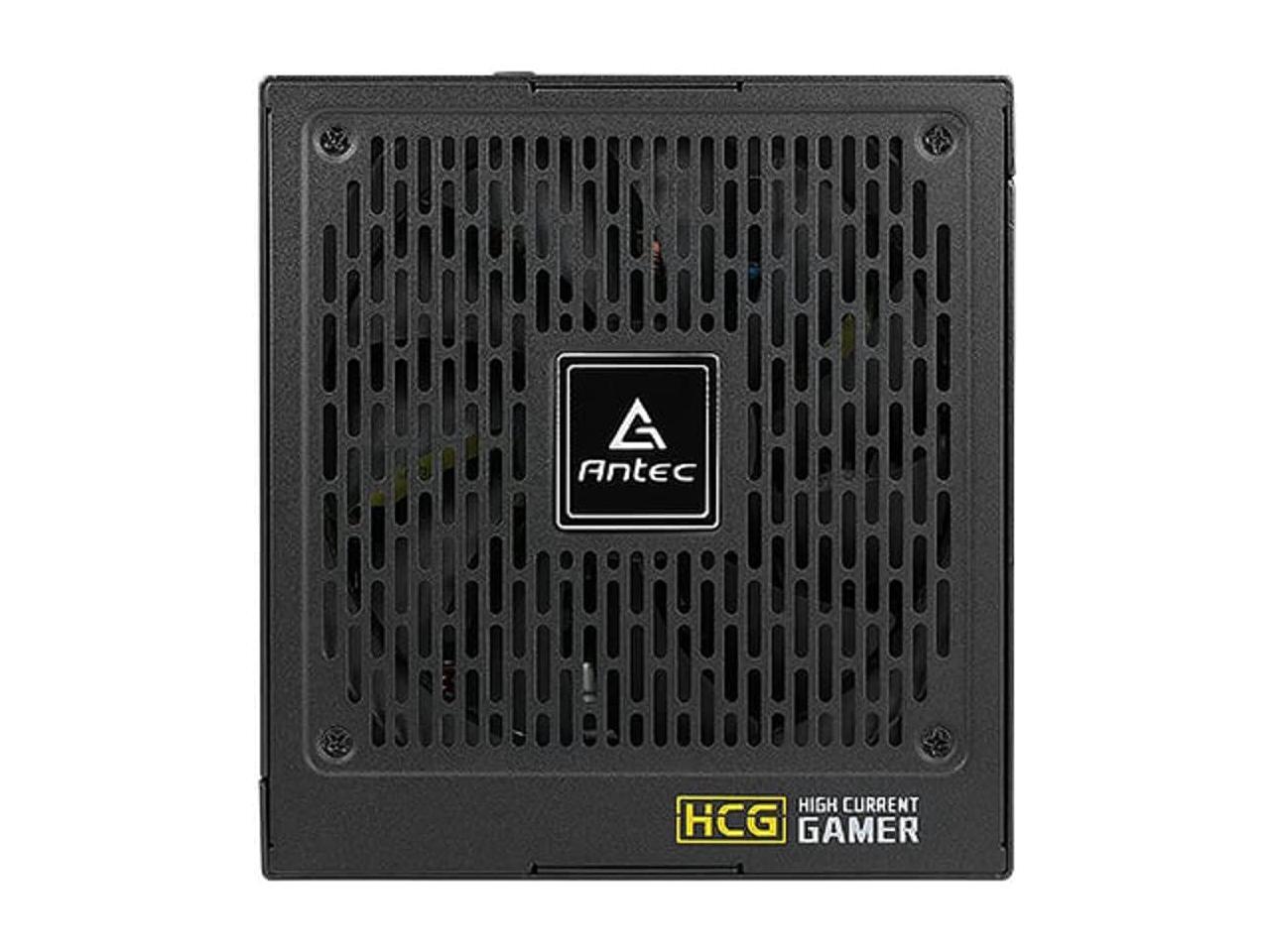

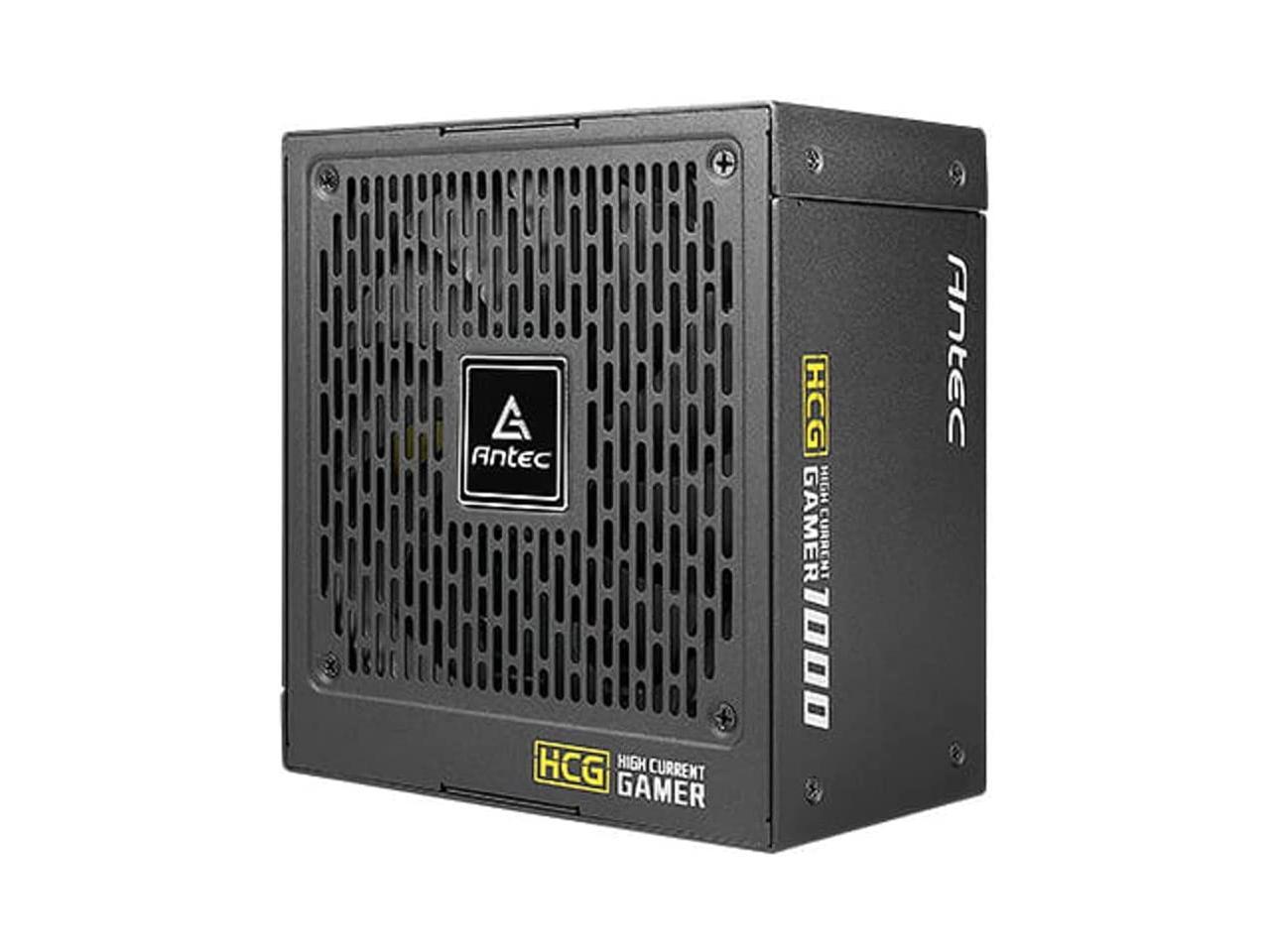

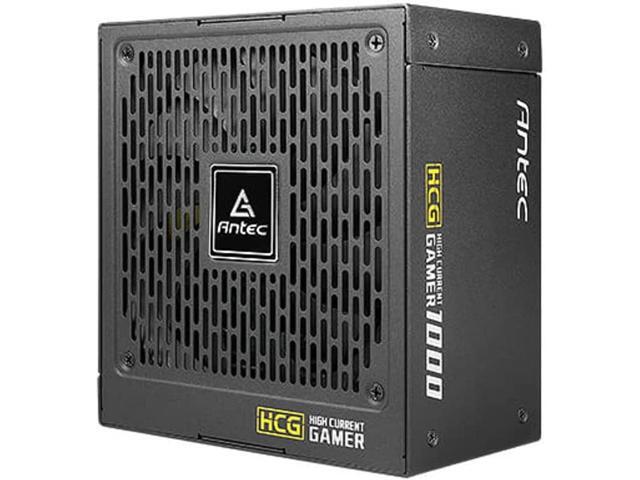

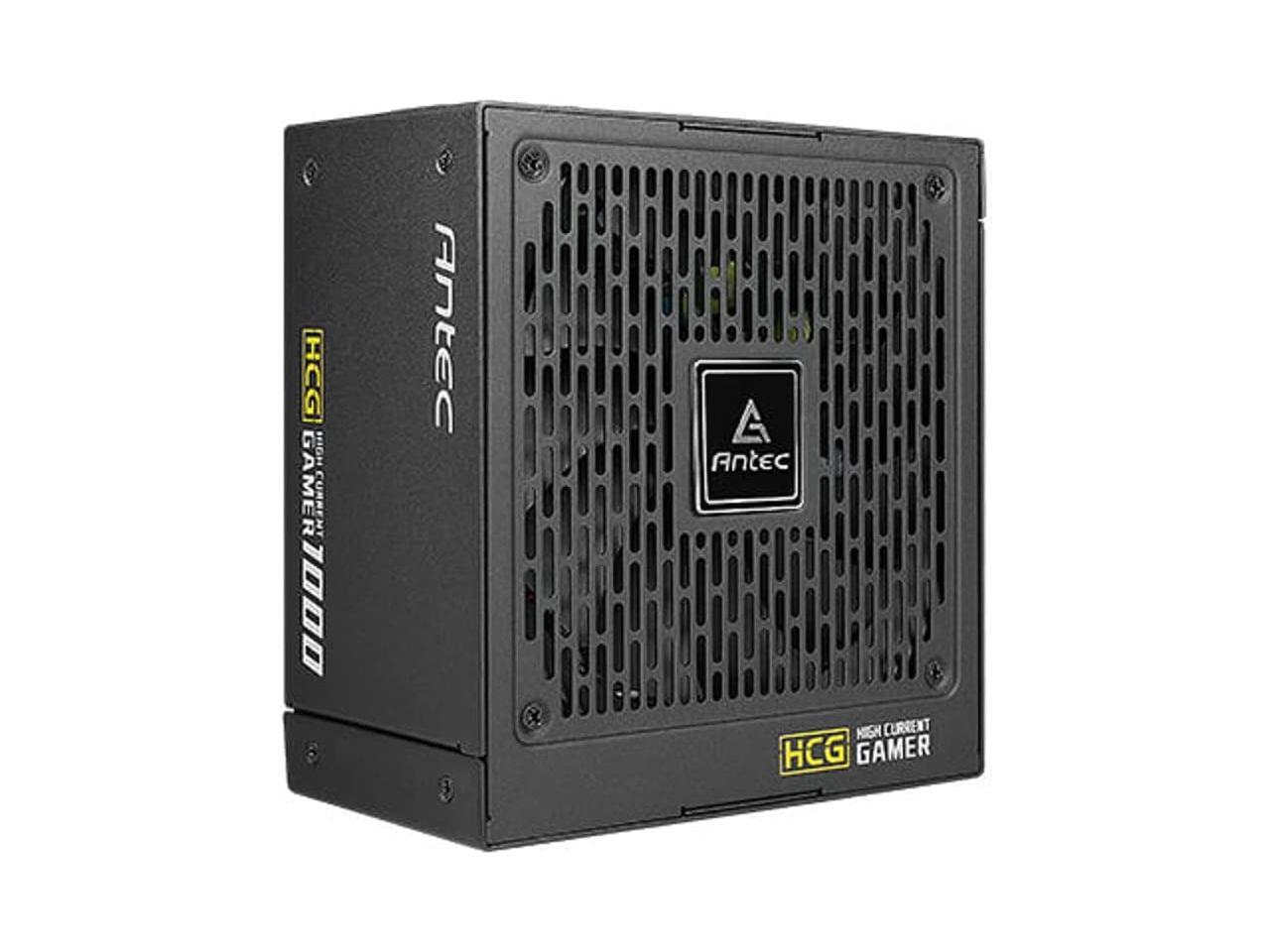

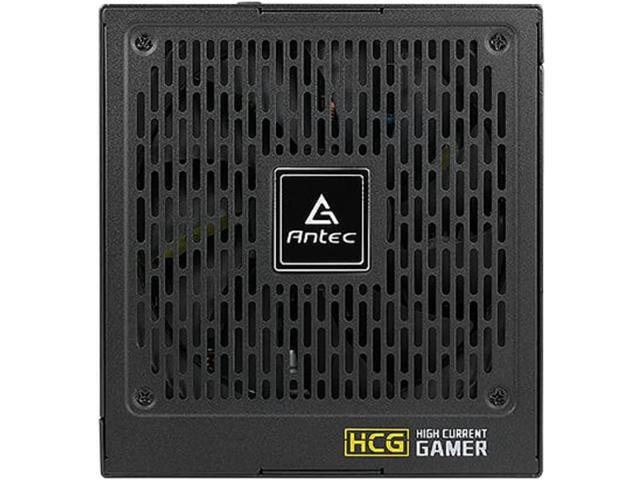

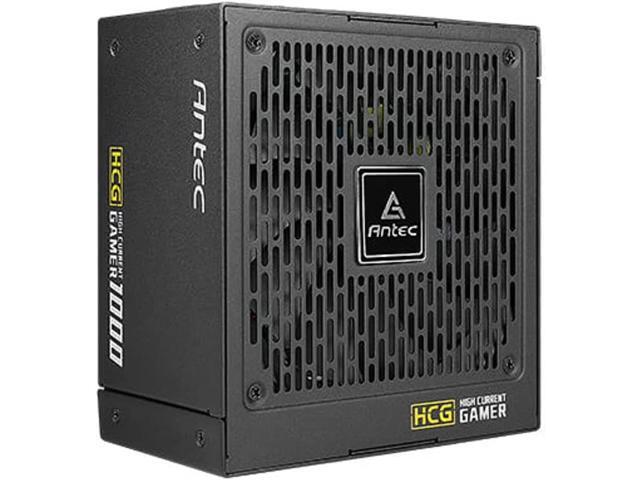

|Series||High Current Gamer Gold Series|
|Model||HCG 1000 GOLD|
|Type||ATX 12V 2.4|
|Maximum Power||1000 W|
|PCI-Express Connector||8 x 8(6+2) Pin PCI-E|
|SATA Power Connector||12|
|Max PSU Length||160 mm|
|Power Good Signal||100-500ms|
|Input Voltage||100 - 240 V|
|Input Frequency Range||50Hz - 60Hz|

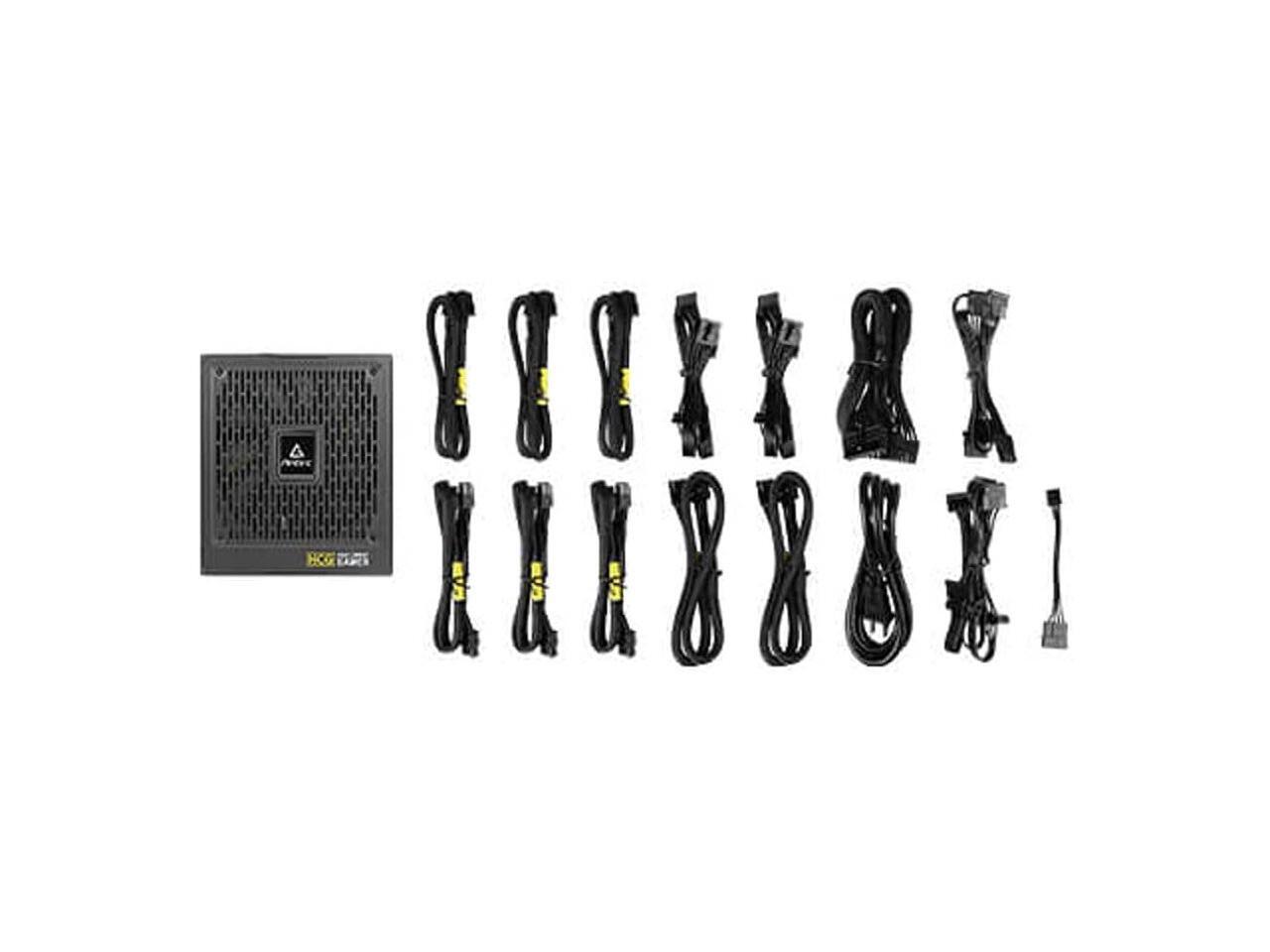

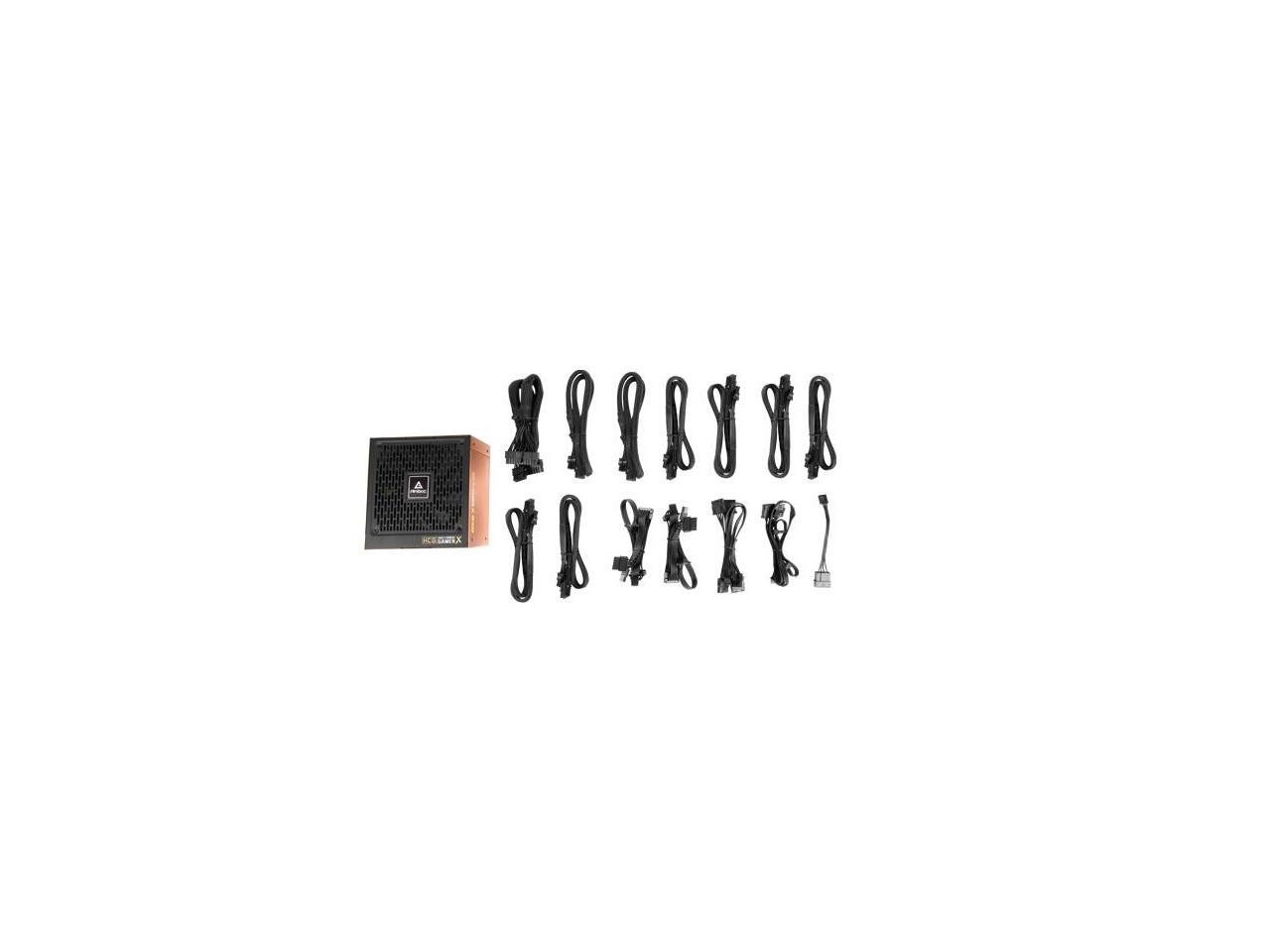

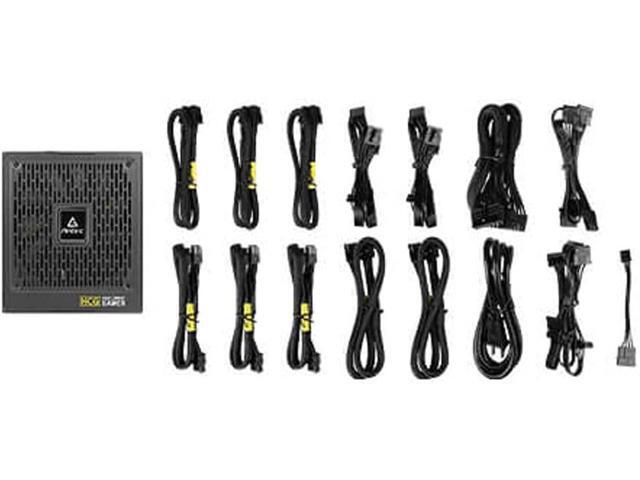

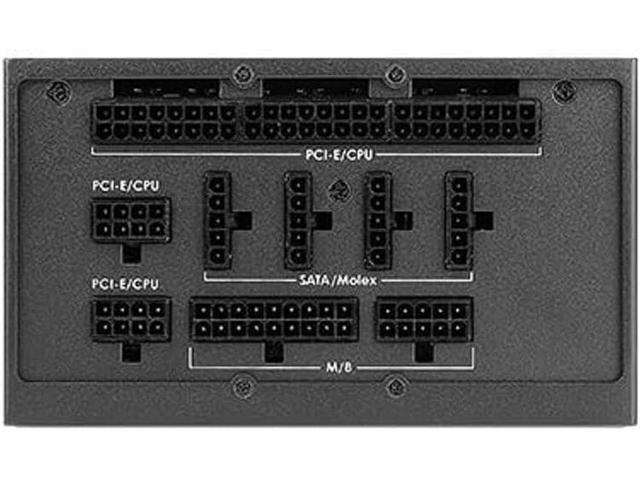

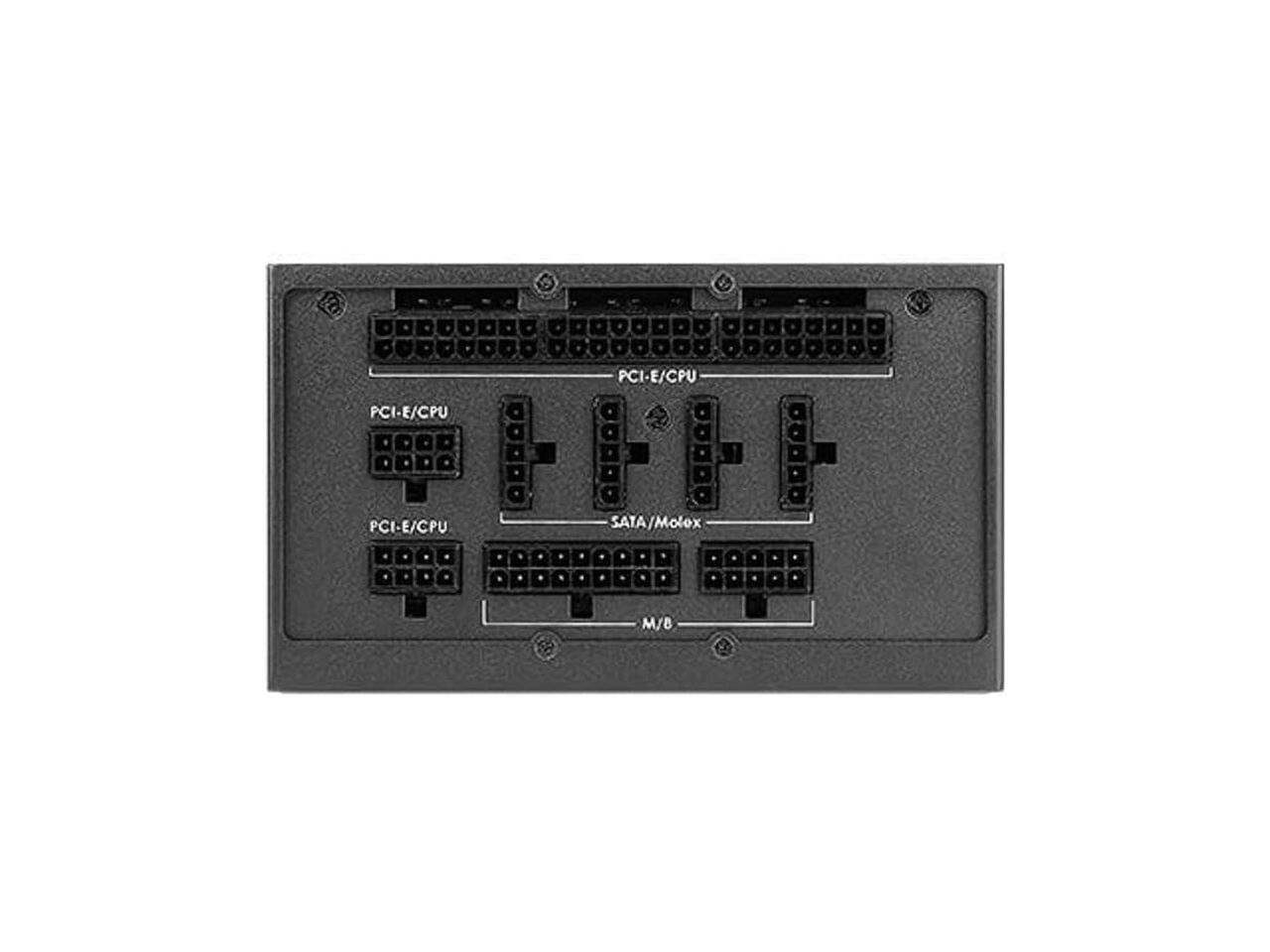

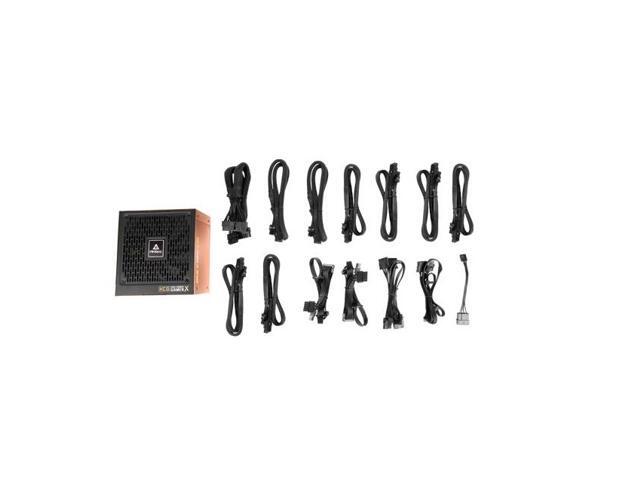

|Connectors||1 x MB 24(20+4) Pin|
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
12 x SATA
6 x Molex
1 x FDD
|Features||Delivering up to 92% efficiency, the High Current Gamer Gold series utilizes active PFC, 100% Japanese capacitors, and provides efficiency during max and low loads—living up to the performance standards that we are known for.|
Using 100% high-performance Japanese capacitors, the HCG Gold series ensures the tightest DC stability and regulation, for reliability that you and your system can count on.
A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology.
HCG 1000 Gold delivers non-stop industrial class performance for high-end computer systems at up to 50°C ambient.
The whisper-quiet, 135mm fluid-dynamic bearing (FDB) fan provides high airflow with the durability and longevity that is a signature of Antec quality.
|Dimensions||6.30" x 5.91" x 3.39"|
|Date First Available||January 13, 2023|
