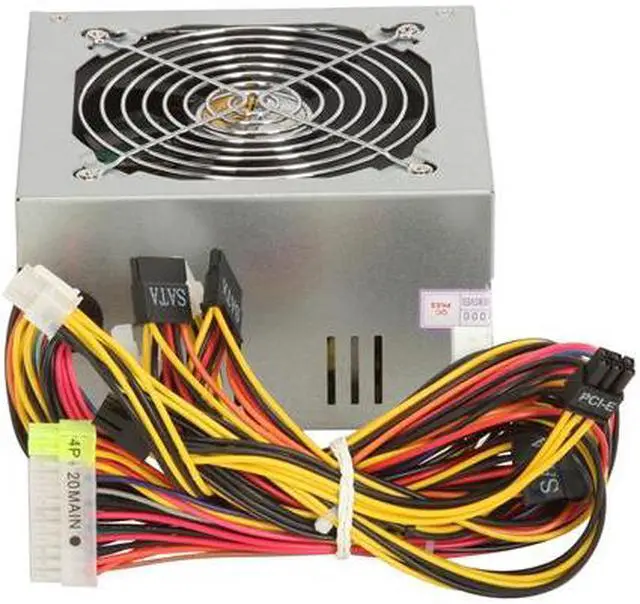

Question 1

When you mount this psu do you have the 120mm fan facing the bottom of the case or toward the Motherboard?

Accepted Answer

From the way your question is worded, I assume your current PS is on the bottom of the case. Mine is at the top and this supply mounted so that the fan pointed (down) toward the motherboard.
The hole pattern allows it to mount only one way. Look closely at the mounting holes in the picture, and line them up with the existing screws in the case. That way you can be sure how it would mount in your system. I wouldn't use it unless the fan is directed into the open area of the case.

Question 2

Will this power a GTX 1060? If not what power supply would you recommend?

Accepted Answer

Recommended PSU of 400W minimum for GTX 1060.  If you have many other high power components or multiple internal mechanical hard drives, you would want a larger power supply just to be on the safe side.

Question 3

The PCIE connectors will not work in my 9800GTX+,  the 6 pin power connect appears to be different from the PCIE power connection on the card.  Is there more than one type of 6 pin power connector for PCIE cards?

Accepted Answer

There are more than one kind of six pin connector from a power supply and it is possible that the six pin you are attempting to use is the non-compatible version.  However PCI-E is standardized and connectors for anything that uses that power must be compliant.

Question 4

I require 20pin, it shows 4pin plus 20 main with the 4 pin highlighted. According to the specs, it is a 24 main, does the 4 like break off/separate?

Accepted Answer

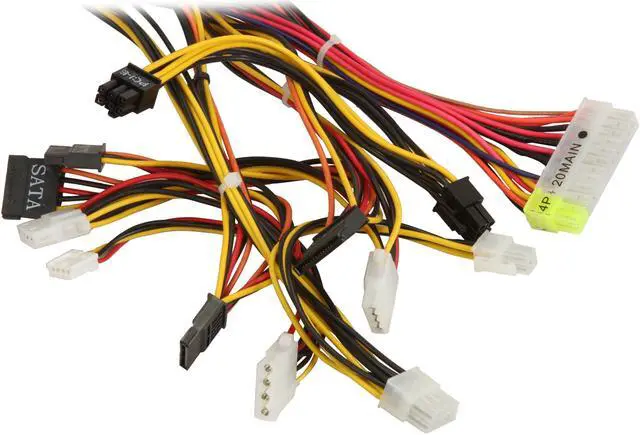

The extra 4 pins simply slide on and off of the main (20 pin) connector, the same as any other 20+4 PSU. If you look at the pictures that show the cables, you can see the extra four pin bundle is a separate piece. Just slide it off and you're good to go.

Question 5

Can this power a simple gaming setup with a gtx 570? Was wondering because specs say need at least a psu with 550 watts. But some say in the reviews this one can only do 350 what gives?

Accepted Answer

In my experience a 570 has a pretty decent power draw and this power supply meets the minimum requirement which means with heavy gaming I would guess the power supply would be apt to fail in 6 months. I have had good luck with my corsair 850 watt and would suggest to spend the extra money so as to future proof your system with a similar power supply. I hope this helps, good luck

Question 6

will this psu can handle a gtx650 video card???

Accepted Answer

Joe,

The answer is yes.  However how many other devices are on the system is also a factor.

Question 7

i have a 6 core processor asus phenom 2 x6 will this work for that?

Accepted Answer

it should work ok.

Question 8

will this fit a evga geforce 750ti ftw and my Intel H61 Express motherboard?

Accepted Answer

Yes i believe so because it fit my old 650ti and my asus intel cpu motherboard. Should be compatible. Good luck.

Question 9

How long are the 24-Pin and 4-Pin(Not Molex) Cords? I need a new one because my old one will not fit in my new case.

Accepted Answer

need to now what kind of case you have

Question 10

will this work with a sapphire 6870 graphics card? and im using an asus tower comp that about 2 years old phenom 2x6 processor

Accepted Answer

yes, it will.

Brand	APEX
Model	AL-D500EXP

Type	ATX12V
Maximum Power	500 W
Fans	1
Main Connector	24Pin
+12V Rails	2
PCI-Express Connector	2 x 6-Pin
SATA Power Connector	4
Haswell Support	Yes
Over Voltage Protection	Yes

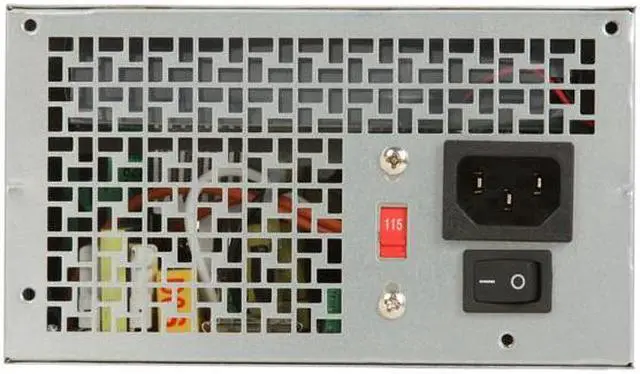

Input Voltage	115 / 230 V
Input Frequency Range	47 - 63 Hz
Input Current	10A @ 115V, 6A @ 230V

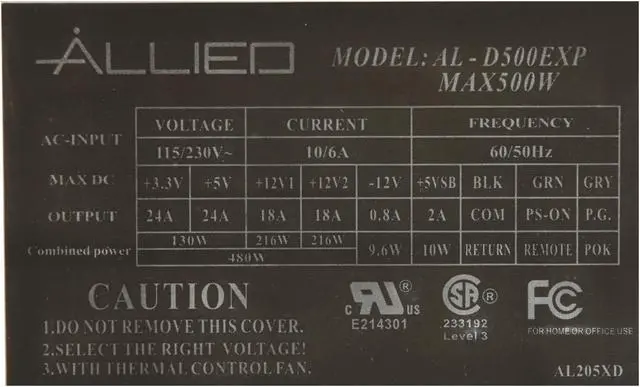

Output	+3.3V@24A, +5V@24A, +12V1@18A, +12V2@18A, [email protected], +5VSB@2A
MTBF	>50,000 Hours
Approvals	cUL, CSA, FCC
Connectors	1 x 24Pin Main connector 1 x 4Pin 12V (P4) 1 x 8Pin 12V 3 x Peripheral 4 x SATA 1 x Floppy 2 x PCI-E

Dimensions	5.5" x 6.0" x 3.3"
Weight	4.4

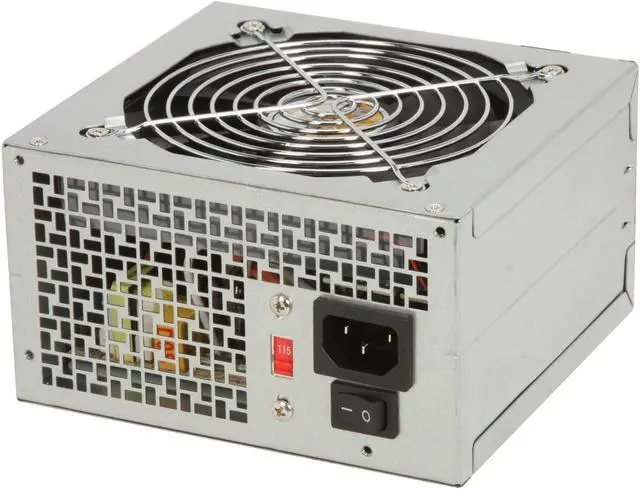

APEX AL-D500EXP 500W ATX12V Power Supply
