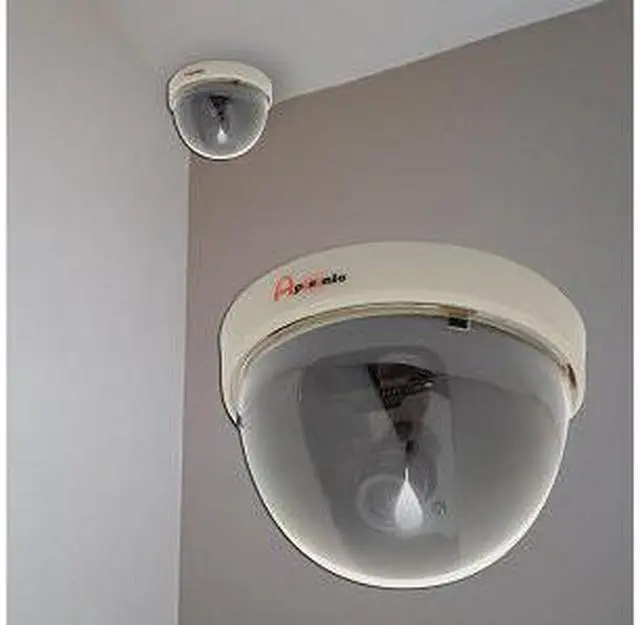

Aposonic A-CDM03 1/3" CCD 420 Line Color CCTV Mini Dome Surveillance Camera

Keep an eye on your business or home with this Aposonic A-CDM03 Mini Dome Surveillance Camera!

The A-CDM03 features a 1/3-inch CCD image sensor support for more than 420 TV line resolution and integrated with Digital Signal Processing (DSP). Simply plug a video monitor with a BNC connector, connect a DC 12V power supply and mount the A-CDM03 to a ceiling!

Order today!


Features/Specifications:

--------------------------------------------------------------------------------

•Aposonic A-CDM03 Mini Dome Surveillance Camera


•General Features:
•Beige color
•Mini Dome shape
•Color camera
•1/3-inch CCD image sensor
•Integrated with Digital Signal Processing (DSP) circuitry
•Horizontal Resolution: More than 420 TV lines
•Horizontal Sync. Frequency: NTSC: 15.734 kHz @ 60 Hz
•Scanning System: 2:1 interlace
•Sensitivity: 1 Lux/F=2.0
•Synchronization: Internal
•S/N (signal to noise) ratio: More than 48 dB
•Video signal output: 1 vp-p, 75 Ohms
•Mount Lens: 4.0 mm/F:2.0
•Electronic shutter: Up to 1/1000,000 sec. (Linear), Auto
•Gain Control: Auto (Preset)
•White balance: Auto
•Built-in 12-inch cable with BNC video out and power input connectors


•Environmental:
•Operating Temperature: -30°C ~ +60°C
•Storage Temperature: -10°C ~ +50°C


•Power Specifications:
•Power supply: DC 12V
•Power consumption: 110mA


•Unit Dimensions:
•2.5 x 3.4 x 3.4-inches (H x W x D, approximate)


•Regulatory Approvals:
•FCC
•CE
•WEEE

Package Includes:

--------------------------------------------------------------------------------

•Aposonic A-CDM03 Mini Dome Surveillance Camera
•Screw pack

Additional Information:

--------------------------------------------------------------------------------

•Notes:
•Model: A-CDM03


•Product Requirements:
•Monitor with BNC connector
•DC 12V power adapter
