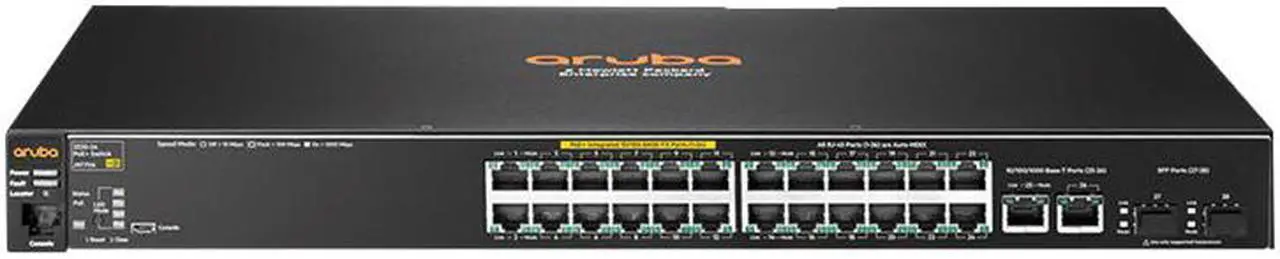

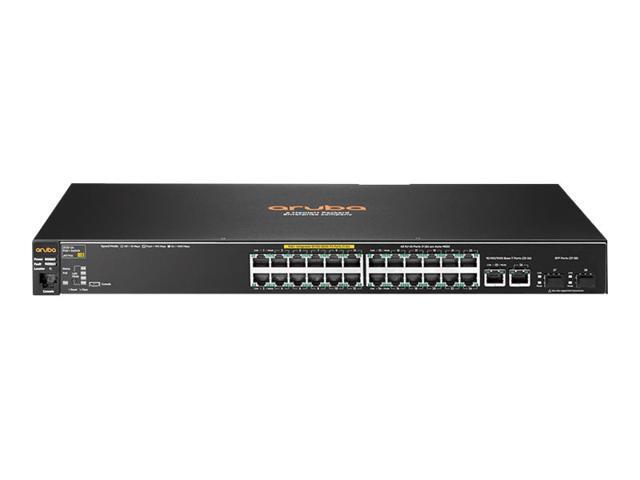

HPE Aruba 2530-24-PoE+ J9779A - switch - 24 ports - managed - rack-mountable
- Expansion / Connectivity: 24 x 100Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 PoE+
- Power: Internal power supply
- Miscellaneous: FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1, EN 55022 Class A
- Dimensions & Weight:
+
+
Overview
Specs
Reviews
Product Specifications
General
Device Type Switch - 24 ports - managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Fast Ethernet
Ports 24 x 10/100 (PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE) PoE+
PoE Budget 195 W
Performance Throughput: up to 9.5 Mpps | Switching capacity: 12.8 Gbps
Capacity MAC addresses: 16000
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm SSL
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM: 800 MHz
RAM 256 MB DDR3 SDRAM
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 24 x 100Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 PoE+ | 2 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 | 2 x SFP (mini-GBIC) - SFP | 1 x console RJ-45 management | 1 x USB Type B management
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 237 Watt
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1, EN 55022 Class A
Localization English / United States
Dimensions & Weight
Width 17.4 in
Depth 12.7 in
Height 1.8 in
Weight 8.4 lbs
General
Device Type Switch - 24 ports - managed
Enclosure Type Desktop, rack-mountable, wall-mountable 1U
Subtype Fast Ethernet
Ports 24 x 10/100 (PoE+) + 2 x Gigabit SFP + 2 x 10/100/1000
Power Over Ethernet (PoE) PoE+
PoE Budget 195 W
Performance Throughput: up to 9.5 Mpps | Switching capacity: 12.8 Gbps
Capacity MAC addresses: 16000
MAC Address Table Size 16000 entries
Jumbo Frame Support 9220 bytes
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI
Encryption Algorithm SSL
Authentication Method RADIUS, TACACS+, Secure Shell v.2 (SSH2)
Features Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Quality of Service (QoS), STP Root Guard, LLDP support, Class of Service (CoS), Generic Attribute Registration Protocol (GARP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Processor 1 x ARM: 800 MHz
RAM 256 MB DDR3 SDRAM
Flash Memory 128 MB
Expansion / Connectivity
Interfaces 24 x 100Base-TX 10Base-T/100Base-TX - RJ-45 - RJ-45 PoE+ | 2 x 1000Base-T 10Base-T/100Base-TX/1000Base-T - RJ-45 - RJ-45 | 2 x SFP (mini-GBIC) - SFP | 1 x console RJ-45 management | 1 x USB Type B management
Power
Power Device Internal power supply
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 237 Watt
Miscellaneous
Compliant Standards FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, CSA C22.2 No. 60950-1, EN 55022 Class A
Localization English / United States
Dimensions & Weight
Width 17.4 in
Depth 12.7 in
Height 1.8 in
Weight 8.4 lbs
