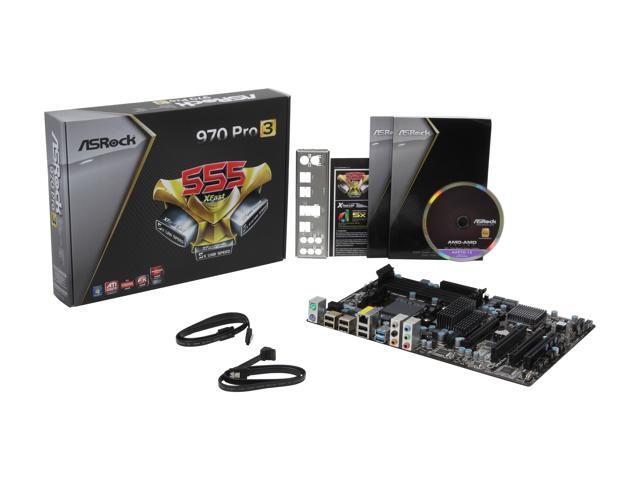

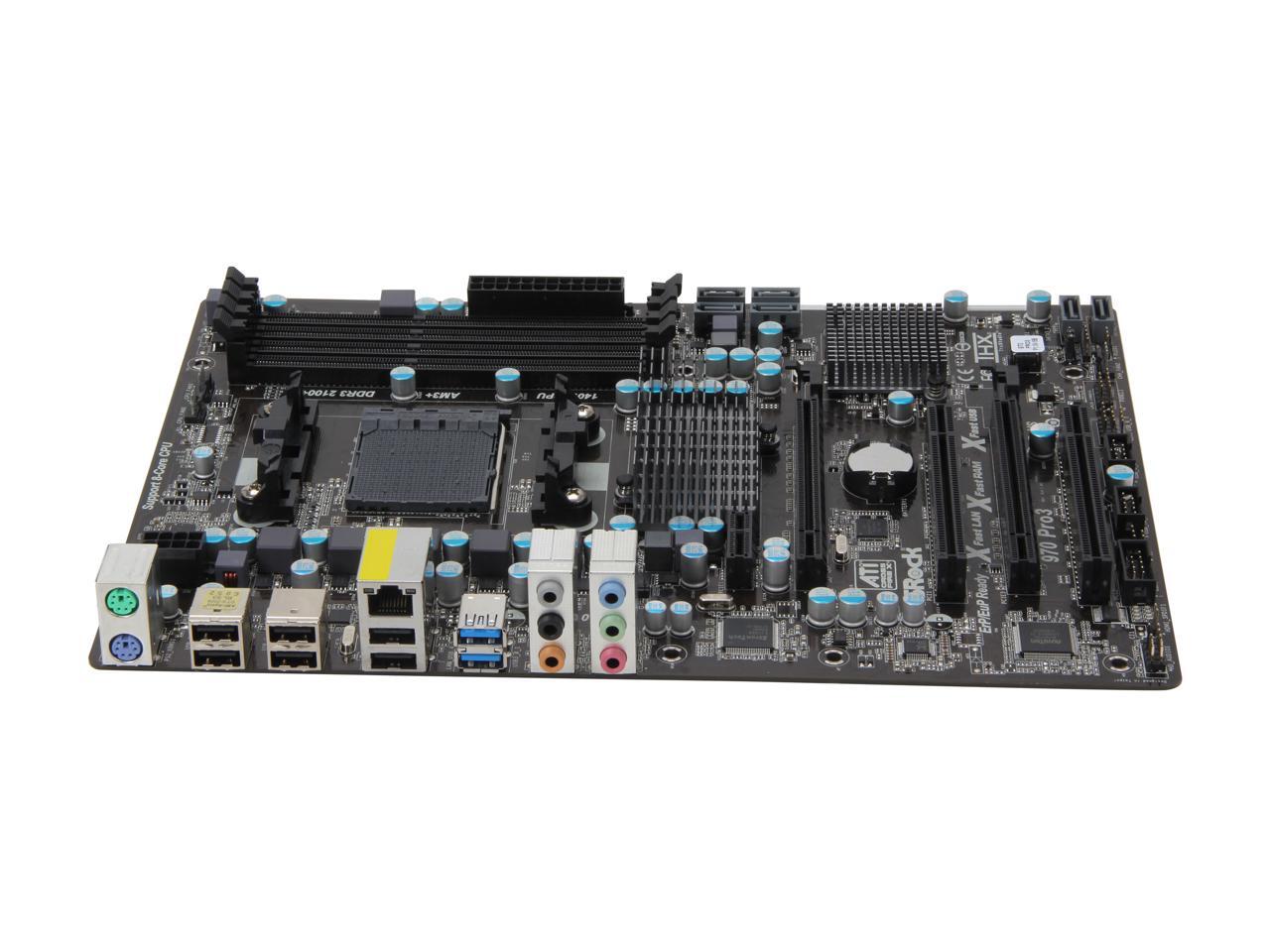

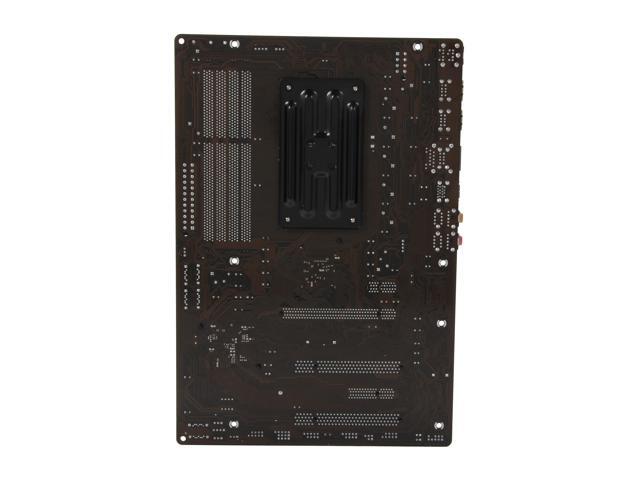

ASRock 970 PRO3 AM3+ AMD 970 + SB950 USB 3.0 ATX AMD Motherboard

(62)(2) Write a Review
  • AMD 970 + SB950
  • FX / Phenom II / Athlon II / Sempron 100 Series
  • DDR3 2100(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (62)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ASRock 970 PRO3

Model
Brand ASRock
Model 970 PRO3
Supported CPU
CPU Socket Type AM3+
CPU Type FX / Phenom II / Athlon II / Sempron 100 Series
FSB 2400 MHz Hyper Transport (4800 MT/s)
Chipsets
Chipset AMD 970 + SB950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2100(OC)/1866(OC)/1800(OC)/1600(OC)/1333/1066/800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 2 (x16, x4)
PCI Express x1 1 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
SATA RAID 0/1/5/10
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC892
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Realtek 8111E
Max LAN Speed 1Gbps
Rear Panel Ports
PS/2 2
USB 3.0 2 x USB 3.0
USB 1.1/2.0 6 x USB 2.0
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Other Connectors 1 x IR header
1 x CIR header
1 x COM port header
1 x HDMI_SPDIF header
1 x Power LED header
2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)
2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin)
1 x Power Fan connector (3-pin)
24 pin ATX power connector
8 pin 12V power connector
Front panel audio connector
Physical Spec
Form Factor ATX
Dimensions (W x L) 12" x 8.2"
Power Pin 24 Pin
Features
Features Supports CPU up to 140W

100% All Solid Capacitor design

Supports AM3+ Processor, 8-Core CPU

Supports Dual Channel DDR3 2100(OC)

2 x PCIe 2.0 x16 Slots, Support AMD Quad CrossFireX and CrossFireX

2 x USB 3.0, 6 x SATA3

Supports XFast RAM, XFast LAN, XFast USB, OMG, Internet Flash, On/Off Play, UEFI System Browser

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec), supports THX TruStudio

Free Bundle : CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite
Additional Information
First Listed on Newegg May 11, 2012
