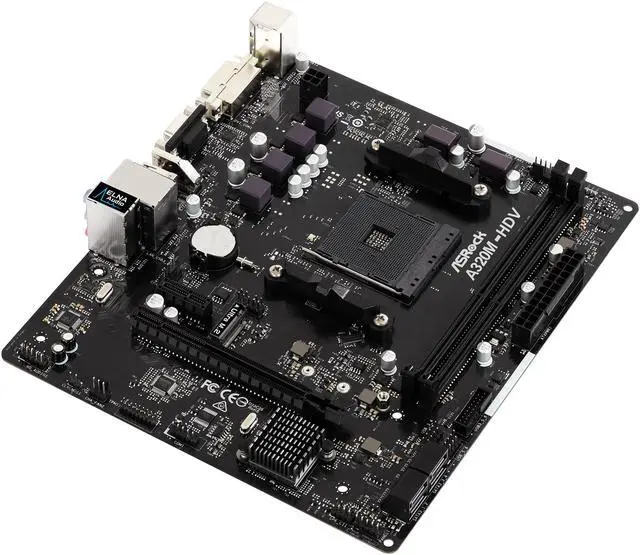

ASRock A320M-HDV R3.0 AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard
Used - Very Good Product Type
- AMD Promontory A320
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge)
- 6 Power Phase design
- Supports CPU up to 105W
- AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory*
- * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock A320M-HDV R3.0
| Brand | ASRock |
|---|---|
| Model | A320M-HDV R3.0 |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) 6 Power Phase design Supports CPU up to 105W |
| Chipset | AMD Promontory A320 |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. |
| Maximum Memory Supported | 32GB* * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug |
|---|---|
| M.2 | 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with A-Series APU, and Athlon 2xxGE series APU)* * Supports NVMe SSD as boot disks * Supports ASRock U.2 Kit |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Shared memory default 2GB. Max Shared memory supports up to 16GB.** Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports * Actual support may vary by CPU ** The Max shared memory 16GB requires 32GB system memory installed |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. |
| LAN Chipset | Realtek RTL8111GR |
|---|---|
| Max LAN Speed | 1Gbps |

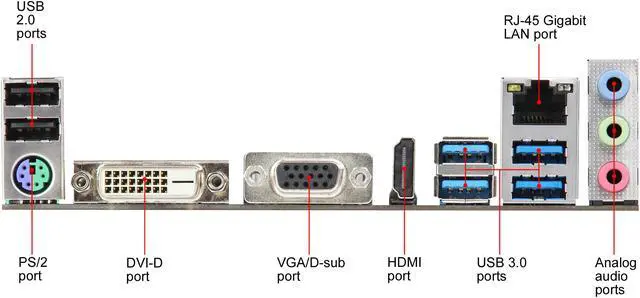

| Back I/O Ports | 1 x D-Sub / 1 x DVI-D / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 |
|---|---|
| PS/2 | 1 x PS/2 keyboard/mouse port |
| Video Ports | 1 x D-Sub Port 1 x DVI-D Port |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.1 | 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection) |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)* 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Form Factor | Micro ATX |
|---|---|

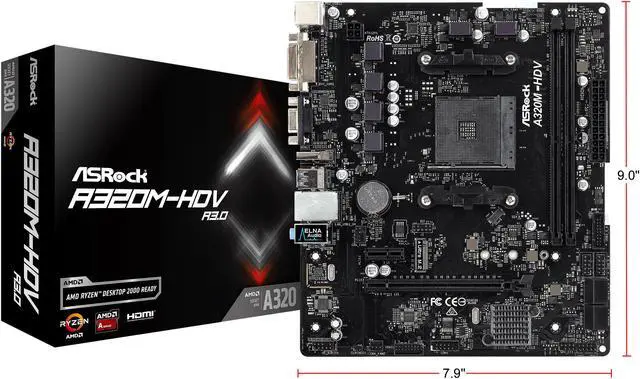

| Dimensions (W x L) | 9.0" x 7.9" |
| Power Pin | 1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - High Density Glass Fabric PCB - Sapphire Black PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment Software and UEFI: Software - ASRock APP Charger - ASRock XFast LAN UEFI - ASRock Full HD UEFI - ASRock Instant Flash - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: - Microsoft Windows 10 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|

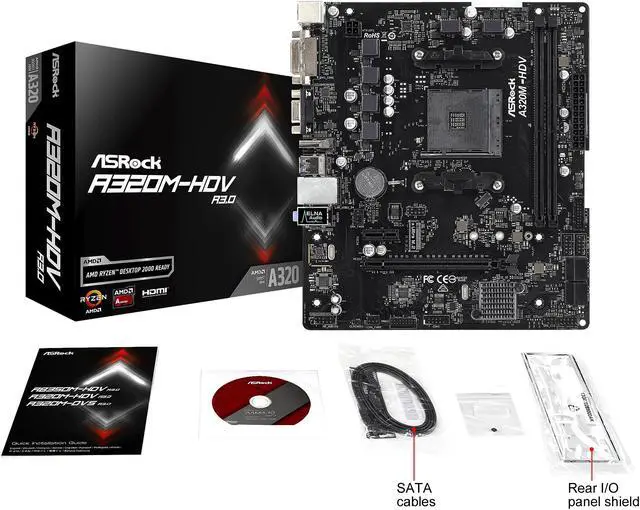

| Package Contents | Accessories: - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket |
|---|
| First Listed on Newegg | November 14, 2024 |
|---|
