Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs
Chipsets
Chipset
Intel B150
Onboard Video
Onboard Video Chipset
* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTruTM 3D, Intel Clear Video HD Technology, Intel InsiderTM, Intel HD Graphics 510/530 - Pixel Shader 5.0, DirectX 12 - Max. shared memory 1792MB - Three graphics output options: D-Sub, DVI-D and HDMI - Supports Triple Monitor - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports Accelerated Media Codecs: HEVC, VP8, VP9 - Supports HDCP with DVI-D and HDMI Ports - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
6 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Onboard Audio
Audio Chipset
Realtek ALC892
Audio Channels
7.1 Channels
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps

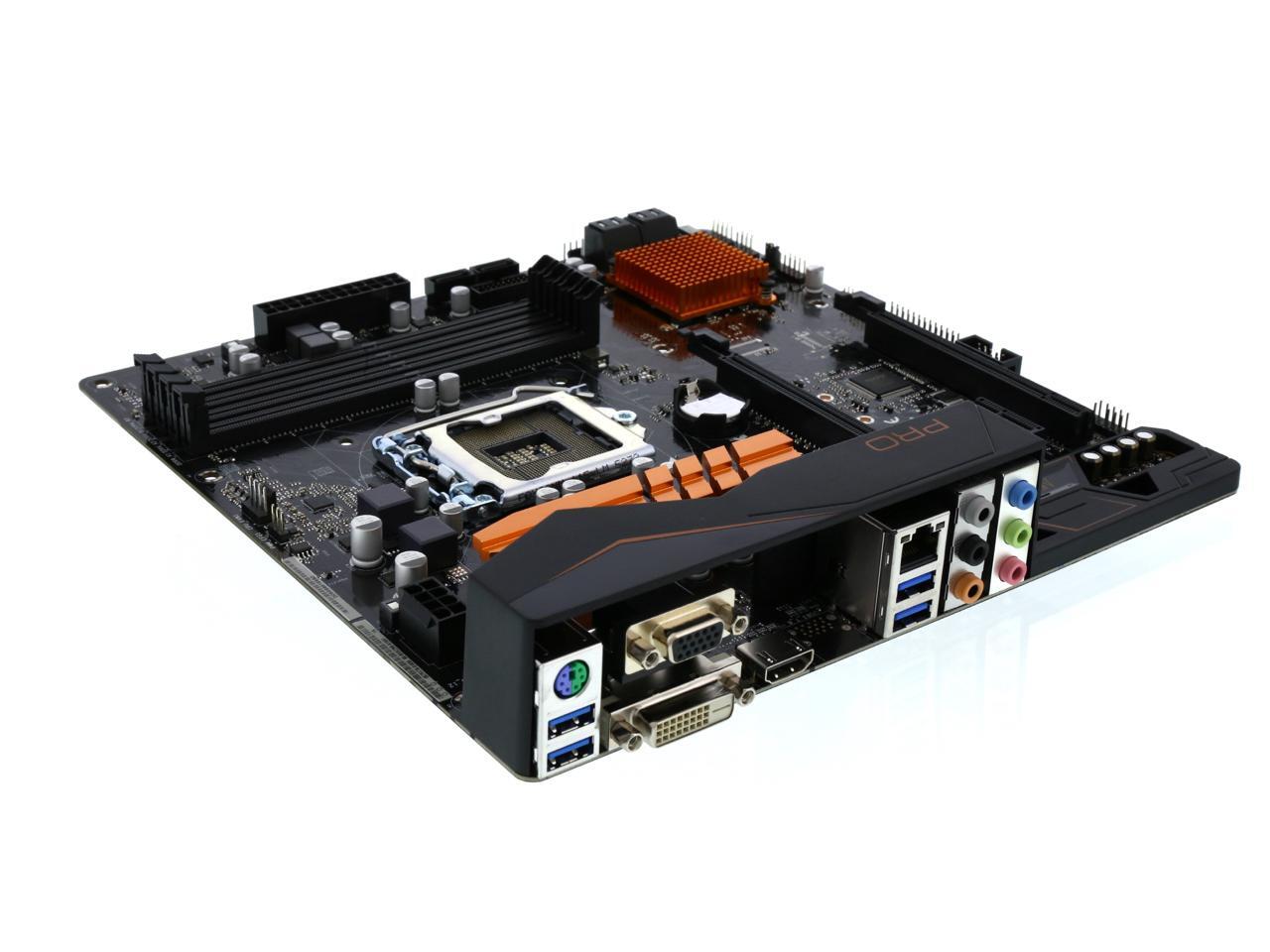

Rear Panel Ports
Back I/O Ports
1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 3.0
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x D-Sub Port 1 x DVI-D Port
HDMI
1 x HDMI
RJ45
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.0
4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
Audio Ports
HD Audio Jacks: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors
1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control) 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector
Physical Spec
Form Factor
Micro ATX
Power Pin
24 Pin
Features
Features
Unique Feature ASRock Super Alloy - I/O Armor - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop
BIOS Feature - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 1.1 Compliant wake up events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI, Instant Boot) * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Dehumidifier - ASRock Easy Driver Installer
Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA
OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. * For the updated Windows 10 driver, please visit ASRock's website for details: http://www.asrock.com
Certifications - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required)
Packaging

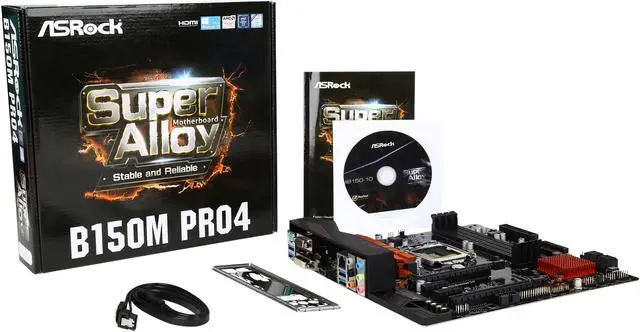

Package Contents
Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables
