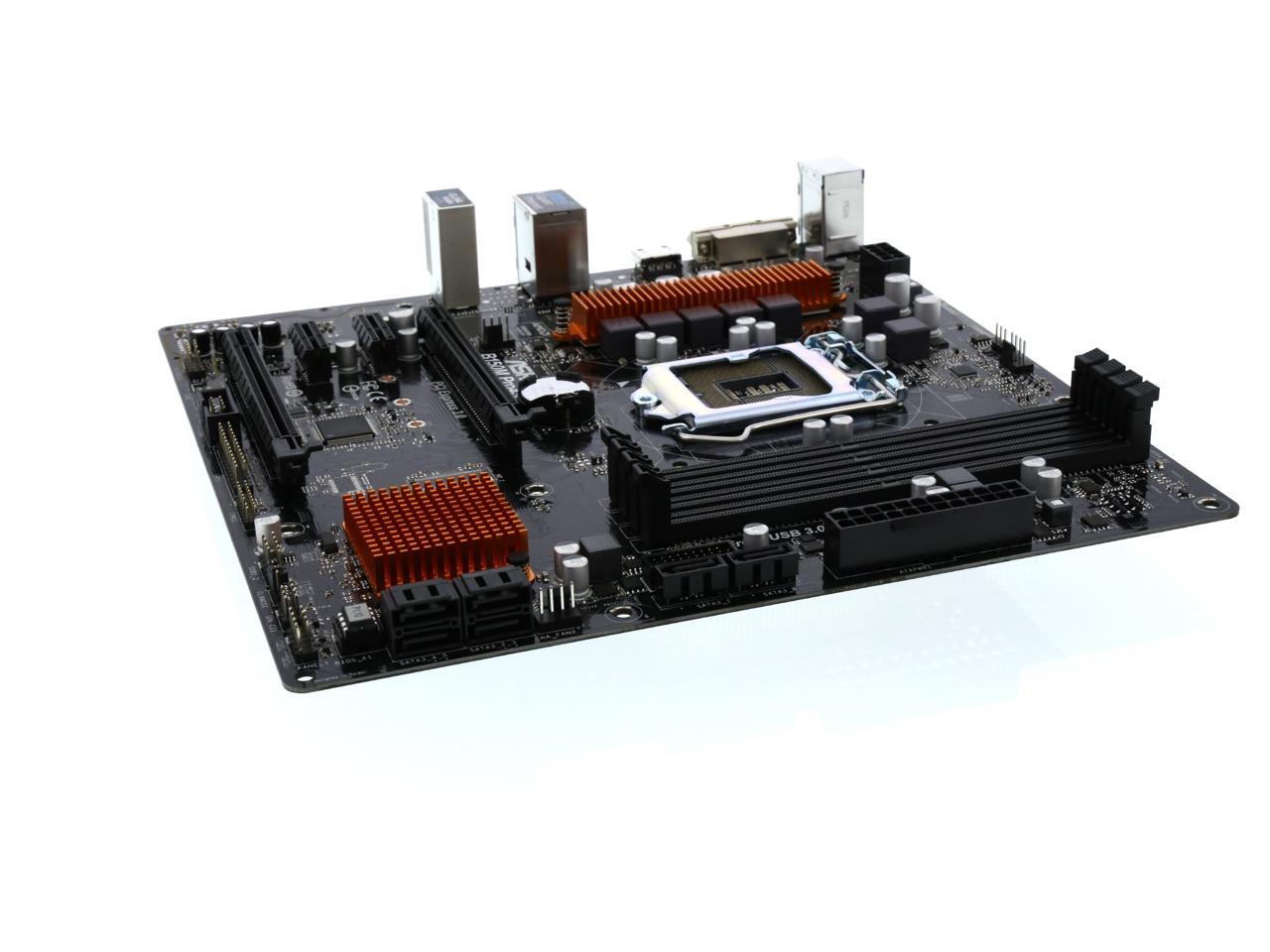

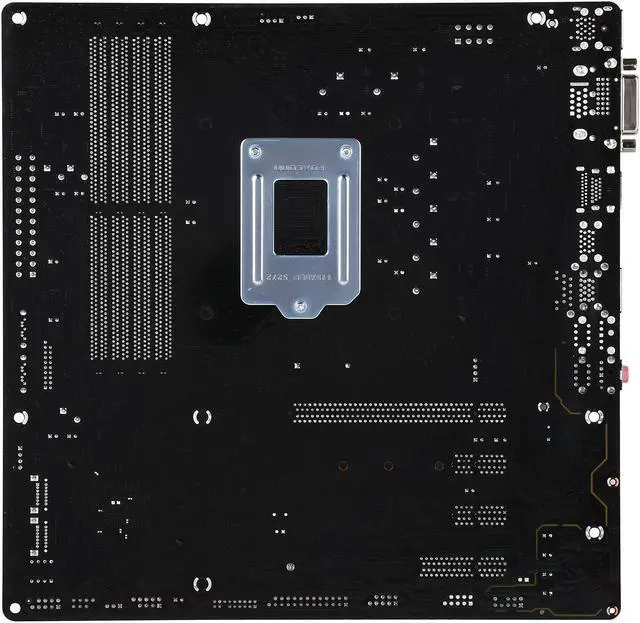

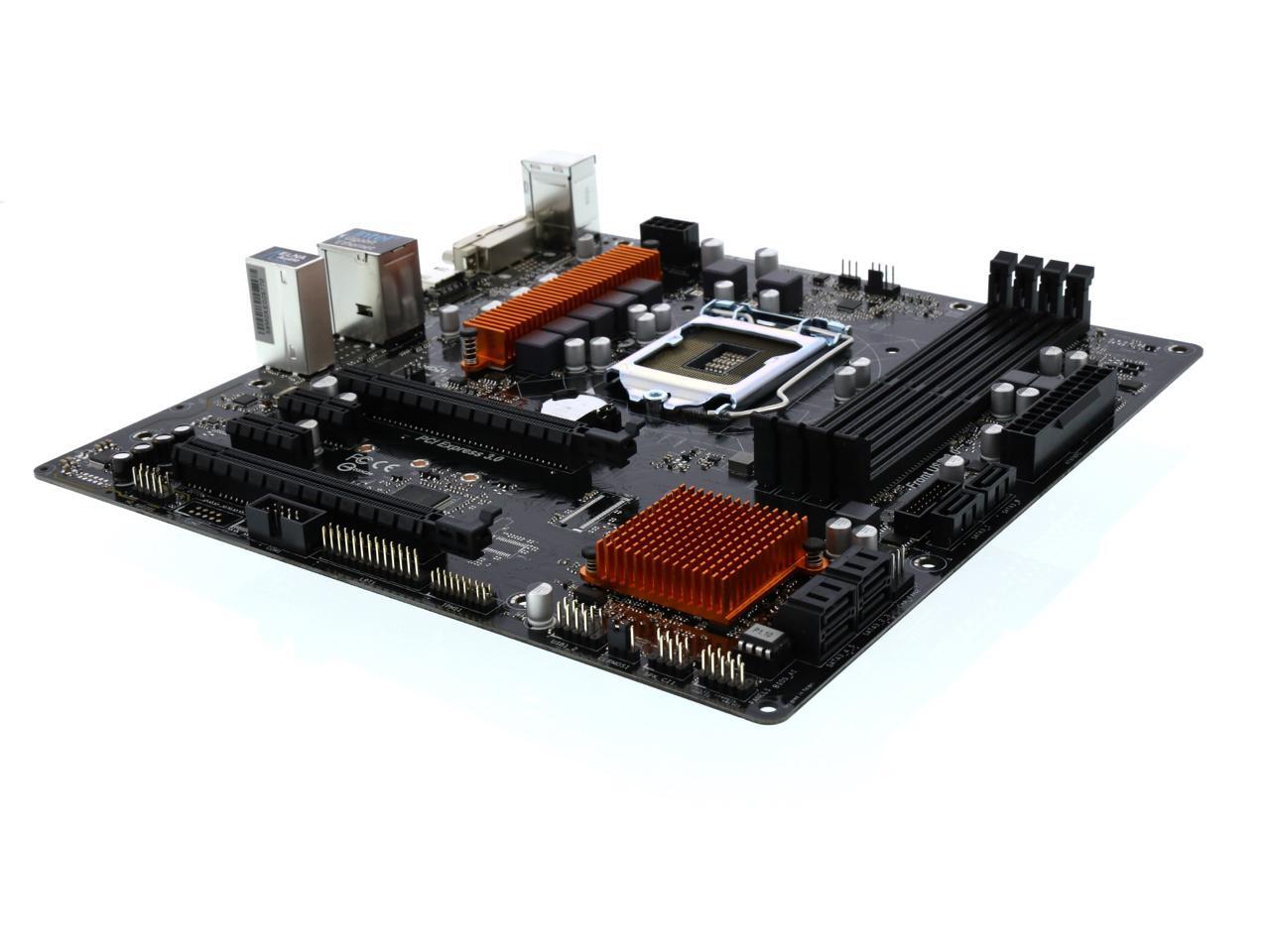

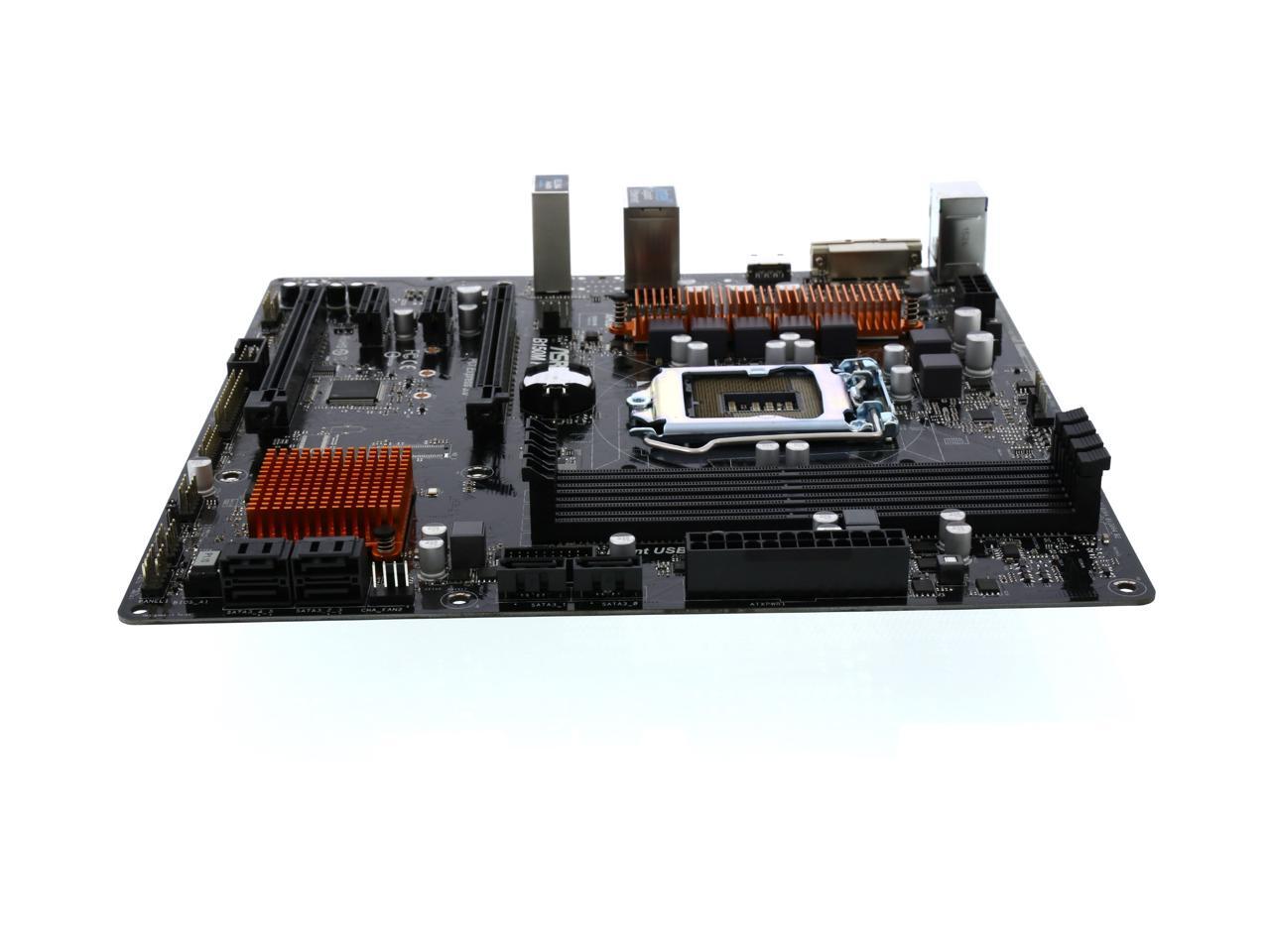

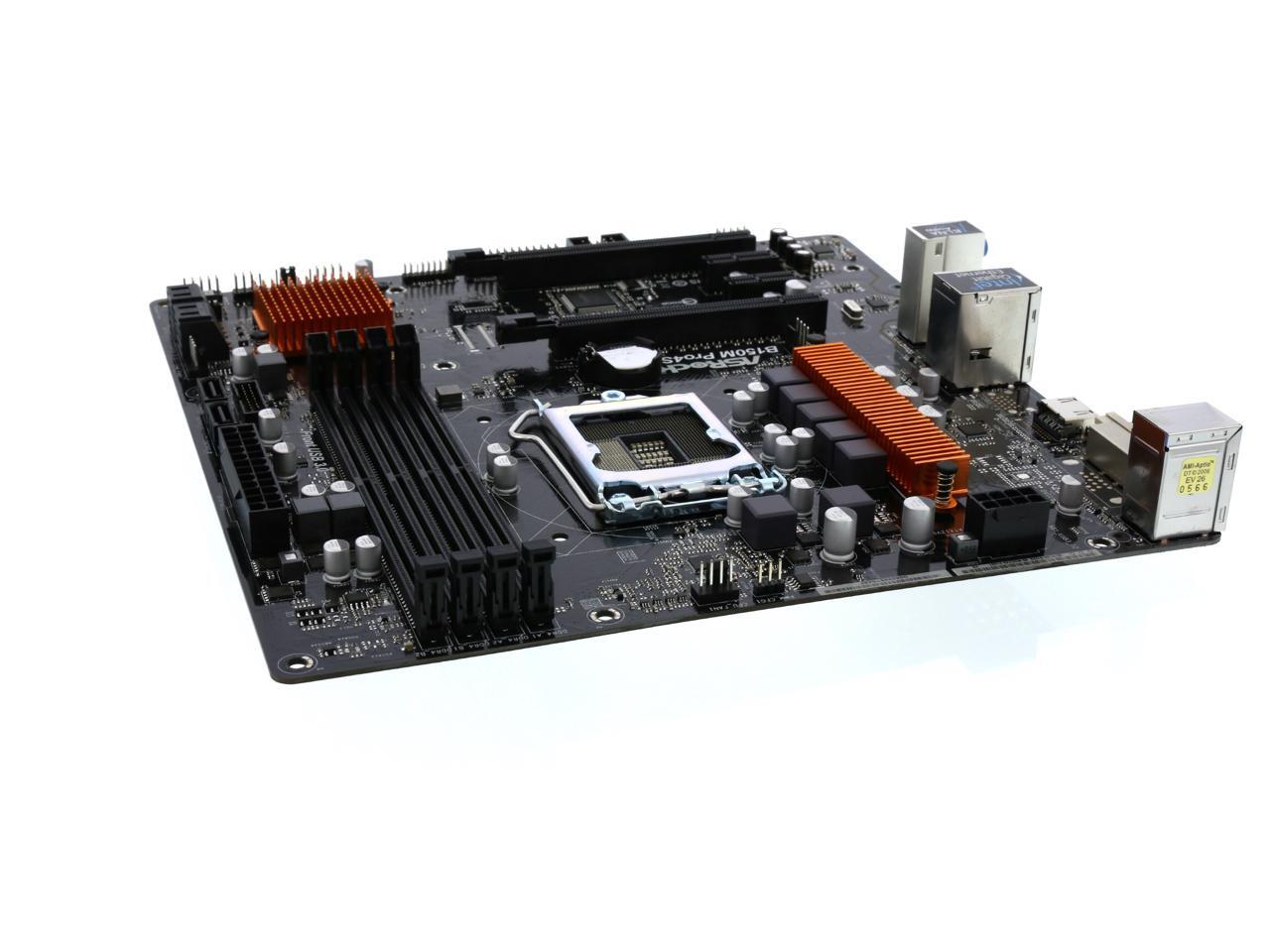

    ASRock B150M Pro4S LGA 1151 Intel B150 HDMI USB 3.0 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel B150
    • Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    • DDR4 2133
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the ASRock B150M Pro4S

    Model
    Brand ASRock
    Model B150M Pro4S
    Supported CPU
    CPU Socket Type LGA 1151
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
    Supported CPU Technologies Turbo Boost Technology 2.0
    * Not Compatible with Intel 8th Gen CPUs
    Chipsets
    Chipset Intel B150
    Onboard Video
    Onboard Video Chipset * Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    - Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTruTM 3D, Intel Clear Video HD Technology, Intel InsiderTM, Intel HD Graphics 510/530
    - Pixel Shader 5.0, DirectX 12
    - Max. shared memory 1792MB
    - Dual graphics output: Support DVI-D and HDMI ports by independent display controllers
    - Supports HDMI with max. resolution up to 4K x 2K (4096x2304) @ 24Hz
    - Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
    - Supports Accelerated Media Codecs: HEVC, VP8, VP9
    - Supports HDCP with DVI-D and HDMI Ports
    - Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
    Memory
    Number of Memory Slots 4x288pin (DDR4)
    Memory Standard DDR4 2133
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode)
    PCI Express x1 2 x PCI Express 3.0 x1 Slots (Flexible PCIe)
    Storage Devices
    Serial ATA (SATA) 6 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug
    Onboard Audio
    Audio Chipset Realtek ALC892
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps

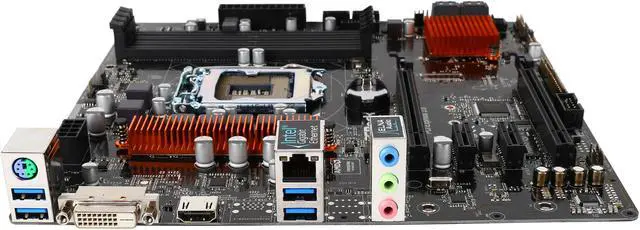

    Rear Panel Ports
    Back I/O Ports 1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 4 x USB 3.0
    PS/2 1 x PS/2 keyboard/mouse port
    Video Ports 1 x DVI-D Port
    HDMI 1 x HDMI
    RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    USB 3.0 4 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
    Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
    Other Connectors 1 x Print Port Header
    1 x COM Port Header
    1 x TPM Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)
    2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    1 x Front Panel Audio Connector
    Physical Spec
    Form Factor Micro ATX
    Power Pin 24 Pin
    Features
    Features Unique Feature
    ASRock Super Alloy
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection
    ASRock Live Update & APP Shop

    BIOS Feature
    - 128MB AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 1.1 Compliant wake up events
    - SMBIOS 2.3.1 Support
    - DRAM Voltage Multi-adjustment

    Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Software and UEFI
    Software
    - ASRock Disk Health Report
    - ASRock USB Key
    - ASRock APP Charger
    - ASRock XFast LAN
    - ASRock XFast RAM
    - ASRock Fast Boot (Fast Boot, Restart to UEFI, Instant Boot)
    * These utilities can be downloaded from ASRock Live Update & APP Shop.
    UEFI
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Crashless BIOS
    - ASRock OMG (Online Management Guard)
    - ASRock UEFI Tech Service
    - ASRock Dehumidifier
    - ASRock Easy Driver Installer

    Hardware Monitor
    - CPU/Chassis temperature sensing
    - CPU/Chassis Fan Tachometer
    - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
    - CPU/Chassis Fan multi-speed control
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, GT_CPU, DRAM, VPPM, PCH 1.0V, VCCIO, VCCSA

    OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit
    * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions.
    * For the updated Windows 10 driver, please visit ASRock's website for details.

    Certifications
    - FCC, CE, WHQL
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    Packaging

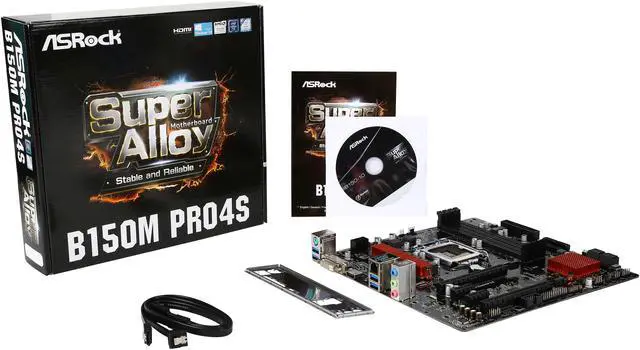

    Package Contents Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
