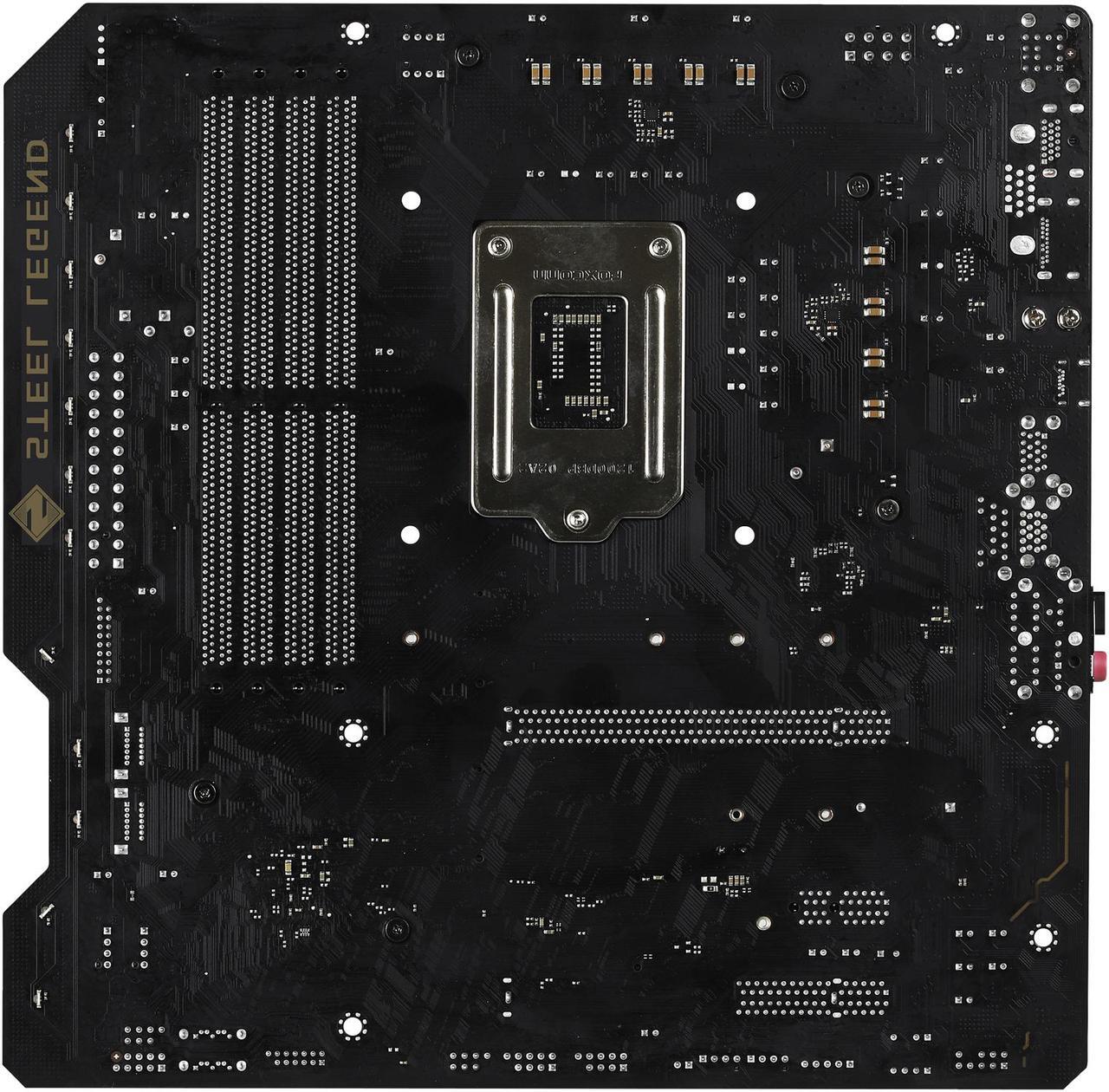

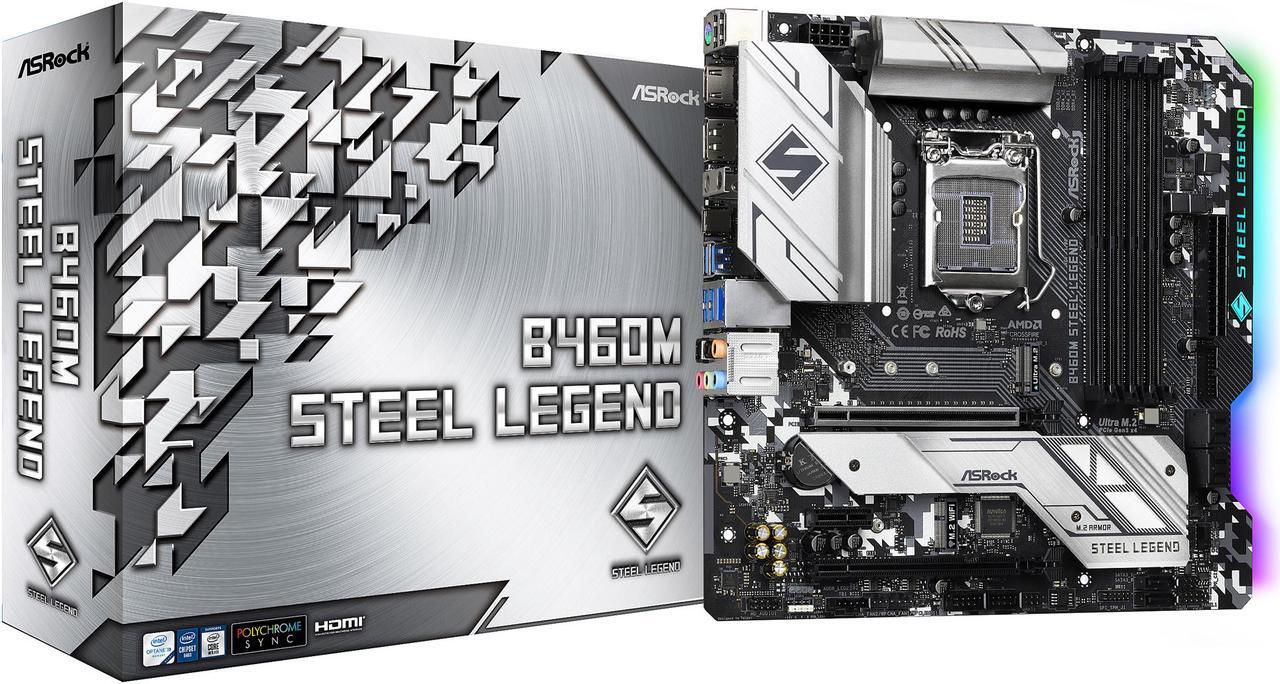

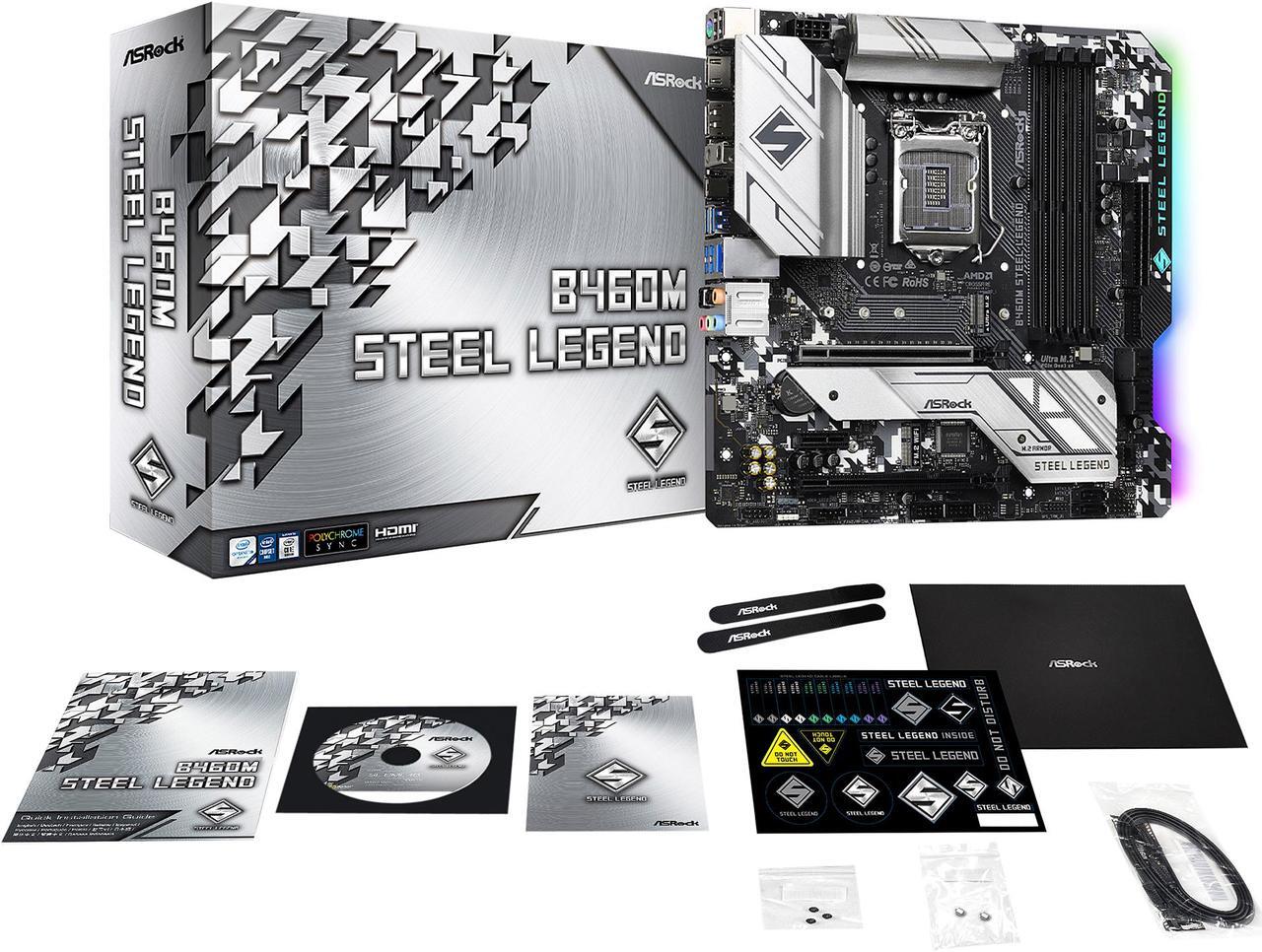

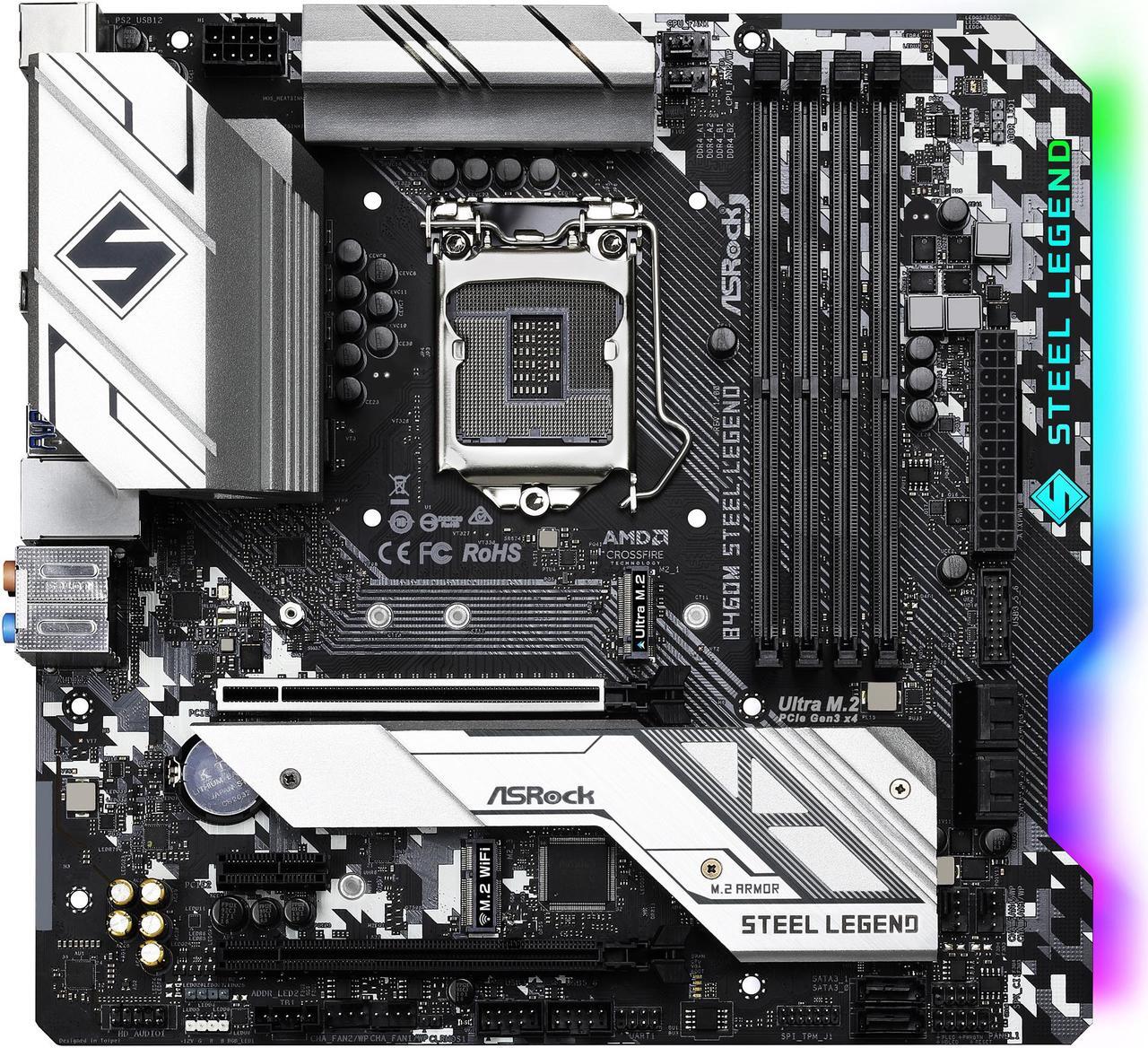

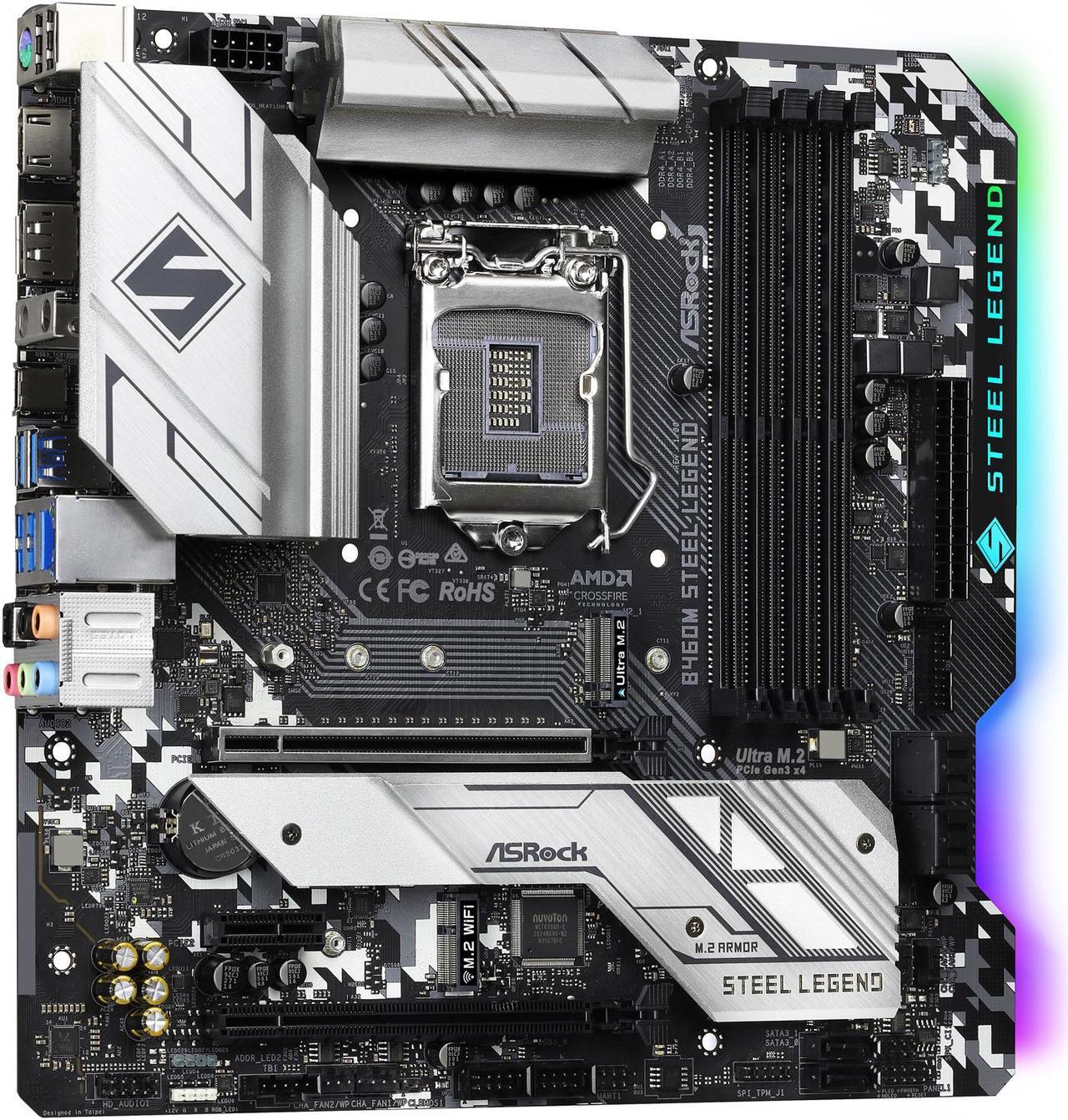

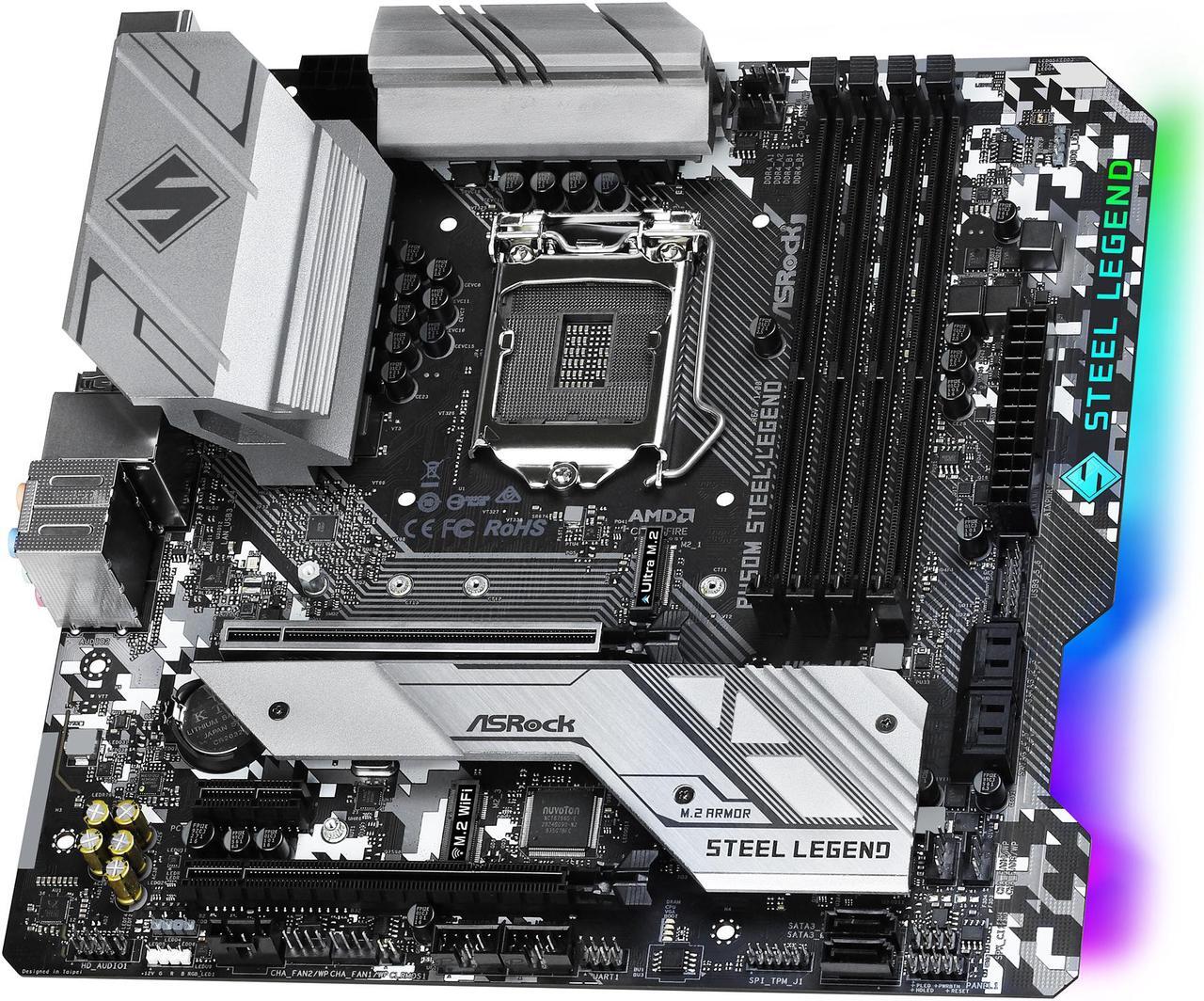

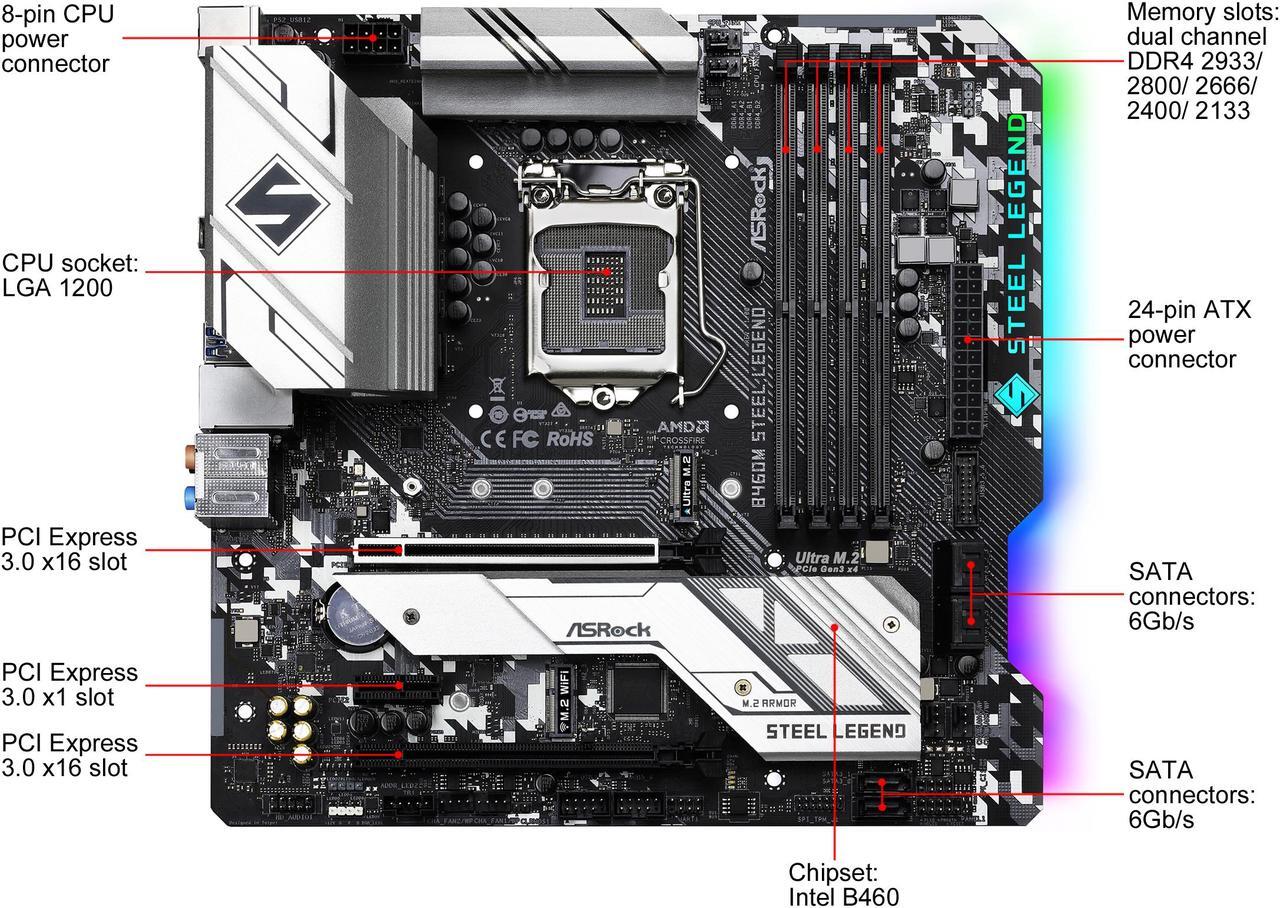

ASRock B460M STEEL LEGEND LGA 1200 Intel B460 Micro ATX Intel Motherboard
Used - Very Good Product Type
- Intel B460
- Supports 10th Gen Intel Core Processors (Socket 1200)
- Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
+
+
Specs
Learn more about the ASRock B460M STEEL LEGEND
| Brand | ASRock |
|---|---|
| Model | B460M STEEL LEGEND |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors (Socket 1200) |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel B460 |
|---|
| Onboard Video Chipset | Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1** Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1 Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) Supports HDCP 2.3 with HDMI 1.4 and DisplayPort 1.4 Ports Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.4 Ports * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** VP9 10bit and VC-1 are for decode only. ** VP8 and VP9 encode are not supported by Windows OS. |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory* * Please refer to Memory Support List on ASRock's website for more information. * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666. |
| Maximum Memory Supported | 128GB ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation. |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 1 x PCI Express 3.0 x1 Slot |
| Other Slots | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module |
| Serial ATA (SATA) | 6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s)** 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)** ** Supports Intel Optane Technology (M2_1) ** Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit |
| Intel Optane Ready | Yes |
| SATA RAID | RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 17 |
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG |
|---|---|
| Max LAN Speed | 2.5Gbps |

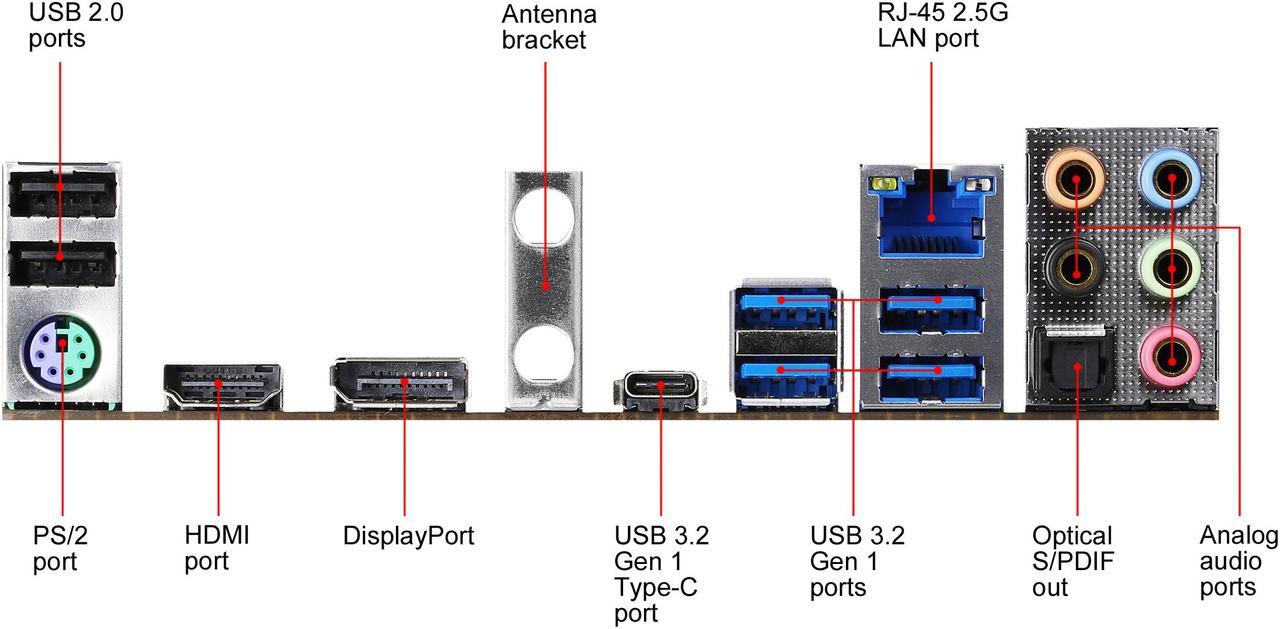

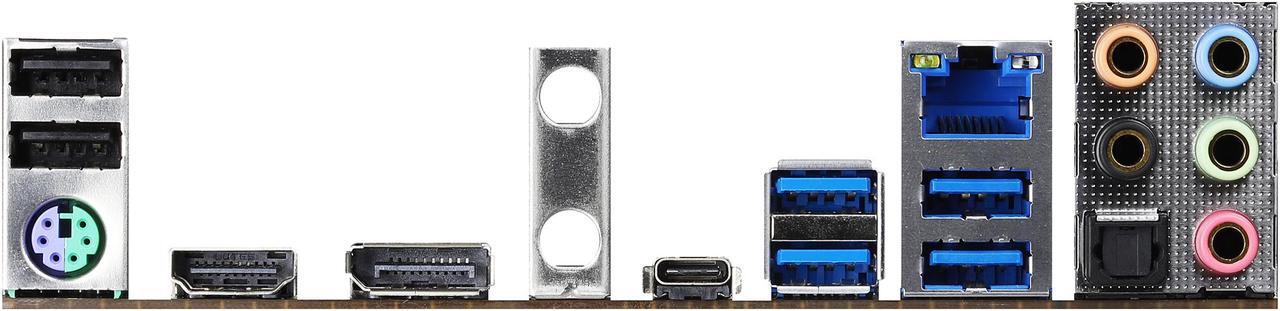

| Back I/O Ports | 1 x Antenna Bracket 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 1 x Optical SPDIF Out Port 2 x USB 2.0 Ports (Supports ESD Protection) 4 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection) 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x RGB LED Header* 2 x Addressable LED Headers** 1 x CPU Fan Connector (4-pin)*** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 3 AIC R2.0 Card only) * Supports in total up to 12V/3A, 36W LED Strip. ** Support in total up to 5V/3A, 15W LED Strip. *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Windows 11 | Supported |
|---|
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |

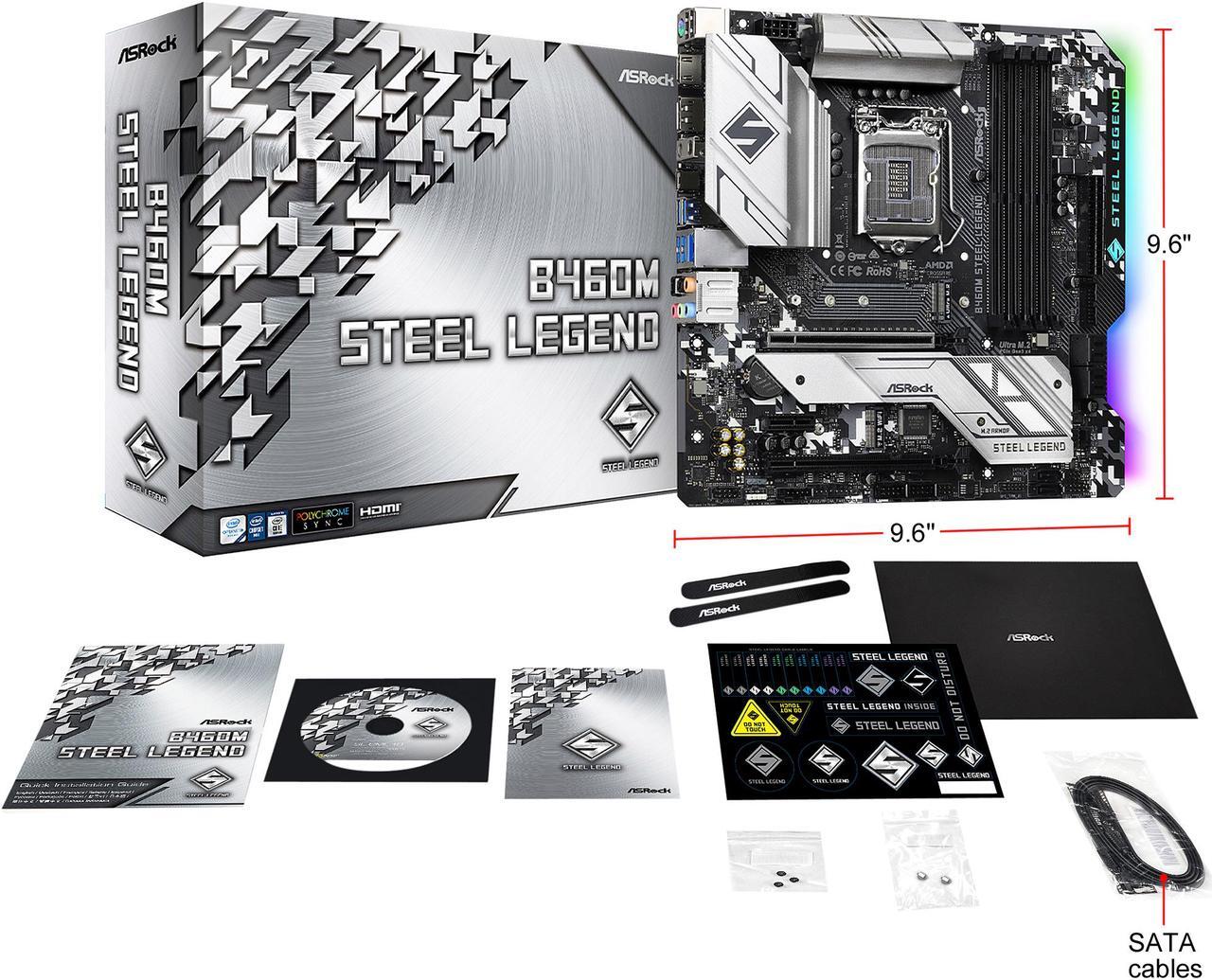

| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) |
| Features | Unique Feature: ASRock Super Alloy - Premium 60A Power Choke - 50A Dr.MOS - Combo Caps (Nichicon 12K Black Caps) - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) - Shaped PCB Design - Matte Black PCB - High Density Glass Fabric PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST OS: - Microsoft Windows 10 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Date First Available | November 23, 2024 |
|---|
