ASRock B550 PRO4 AM4 AMD B550 SATA 6Gb/s ATX AMD Motherboard

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • AMD B550
  • Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)
  • AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
  • AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews
B550 Phantom Gaming 4 motherboard
B550 Pro4
  • Supports 3rd Gen AMD AM4 Ryzen / Future AMD Ryzen Processors
  • 8 Power Phase Design, Digi Power
  • Supports DDR4 4733+ (OC)
  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, D-Sub
  • AMD CrossFireX
  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Gigabit LAN

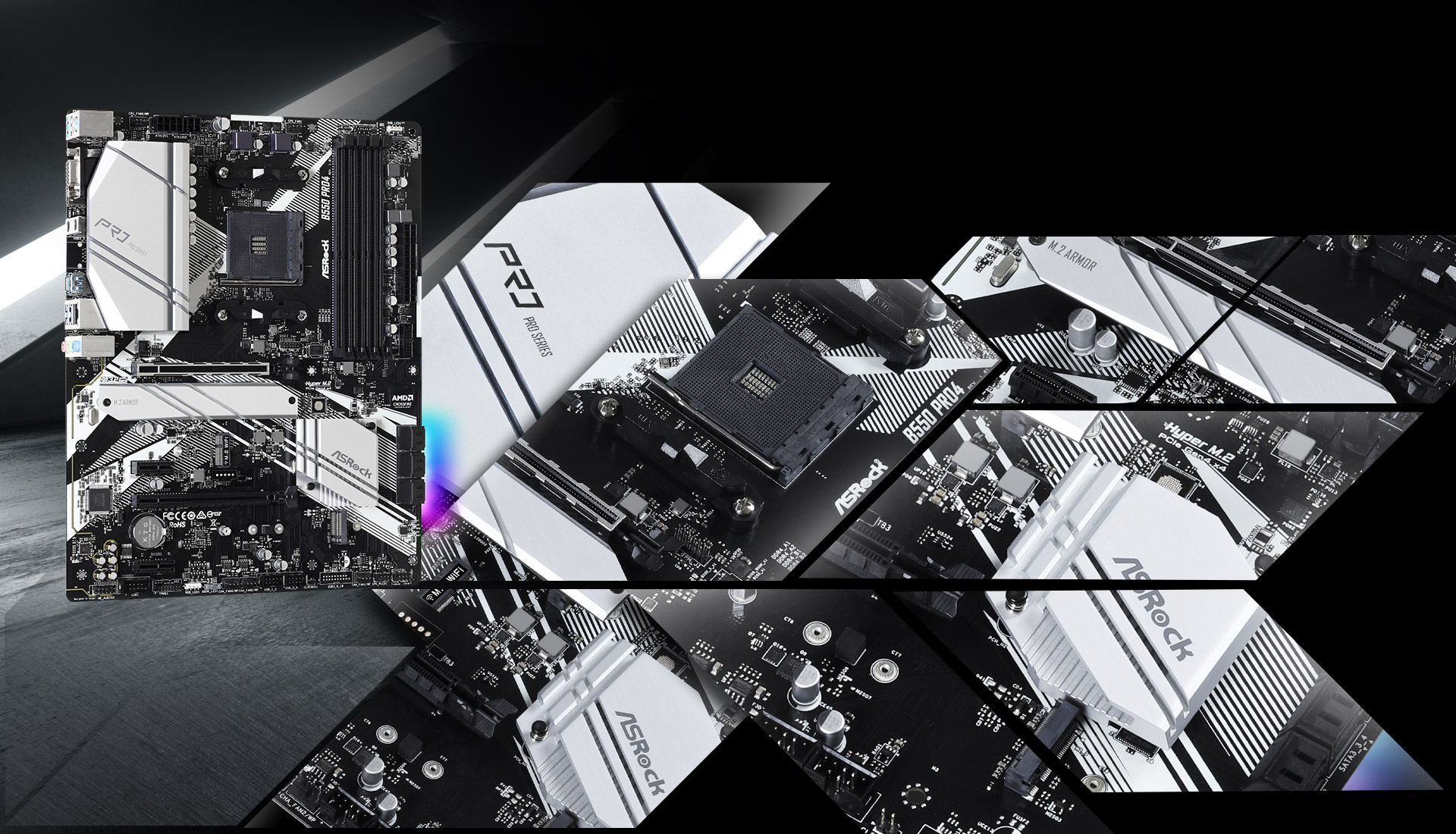

B550 Pro4 motherboard
IT'S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing
a woman is listening music
Nahimic Audio

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

a woman is listening music

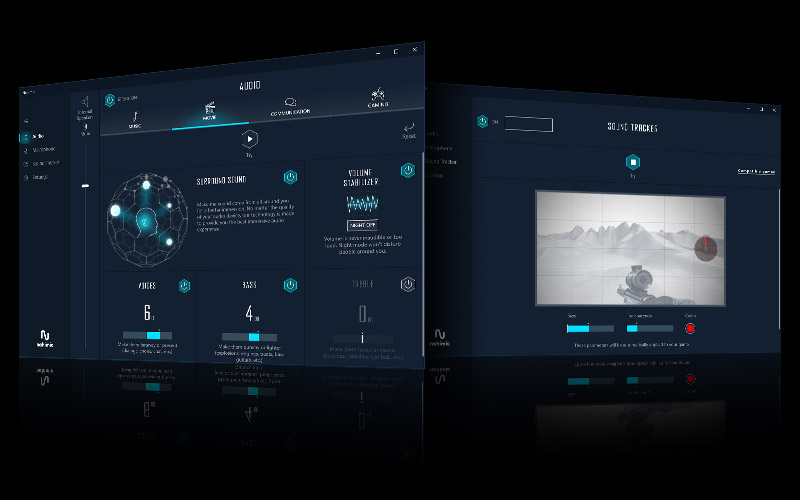

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

8 Power Phase Design of the motherboard
8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke

Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

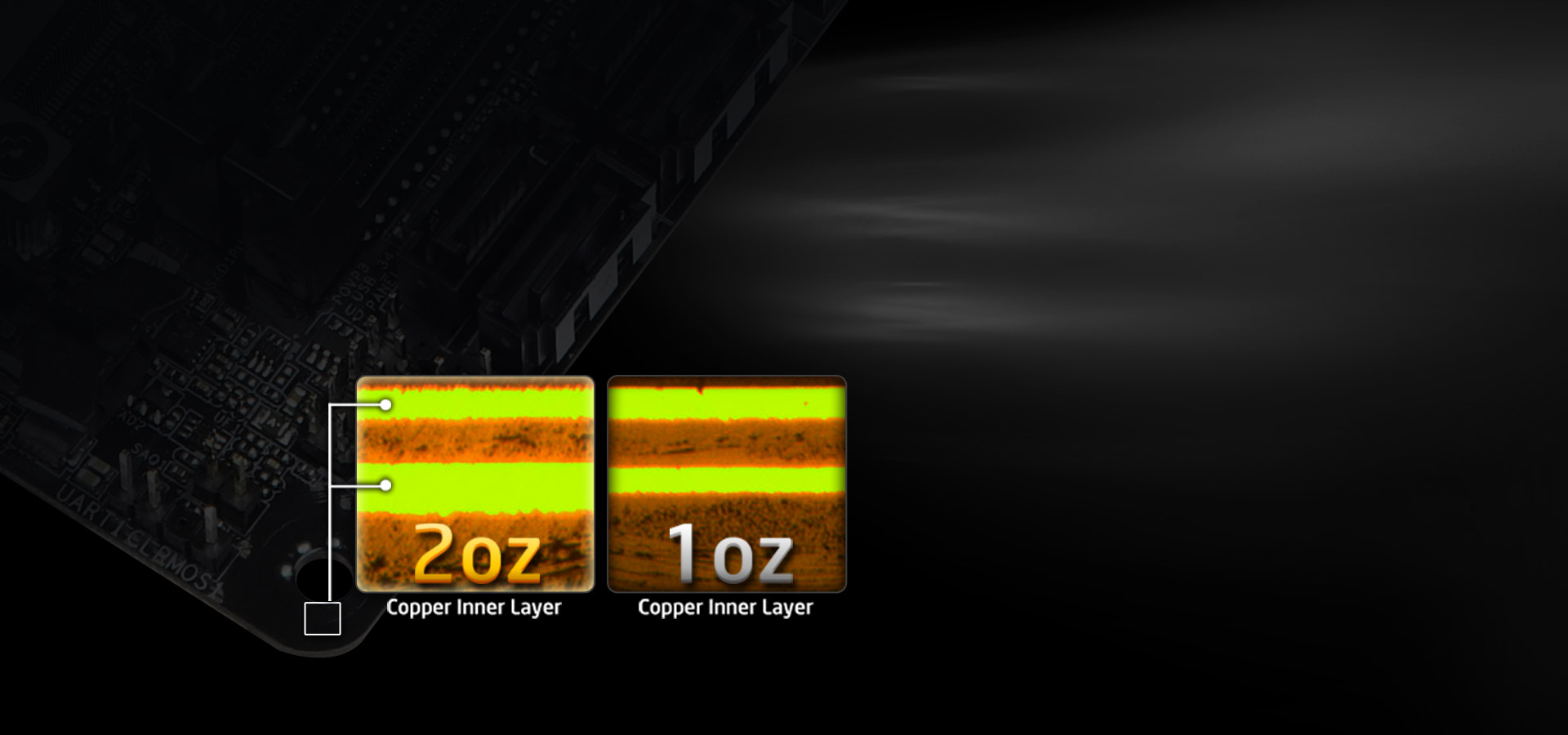

2ozCopperPCB-B550 of the motherboard
2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!

POLYRGBLED-B550 Phantom Gaming 4 WiFi ax
RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

Polychrome-RGB Phantom Gaming 4 WiFi ax *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

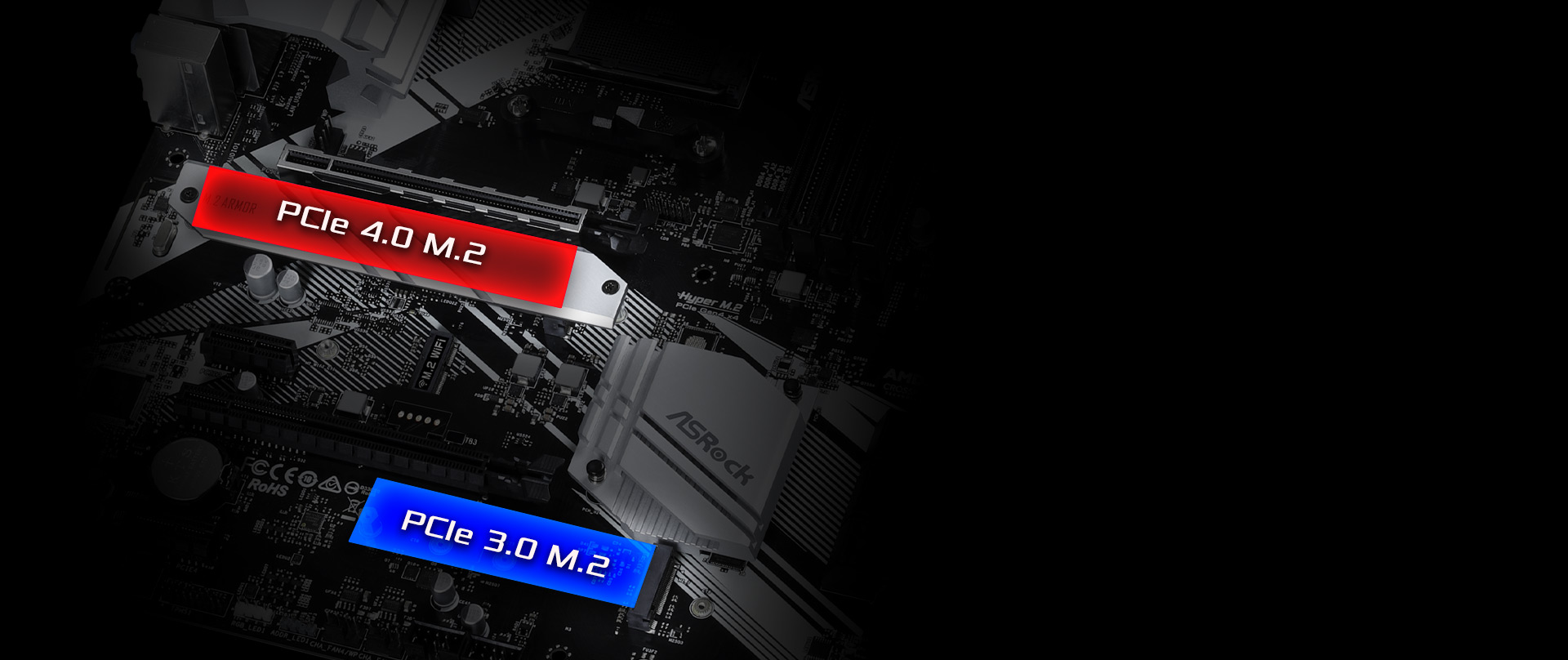

DualM2-SSD-B550 Pro4 of the  motherboard
A SOLID M.2-SOLUTION PERFORMER

Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.

M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

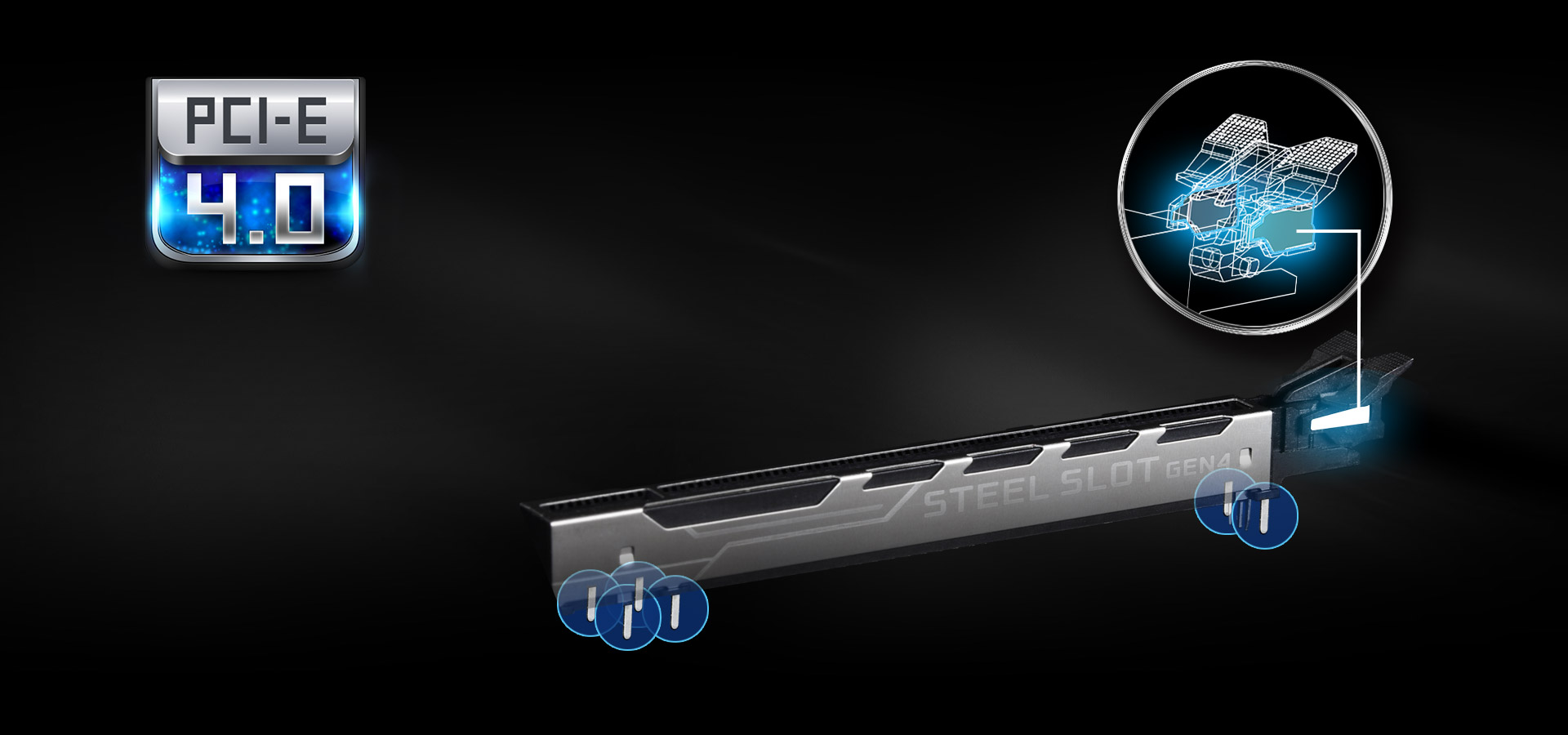

PCI-E 4.0 of the motherboard
Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:

  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.
2XUSB3.2Gen2 Phantom Gaming 4 WiFi ax
Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

chart of USB3.2 Gen2
M.2 Key For WiFi of the motherboard
M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Integrated I/O of the motherboard

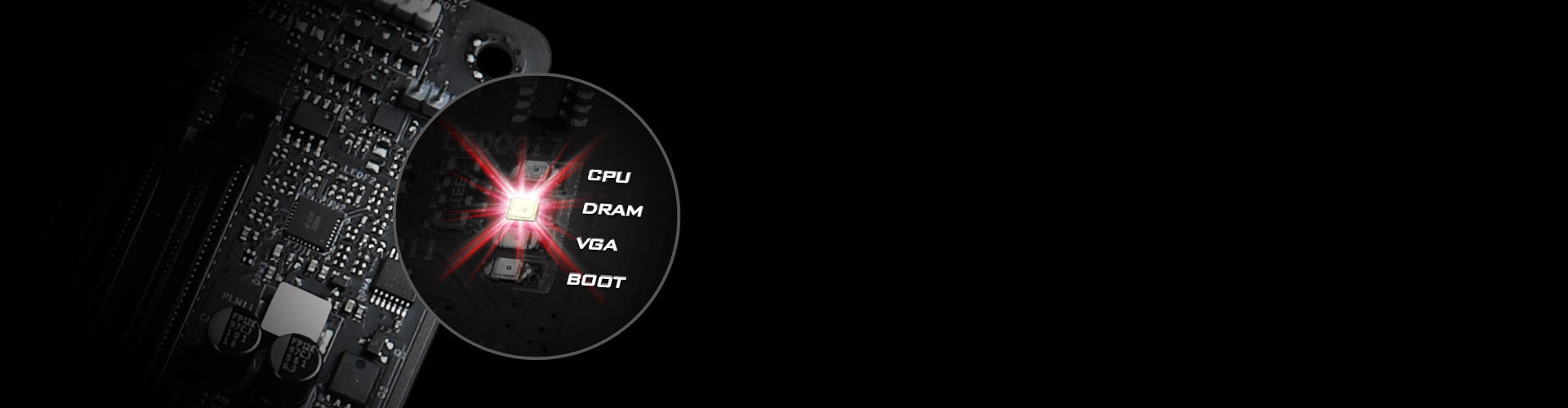

Post Status Checker

An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

SA icon

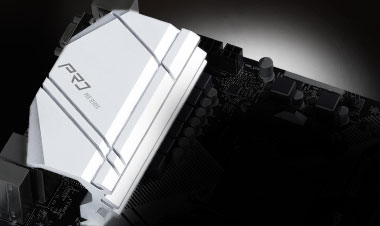

XXL Aluminum Alloy Heatsink
B550 Phantom Gaming of the motherboard

Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

Sapphire Black PCB

SA-BlackPCB of the motherboard

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

High Density Glass Fabric PCB
SA-HDPCB of the motherboard

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

2oz Copper PCB

SA-8PCB of the motherboard

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

D-SubHDMI
Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + D-SUB combo, you have more graphics output options now.

FullSpike
Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

APPShop
Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.


Learn more about the ASRock B550 PRO4

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Exactly what I puchased 8/1/2020 9:27:23 PM

Pros: "This review for ASRock review rebate program."
I knew what I was getting when I bought it and it is exactly what I wanted. 10/10

Overall Review: Good buy

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Does its job. 7/28/2020 12:30:57 PM

Overall Review: Let's be honest; you're buying this mobo because it's one of the most inexpensive B550 ATX boards and you'd rather not scrounge for an X470/B450 and get a loaner CPU. For that purpose alone, this hits the nail on the head. Really isn't equipped with bells and whistles but it's not shooting to anyway. Decent board.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
This review is for the ASRock review rebate program 7/25/2020 10:49:57 PM

Overall Review: Really great motherboard and hasn’t shown problems yet from what I’ve seen

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Great so far 7/24/2020 5:43:59 PM

Pros: High quality feeling materials, works great so far

Cons: None so far

Overall Review: Product works well and feels well made. Definitely a quality item for the price. Only been in use for a short time, but works well so far. This review for ASRock review rebate program.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Great product, good value. (this review for the ASRock review rebate program.) 7/24/2020 8:34:20 AM

Pros: -cool rgb on side
-easy to connect

Overall Review: really good, easy to install, and good price.

Did you find this review helpful?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Great price, solid motherboard. The review is for ASRock review rebate program 7/22/2020 1:40:14 PM

Pros: Rebate aside, the motherboard looks and feels like a decent build. Put it together with Ryzen 5 3600 and Sapphire Radeon 5600XT. Works as expected, no issues so far, and expected speeds. Enough expandability, especially for the price paid. I like having two M2 slots and usb type C

Cons: Could probably stand to have a larger heat sink. not that it runs hot, but just in case.

Overall Review: I would recommend this motherboard. Quality build, has most of what you need at this price range.

Did you find this review helpful?
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Great product 7/21/2020 10:51:03 AM

Overall Review: Works just fine

Did you find this review helpful?
Anonymous
Ownership: 1 week to 1 month
Verified Owner
5/ 5
Beauty motherboard 7/20/2020 4:15:08 PM

Pros: Cheap and good quality, you can go for it! I mount my ryzen 5 3600 and nvidia 1660 super here. I am happy ;)

Cons: No cons, it's ok

Overall Review: Worth, I love it

Did you find this review helpful?
