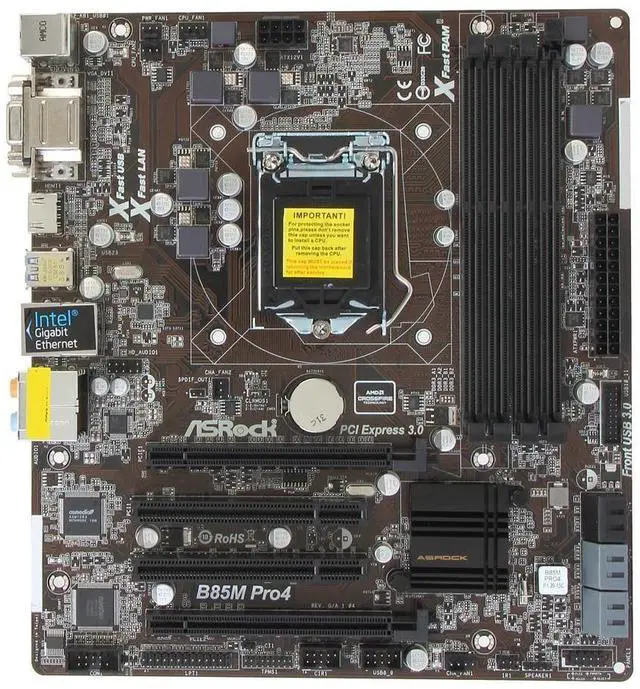

Main image of ASRock B85M Pro4 LGA 1150 Micro ATX Intel Motherboard

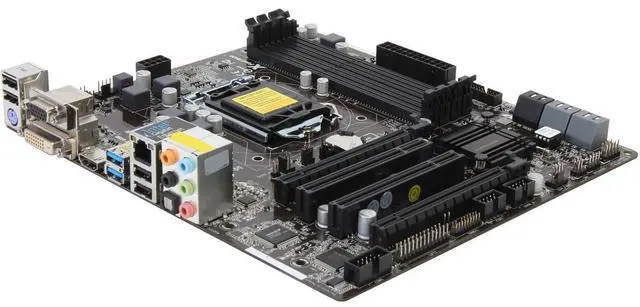

Alt view image 2 of 3 - ASRock B85M Pro4 LGA 1150 Micro ATX Intel Motherboard

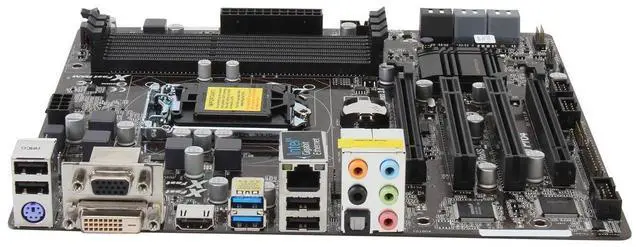

Alt view image 3 of 3 - ASRock B85M Pro4 LGA 1150 Micro ATX Intel Motherboard

Shop All ASRock Products | Visit DoDo DIY Store

ASRock B85M Pro4 LGA 1150 Micro ATX Intel Motherboard

REFURBISHED

Be the first to review this product...

Intel B85
4th-Gen Intel Core i7 / i5/ i3 (LGA1150)
DDR3 1600/1333

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

BIOS will be upgraded to the latest version.

Model
Brand	ASRock
Model	B85M Pro4

Supported CPU
CPU Socket Type	LGA 1150
CPU Type	4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron (LGA1150)
Supported CPU Technologies	Turbo Boost Technology 2.0

Chipsets
Chipset	Intel B85

Memory
Number of Memory Slots	4x240pin
Memory Standard	DDR3 1600/1333/1066
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express 2.0 x16	1(running at x4)
PCI Slots	2 x PCI Slots

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Giga PHY Intel I217V
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	2 x USB 3.0
USB 1.1/2.0	4 x USB 2.0
S/PDIF In	1 x Optical
Audio Ports	5 Ports

Internal I/O Connectors
Onboard USB	2 x USB 2.0 headers (support 4 USB 2.0 ports) 1 x USB 3.0 header (supports 2 USB 3.0 ports)
Other Connectors	1 x IR header 1 x Print Port header 1 x COM Port header 1 x Chassis Intrusion header 1 x TPM header 2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin) 2 x Chassis Fan connectors (1 x 4-pin, 1 x 3-pin) 1 x Power Fan connector (3-pin) 1 x 24 pin ATX power connector 1 x 8 pin 12V power connector 1 x Front panel audio connector 1 x SPDIF Out connector

Physical Spec
Form Factor	Micro ATX
Power Pin	24 Pin

Features
Features	A-Style : Home Cloud Supports 4th Gen Intel Core i7 / i5 / i3 / Xeon / Pentium / Celeron in LGA1150 Package Supports Intel Small Business Advantage 2.0 All Solid Capacitor design, Digi Power Supports Dual Channel DDR3 1600 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16 Supports AMD Quad CrossFireX, CrossFireX Multi VGA Output Options : DVI-D, D-Sub, HDMI Intel Gigabit LAN 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) 4 x SATA3, 2 x SATA2, 4 x USB 3.0, 8 x USB 2.0 Supports A-Tuning, XFast 555, Easy Driver Installer, FAN-Tastic Tuning, USB Key

Packaging
Package Contents	ASROCK B85M Pro4 MB Quick Installation Guide Support CD I/O Shield 2 x SATA Data Cables

Additional Information
First Listed on Newegg	April 20, 2026
