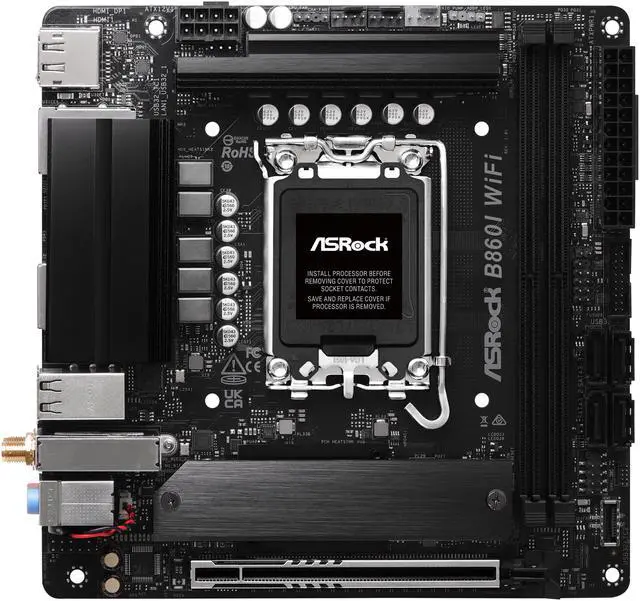

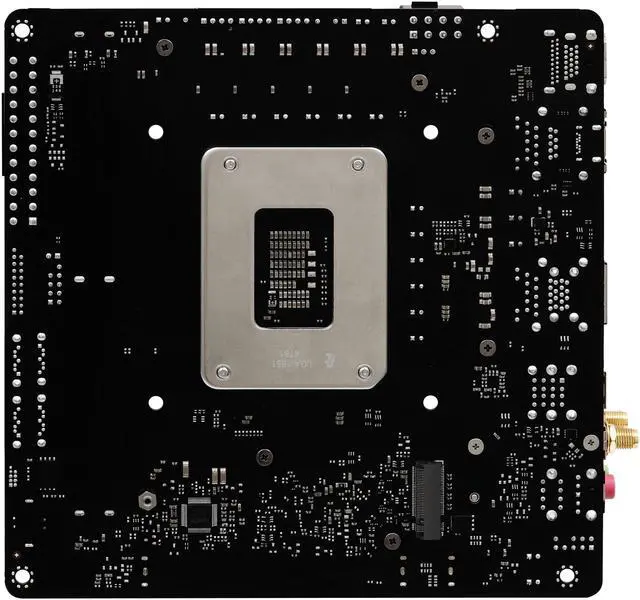

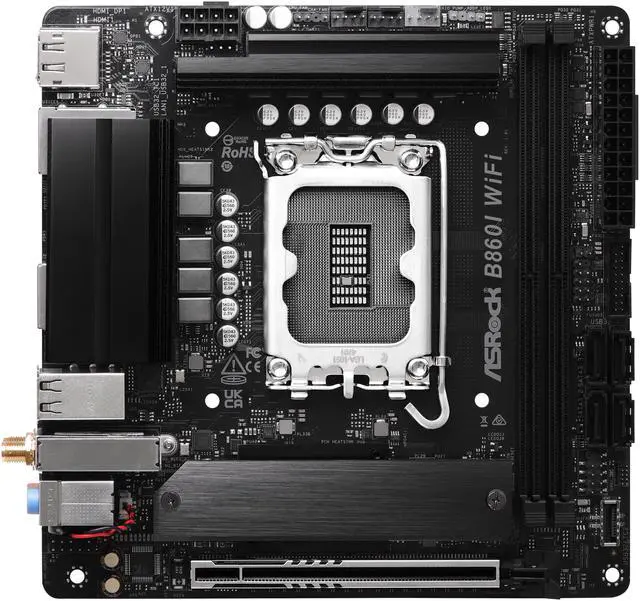

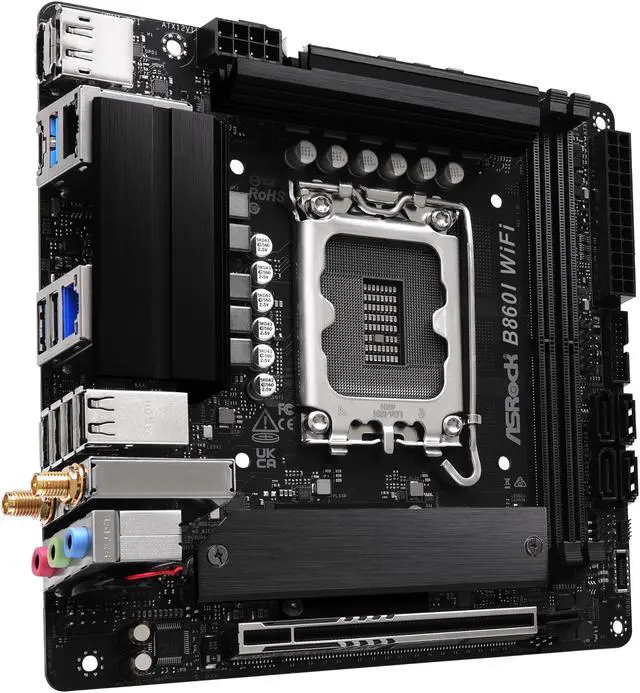

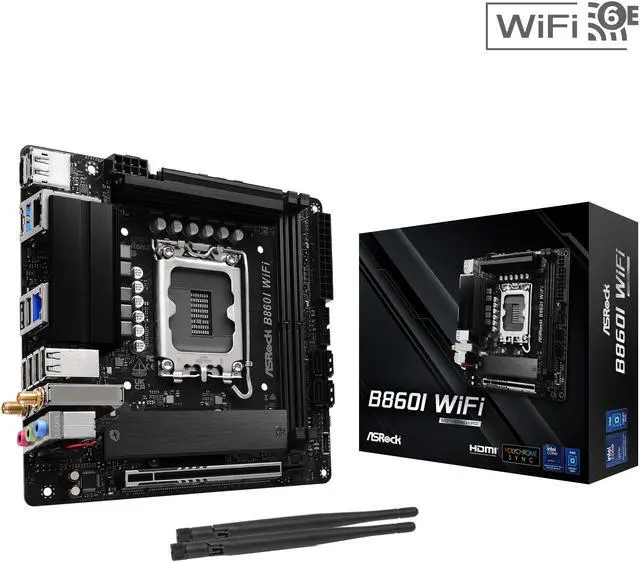

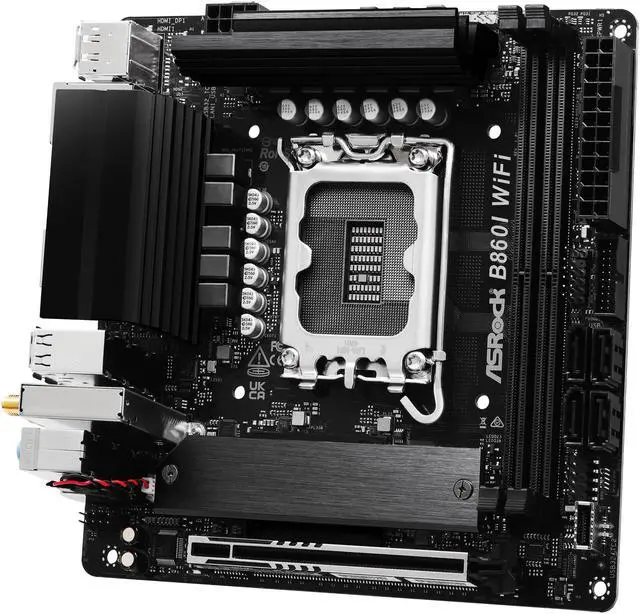

    ASRock B860I WiFi LGA 1851 Intel B860 SATA 6Gb/s Intel Core Ultra DDR5 Mini ITX Motherboard

    (8) Write a Review
    • B860 Lightning WiFi
    • B860 Steel Legend WiFi
    • B860 LiveMixer WiFi
    • B860 Pro RS
    • B860 Pro RS WiFi
    • B860 Pro-A
    • B860M Pro-A
    • B860M-X
    • B860I Lightning WiFi
    • B860I WiFi
    • Intel B860
    • Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
    • 8+1+1+1+1 Power Phase, SPS for VCore+GT+SA
    • 2 x DDR5 DIMMs
    • Supports Dual Channel, up to 8933+ (OC)
    • 1 PCIe 5.0 x16
    • Graphics Output Options: 1 HDMI, 1 DisplayPort
    • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
    • 4 SATA3
    • 1 Blazing M.2 (PCIe Gen5x4)
    • 1 Hyper M.2 (PCIe Gen4x4)
    • 1 USB 3.2 Gen2x2 Type-C (Rear)
    • 1 USB 3.2 Gen2 Type-C (Front)
    • 1 USB 3.2 Gen2 Type-A (Rear)
    • 4 USB 3.2 Gen1 (2 Rear, 2 Front)
    • 6 USB 2.0 (4 Rear, 2 Front)
    • Realtek 2.5G LAN
    • Intel® Gigabit LAN
    • 802.11axe WiFi 6E + Bluetooth
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (8)
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now

    Learn more about the ASRock B860I WiFi

    Model
    Brand ASRock
    Model B860I WiFi
    Part Number B860I WiFi
    Supported CPU
    CPU Socket Type LGA 1851
    CPU Type Intel Core Ultra Processors (Series 2)
    Chipsets
    Chipset Intel B860
    Memory
    Number of Memory Slots 2x288pin (DDR5)
    Memory Standard Up to DDR5 8933+(OC)
    Maximum Memory Supported 128GB
    Channel Supported Dual Channel
    Memory Feature Supports DDR5 non-ECC, un-buffered memory up to 8933+(OC)
    Supports Clocked Unbuffered DIMM (CUDIMM)
    Expansion Slots
    PCI Express 5.0 x16 CPU:
    - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

    *Supports NVMe SSD as boot disks
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*

    *Supports Intel Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
    SATA RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps
    Wireless LAN Wi-Fi 802.11 ax
    Bluetooth Bluetooth 5.3

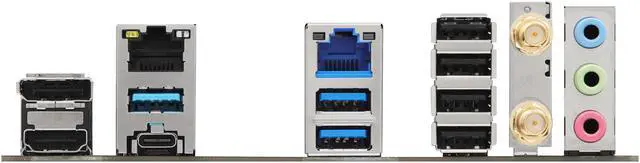

    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x HDMI Port
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
    1 x USB 3.2 Gen2 Type-A Port
    2 x USB 3.2 Gen1 Ports
    4 x USB 2.0 Ports
    2 x RJ-45 LAN Ports
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports)
    1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
    Other Connectors 1 x Addressable LED Header*
    1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control)**
    1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)**
    1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
    1 x Front Panel Audio Connector

    *Supports in total up to 5V/3A, 15W LED Strip
    **CPU_FAN and CHA_FAN1 support the fan power up to 2A (24W).
    ***AIO_PUMP supports the fan power up to 3A (36W).
    AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
    Software Feature
    BIOS Feature 256Mb AMI UEFI Legal BIOS with GUI support
    Software Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    Windows 11 Windows 11 64-bit
    Physical Spec
    Form Factor Mini ITX
    Dimensions (W x L) 6.7" x 6.7"
    Power Pin 1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    Features
    Features Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    Rock-Solid Durability
    - 8+1+1+1+1 Power Phase, SPS for VCore+GT+VCCSA
    Ultrafast Connectivity
    - 2.5G LAN, 802.11axe Wi-Fi 6E Module
    EZ Update
    - ASRock Auto Driver Installer
    Packaging

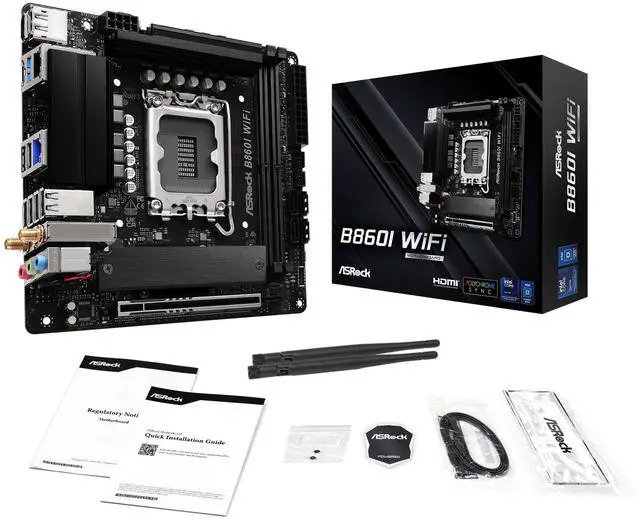

    Package Contents 1 x I/O Shield
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5/6 GHz Antennas
    2 x Screws for M.2 Sockets
    Additional Information
    First Listed on Newegg March 13, 2025
