Shop All ASRock Products

ASRock DESKMEET B760W/B/BB/BOX/US Intel Socket LGA1700 Intel B760 Barebone System

Be the first to review this product...
  • Intel Core i7 14th Gen
  • 4 x 288Pin DIMM DDR4 3200
Sponsored

You’re seeing this ad based on the product’s relevance to your search query. If you are a seller and want to participate in this program click here to learn more.

MINISFORUM Venus Series UN1250 Mini PC Core i5-1250P(12C/16T, up to 4.4GHz) 16GB RAM 1T SSD, HDMI/DP/USB-C 4K@60Hz Triple Outputs, 2.5G LAN, WiFi6E, 4X USB Port Desktop Computer
MINISFORUM Venus Series UN1250 Mini PC Core i5-1250P(12C/16T, up to 4.4GHz) 16GB RAM 1T SSD, HDMI/DP/USB-C 4K@60Hz Triple Outputs, 2.5G LAN, WiFi6E, 4X USB Port Desktop Computer
  •
  • $319.00 –
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

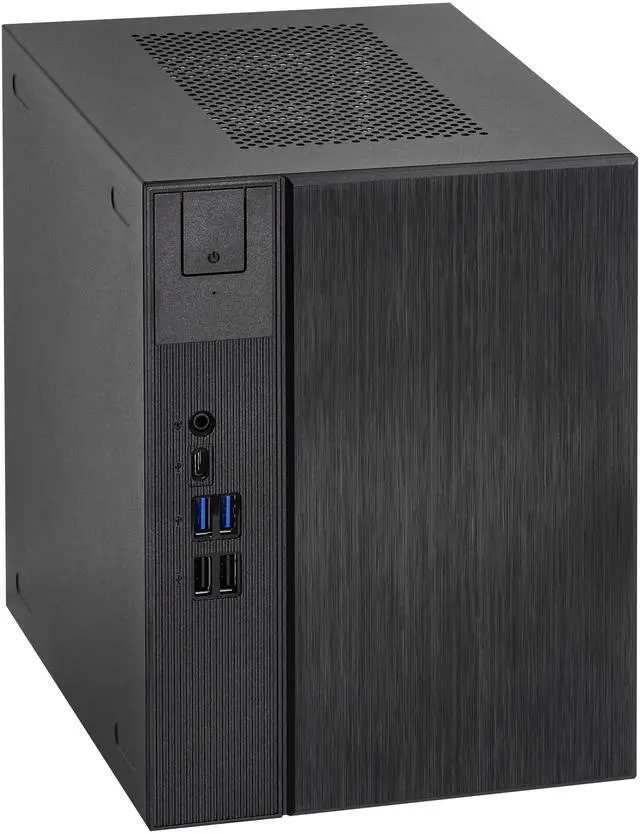

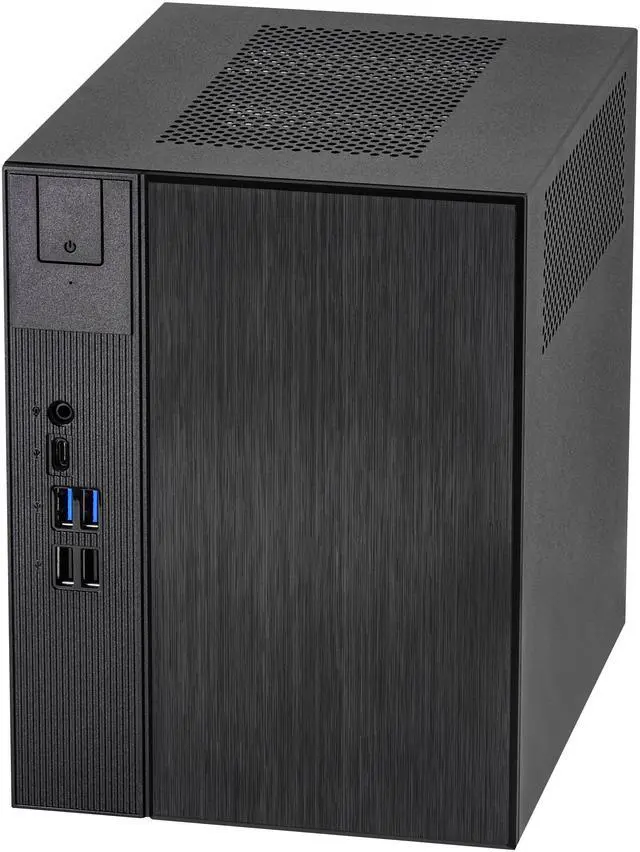

Learn more about the ASRock DESKMEET B760W/B/BB/BOX/US

General
Brand ASRock
Model DESKMEET B760W/B/BB/BOX/US
CPU Supported
CPU Type Intel Core i7 14th Gen
CPU Socket Intel Socket LGA1700
Chipset
North Bridge Intel B760
Memory Supported
Memory installed No Memory
Memory slot 4 x 288Pin DIMM
Memory Type Supported DDR4 3200
Max Memory Supported 128GB
Dual Channel Memory Supported Yes
Expansion Slots
PCI Express 4.0 x16 1 x PCIe 4.0 x 16
Storage
Hard Drive Installed No Hard Drive
Serial ATA 3 x SATA 6.0Gb/s
M.2 1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports Intel Optane Technology
Supports NVMe SSD as boot disks
Supports Intel Volume Management Device (VMD)
SATA RAID RAID 0, 1, 5, 10
Audio
Onboard Audio Realtek ALC897 Audio Codec
Communications
LAN Intel i219V
Max LAN Speed 10/100/1000Mbps
Wireless LAN 802.11a/b/g/n/ac
WiFi Generation Wi-Fi 5

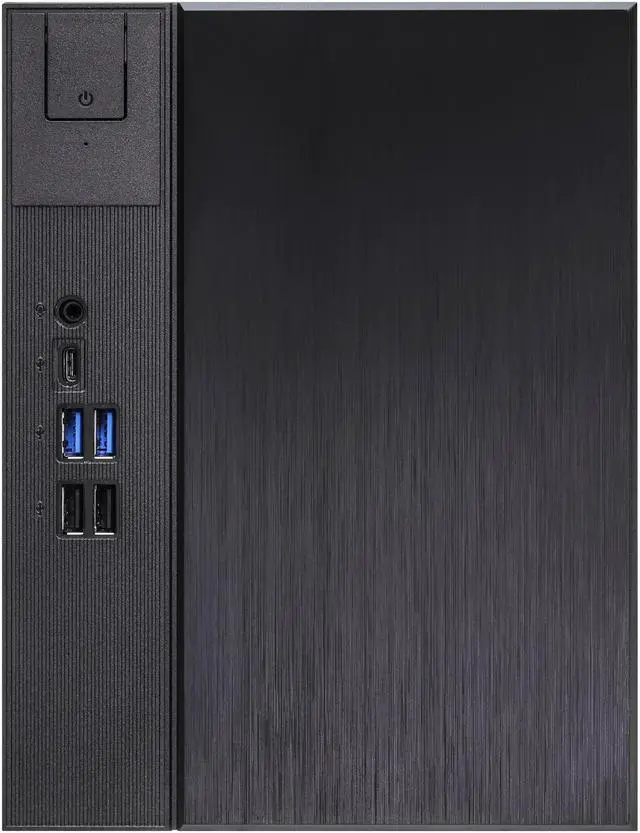

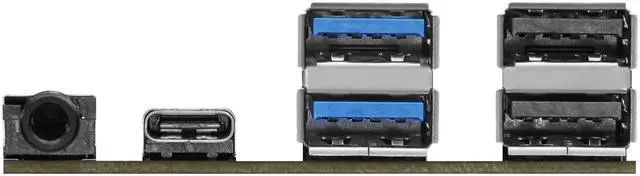

Front Panel Ports
Front USB 1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
Front Audio Ports 1 x Headphone/Headset Jack

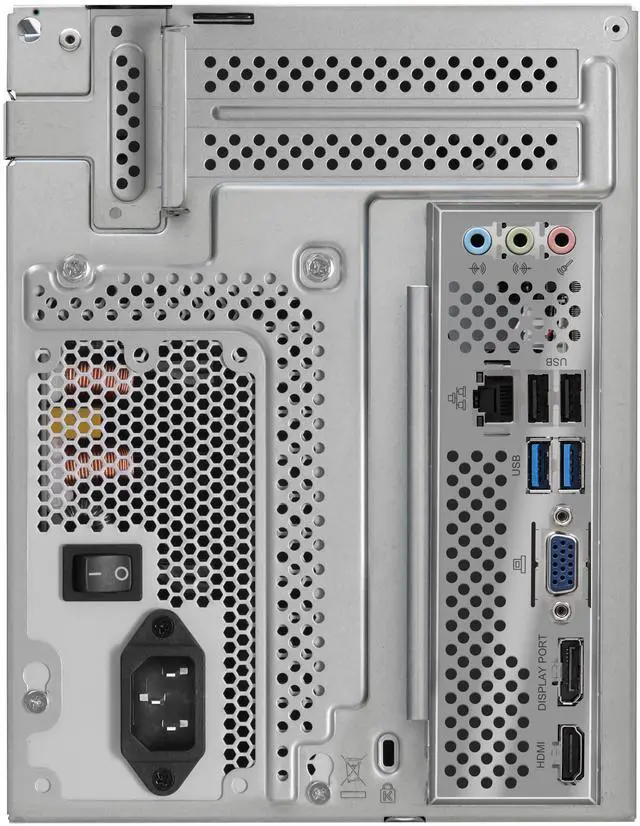

Back Panel Ports
VGA 1 x D-sub
HDMI 1
DisplayPort 1 x DisplayPort 1.4
Rear USB 2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
RJ45 1
Rear Audio Ports HD Audio Jacks: Line in / Front Speaker / Microphone
Internal Connectors 1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
Power Supply
Power Supply 500W power supply (80+ Bronze, peak 550W)
Physical SPEC
Dimensions 168 x 219.3 x 218.3 mm (excl. Protrusions)
168 x 236.1 x 221.6 mm (incl. Protrusions)

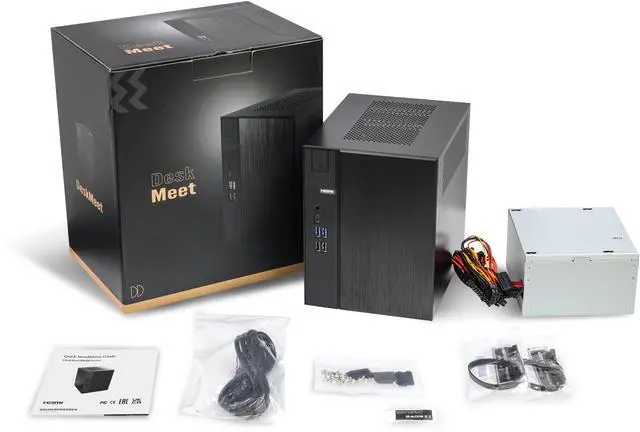

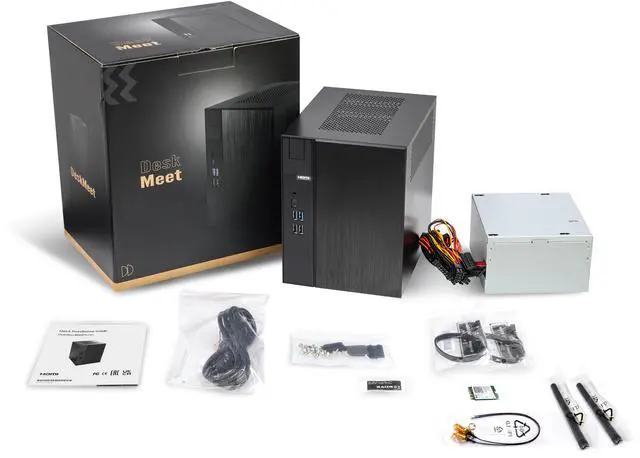

Packaging
Packaging Quick Installation Guide
2 x SATA Data Cables
1 x Screws Package
1 x Intel AC-3168 Wi-Fi Kit
Additional Information
First Listed on Newegg September 15, 2025
