Intel H110 Supports 7th and 6th Generation Intel Core i7/i5/i3 / Pentium / Celeron Processors (Socket 1151) DDR4 2400/ 2133 non-ECC, un-buffered memory Made for Cryptocurrency Mining (BTC)
Learn more about the ASRock H110 Pro BTC+
Model
Brand
ASRock
Model
H110 Pro BTC+
Supported CPU
CPU Socket Type
LGA 1151
CPU Type
Supports 7th and 6th Generation Intel Core i7/i5/i3 / Pentium / Celeron Processors (Socket 1151)* Not Compatible with Intel 8th Gen CPUs
Supported CPU Technologies
Turbo Boost Technology 2.0
Chipsets
Chipset
Intel H110
Onboard Video
Onboard Video Chipset
Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD GraphicsGen9 LP, DX11.3, DX12HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)HWA Encode/Decode: VP8, HEVC 8b; GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)Max. shared memory 1024MB**Supports DVI-D with max. resolution up to 1920x1200 @ 60HzSupports Accelerated Media Codecs: HEVC, VP8, VP9Supports HDCP with DVI-D PortSupports Full HD 1080p Blu-ray (BD) playback with DVI-D Port* Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.** The size of maximum shared memory may vary from different operating systems.
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
DDR4 2400/ 2133 non-ECC, un-buffered memory* * 7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.
Maximum Memory Supported
32GB* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disk
PCI Express x1
12 x PCI Express 2.0 x1 Slots
Storage Devices
Serial ATA (SATA)
4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
M.2
1 x M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0Gb/s module
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 CH HD Audio* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Supports Surge Protection
Onboard LAN
LAN Chipset
Intel I219-V
Max LAN Speed
1Gbps
Rear Panel Ports
Back I/O Ports

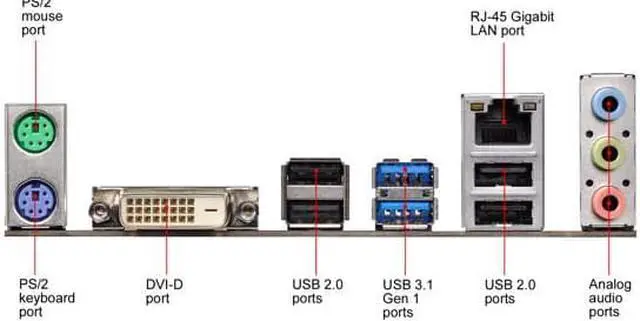

1 x PS/2 Mouse Port1 x PS/2 Keyboard Port1 x DVI-D Port4 x USB 2.0 Ports (Supports ESD Protection)2 x USB 3.1 Gen1 Ports (Supports ESD Protection)1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors
1 x Print Port Header1 x COM Port Header1 x TPM Header1 x Chassis Intrusion and Speaker Header1 x CPU Fan Connector (4-pin)*2 x Chassis Fan Connectors (4-pin)2 x PCIe Power Connectors1 x SATA Power Connector1 x Front Panel Audio Connector* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
Software Feature
Windows 11
Supported
Physical Spec
Form Factor
ATX
Power Pin
1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector
Features
Features
Unique Feature:ASRock Super Alloy- Sapphire Black PCB- High Density Glass Fabric PCBASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP ShopBIOS:- 64MB AMI UEFI Legal BIOS with multilingual GUI support- ACPI 5.0 Compliant wake up events- SMBIOS 2.7 Support- CPU, DRAM, PCH 1.05V Voltage multi-adjustmentSoftware and UEFI:Software- ASRock APP Charger- ASRock XFast LANUEFI- ASRock Instant Flash* These utilities can be downloaded from ASRock Live Update & APP Shop.Support CD:- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and ToolbarHardware Monitor:- CPU, Chassis temperature sensing- CPU, Chassis Fan Tachometer- CPU, Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)- CPU, Chassis Fan multi-speed control- CASE OPEN detection- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOS:- Microsoft Windows 10 64-bit (For 7th Gen Intel CPU)- Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel CPU)* To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required.Certifications:- FCC, CE
Packaging
Package Contents

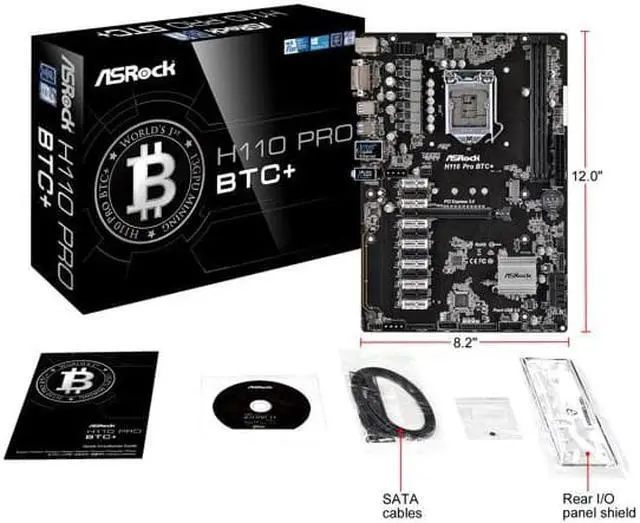

Accessories:- Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables - 1 x Screw for M.2 Socket
