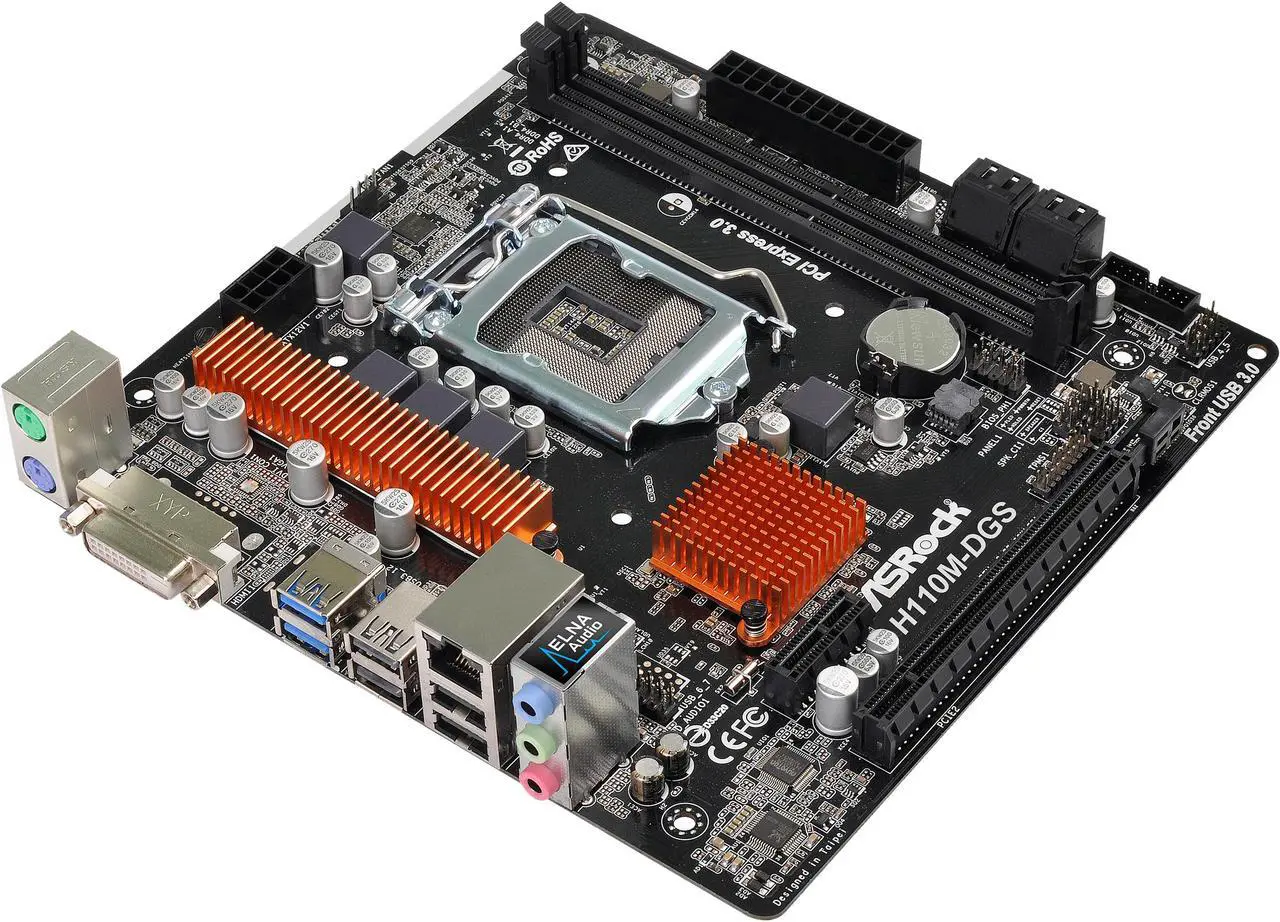

ASRock H110M-DGS R3.0 LGA 1151 Intel H110 USB 3.0 Micro ATX Motherboards - Intel
- Intel H110
- Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium
- DDR4 2133
+
+
Specs
Reviews (27)

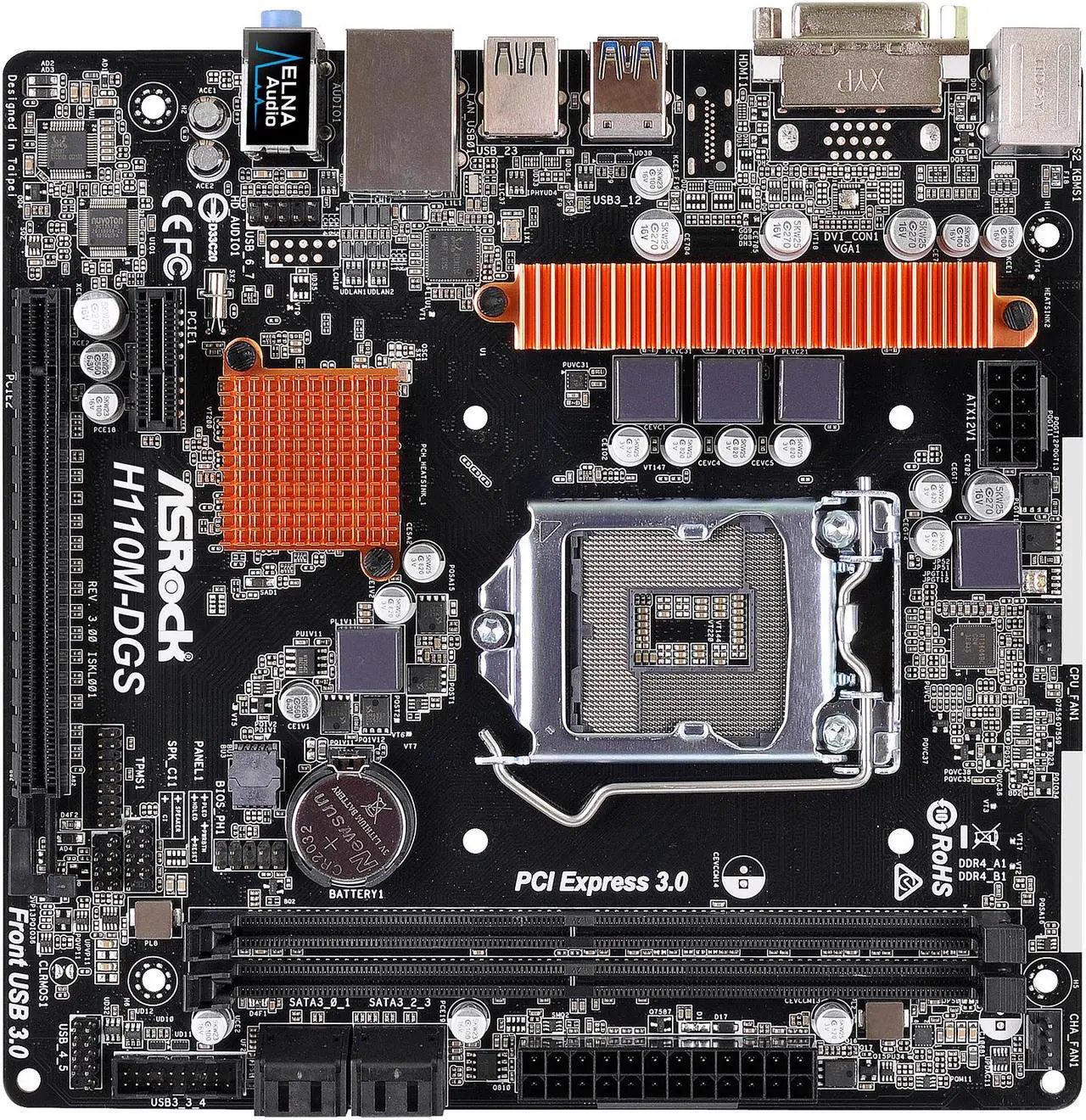

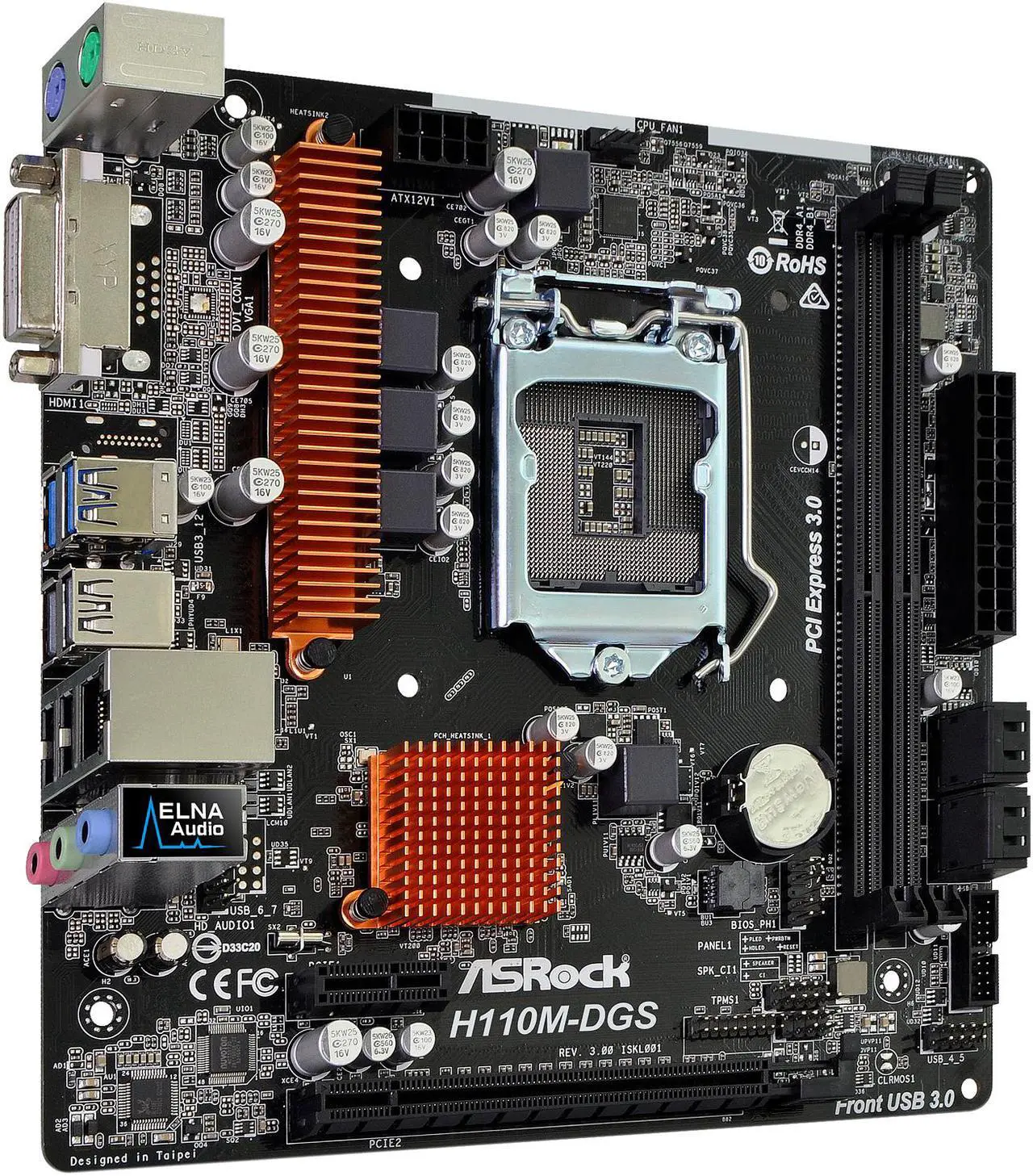

Learn more about the ASRock H110M-DGS R3.0
| Brand | ASRock |
|---|---|
| Model | H110M-DGS R3.0 |

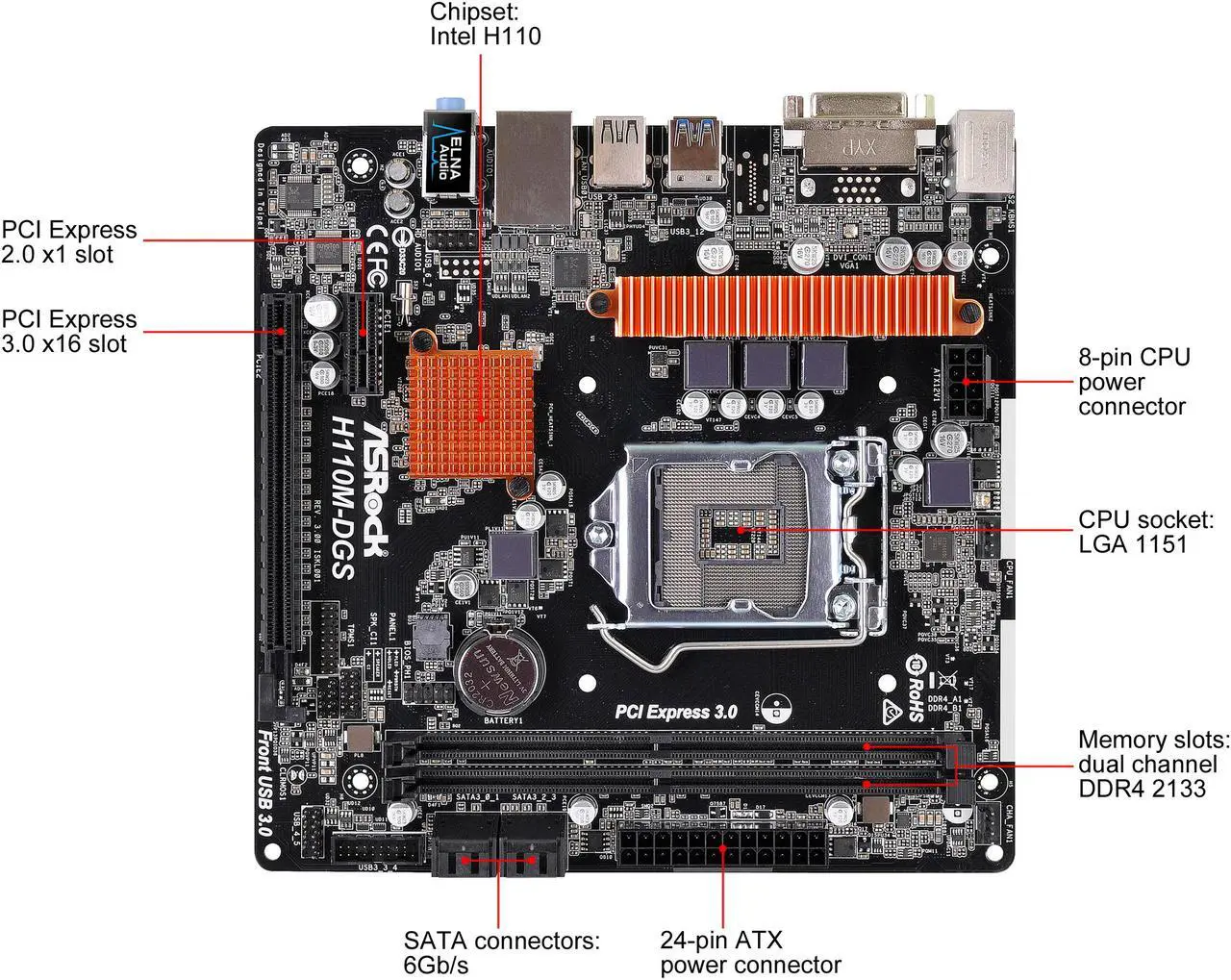

| CPU Socket Type | LGA 1151 |
|---|---|
| CPU Type | Celeron / Core i3 / Core i5 / Core i7 / Intel Core 6th Gen (LGA 1151) / Intel Core 7th Gen (LGA 1151) / Pentium |
| Supported CPU Technologies | Turbo Boost Technology 2.0 * Not Compatible with Intel 8th Gen CPUs |
| Chipset | Intel H110 |
|---|
| Onboard Video Chipset | Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics 510/530 Pixel Shader 5.0, DirectX 12 Max. shared memory 1024MB** Supports DVI-D with max. resolution up to 1920 x 1200 @ 60Hz Supports Accelerated Media Codecs: HEVC, VP8, VP9 Supports HDCP with DVI-D Port Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port * Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. ** The size of maximum shared memory may vary from different operating systems. *** Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. **** Intel InTru 3D is only supported under Windows 8 / 8 64-bit / 7 / 7 64-bit. |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 2133 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* * Supports NVMe SSD as boot disks |
|---|---|
| PCI Express x1 | 1 x PCI Express 2.0 x1 Slot |
| Serial ATA (SATA) | 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug |
|---|
| Audio Chipset | Realtek ALC887 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111C |
|---|---|
| Max LAN Speed | 1Gbps |

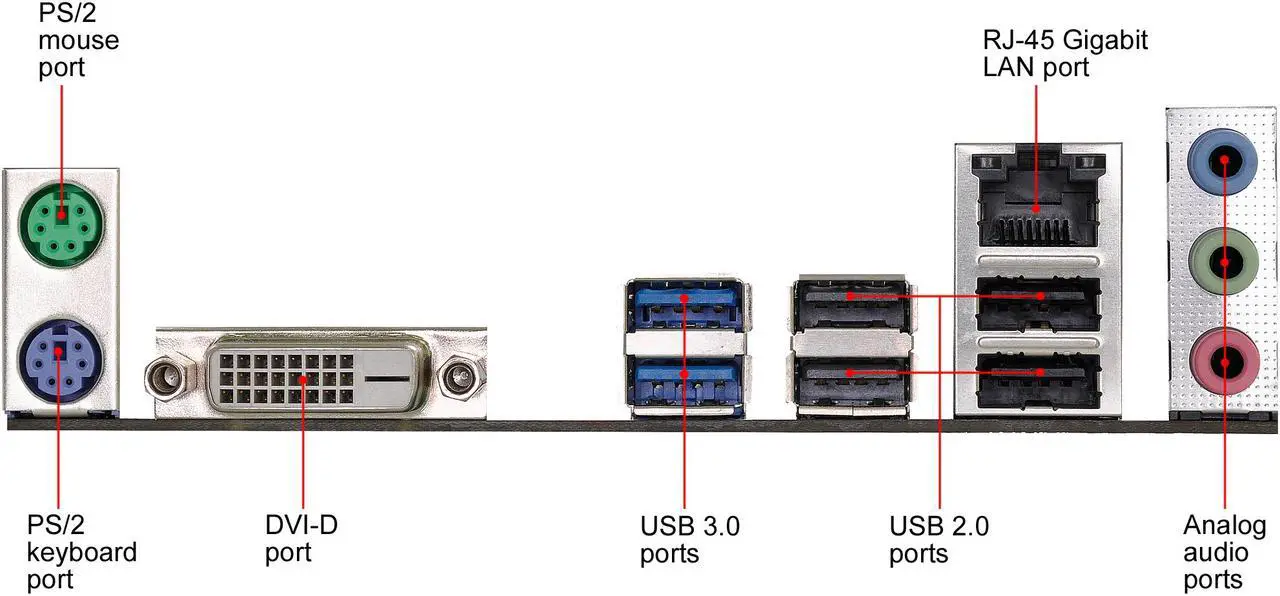

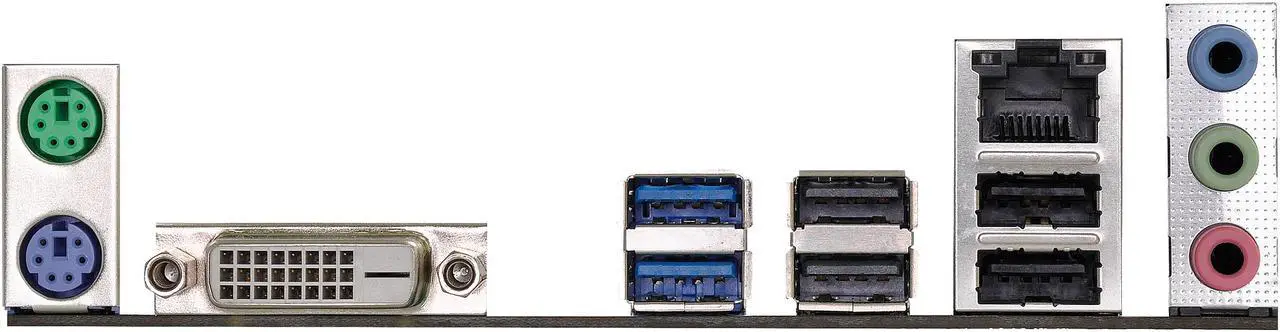

| PS/2 | 1 x PS/2 Mouse Port 1 x PS/2 Keyboard Port |
|---|---|
| Video Ports | 1 x DVI-D Port |
| RJ45 | 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 1.1/2.0 | 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) ACPI wake-up function is supported on USB23 ports only. |
| Audio Ports | HD Audio Jacks: Line in / Front Speaker / Microphone |
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin) 1 x Chassis Fan Connector (4-pin)* 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. |
| Form Factor | Micro ATX |
|---|---|

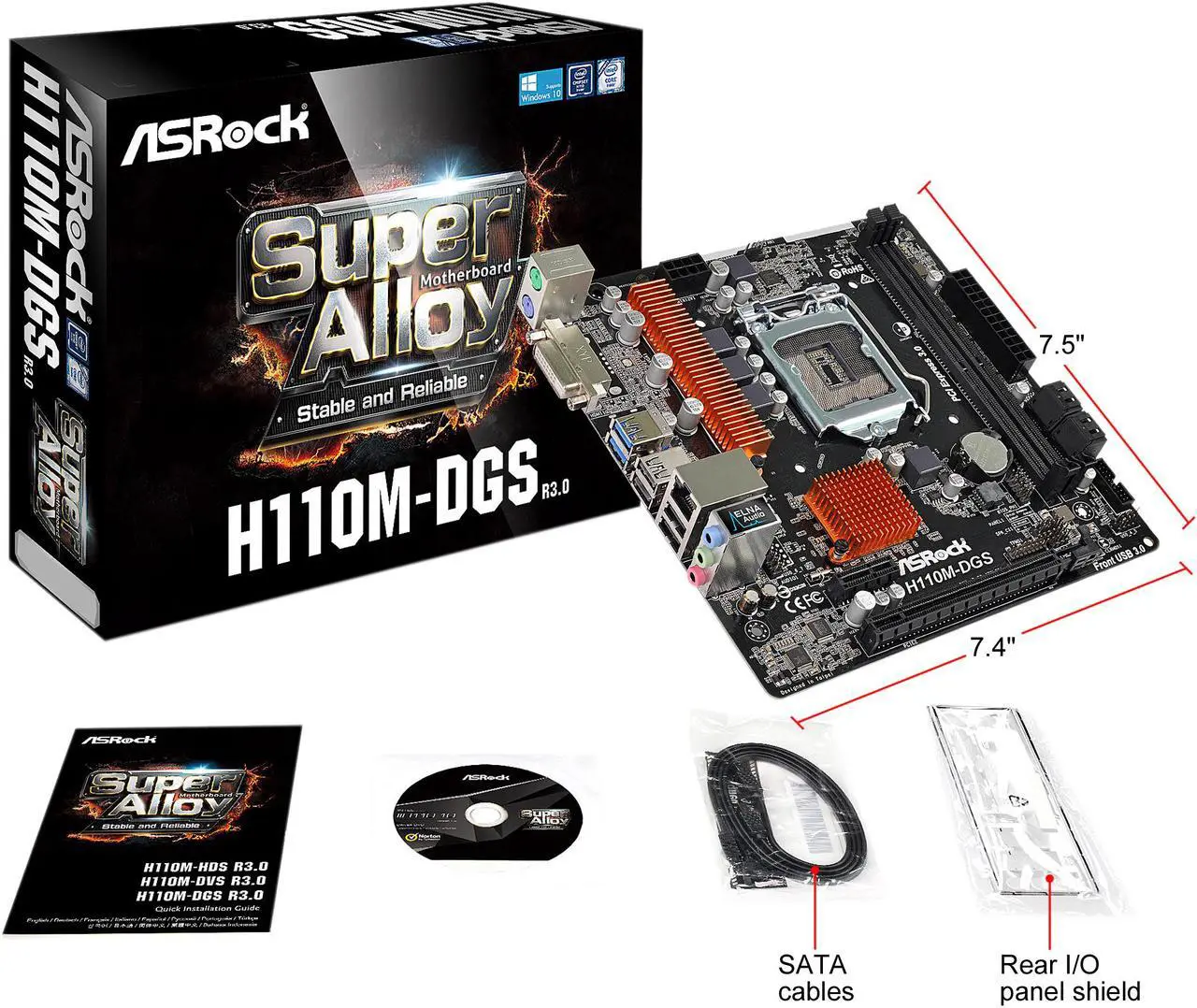

| Dimensions (W x L) | 7.5" x 7.4" |
| Power Pin | 24 Pin |
| Features | Unique Feature ASRock Super Alloy - Matte Black PCB - High Density Glass Fabric PCB ASRock Full Spike Protection ASRock Live Update & APP Shop BIOS - 64MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 5.0 Compliant wake up events - SMBIOS 2.7 Support - DRAM, PCH 1.0V Voltage Multi-adjustment Software - ASRock Disk Health Report - ASRock USB Key - ASRock APP Charger - ASRock XFast LAN - ASRock XFast RAM - ASRock Fast Boot (Fast Boot, Restart to UEFI)* *These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS - ASRock OMG (Online Management Guard) - ASRock UEFI Tech Service - ASRock Easy Driver Installer Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft Windows 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit* * To install Windows 7 OS, a modified installation disk with xHCI drivers packed into the ISO file is required. Please check our User Manual for more detailed instructions. For the updated Windows 10 driver, please visit ASRock's website for details. Certifications - FCC, CE, WHQL |
|---|

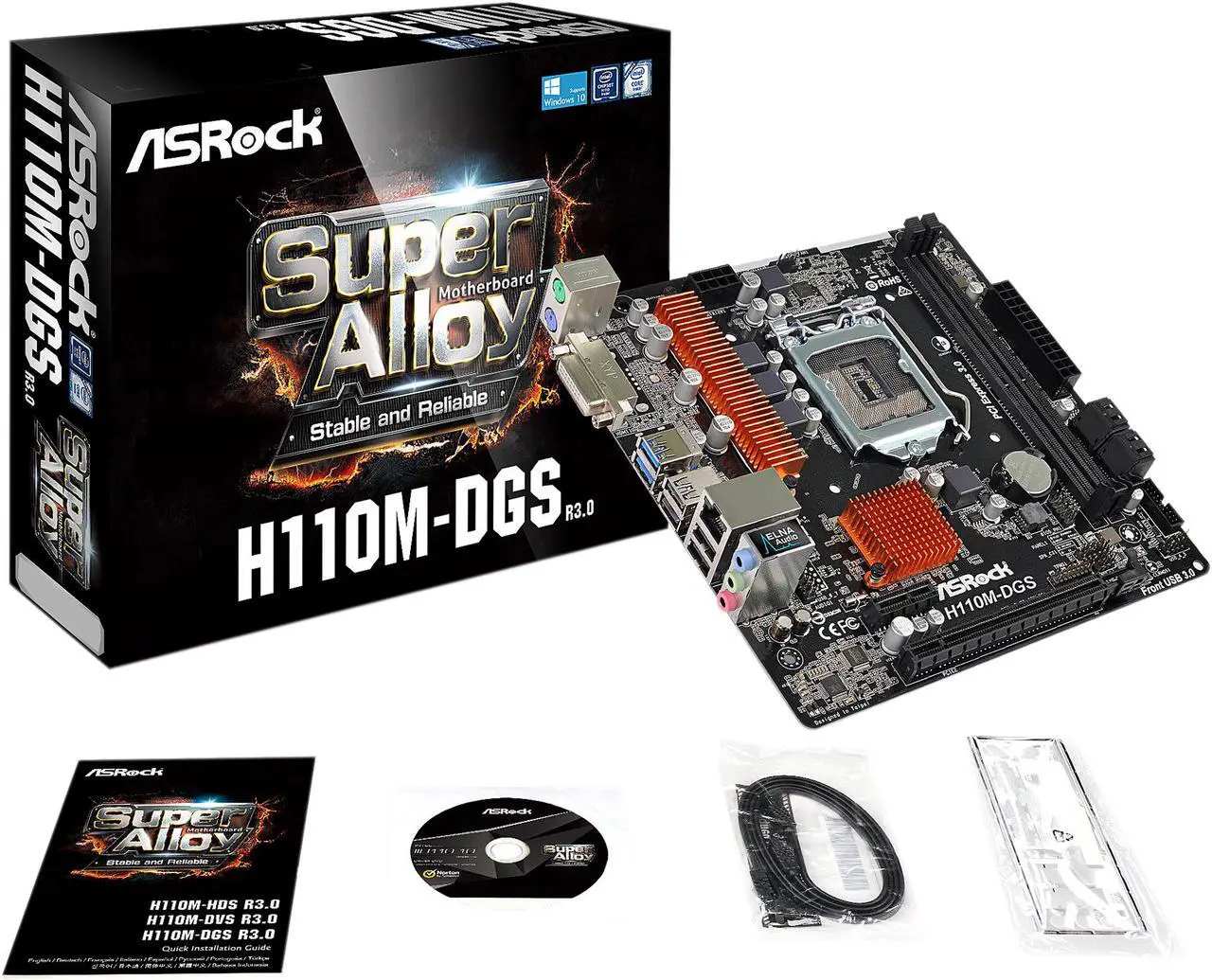

| Package Contents | Accessories - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
|---|
| Date First Available | November 06, 2024 |
|---|
