    ASRock H410M-HDV/M.2 LGA 1200 Intel H410 Micro ATX Intel Motherboard

    Used - Very Good Product Type
    • Intel H410
    • Supports 10th Gen Intel Core Processors (Socket 1200)
    • Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Learn more about the ASRock H410M-HDV/M.2

    Model
    Brand ASRock
    Model H410M-HDV/M.2
    Supported CPU
    CPU Socket Type LGA 1200
    CPU Type Supports 10th Gen Intel Core Processors (Socket 1200)
    Supported CPU Technologies Turbo Boost Technology 3.0
    Chipsets
    Chipset Intel H410
    Onboard Video
    Onboard Video Chipset Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
    Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, Intel SGX Content Protection, UHD/HDR Blu-ray Disc
    Three graphics output options: D-Sub, DVI-D and HDMI* Supports up to 2 displays simultaneously
    Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
    Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
    Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
    Supports HDCP 2.3 with DVI-D and HDMI 1.4 Ports
    Supports 4K Ultra HD (UHD) playback with HDMI 1.4 Port

    * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    ** VP9 10bit and VC-1 are for decode only.
    ** VP8 and VP9 encode are not supported by Windows OS.
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard Supports DDR4 2933/ 2800/ 2666/ 2400/ 2133 non-ECC, un-buffered memory*
    * Please refer to Memory Support List on ASRock's website for more information.
    * Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
    Maximum Memory Supported 64GB
    ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 3.0 x16 1 x PCI Express 3.0 x16 Slot*
    * Supports NVMe SSD as boot disks
    PCI Express x1 1 x PCI Express 3.0 x1 Slot
    Other Slots 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
    Storage Devices
    Serial ATA (SATA) 4 x SATA3 6.0Gb/s Connectors, support NCQ, AHCI and Hot Plug*
    * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
    M.2 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)
    Onboard Audio
    Audio Chipset Realtek ALC887
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel I219-V
    Max LAN Speed 1Gbps

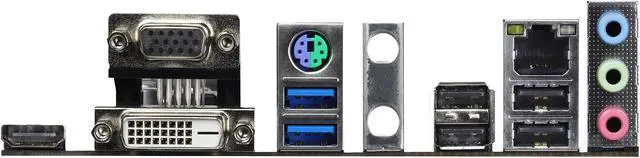

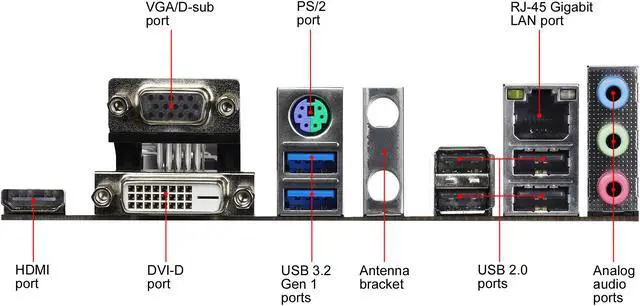

    Rear Panel Ports
    Back I/O Ports 1 x Antenna Bracket
    1 x PS/2 Mouse/Keyboard Port
    1 x D-Sub Port
    1 x DVI-D Port
    1 x HDMI Port
    4 x USB 2.0 Ports (Supports ESD Protection)
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Other Connectors 1 x Print Port Header
    1 x COM Port Header
    1 x SPI TPM Header
    1 x Chassis Intrusion and Speaker Header
    1 x CPU Fan Connector (4-pin)*
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    1 x Front Panel Audio Connector

    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    *** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    *** CPU_FAN2/WP, CHA_FAN1/WP and CHA_FAN2/WP can auto detect if 3-pin or 4-pin fan is in use.
    Physical Spec
    Form Factor Micro ATX
    Dimensions (W x L) 8.9" x 7.4"
    Power Pin 1 x 24-pin ATX Power Connector
    1 x 8-pin 12V Power Connector
    Features
    Features Unique Feature:
    ASRock Super Alloy
    - Premium 50A Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop

    BIOS:
    - 128MB AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment

    Software and UEFI:
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    * These utilities can be downloaded from ASRock Live Update & APP Shop.

    Support CD:
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

    Hardware Monitor:
    - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST

    OS:
    - Microsoft Windows 10 64-bit

    Certifications:
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
    Packaging

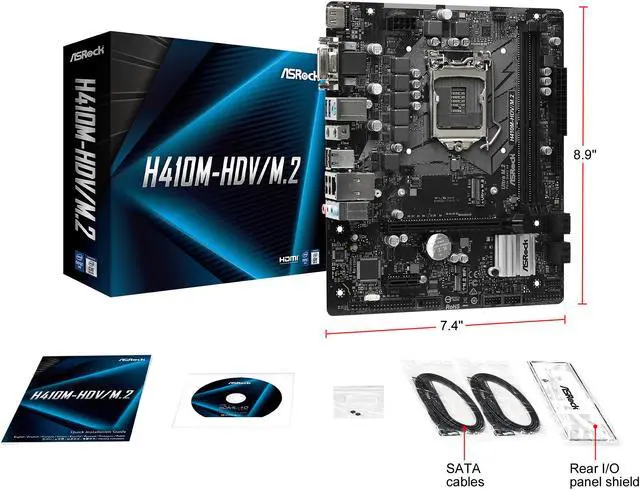

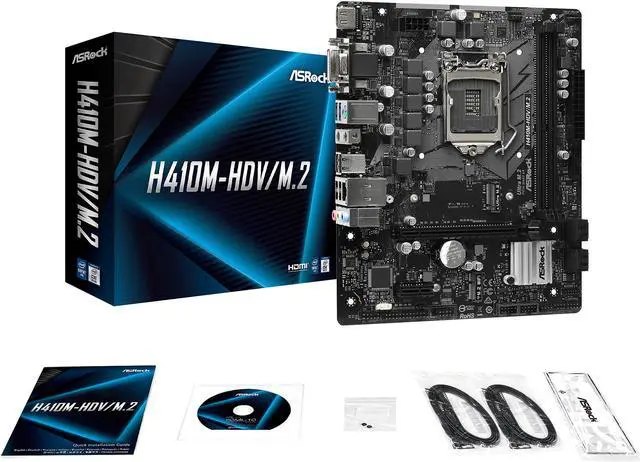

    Package Contents Accessories:
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
    - 2 x Screws for M.2 Sockets
    Additional Information
