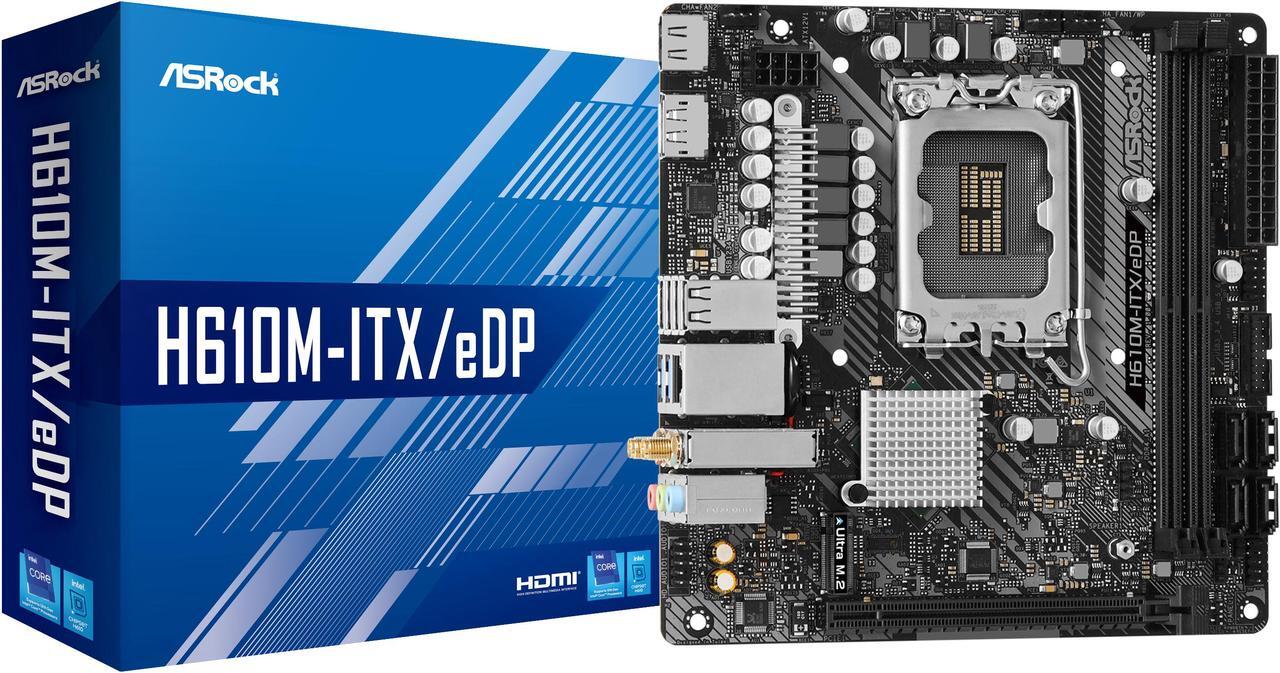

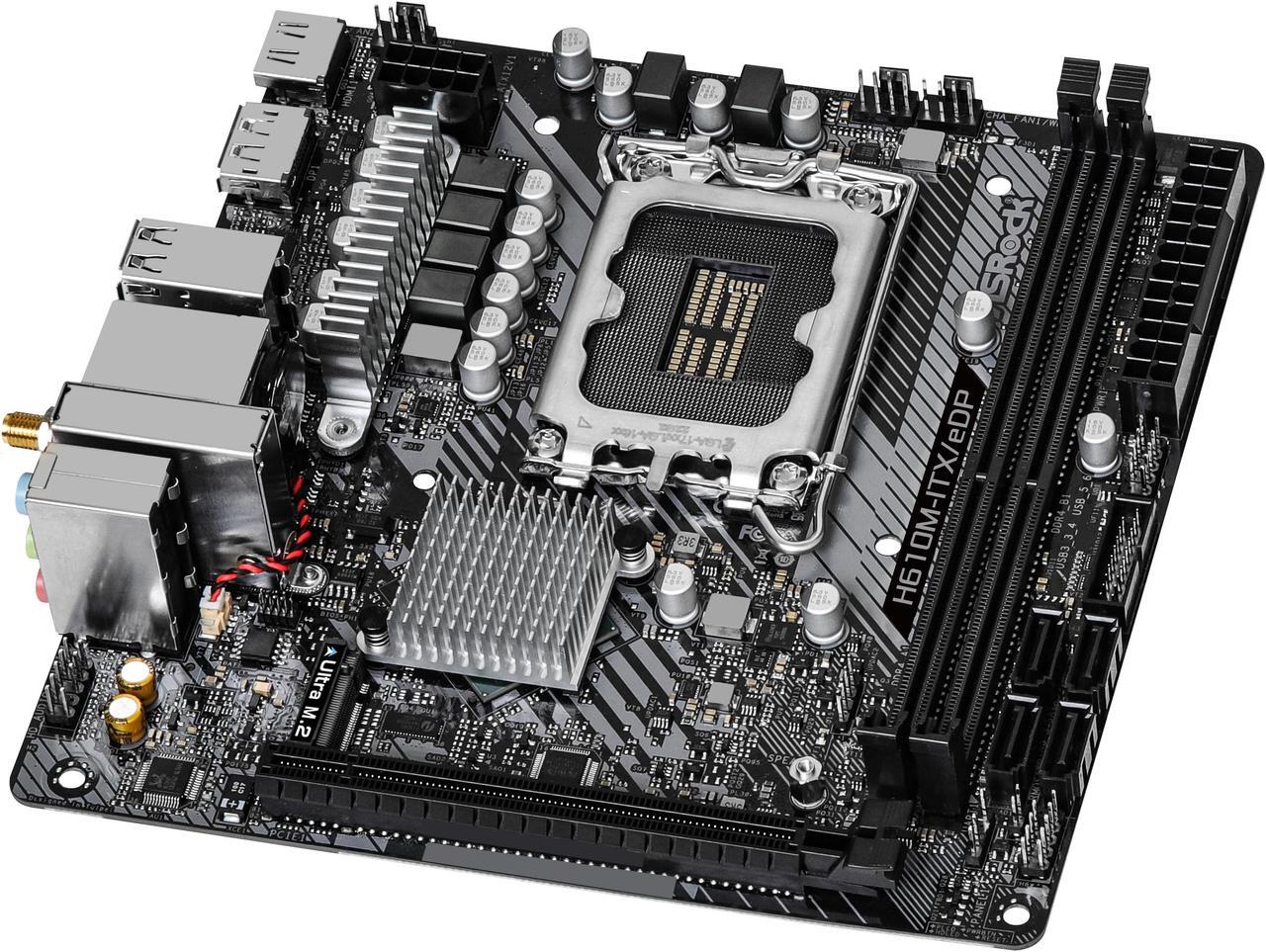

    ASRock H610M-ITX/eDP LGA 1700 Intel H610 SATA3 6Gb/s DDR4 Mini-ITX Motherboard

    (1) Write a Review
    • Supports 12th Gen Intel® CoreTM Processors (LGA1700).
    • 6 Phase Dr.MOS Power Design.
    • Supports DDR4 3200MHz: 2 x DDR4 DIMM Slot, Max. capacity of system memory: 64GB.
    • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode.
    • Graphics Output Options: HDMI, DisplayPort.
    • Realtek ALC897 7.1 CH HD Audio Codec.
    • 4 x SATA3 6.0 Gb/s Connectors.
    • 1 Ultra M.2 (PCIe Gen3 x4 & SATA3).
    • 4 USB 3.2 Gen1 (2 Front, 2 Rear).
    • 6 USB 2.0 (2 Front, 4 Rear).
    • Intel® Gigabit LAN: Better performance, lowered CPU utilization and enhanced stability.
    • Intel® 802.11ac WiFi + Bluetooth 5.1.
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Specs
    Reviews (1)

    Learn more about the ASRock H610M-ITX/EDP

    Model
    Brand ASRock
    Model H610M-ITX/EDP
    Supported CPU
    CPU Socket Type LGA 1700
    CPU Type Celeron / Core i3 / Core i5 / Core i7 / Core i9 / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
    Chipsets
    Chipset Intel H610
    Onboard Video
    Onboard Video Chipset Intel Iris Xe Graphics
    Memory
    Number of Memory Slots 2x288pin (DDR4)
    Memory Standard DDR4 3200
    Maximum Memory Supported 64GB
    Channel Supported Dual Channel
    Expansion Slots
    PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*

    * Supports NVMe SSD as boot disks
    Storage Devices
    SATA 6Gb/s 4 x SATA 6Gb/s **

    ** If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
    M.2 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*

    * Supports NVMe SSD as boot disks
    * Supports ASRock U.2 Kit
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Intel I219V
    Max LAN Speed 1Gbps
    Wireless LAN Wi-Fi 802.11 ac
    Bluetooth Bluetooth 5.1 + High speed class II
    Rear Panel Ports
    Back I/O Ports 2 x Antenna Ports
    1 x HDMI Port
    1 x DisplayPort 1.4
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    4 x USB 2.0 Ports (Supports ESD Protection)*
    * CNVi BT shares bandwidth with the top USB 2.0 port (USB_1). When CNVi BT is used, USB_1 becomes unavailable.
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
    Other Connectors 1 x eDP Signal Connector
    1 x CPU Fan Connector (4-pin)
    * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    1 x Chassis Fan Connector (4-pin)
    * The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.
    1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
    1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector
    1 x Front Panel Audio Connector
    Software Feature
    Windows 11 Supported
    Physical Spec
    Form Factor Mini ITX
    Packaging
    Package Contents Quick Installation Guide, Support CD, I/O Shield
    2 x SATA Data Cables
    2 x ASRock WiFi 2.4/5 GHz Antennas
    1 x Screw for M.2 Socket
    Additional Information
    Date First Available May 20, 2025
