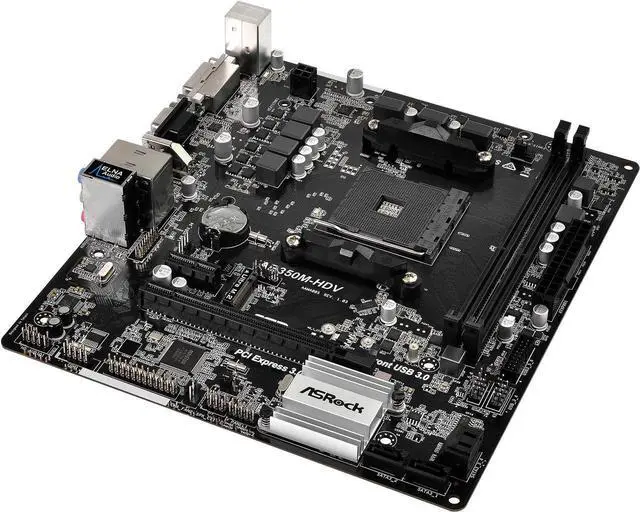

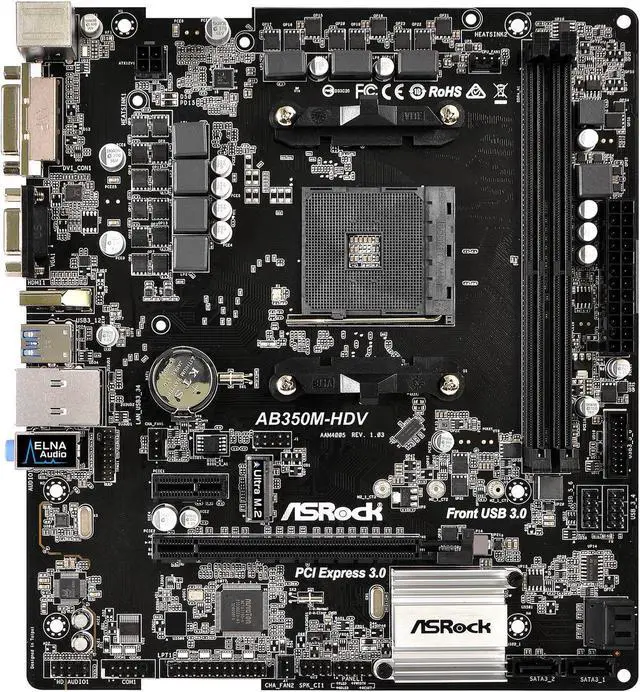

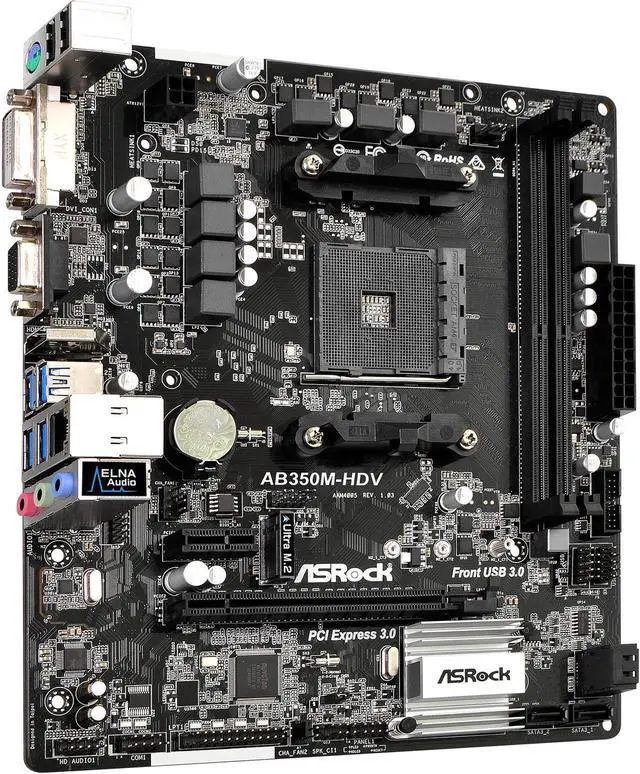

ASRock AB350M-HDV Socket AM4/AMD B350/DDR4/SATA3&USB3.0/M.2/A&GbE/MicroATX Motherboard. Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen./Series CPUs (Summit Ridge)/Digi Power design/7 Power Phase design/Supports CPU up to 65W.
Learn more about the Detailed Specifications
Model
Brand
ASRock
Supported CPU
CPU Socket Type
AM4
CPU Type
Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge and Raven Ridge)
Chipsets
Chipset
AMD Promontory B350
Memory
Number of Memory Slots
2x288pin (DDR4)
Memory Standard
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 ECC & non-ECC, un-buffered memory*
*Please refer to Memory Support List on ASRock's website for more information.
Maximum Memory Supported
32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported
Dual Channel
Expansion Slots
PCI Express 3.0 x16
AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs/ Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* * Supports NVMe SSD as boot disks
PCI Express x1
1 x PCI Express 2.0 x1 Slot
Storage Devices
Serial ATA (SATA)
4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with A-Series APU)*
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* Integrated AMD Radeon R-Series Graphics in A-series APU* DirectX 12, Pixel Shader 5.0 Max. shared memory 4GB Three graphics output options: D-Sub, DVI-D and HDMI Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D and HDMI Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
*Actual support may vary by CPU
Onboard Audio
Audio Chipset
Realtek ALC887
Audio Channels
7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Onboard LAN
LAN Chipset
Realtek RTL8111GR
Max LAN Speed
1Gbps

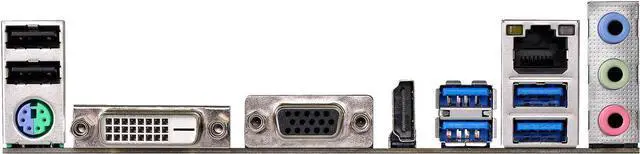

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
Video Ports
1 x D-Sub Port 1 x DVI-D Port
HDMI
1 x HDMI
RJ45
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0
2 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports
HD Audio Jacks: Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Physical Spec
Form Factor
Micro ATX
Dimensions (W x L)
9.1" x 8.1"
Power Pin
1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector
