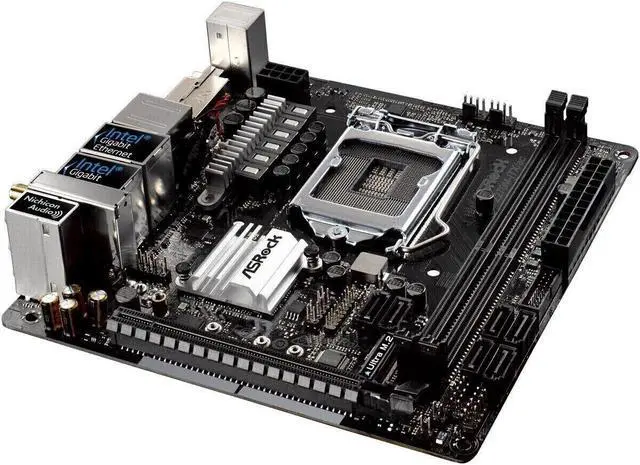

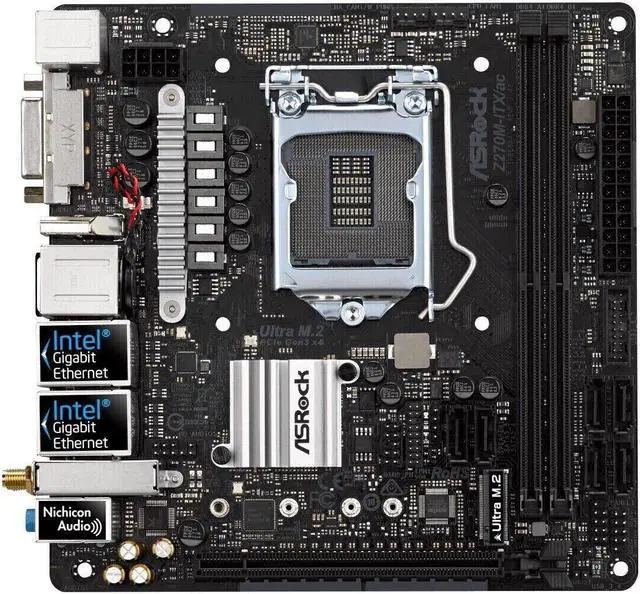

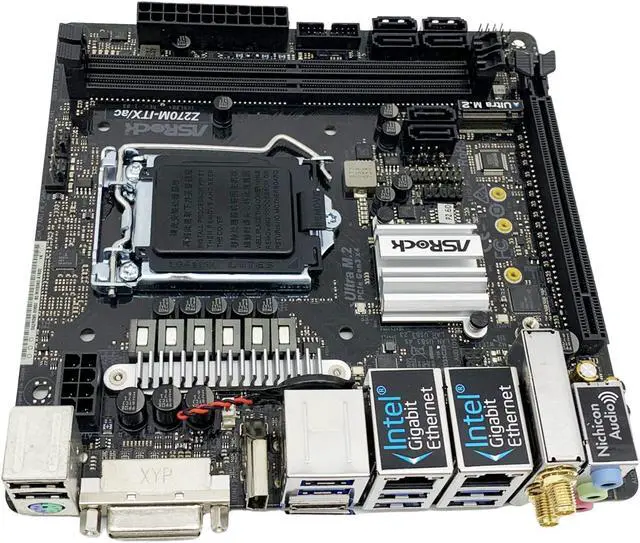

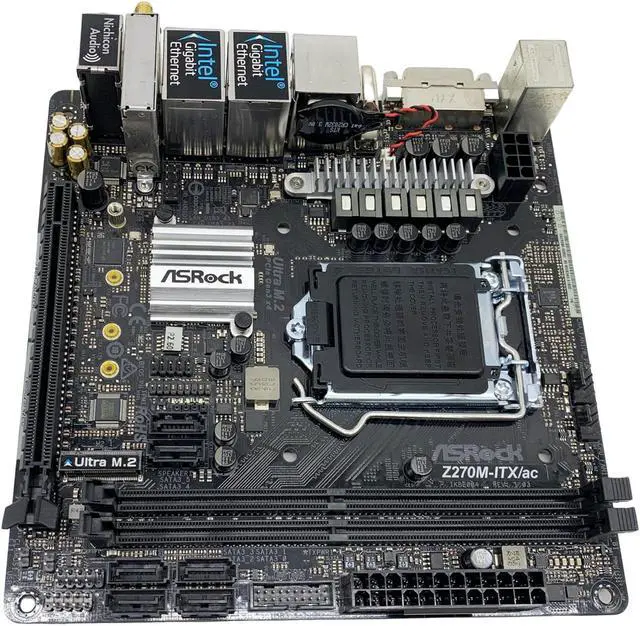

ASRock Z270M-ITX/ac Motherboard Mini-ITX Intel Z270 LGA1151 DDR4 32GB SATA3 M.2 HDMI DVI WiFi Bluetooth+I/O

CPU
- Supports 7th and 6th Generation Intel Core i7 / i5 / i3 / Pentium/ Celeron Processors (Socket 1151)
- Digi Power design
- 6 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® K-Series unlocked CPUs
- Supports ASRock BCLK Full-range Overclocking

Chipset
- Intel Z270

Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- Supports DDR4 3733+ (OC) */3600 (OC) /3200 (OC) /2933 (OC) /2800 (OC) /2400**/2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB***
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15 Gold Contact in DIMM Slots
*3733+ (OC) memory frequency can only be achieved when a single memory module is installed (Single channel memory).
Please refer to Memory Support List on ASRock's website for more information.
**7th Gen Intel CPU supports DDR4 up to 2400; 6th Gen Intel CPU supports DDR4 up to 2133.
***Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
- 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT_CPU, DRAM, PCH 1.0V Voltage Multi-adjustment

Graphics
- Supports Intel HD Graphics Built-in Visuals: Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel HD Graphics
- Gen9 LP, DX 11.3, DX12
- HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (For 7th Gen Intel CPU)
- HWA Encode/Decode: VP8, HEVC 8b;
GPU/SW Encode/Decode: VP9, HEVC 10b (For 6th Gen Intel CPU)
- Max. shared memory 1024MB**
- Three graphics output options: DVI-D port and 2 x HDMI ports
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
*Intel HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
**The size of maximum shared memory may vary from different operating systems.
***Due to chipset limitation, the Blu-ray playback of Intel® HD Graphics is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.
****Intel® InTru 3D is only supported under Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) *
- Premium Blu-ray Audio support
- Supports Surge Protection (ASRock Full Spike Protection)
- Nichicon Fine Gold Series Audio Caps
*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

LAN
- Gigabit LAN 10/100/1000 Mb/s
- 1 x Giga PHY Intel I219V, 1 x GigaLAN Intel I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports Dual LAN with Teaming
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE

Wireless LAN
- Intel 802.11 ac WiFi Module (Free Bundle)
- Supports IEEE 802.11 a/b/g/n/ac
- Supports Dual-Band ( 2.4 /5 GHz)
- Supports high speed wireless connections up to 433Mbps
- Supports Bluetooth 4.0 / 3.0 + High speed class II

Slots
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
- 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac module (on the rear I/O)
*Supports NVMe SSD as boot disks.

Storage
- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15 and Intel Smart Response Technology), NCQ, AHCI and Hot Plug*
- 1 x Ultra M. 2 Socket, supports M Key type 2230/2242/2260/2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s)**
*If M2_1 is occupied by a SATA-type M. 2 device, SATA3_0 will be disabled.
**Supports Intel Optane Technology.
Supports NVMe SSD as boot disks.
Supports ASRock U. 2 Kit.

Connector
- 1 x TPM Header
- 1 x Chassis Intrusion Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) **
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection) )
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection (ASRock Full Spike Protection) )
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**The Chassis Optional/Water Pump Fan can auto detect if 3-pin or 4-pin fan is in use.
The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.

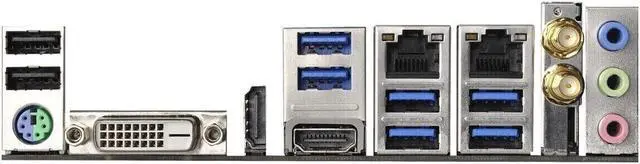

Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x DVI-D Port
- 2 x HDMI Ports
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection) )
- 6 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection) )
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar

Hardware Monitor
- Temperature Sensing: CPU, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by
CPU temperature): CPU, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis Optional/Water Pump Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore

Form Factor
- Mini-ITX Form Factor: 6.7 -in x 6.7 -in, 17.0 cm x 17.0 cm

OS
- Microsoft® Windows® 10 64-bit (For 7th Gen Intel® CPU)
- Microsoft® Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit (For 6th Gen Intel® CPU)*

Package Included:

1PCS ASRock Z270M-ITX/ac Motherboard Mini-ITX
1PCS I/O Shield Backplane
2PCS SATA Cable
