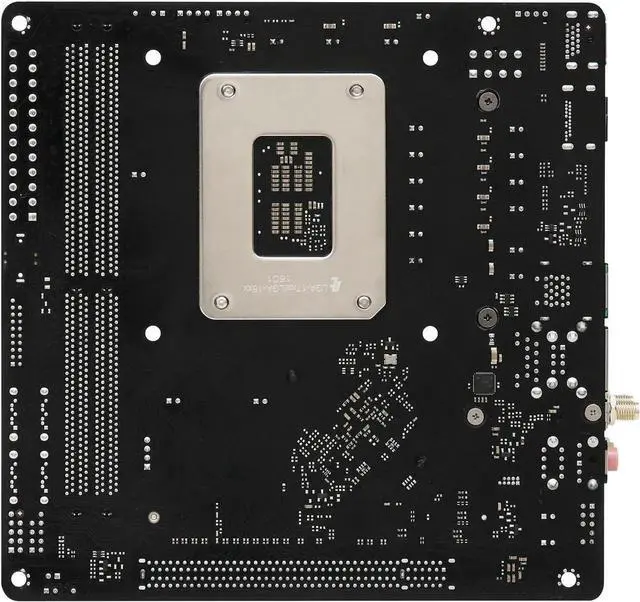

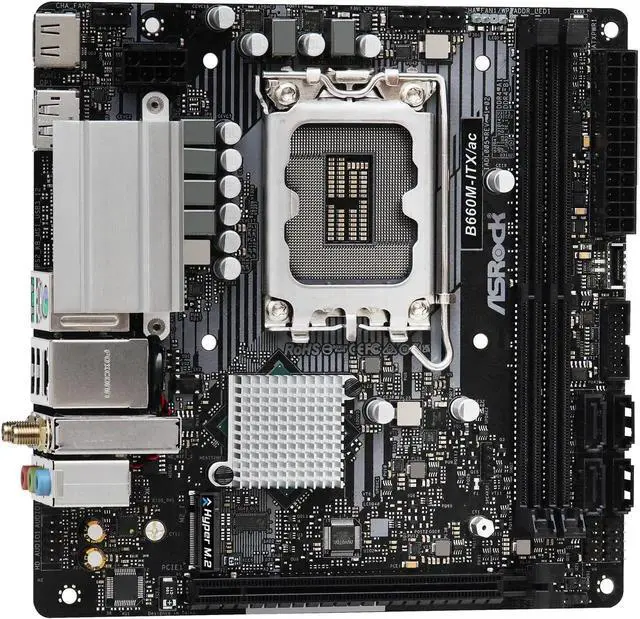

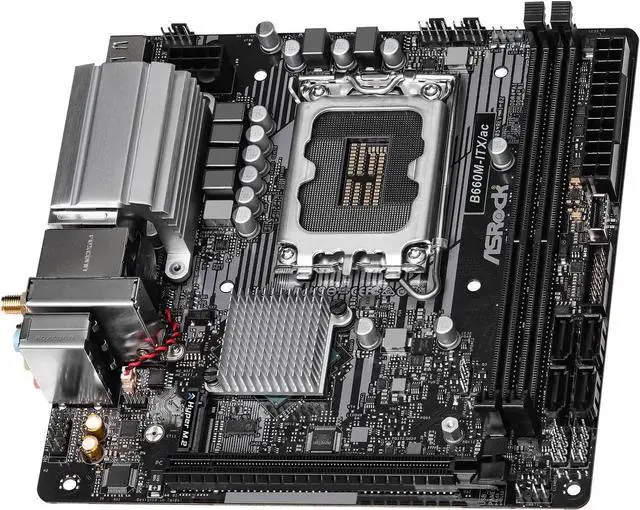

ASRock B660M-ITX/AC LGA 1700 Intel B660 SATA 6Gb/s DDR4 Mini ITX Motherboard
REFURBISHED Product Type
- Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
- 6 Phase Dr.MOS Power Design
- Supports DDR4 5000MHz (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)
- 5 USB 3.2 Gen1 (2 Front + 1 Front Type-C, 2 Rear)
- 4 USB 2.0 (2 Front, 2 Rear)
- Intel Gigabit LAN
- Intel 802.11ac WiFi + Bluetooth
- *May require a BIOS update to boot the 13th gen Intel® Core desktop processors.*
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ASRock B660M-ITX/AC

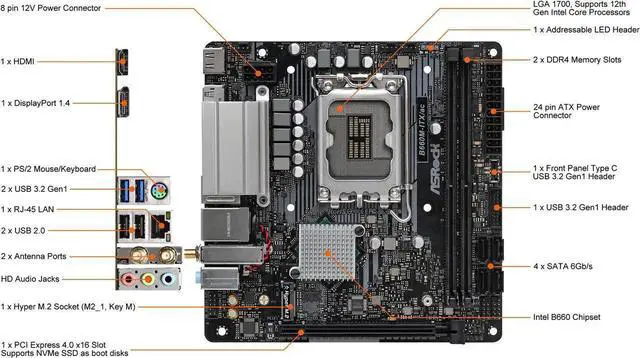

| Brand | ASRock |
|---|---|
| Model | B660M-ITX/AC |
| CPU Socket Type | LGA 1700 * Dedicated LGA1700 mounting bracket is required. |
|---|---|
| CPU Type | Supports 13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors *May require a BIOS update to boot the 13th gen Intel® Core™ desktop processors.* |
| Supported CPU Technologies | Turbo Boost Technology 3.0 |
| Chipset | Intel B660 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 5000+(OC)* * Supports DDR4 3200 natively. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 1 x PCI Express 4.0 x16 * Supports NVMe SSD as boot disks. |
|---|---|
| Other Slots | 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi (Integrated WiFi/BT) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s* * If M2_1 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled. |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes* * Supports Intel Optane Technology. * Supports Intel Volume Management Device (VMD). * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | 802.11ac WiFi Module IEEE 802.11a/b/g/n/ac |
| Bluetooth | Yes |

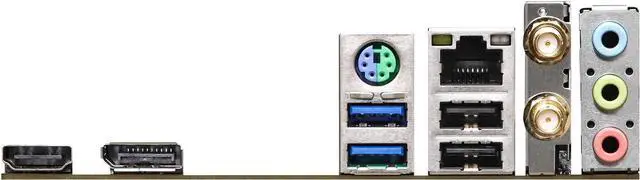

| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x Addressable LED Header * Supports in total up to 5V/3A, 15W LED Strip. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x Chassis Fan Connector (4-pin) * The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power. 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector |
| Windows 11 | Ready |
|---|
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector |
| Features | Unique Feature: ASRock Super Alloy - Premium Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB 802.11ac WiFi ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS Feature: - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +1.8V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version) Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Polychrome SYNC - ASRock XFast LAN * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer Hardware Monitor: - Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans - Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V, +1.05V PCH OS: - Microsoft Windows 10 64-bit / 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| First Listed on Newegg | November 28, 2025 |
|---|
